Model #
1370AFGACi; 1370AFCAFi

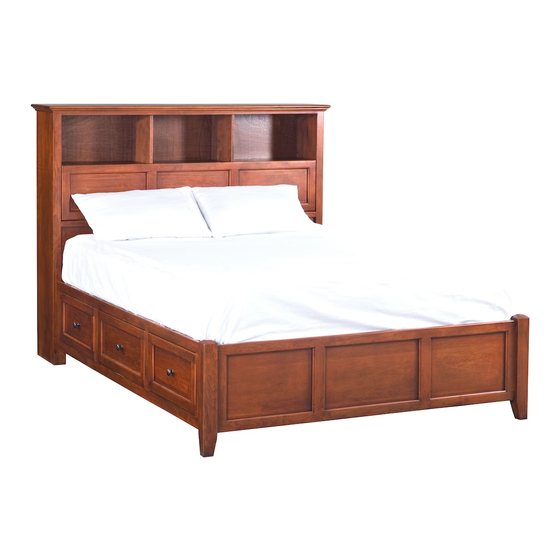

McKenzie Queen Bookcase Storage Bed
AFGAC = Glazed Antique Cherry finish
AFCAF = Caffè finish
Assembly Instructions
Congratulations!
This fine piece of furniture will make a gorgeous addition to
your home. For the best results, read the Assembly
Instructions before you begin your project.
Service Policy: We will replace any part that is defective,
missing or damaged during assembly. For a replacement
part, directly contact Whittier Wood Products customer
service department by phone, fax, mail or email.
Hours: Our friendly customer service staff can be reached
Monday-Friday 7:00 a.m. to 5:00 p.m. (Pacific Time). You
may leave a message 24 hours a day, seven days a week.
800-653-3336 • Outside the U.S. or Canada: 541-687-0213 • Fax: 541-687-2060
CALL US FIRST! Do not return this item to the store
www.whittierwood.com • P.O. Box 2827 • Eugene, Oregon 97402, U.S.A.
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for
commercial use.
• Unload items before you move this unit.
• Before you load or move this unit, tighten all screws
and supports.
• Do not overload the concealed storage areas.
• Do not overload the drawers.
• Before you begin your project, completely read the
Assembly Instructions.
• Store this item: 1- in its box; 2- in a dry place; 3- in
temperatures that range from 40°F to 90°F (not on a cold
and possibly damp cement floor).
• Periodically inspect your furniture for any loose glue
joints, screws or any other problem that might affect the
stability of your furniture. Tighten or repair as needed.
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
To Order: Provide the finish and furniture model number
(upper portion of this page), the part letter, production
code, quantity needed, reason for replacement and your
full name, address and telephone number.
Parts ship from our Eugene, Oregon factory within one or
two business days from the time we receive your request.
Please allow five to ten business days for delivery.
Production Code:
VN
11/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood Furniture McKenzie 1370AFGACi
Summary of Contents for Whittier Wood Furniture McKenzie 1370AFGACi
- Page 1 Model # 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed AFGAC = Glazed Antique Cherry finish AFCAF = Caffè finish Assembly Instructions IMPORTANT NOTES: • For normal household use only. Not recommended for commercial use. • Unload items before you move this unit. •...
-
Page 2: Parts List
1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. 1372AFGACi; 1372AFCAFi Headboard Kit (x1) Part Description Quantity... - Page 3 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Parts List Part Description Quantity #8 x 2-1/4" Black Screw (inserted) #8 x 1" Black Screw (inserted) Left Bracket (attached) Right Bracket (attached) Wire Clip Screw (attached) Tack Glide (attached) Corner Brace (attached) 1370AFGACi_1370AFCAFi —...
- Page 4 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Parts List 1373AFGACf; 1373AFCAFf Footboard Kit (x1) Part Description Quantity Footboard Assembly Trestle With T-Nuts #8 x 1-1/4" Black Screw (9 inserted) 1/4" x 1-3/4" Hex Bolt Washer Foot Assembly Adjustable Glide (installed) #6 x 1/2"...
- Page 5 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Parts List 1318AFGACd; 1318AFCAFd Pedestal Kit (x2) Part Description Quantity #8 x 1-1/4" Black Screw (inserted) Pedestal Kit Small Drawer Box (assembled) Large Drawer Box (assembled) Small Drawer Face (attached) Large Drawer Face (attached) #8 x 1-1/2"...
- Page 6 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions Tools Required: Phillips screwdriver, Slotted screwdriver, 7/16" open end or box end wrench and Tape measure. Remove the Trestles (De) and Foot Assemblies (Ue) from the backs of the Footboard (Be) and place them off to the side.
- Page 7 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions To attach the Footboard (Be) to the Pedestal Assembly (Id), align the Brackets and slide the Pedestal Assembly down on to the Footboard (Be). See Figures 3 and 3a. Fig. 3a Fig.
- Page 8 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (Ai). See Figure 5. Fig. 5 1370AFGACi_1370AFCAFi — Page 8 — 11/12...
- Page 9 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions Open the drawers. Face the Footboard and stand in between the first and second braces. Place a Trestle with T-Nuts (De) on the outside surfaces of the first upper left and right braces so that the T-Nuts (ZU) sit near the top.
- Page 10 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions Face the Headboard and stand in between the third and fourth braces. Place a Trestle with T-Nuts (De) on the outside surfaces of the third upper left and right braces so the T-nuts sit near the top.
- Page 11 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions Facing the Headboard, place two Foot Assemblies (Ue) on the inside faces of the third and fourth upper and lower Trestles. Attach with Washers (H) and 1/4" x 1-3/4" Hex Bolts (F). See Figures 8 and 8a.
- Page 12 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions Facing the Footboard, place a Foot Assembly (Ue) on the inside of the second set of Trestles and attach with four Washers (H) and four 1/4" x 1-3/4" Hex Bolts (F). See Figures 9 and 9a. Adjust all three Glides (W) found at the bottoms of the Foot Assemblies so that the Glides just touch the floor.
- Page 13 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions 10. Facing the Footboard, attach a 90º Bracket (YH) to the Pedestal Assembly to the Footboard with four #6 x 1/2" Philtruss Screws (YD). Repeat for the other side. See Figures 10 and 10a. Fig.
- Page 14 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions 11. Place your bed in its final position. Adjust all three Glides (W) found at the bottoms of the Foot Assemblies (Ue) so that the Glides just touch the floor. See Figure 11. To level the headboard, stand in the open area in between the two attached deckboards and reach through the front of the platform.
- Page 15 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions 12. To make sure the bed is square, measure the distance between opposing corners. If one of the measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 12. Fig.
- Page 16 1370AFGACi; 1370AFCAFi McKenzie Queen Bookcase Storage Bed Assembly Instructions 14. Open the Door (Rc). To adjust the brake tension on the Door Stay (ZE) turn the screw on the Door Stay Support (ZG) clockwise to loosen or counterclockwise to tighten. See Figures 14 and 14a.
