Whittier Wood Furniture 146W Instruction Sheet

Whittier Wood Furniture 146W Instruction Sheet

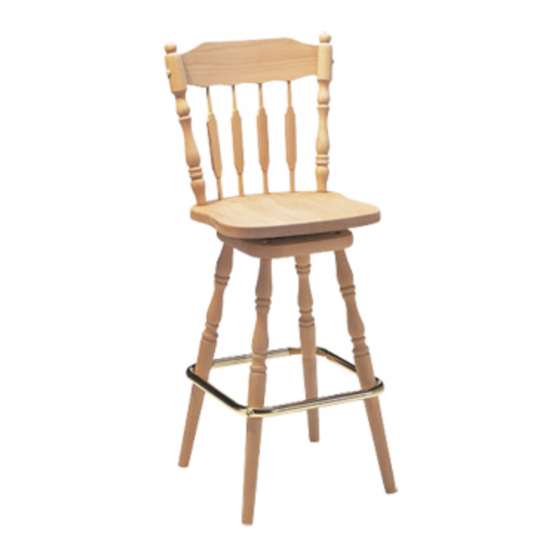

Arrowback barstool
Table of Contents
  • Notas Importantes
  • Herramientas Necesarias
  • Remarques Importantes
  • Instructions de Montage

Advertisement

Available languages

Available languages

Quick Links

This fi ne, hardwood furniture will be a handsome addition to your home. Just follow the step by step instructions.
We will replace any parts which are defective, missing or damaged during assembly.
Please contact Whittier Wood Products customer service department
If you live in the U.S. or Canada, you can reach us Toll Free at: 800-653-3336.
Faxing 541-687-2060 or writing to P.O. Box 2827, Eugene, OR-USA 97402.
Customer service personnel can be reached Monday-Friday, 7:00 am. to 5:00 p.m. Pacifi c time.
A message can be left for customer service 24 hours a day, seven days a week.
When contacting us, please provide the furniture model number,
part letter, quantity needed, reason for replacement and your full name and address along
with a telephone number in case we need to contact you.
IMPORTANT NOTES
Read instructions completely before starting assembly.
Additional sanding is recommended for enhanced beauty.
Always sand with the grain of the wood.
Read Gluing Hints before assembly with glue.
Before fi nishing, read enclosed Finishing Hints.
INSPECT YOUR FURNITURE PERIODICALLY FOR ANY LOOSE GLUE JOINTS OR SCREWS, OR ANY OTHER PROBLEM WHICH
MAY BE AFFECTING THE STABILITY OF YOUR FURNITURE. TIGHTEN OR REPAIR AS NEEDED.
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Congratulations on your choice of a Whittier Wood product.
SERVICE POLICY:
directly for replacement parts.
All other customers can reach us by calling 541-687-0213,
INSTRUCTION SHEET FOR READY-TO-ASSEMBLE
Arrowback
146W
Barstool
Do not climb, or stand on
this piece of furniture.
For normal household use only.
recommended for
commercial use.
Rev. 2/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 146W and is the answer not in the manual?

Questions and answers

Summary of Contents for Whittier Wood Furniture 146W

  • Page 1 INSTRUCTION SHEET FOR READY-TO-ASSEMBLE 146W Arrowback Barstool Do not climb, or stand on this piece of furniture. For normal household use only. recommended for commercial use. Congratulations on your choice of a Whittier Wood product. This fi ne, hardwood furniture will be a handsome addition to your home. Just follow the step by step instructions.
  • Page 2: Tools Required

    146W Arrowback Barstool TOOLS REQUIRED: Hammer, Rubber Mallet (optional), 1/8" Drill Bit, Drill, Phillips Head Screwdriver & Wood Glue. BEFORE BEGINNING ASSEMBLY, check that the quantities of the parts received match those on parts list below. PART DESCRIPTION QTY. PART DESCRIPTION QTY.
  • Page 3 FIG. 3 FIG. 4 TO SECURE THE BACK: 4) Screw a #8 x 1¾" pan head screw (K) through the hole in each back post (E) into each end of the back (D). Rubbing a little soap on the screw threads will help them go in more easily. Tighten the screws until the back and back posts are pulled together securely.
  • Page 4 FIG. 6 TO ATTACH THE SWIVEL TO THE DISC: 7) The top of the swivel is marked “FRONT” for your convenience. Turn the top of the swivel 1/8 turn in relation to the bottom of the swivel. Center the swivel (H) on the disc (B) lining up the screw holes in the swivel with the indentation marks on the disc.
  • Page 5: Notas Importantes

    HOJA DE INSTRUCCIONES PARA ARMADO INMEDIATO 146W Taburete de Bar Arrowback Sólo para uso doméstico normal. No se suba ni se pare No se recomienda para uso comercial. sobre este mueble. Felicitaciones por haber seleccionado un mueble de madera Whittier. Este bello mueble de madera dura se convertirá...
  • Page 6: Herramientas Necesarias

    146W Taburete de Bar Arrowback HERRAMIENTAS NECESARIAS: Mazo de caucho o martillo, taladro y barrena de 1/8", destornillador phillips, pegamento para madera. INSTRUCCIONES PARA ARMAR INSERTE LAS CUÑAS: IMPORTANTE: 5) Coloque la silla boca abajo. Asegúrese de proteger la parte supe- ¡LEA LOS CONSEJOS SOBRE...
  • Page 7: Remarques Importantes

    FEUILLE D’INSTRUCTIONS POUR MEUBLE PRÊT À ASSEMBLER 146W Tabouret de bar Arrowback Pour usage ménager normal seulement. Ne pas monter ni se mettre debout N’est pas recommandé pour usage sur cet article d’ameublement. commercial. Félicitations pour votre choix. Ce meuble Whittier, en bois dur de qualité, ajoutera une touche d’élégance à...
  • Page 8: Instructions De Montage

    146W Tabouret de bar Arrowback Outils nécessaires : Maillet en caoutchoue ou marteau, foret et mèche de 3/32 po, tournevis cruciforme, cole à bois. INSTRUCTIONS DE MONTAGE petite quantité de colle sur les extrémités effi lées des coins en IMPORTANT : bois (L), puis enfoncez les coins au moyen d’un marteau dans les...
