vollara FRESH AIR CUBE Manual

Electronic air purifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

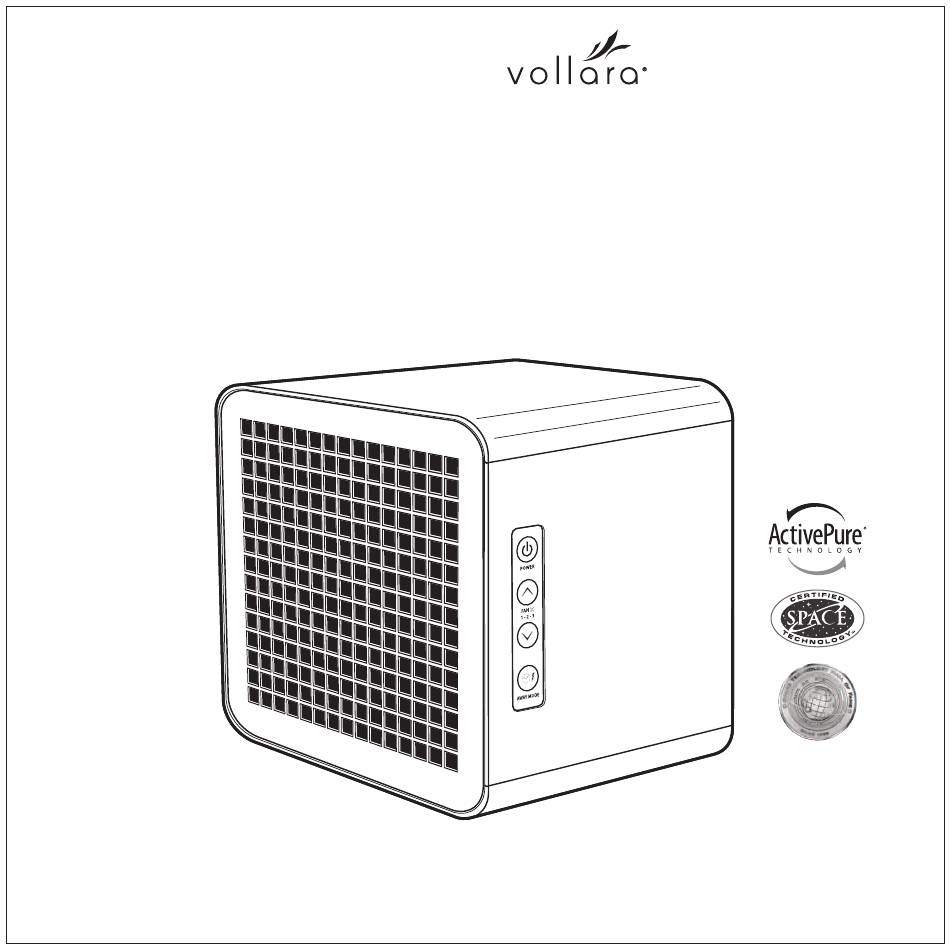

FRESH
AIR
CUBE
PURIFIES UP TO 1,500 SQUARE FEET
Electronic Air Purifier
READ MANUAL CAREFULLY FOR PROPER PROCEDURES AND OPERATION.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRESH AIR CUBE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for vollara FRESH AIR CUBE

Summary of Contents for vollara FRESH AIR CUBE

  • Page 1 FRESH CUBE PURIFIES UP TO 1,500 SQUARE FEET Electronic Air Purifier READ MANUAL CAREFULLY FOR PROPER PROCEDURES AND OPERATION.
  • Page 2 WELCOME Congratulations on your new FreshAir Cube Your FreshAir Cube comes with a detachable power cord (9950099) and remote control (9950100). ________________________________________ ________________________________________ Vollara Independent Business Owner Name Phone Number...
  • Page 3 INTRODUCTION Meet your FreshAir Cube control pad rear filter rear cover front grill power in...
  • Page 4 PLACEMENT Where to put your FreshAir Cube For best results, place your FreshAir Cube as high up as possible, with at least 2 inches of clearance on either side. You can also place your FreshAir Cube in trouble areas for extra effectiveness. CAUTION: Do not operate the FreshAir Cube near heat source, open flames, or combustible vapors or gases.

  • Page 5: Power Supply

    POWER SUPPLY Plug power supply into the back of the FreshAir Cube and into a standard wall outlet. SPECIFICATIONS Electrical: Size: • 100 - 240VAC • Dimensions: 85203-CHN-001 6.5” wide x 6.5” high x 7” deep • 21 watts power consumption (16.5cm wide x 16.5cm high x 17.8cm deep) •...
  • Page 6 CONTROL PAD AND LED LIGHTS on/off power The control pad is conveniently located fan speed + on the right side of your FreshAir Cube fan speed - green & red LED away mode Red LED solid = Away Mode (returns to Normal Mode after 2 hours or user input is detected, whichever comes first) Green LED solid = scalable ozone setting...
  • Page 7 CONTROL PAD INFORMATION Operating your FreshAir Cube control panel Press the POWER button to turn the unit on and off. Press the FAN buttons to adjust the 3 speed fan. Push the “AWAY MODE” button once and the unit will go into Away Mode. Indicator light will be illuminated red.

  • Page 8: Remote Control

    REMOTE CONTROL on/off power + fan speed Away Mode - fan speed The FreshAir Cube remote control gives you the convenience of control from anywhere in the room. Before use, remove paper tab from the bottom of the remote. When replacing battery, choose a 3 Volt lithium cell CR2025.
  • Page 9 ActivePure® (RCI) Cell 9950096 9950098 9950097 power cord 9950099 shown with rear cover removed remote control 9950100 If your unit fails to operate properly or you have questions, contact your Vollara Independent Business Owner for further assistance.

  • Page 10: Maintenance

    MAINTENANCE Caring for your FreshAir Cube every month every year every 3 years part numbers clean front grill clean rear filter 9950098 clean purifier plate 9950096 replace ActivePure (RCI) Cell 9950097 replace purifier plate 9950096 Upkeep Periodically vacuum or wipe the front grill with a soft towel.
  • Page 11 REPAIR AND UPKEEP How to change the cell Unplug unit. (1) Remove the back panel screws and (2) back panel. (3) Press latches and (4) ® unplug the power connector to the ActivePure (RCI) Cell. (5) Pull the ActivePure Cell straight out to remove. Reverse order to replace cell. CAUTION: Always unplug the power cord from the back of your FreshAir Cube before servicing.
  • Page 12 REPAIR AND UPKEEP How to change purifier plate Unplug unit. (1) Remove the back panel screws and (2) back panel. (3) Press latches and (4) unplug the power connector to the purifier plate. (5) Remove the purifier plate from its slot. Reverse order to replace purifier plate. CAUTION: Always unplug the power cord from the back of your FreshAir Cube before servicing.
  • Page 13 REPAIR AND UPKEEP How to clean the purifier plate Unplug unit. (1) Remove the back panel screws and (2) back panel. (3 - 5) Remove the purifier plate from its slot. (6) Clean purifier plate by wiping with a cotton swab dipped in denatured alcohol.

  • Page 14: Deep Cleaning

    DEEP CLEANING How to disassemble your FreshAir Cube for cleaning Unplug unit. (1) Remove back cover. (2) Remove ActivePure Cell (see page 11). (3) Remove purifier plate (see page 12). (4) Remove the four front grill screws and the front grill.

  • Page 15: Limited One (1) Year Warranty

    LIMITED ONE (1) YEAR WARRANTY Customer should not repackage and ship the FreshAir Cube unit due to possibility of irreparable damage. For warranty service, please contact your Independent Distributor or Vollara Customer Service for the address of the nearest service center.

  • Page 16: Fcc Declaration Of Conformity

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 65-00733 VA-01268 Consult the Distributor or an experienced radio/ © 2018 Vollara, LLC. All Rights Reserved. TV technician for help. FAC_OM_65-00733_VA-01268_1018...
