Summary of Contents for vollara FRESHAIR BOX

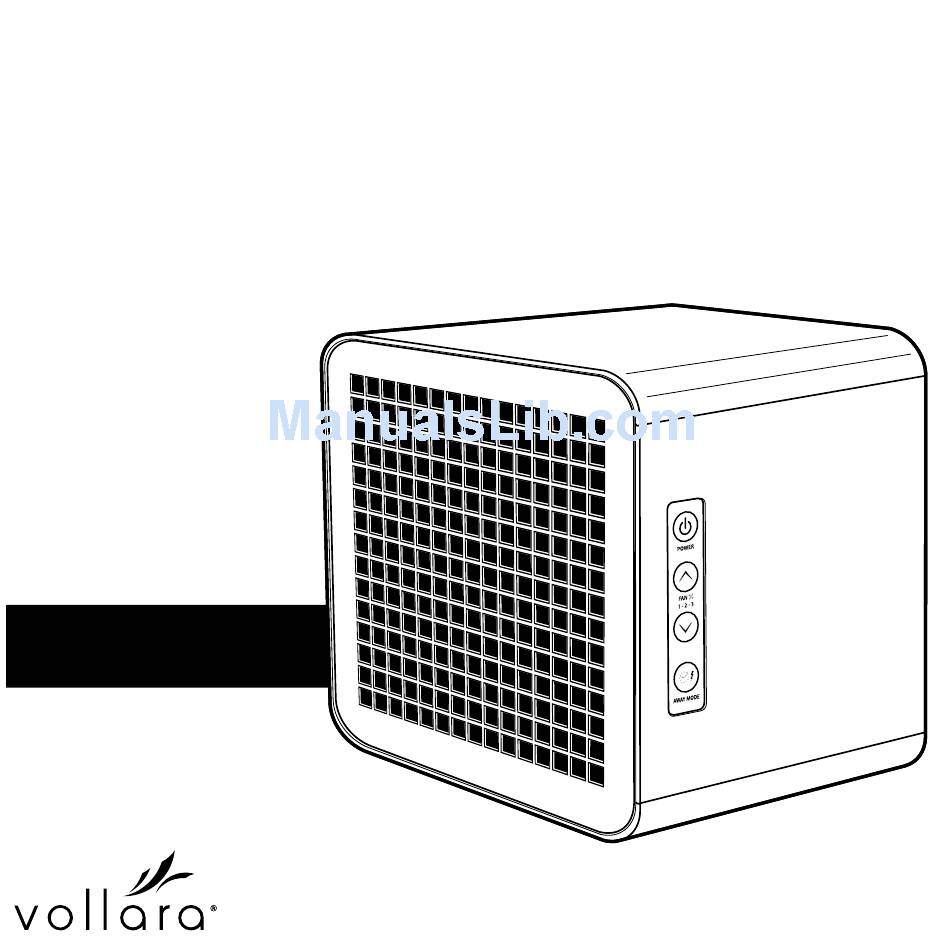

- Page 1 FRESHAIR PURIfIES UP TO 1500 SqUARE fEET USER’S MANUAL CAUTION: Read manual carefully for proper procedures and operation.
- Page 2 Congratulations on your new FreshAir Box Your FreshAir Box comes with a detachable power cord (9950099) and remote control (9950100). ________________________________________ ________________________________________ Vollara Independent Business Owner Name Phone Number...
- Page 3 IntROductIOn Meet your FreshAir Box control pad rear filter rear cover front grill power in...
- Page 4 2 inches of clearance on either side. You can also place your FreshAir Box in trouble areas for extra effectiveness. caution: Do not operate the Freshair Box near heat source, open flames, or combustible vapors or gases.
-
Page 5: Power Supply
Supply Plug power supply into the back of the FreshAir Box and into a standard wall outlet. SpEcIFIcAtIOnS Electrical: Size: • 100 - 240v AC • Dimensions: 16.5cm wide x 16.5cm high x 17.8cm deep • 21 watts power consumption •... - Page 6 The control pad is conveniently located fan speed + on the right side of your FreshAir Box fan speed - green & red LED away mode Red LED solid = Away Mode (returns to Normal Mode after 2 hours or user...
- Page 7 When the unit is in the Scalable Ozone Mode, the indicator light will be illuminated green. In the Scalable Ozone Mode, the freshAir Box unit will operate in a 20%-on, 80%-off mode, over a one minute total cycle time. This means the unit will continuously cycle the ozone plate on, at maximum output, for 12 seconds and then transition to ozone plate off for 48 seconds ...
-
Page 8: Remote Control
Away Mode - fan speed The FreshAir Box remote control gives you the convenience of control from anywhere in the room. Before use, remove paper tab from the bottom of the remote. When replacing battery, choose a 3 Volt lithium cell CR2025. -
Page 9: Replacement Parts
ActivePure (RCI) cell ® 9950098 9950096 9950097 power cord 9950099 shown with rear cover removed remote control 9950100 If your unit fails to operate properly or you have questions, contact your Vollara Independent Business Owner for further assistance. -
Page 10: Maintenance
Freshair Box according to these instructions may damage the unit or cause the unit to operate incorrectly. caution: always unplug the power cord from the back of your Freshair Box before servicing. Removing cover may expose ultraviolet light source. to protect... - Page 11 ® (5) Pull the ActivePure cell straight out to remove. Reverse order to replace cell. caution: always unplug the power cord from the back of your Freshair Box before servicing. Removing cover may expose ultraviolet light source. to protect against eye damage, always unplug before servicing.
- Page 12 (3) Press latches and (4) unplug the power connector to the purifier plate. (5) Remove the purifier plate from its slot. Reverse order to replace purifier plate. caution: always unplug the power cord from the back of your Freshair Box before servicing. Removing cover may expose ultraviolet light source. to...
- Page 13 (6) Clean purifier plate by wiping with a cotton swab dipped in denatured alcohol. Allow purifier plate to dry completely before reinstalling. caution: always unplug the power cord from the back of your Freshair Box before servicing. Removing cover may expose ultraviolet light source. to protect...
-
Page 14: Deep Cleaning
(see page 12). (4) Remove the four front grill screws and the front grill. You can now access the inside of the unit and the fan for cleaning. caution: always unplug the power cord from the back of your Freshair Box before servicing. Removing cover may expose ultraviolet light source. to protect... -
Page 15: Fcc Declaration Of Conformity
Fcc dEclARAtIOn OF cOnFORmIty This equipment has been tested and found to Name: Vollara Co. Ltd. comply with the limits for Industrial, Scientific, Model: FreshAir Box and Medical Equipment (ISM), pursuant to This device complies with Part 18 of the FCC Rules. These limits are Part 18 of the FCC Rules. -
Page 16: Limited One (1) Year Warranty
OnE (1) yEAR wARRAnty Customer should not repackage and ship the FreshAir Box unit due to possibility of irreparable damage. For warranty service, please contact your Independent Distributor for the address of the nearest service center. mISSInG SERIAl numBERS & unAutHORIZEd cHAnnElS...
