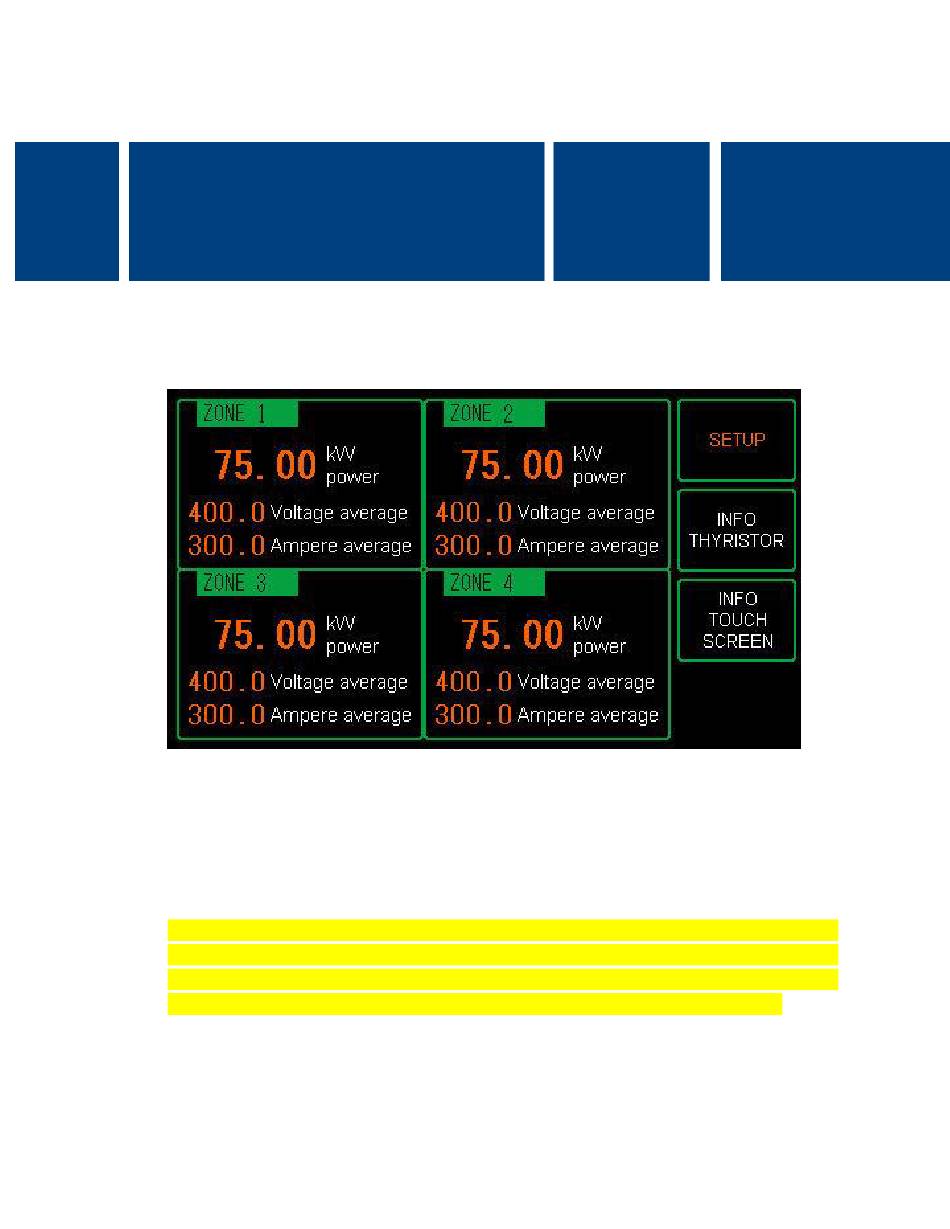

Engineering manual
REVO C / REVEX service terminal
PLEASE READ THIS MANUAL BEFORE ATTEMPTING TO CONNECT
AND/OR SWITCHING POWER ON THE MODULES. THIS DOCUMENT
CONTAINS VERY IMPORTANT INFORMATION THAT WILL PREVENT
WRONG CONNECTIONS THAT CAN CAUSE DAMAGE TO THE UNITS.
REVO C/REVEX Service Panel Engineering Manual V1.0
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REVO C and is the answer not in the manual?

Questions and answers

Related Manuals for Cascade REVO C

Summary of Contents for Cascade REVO C

  • Page 1 PLEASE READ THIS MANUAL BEFORE ATTEMPTING TO CONNECT AND/OR SWITCHING POWER ON THE MODULES. THIS DOCUMENT CONTAINS VERY IMPORTANT INFORMATION THAT WILL PREVENT WRONG CONNECTIONS THAT CAN CAUSE DAMAGE TO THE UNITS. REVO C/REVEX Service Panel Engineering Manual V1.0 Page 1...
  • Page 2 Thank you for choosing the “REVO C/REVEX service terminal” This manual should enable you to use your machine to full satisfaction. Every effort has been made to provide you with maximum performance, ergonomics and benefits from this premium quality product.
  • Page 3 REVO C/REVEX power module (1, 2 or 3 phase versions) Care has been taken for the correctness of this manual. When there should be errors in this manual, CasCade, nor her employees, can be held responsible for any consequential damage that could be caused by this.

  • Page 4: Table Of Contents

    Touchscreen introduction Touchscreen maintenance Touchscreen cleaning 1. CONNECT REVO C/REVEX MODULE AND GP-4116 screen 1.1 Connect communication cable between REVO C/REVEX and GP4116. 1.5 Connect power to GP-4116 2. CONFIGURING THE REVO C/REVEX COMMUNICATION PORT SETTINGS 3. SETUP of GP4116 touchpanel REVO C/REVEX Service Panel Engineering Manual V1.0...

  • Page 5: Read This First

    Printed in green. Warning: Read these important messages before executing the desired operation. Printed in red. Warning: Read these important messages before executing the desired operation. Printed in red. REVO C/REVEX Service Panel Engineering Manual V1.0 Page 5...

  • Page 6: Touchscreen Introduction

    IMPORTANT - READ THIS FIRST Never operate a machine until you have fully understood it’s safe working conditions and operating principles. Never operate the machine unless you are authorized to do so REVO C/REVEX Service Panel Engineering Manual V1.0 Page 6...

  • Page 7: Touchscreen Cleaning

    Special, disposable front cover protection sheets that will reinforce and protect your touch screen, are available through your dealer. Never use solvents (e.g. thinner, tri, turpentine) hot water, soda, abrasives or other aggressive matter for cleaning. REVO C/REVEX Service Panel Engineering Manual V1.0 Page 7...

  • Page 8: Connect Revo C/Revex Module And Gp-4116 Screen

    1.1 Connect communication cable between REVO C/REVEX and GP4116. You can connect the RS485 modbus communication cable between the REVO C M5 port and the GP4116 COM1 connector. REVO C: M5 point 9=B and M1 point A+ (white wire to GP4116) and M1 point B- (brown wire to GP4116)
  • Page 9 For good EMC/EMI immunity, use a Lapp RS-485 modbus communication cable that is 120ohm impedance corrected. Use Lapp Unitronic bus LD 2x2x0.22 article number 2170204. You can order per meter at Conrad electronic. REVO C/REVEX Service Panel Engineering Manual V1.0 Page 9...
  • Page 10 Please also note the red and blue wires that are bridging signals on the GP-4116 connector. For completeness here an extra informative picture from the Pro-face manual. You see here a description of all signals that are present on the GP4116 COM1 connector. REVO C/REVEX Service Panel Engineering Manual V1.0 Page 10...

  • Page 11: Connect Power To Gp-4116

    The FG (functional ground) must also be connected to the central PE (protective earth) connection of the unit. This can prevent damage to the touchscreen in case of an electrostatic discharge. REVO C/REVEX Service Panel Engineering Manual V1.0 Page 11...

  • Page 12: Configuring The Revo C/Revex Communication Port Settings

    C/REVEX to a Modbus address 1, 2, 3 or 4 and 19200bps N81. First connect the 24VDC power supply to the Revo C or REVEX unit (see manual) and make sure you have connection with it via a micro-usb cable (maybe your mobile phone has it).
  • Page 13 REVO C/REVEX Service Panel Engineering Manual V1.0 Page 13...
  • Page 14 Select Revo C or REVEX and push “upload from unit REVO C/REVEX Service Panel Engineering Manual V1.0 Page 14...
  • Page 15 Set address 1 and push read”. All parameters will now be read from the Revo C/REVEX (takes a short while, just wait). Push test, click on the blue actual level 0 and login with 1111 when you want to make changes REVO C/REVEX Service Panel Engineering Manual V1.0...
  • Page 16 Now move the window a bit to the left and push ONLINE, to go online with the Revo C/REVEX. Push communications Set the COM1 comport speed to 19200bps and the desired Modbus address of the module (either 1, 2, 3 or 4). REVO C/REVEX Service Panel Engineering Manual V1.0 Page 16...

  • Page 17: Setup Of Gp4116 Touchpanel

    3. SETUP of GP4116 touchpanel When the Revo C/REVEX thyristor modules are configured properly we can start the GP4116 screen for the first time. First we need to configure the touchpanel in the initial setup. This will only be necessary when the screen starts for the first time.
  • Page 18 Then select which modules are present in the system. There can be a mix of both the REVEX and REVO C modules of different sizes, since the communication protocol of the REVEX and the REVO C is the same. This is an overview what has been selected in the setup. Push next and the settings will be stored in the screen and the system is ready for use.
