- Page 1 User Manual REVO C/REVEX Service Terminal V1.0 User Manual C/REVEX SERVICE TERMINAL GP4116 Revo C/REVEX_Service_GP4116 Software version V100.001 Page. 1...
- Page 2 User Manual REVO C/REVEX Service Terminal V1.0 Thank you for choosing the “REVO C/REVEX service terminal” This manual should enable you to use your machine to full satisfaction. Every effort has been made to provide you with maximum performance, ergonomics and benefits from this premium quality product. Version History: 19-2-2021 Initial version V1.0 for software version V100.001...
-
Page 3: Table Of Contents
User Manual REVO C/REVEX Service Terminal V1.0 TABLE OF CONTENTS TABLE OF CONTENTS READ THIS FIRST Explanation of symbols Touchscreen introduction Touchscreen maintenance Touchscreen cleaning 1. OPERATION 1.1 The overview screen 1.2 The detailed screen 2. SETUP 2.1 Setup thyristor 2.2 Setup screen 3. -
Page 4: Read This First
User Manual REVO C/REVEX Service Terminal V1.0 READ THIS FIRST XPLANATION OF SYMBOLS The following signs have been used throughout this manual to draw your attention. Hint: Useful hints for ease of operation. Printed in Blue. Info: Information you should know to fully understand your system and benefit from its properties. -
Page 5: Touchscreen Introduction
User Manual REVO C/REVEX Service Terminal V1.0 OUCHSCREEN INTRODUCTION Your machine has been equipped with a “Human Machine Interface” or HMI or -more popular called-: A touch screen. If you are familiar with touch screen operation, found nowadays on modern cell phones, naviga- tion systems, informational displays etc. -
Page 6: Touchscreen Cleaning
User Manual REVO C/REVEX Service Terminal V1.0 NORMAL EVERY DAY USAGE Your touch screen utilizes a sensitive touch mechanism. The technique used provides reliable operation, even when the screen is modestly covered with moist and dirt. It also allows the wear of rubber gloves. -
Page 7: Operation

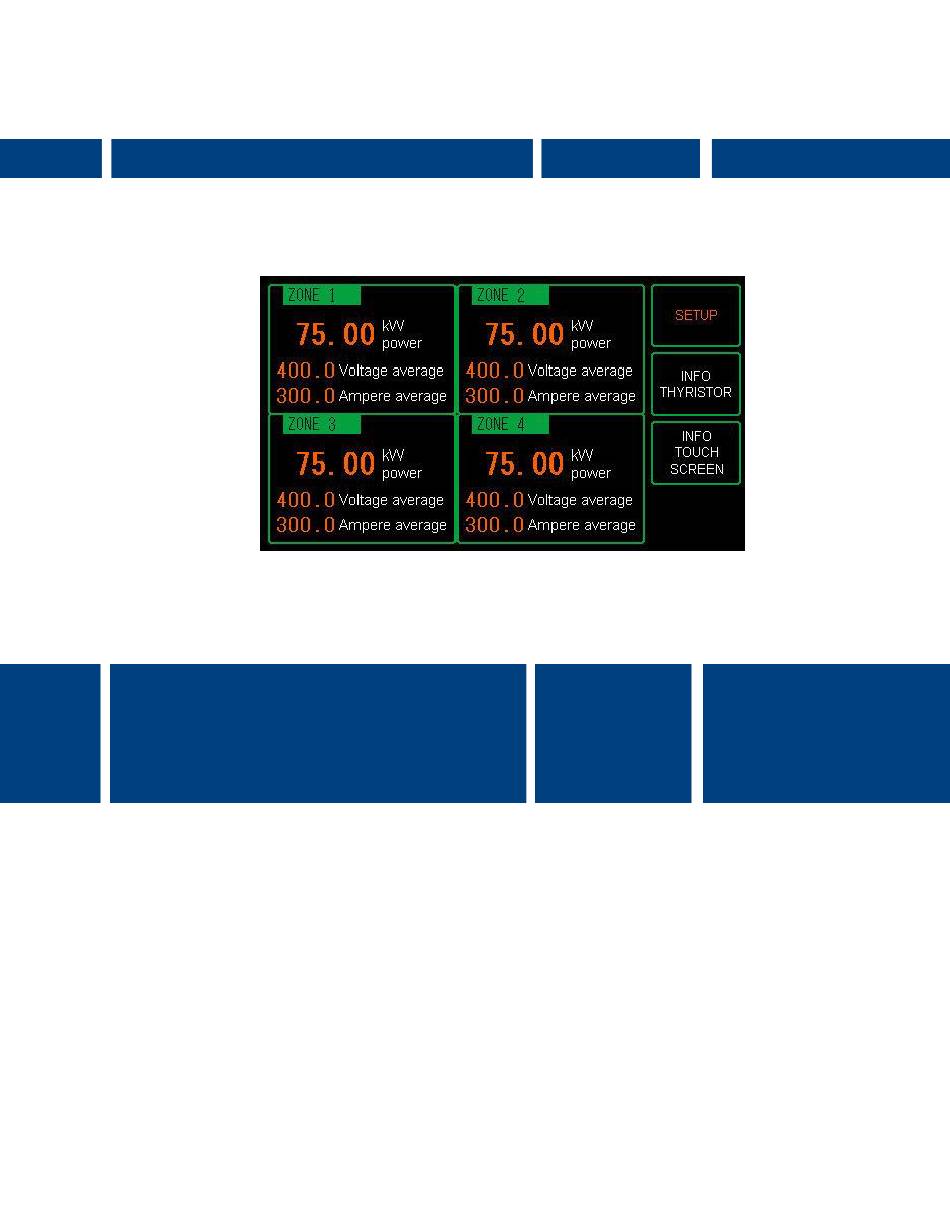

User Manual REVO C/REVEX Service Terminal V1.0 1. OPERATION 1.1 T HE OVERVIEW SCREEN The system starts with the overview screen. This shows the actual power of each of the 4 RE- VO C/REVEX modules as well as the average voltage and current. [SETUP] Adjust settings on the thyristor module(s) or the touchscreen [INFO THYRISTOR]... -
Page 8: The Detailed Screen
User Manual REVO C/REVEX Service Terminal V1.0 When an alarm condition occurs this square starts flashing red When you push on one of the 4 squares of the thyristor you get more information regarding the thyristor unit. You can also see what alarm is active. 1.2 T HE DETAILED SCREEN Here you see more information regarding this specific thyristor unit. -
Page 9: Setup
User Manual REVO C/REVEX Service Terminal V1.0 2. SETUP When you press setup, the following screen is shown: [OVERVIEW] Back to the overview screen (previous screen) On this screen you can select of of the 4 setups or the touchscreen 2.1 S ETUP THYRISTOR Password needed for level 1 (see appendix). - Page 10 User Manual REVO C/REVEX Service Terminal V1.0 You can only adjust the yellow values, the red ones are read-only. You can adjust the current limit (0-100% of current maximum (shown to the right in red) You can also set the nominal load current, this is the current that flows with maximum control output.
-
Page 11: Setup Screen
User Manual REVO C/REVEX Service Terminal V1.0 2.2 S ETUP SCREEN On this screen you can adjust how long it will take before the detailed thyristor info screen automatically jumps back to the overview. When you enter a 0 the detail screen will not automatically return. -
Page 12: Info
User Manual REVO C/REVEX Service Terminal V1.0 3. INFO From the overview you can also access the INFO screens. These give more information regarding the thyristors (type, max. current, 1, 2 or 3 phase etc.) and the software ver- sion in the touchpanel. Revo C/REVEX_Service_GP4116 Software version V100.001 Page. -
Page 13: Info Thyristor
User Manual REVO C/REVEX Service Terminal V1.0 3.1 I NFO THYRISTOR Here you can check: 1) how many phases the thyristor modules have 2) the current transformer (CT) maximum current 3) Maximum voltage allowed on the thyristor module 4) Maximum current of the thyristor unit 5) Version and serial number of the unit Push [PREVIOUS] to return to the main overview Revo C/REVEX_Service_GP4116 Software version V100.001... -
Page 14: Info Touchscreen
User Manual REVO C/REVEX Service Terminal V1.0 3.2 I NFO TOUCHSCREEN Here you can check the software version in the touchscreen. Push [PREVIOUS] to return to the main overview Revo C/REVEX_Service_GP4116 Software version V100.001 Page. 14... -
Page 15: Appendix A. Passwords
User Manual REVO C/REVEX Service Terminal V1.0 APPENDIX A. P ASSWORDS Level 1: Level 2: 1111 Level 3: Level 4: 2222 Level 5: Level 6: 3333 Level 14: Level 15: INITIAL Revo C/REVEX_Service_GP4116 Software version V100.001 Page. 15...
