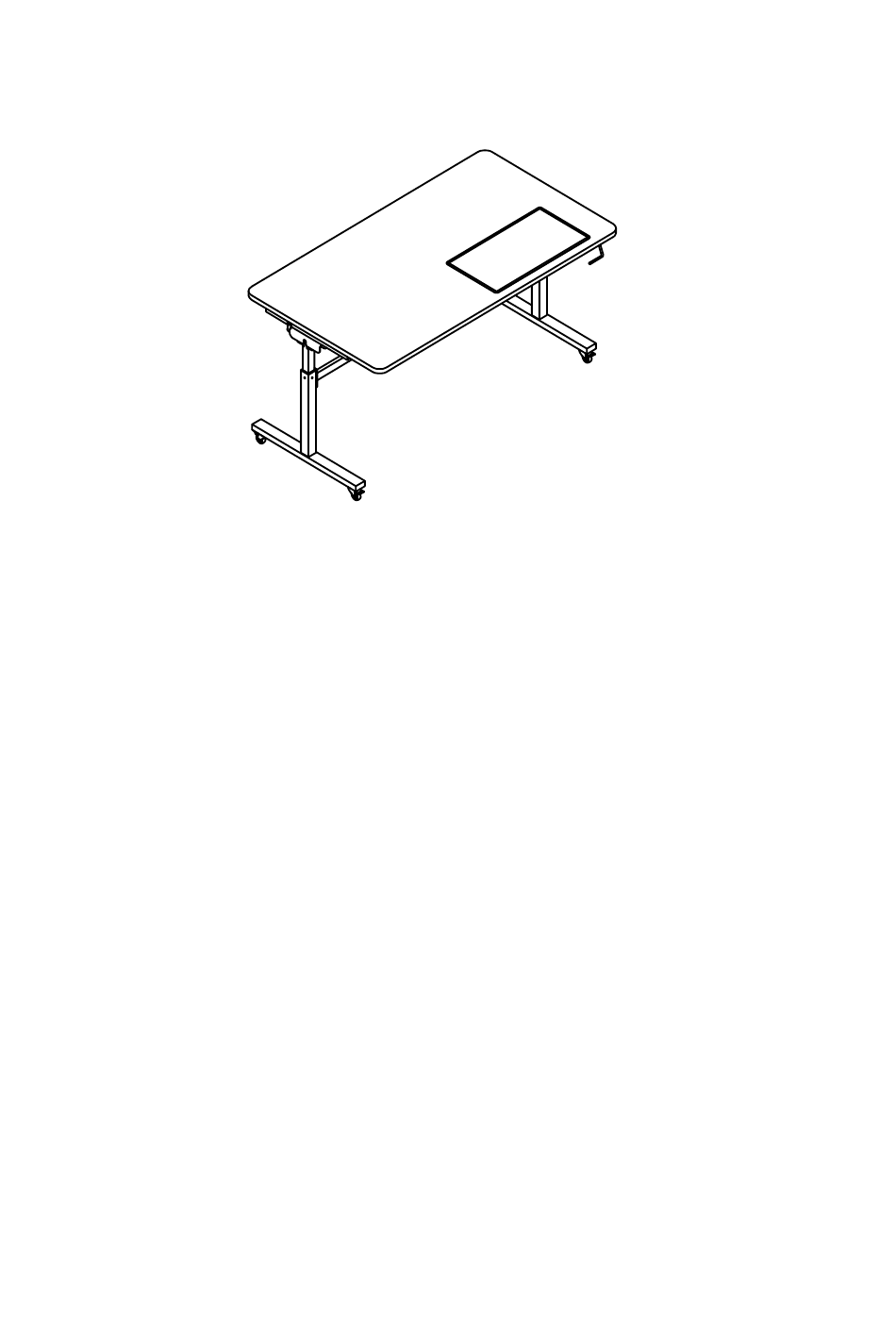

Height Adjustable Table
Congratulations on the purchase of your new Kangaroo Kabinets product. Every effort has been taken to ensure
your complete satisfaction with this custom designed product. For your convenience it is supplied in three ready to
assemble cartons.
Helpful Assembly Hints
Read the instructions carefully before starting .Check to see that all parts are included. Work in a spacious area
preferably on a carpet or soft surface. You will need a Metric allen wrench set for the assembly. Make sure you
tighten all screws and bolts securely.
Warranty Information
Kangaroo Kabinets warrants this product to be free from faulty parts or workmanship for a period of 5 years from the
date of shipment from our facility. The warranty covers manufacturer's defects and a 15 day warranty for any
shipping damages.
The warranty does not cover freight charges for any defects noticed after the first year of use. Kangaroo will replace
parts for manufacturers defects, but freight for these parts will be the responsibility of the customer requesting parts
after the first year of ownership.
Under the terms of this warranty the repair or replacement of any parts shall be at the discretion of the company or
their designated representatives. The warranty does not cover damaged caused by abuse, alteration, accident or
neglect. The warranty does not cover damage caused as result of moving the table when it is fully loaded. Remove
your machine from the table when moving the table or moving the platform.
Replacement Part Shipping Policy: To help protect our valuable resources, we ship all replacement parts out at the
same time. This procedure lessens the use of packaging materials and fossil fuel used in transportation in order to
reduce pollution. Please help us in this endeavor by reviewing ALL parts in ALL boxes for damage before calling or
e-mailing us to report damage. We adhere to our environmental philosophy by only shipping replacement parts out 1
time for free within the first year of ownership. Future parts request will be billed at the customer's expense.
Questions? Call us at 1-800-533-7347 press1
E-Mail:cs@arrowcabinets.com
Check out our website for assembly videos. pictures and
frequently asked questions.
www.kangarookabinets.com
Tasmanian Table II
Model#K9111
Advertisement
Table of Contents
Related Manuals for Arrow Sewing Cabinets K9111
Summary of Contents for Arrow Sewing Cabinets K9111
- Page 1 Tasmanian Table II Model#K9111 Assembly Instructions Height Adjustable Table Congratulations on the purchase of your new Kangaroo Kabinets product. Every effort has been taken to ensure your complete satisfaction with this custom designed product. For your convenience it is supplied in three ready to assemble cartons.
- Page 2 PARTS LIST QTY. ITEM DESCRIPTION Top panel Leg sub-assembly Support frame sub-assembly Crossbar Castors Crank handle Hexagonal rod...
- Page 3 HARDWARE LIST SCREW SCREW SCREW WASHER M8×16mm 25Pcs M6×8mm 9Pcs M10×50mm 3Pcs 6Pcs HEX KEY HEX KEY HEX KEY HEX KEY PLASTIC WASHER WRENCH 5mm 1pc 4mm 1pc 2.5mm 1pc 8mm 1pc 6Pcs Screw 5*60 8pcs...
- Page 4 1. Find Legs — sub assemblies. 2. Find Support Frame — sub assembly Tilt handle to expose screw s2 to attach the TOP 3. Place support frame onto the underside of top panel and align middle and side hinge brackets holes. Align with predrilled holes on top board A and use S2 screws to attach the support frame to top panel.
- Page 5 Note. Plastic washers(5) should be inserted between the 2 metal parts C and A to reduce friction. 4.Continue on both sides of the support frame as shown above. 5. Two people should slide leg sub-assembly into the support frame bracket, at the same time slide hexagonal rod into hexagonal insert on leg.
- Page 6 6.To install the cross bar you must remove the 4 M6 bolts(2) that are already in the leg at the top. Have 1 person hold the bar while the other attach the M6 bolts (2) supplied to the cross bar onto the leg using a 4mm wrench. Once complete go back to step 5 &...
- Page 7 Flip table with the help of others. You have now successfully completed the assembly on item: ITEM NO : Tasmanian Table II...
