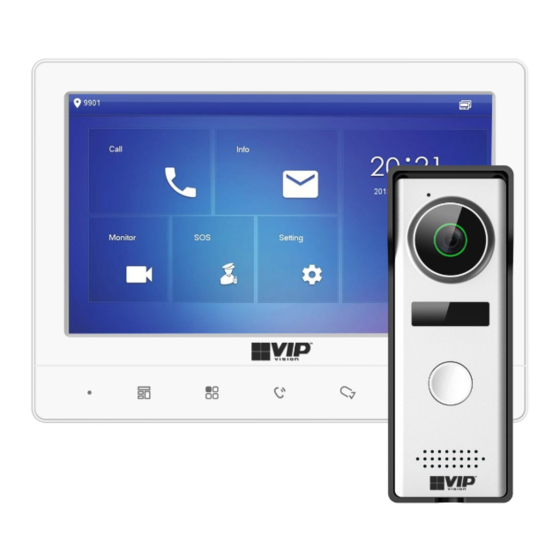

- Page 1 INTKIT-A1 Analogue 4-Wire Video Intercom Quick Start Guide INT-A1-Q10121...
-
Page 2: Included Components
If using a mounting box, ensure the box is also sealed, and the included waterproof rubber seals are used when installing the screws. 2. Included Components VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q10121... -
Page 3: Mounting Guide
3. Mounting Guide help.c5k.info Visit for more information and support... -
Page 4: Front Panel
Press to unlock the door where the door station(VTO) calls. • In set up mode, press to exit set up menu. Door Station Button Description Call • Press once to call door monitor(s) VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q10121... -
Page 5: Back Panel
5. Back Panel Name Description 12VDC positive input Power 12VDC negative input Analogue camera signal input Camera Ports Analogue camera signal ground P1, P3 12VDC positive output to door station V1, V3 Video signal Door Station Ports A1, A3 Audio signal Common ground for door stations P2, P4 12VDC positive input to monitors... - Page 6 • Port C of the indoor monitor cannot be connected to Port B or D of another indoor monitor. 7. Wiring Example - One Door Station and One Indoor Monitor VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q10121...
- Page 7 8. Wiring Example - Three Door Stations and One Indoor Monitor help.c5k.info Visit for more information and support...
- Page 8 9. Two Door Stations and Three Indoor Monitors VIP Vision INTKIT-A1 Intercom Installation Manual - Version: INT-A1-Q10121...
-
Page 9: Setup Menu
10. Setup Menu Button Description • Open the menu • Wake up the monitor • Decrease Vol (volume), Bright (brightness), Contrast and BellVol (bell volume), change Bell tone and turn off DND (do not disturb) • Increase Vol (volume), Bright (brightness), Contrast and BellVol (bell volume), change Bell tone and turn off DND (do not disturb) •... - Page 10 help.c5k.info For detailed technical support and software downloads, visit our Help Centre at: help.c5k.info All products, designs and software may be subject to change without prior written notice. Information, layout and graphics presented in this guide are the property of their respective owners. www.c5k.info for more information.
