Residential IP Intercom Kit
Includes Door station and Indoor Monitor
Indoor Monitor
- Advanced H.264 Video Compression Technology - Advanced H.264 Video Compression Technology
- Easy to operate touch screen
- 10/100Mbps Ethernet
- Info publish, leave message, emergency calling
- 4Gb Internal Storage
- 12v DC
www.rhinoco.com.au
MODEL: INTIPRKIT
„QUICK INSTALLATION GUIDE‟
N517
Door Station
- High Quality 1.3MP CMOS Image sensor
- 10/100Mbps Ethernet
- Unlock Door Remotely
- Built-in loudspeaker
- 12v DC
V2.0 040314
Advertisement
Related Manuals for Vip-Vision INTIPRKIT
Summary of Contents for Vip-Vision INTIPRKIT

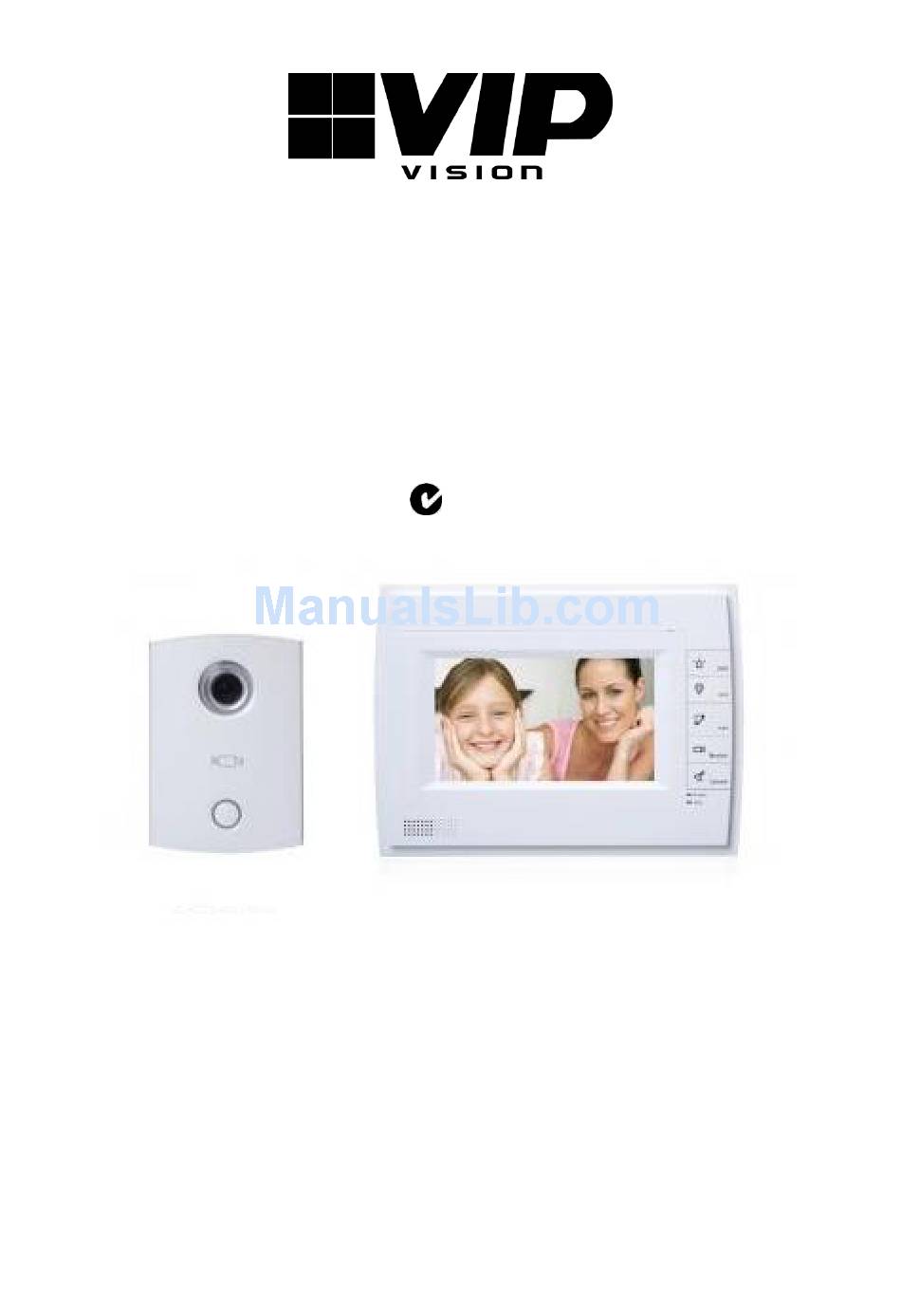

- Page 1 MODEL: INTIPRKIT Residential IP Intercom Kit Includes Door station and Indoor Monitor „QUICK INSTALLATION GUIDE‟ N517 Indoor Monitor Door Station - Advanced H.264 Video Compression Technology - Advanced H.264 Video Compression Technology - Easy to operate touch screen - High Quality 1.3MP CMOS Image sensor...
- Page 3 Package Contents (Before installation, please ensure you have all the parts listed below). 1 x Indoor Monitor INTIPMONB ● Advanced H.264 Video Compression Technology for High Quality Images ● Easy to Operate ● Touch Screen ● 4Gb Internal Storage (non-removable SD Card) ●...
- Page 4 Installation of an Indoor monitor 1. Use screw b to fix bracket ② onto box ④. 2. Use screw a to fix bracket ② onto wall ③. 3. Connect network cable and 12vDC power 4. Face rear installation slot to slot on bracket. Make it against wall and push lightly downward until it fits in to slot on bracket.
- Page 5 Installation of a Door Station 1. Mount 86 box in to wall cavity. 2. Connect network cable and 12vDC power 3. Fix Door Station onto wall: a. Use the included M4 screws to attach Door Station onto the 86 box. b.
- Page 6 Intercom System Configuration The process to set up your Intercom system may vary depending upon your system structure. Please see the following examples of system structures and follow the process which best meets your requirements. System Structure A – Standalone 1 to 1 by direct connection This configuration has only 1 of each unit and requires a single Cat5e network cable to run directly from the Indoor Monitor to the Door Station.
- Page 7 System Structure A – Standalone 1 to 1 by direct connection This configuration requires only a single Cat5e network cable to run directly from the Indoor Monitor to the Door Station. Very Simple System Structure Plug and Play, no set up required. Uses a default IP Address range.
- Page 8 System Structure B – Standalone 1 to 1 system via a network switch This configuration requires a Cat5e network cable from each Indoor Monitor and Door Station, to the network switch. Simple System Structure Plug and Play, no set up required. Uses a default IP Address range.
- Page 9 System Structure C – Standalone 1 to 1 system via an existing computer network This configuration is very similar to B as it requires a Cat5e network cable from both the Indoor Monitor and Door Station, to your network switches and then uses the existing LAN to connect. Even through the Intercom system will be running across your network, it will still use its own IP addresses of 10.22.5.180 (Indoor Monitor) and 10.22.5.189 (Door Station).
- Page 10 System Structure D – Multiple Door Stations to a Monitor via a network This configuration is more complex as you will need to change the IP address of the Door Stations. You will require a Cat5e network cable from each the Indoor Monitor and Door Station, to a network switch or to your existing LAN.
- Page 11 9. Choose NETWORK and you will see the settings for the Primary Door Station. Here you can change the name of the device, check the IP Address is set to 10.22.5.189 and ensure its Enable Status is set to ON. 10.
- Page 12 System Structure E – Single Door Stations to Multiple Monitors via a network This configuration is more complex as you will need to change the IP address of the Indoor Monitors. You will require a Cat5e network cable from each the Indoor Monitor and Door Station, to a network switch or existing LAN to connect.
- Page 13 8. Power on the Extension Indoor Monitor. 9. On the Extension Indoor Monitor go to SETTINGS > PROJECT SETTINGS > then enter the password 002236 12. Choose NET INFO and change the IP address of this Indoor Monitor from 10.22.5.180 to 10.22.5.179 and press ok to save.
- Page 14 System Structure F – Multiple Door Stations to Multiple Monitors via a network This configuration is the most complex as you will need to change the IP address of each Door Station and each Indoor Monitor. It will allow you to use up to 6 Indoor Monitors and 6 Door Stations all together. You will also require a Cat5e network cable from each the Indoor Monitor and Door Station, to a network switch or to your existing LAN.
- Page 15 1. Install each unit at their respective location and connect each unit to their Cat5e network cable. 2. Connect each Cat5e network cable to the network switch. 3. Power on the network Switch if not already on. 4. Power on the Master Indoor Monitor. 5.
- Page 16 19. Go to LOGOUT > REBOOT DEVICE and click to REBOOT DEVICE. The Door Station will now restart with the new configuration. Please allow up to 5 minutes for this to happen. 20. ----- Repeat Steps 13–19 for any additional Door Stations ----- 21.
- Page 17 How to change the Indoor Monitor IP Address 1. Power on the Indoor Monitor 2. On the Indoor Monitor go to SETTINGS > PROJECT SETTINGS > then enter the password 002236 3. Choose NET SET and change the IP address of this Indoor Monitor from 10.22.5.180 to the new IP Address (e.g.
- Page 18 How to change the Door Station IP Address Method 1 - Using the included ConfigTool Before starting you must first have a copy of the “Config Tools” which can be found on the included software disc or downloaded from here: http://downloads.rhinoco.com.au/dvr/VSIP1MPFBIR_VSIP1MPDIR_Scan_Tool.zip Double click the “ConfigTools.exe”...
- Page 19 Method 2 - Using Internet Explorer (Recommended) The default address for a Door Station will be 10.22.5.189, and your PC will need to be set to an IP address that is in the same network range as the camera. We recommend 10.22.5.100 To be able to log in to the Door Station web interface you must be using Internet Explorer 5.5 or above, we recommend Internet Explorer 9 as unfortunately IE10 is not compatible.
- Page 20 Set the Time and Date When using your Intercom system you may need to set the correct Time and Date. The Indoor Monitor takes its Time and Date from the Door Station itself. Should you also have an NVR connecting to your Door Stations, then the Door Stations will take their Time and Date from the NVR. When using an NVR with your Intercom System: 1.
- Page 21 Using a PC to find available IP Addresses Before setting up your Intercoms you will first need to find it an IP address. This process is to help you find what IP Addresses are currently in use on your computer network, and in turn which ones are still available.
- Page 22 How to connect to an IP Camera from the Indoor Monitor In order to connect to an IP Camera from the Indoor Monitor, both the Intercom system and the IP camera will need to be connected to the same computer network and use the same IP Address range. If using a NVR system with a built in (Plug &...
- Page 23 How to wire an Electric Door Strike to the Door Station (optional) Most Electric Door Strikes will unlock when powered and lock when they are without power. This means the negative from 12v Power Supply output can simply be looped through the Door station and connected to the Electric Door Strike.
- Page 24 How to wire using the POE receiver (optional) When using the optional POE receiver (WT-CAT5POER) with a monitor or door station, the receiver must be connected directly to a POE switch via a Cat5/6 cable. The POE Receiver will then need to be set to 12vDC, connected to the devices 12vDC input and the devices ethernet connector.
- Page 25 Advanced Configuration of your Intercom for Remote Access (optional) Important: Before Setting up remote access for your Intercom, you will need a good understanding of computer networks. If you do not, please seek the assistance of a qualified I.T. professional. In order to connect the Intercom system for remote access, the Intercom system will need to be connected to the local computer network and use the same IP Address range.
- Page 26 DMSS Mobile App by IP Address (optional) App available for Android, iOS, Blackberry, Symbian, Windows Mobile and Windows 7 mobile From your compatible Smartphone, access the App Marketplace and download the free App. This may also be listed as: iDMSS lite for Apple iOS gDMSS lite for Android wDMSS lie for Windows Phone DMSS lite for others...
- Page 27 How to enable Push notifications (optional) In order to receive Push notifications from your Intercom, you will need to have the Intercom system set up and working by remote access. You will also require the Paid version of the mobile app. iDMSS plus for Apple iOS gDMSS plus for Android wDMSS plus for Windows Phone...
- Page 28 How to make a call from the Door Station After installation is complete, you can simply press the call button on the Door Station to call all Indoor Monitors simultaneously. How to answer a call using the Indoor Monitor When receiving an incoming call, you can choose to answer the call or reject the call or unlock the door. Should you Answer the call, you can Hang Up at any time or Unlock the Door and then Hang up the call.
- Page 29 How to take Videos / Snapshots from the Indoor Monitor During a call you can also take a video from the Door Stations camera by pressing this will record audio and video which will then be stored in the Indoor Monitors internal storage. During a call you can take a snapshot from the Door Stations camera by pressing this image will then be stored in the Indoor Monitors internal storage.
-
Page 30: Troubleshooting
Troubleshooting Please refer to the FAQ table below for easy troubleshooting. The table below describes some typical problems and their solutions. Please consult these guides before contacting your Intercom dealer. PROBLEM SOLUTION - Check power cord connection. No power - Confirm that there is power from the outlet. - Ensure that the 12V PSU is connected to each unit. - Page 31 Limited Warranty Cornick Pty Ltd (Seller) warrants its products to be in conformance with its own plans and specifications and to be free from defects in materials and workmanship under normal use and service for forty eight months from the date of original purchase. Sellers obligation shall be limited to repairing or replacing, at its option, free of charge for materials or labor, any part which is proved not in compliance with Sellers specifications or proves defective in materials or workmanship under normal use and service.
- Page 32 Email Date of Purchase Invoice Number Daytime Phone Where did you purchase your INTIPRKIT? Store Location This information will only be used by the manufacturer and will not be sold to any third parties. Dear Customer, We appreciate your confidence in our product, and you can be certain that we will do everything possible to ensure that you are happy with your decision and that you have years of satisfaction from your INTIPRKIT.
