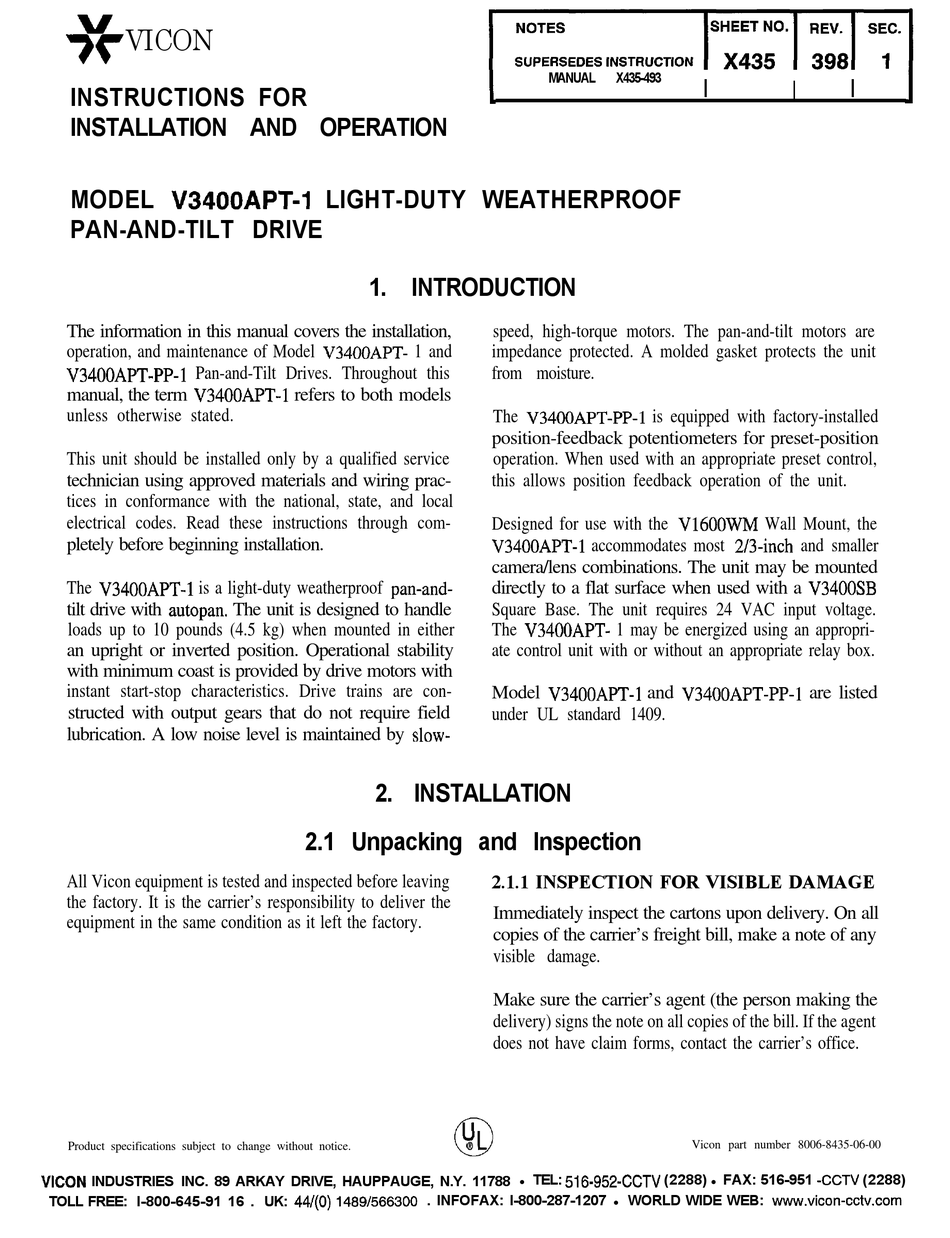

INSTRUCTIONS FOR
INSTALLATION AND OPERATION
MODEL V3400APT-1
PAN-AND-TILT DRIVE
The information in this manual covers the installation,
operation, and maintenance of Model V3400APT- 1 and
Pan-and-Tilt Drives. Throughout this
manual, the term V3400APT-1 refers to both models
unless otherwise stated.
This unit should be installed only by a qualified service
technician using approved materials and wiring prac-
tices in conformance with the national, state, and local
electrical codes. Read these instructions through com-
pletely before beginning installation.
The V3400APT-1 is a light-duty weatherproof pan-and-
tilt drive with autopan. The unit is designed to handle
loads up to 10 pounds (4.5 kg) when mounted in either
an upright or inverted position. Operational stability
with minimum coast is provided by drive motors with
instant start-stop characteristics. Drive trains are con-
structed with output gears that do not require field
lubrication. A low noise level is maintained by slow-
All Vicon equipment is tested and inspected before leaving
the factory. It is the carrier's responsibility to deliver the
equipment in the same condition as it left the factory.
Product specifications subject to change without notice.
TOLL FREE: I-800-645-91 16 . UK: 44/(O) 1489/566300
LIGHT-DUTY WEATHERPROOF
1. INTRODUCTION
2. INSTALLATION
2.1 Unpacking and Inspection
. INFOFAX: I-800-287-1207
MANUAL
X435-493
speed, high-torque motors. The pan-and-tilt motors are
impedance protected. A molded gasket protects the unit
from moisture.
The V3400APT-PP-1
is equipped with factory-installed
position-feedback potentiometers for preset-position
operation. When used with an appropriate preset control,
this allows position feedback operation of the unit.
Designed for use with the V16OOWM
camera/lens combinations. The unit may be mounted
directly to a flat surface when used with a V3400SB
Square Base. The unit requires 24 VAC input voltage.
The V3400APT- 1 may be energized using an appropri-
ate control unit with or without an appropriate relay box.
Model V3400APT-1 and V3400APT-PP-1
under UL standard 1409.
2.1.1 INSPECTION FOR VISIBLE DAMAGE
Immediately inspect the cartons upon delivery. On all
copies of the carrier's freight bill, make a note of any
visible damage.
Make sure the carrier's agent (the person making the
delivery) signs the note on all copies of the bill. If the agent
does not have claim forms, contact the carrier's office.
TEL: 516-952-CCTV
(2288)
l
WORLD WIDE WEB: www.vicon-ccfv.com
l
I
I
I
Wall Mount, the
are listed
Vicon part number 8006-8435-06-00
FAX: 516-951 -CCTV (2288)
