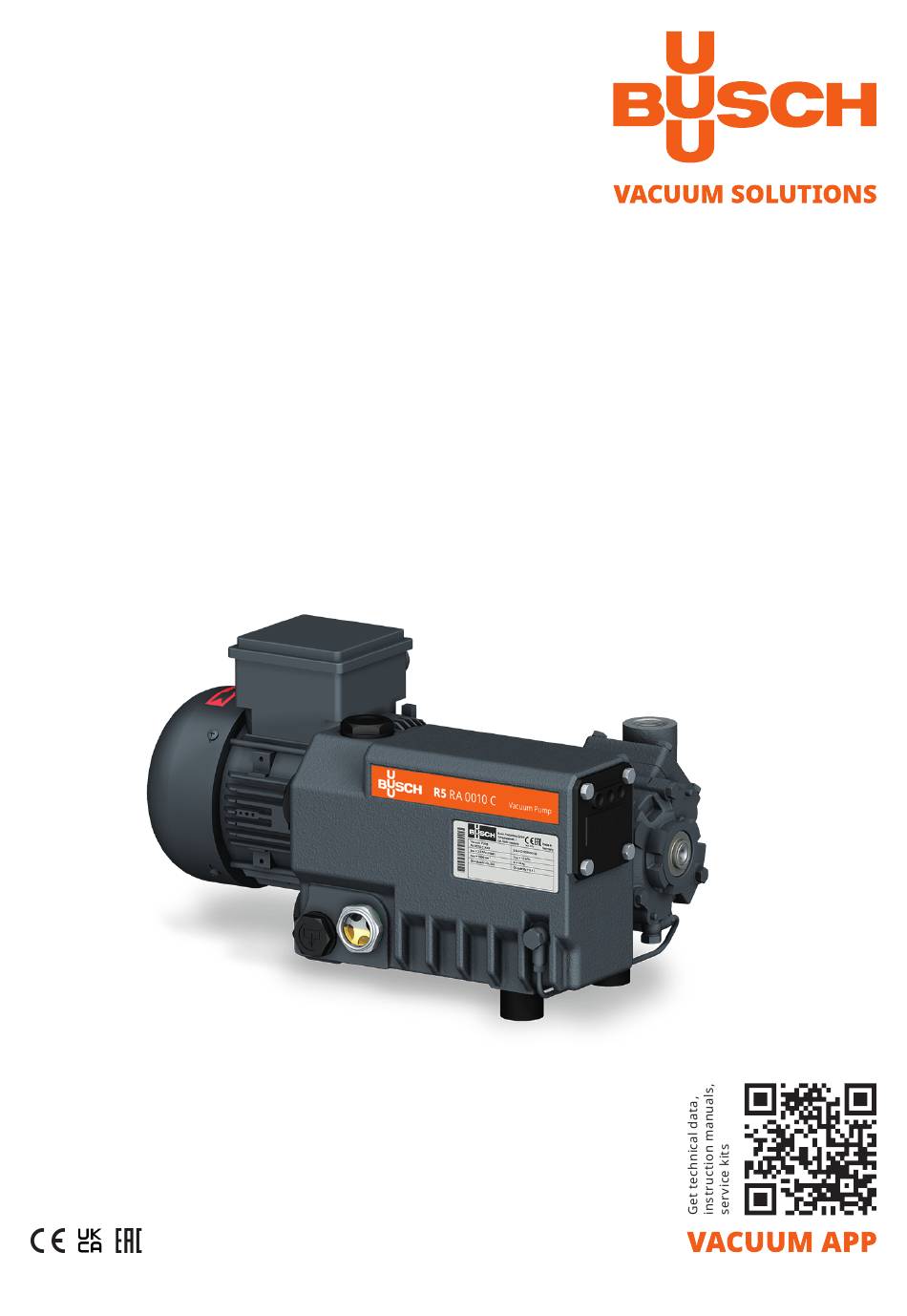

- Page 1 Instruction Manual Rotary Vane Vacuum Pumps RA 0010 C, RA 0016 C RC 0010 C, RC 0016 C 0870146950/B0002_en / Original instructions / Modifications reserved 16/09/2021...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Operating Principle ......................5 2.2 Application........................5 2.3 Start Controls ........................5 2.4 Optional Accessories ......................6 2.4.1 Gas Ballast Valve ....................6 2.4.2 Inlet Filter ......................6 3 Transport ..........................6 4 Storage .............................7 5 Installation..........................8... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description

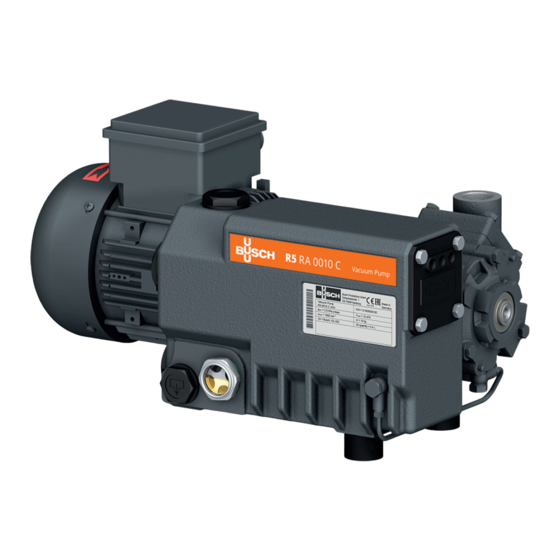

2 | Product Description Product Description Version with gas ballast valve Directional arrow Exhaust filter Gas ballast valve Suction connection Nameplate Motor terminal box Oil drain plug Oil fill plug Oil separator Oil sight glass Discharge connection Transport lug NOTE Technical term. -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch representative in order to take specific precautions. -
Page 6: Optional Accessories
3 | Transport 2.4 Optional Accessories 2.4.1 Gas Ballast Valve The gas ballast valve mixes the process gas with a limited quantity of ambient air to counteract the condensation of vapour inside the machine. The gas ballast valve has an influence on the ultimate pressure of the machine, see Tech- nical Data [► 20]. -
Page 7: Storage
Storage | 4 Lifting with a sling: make sure the machine is properly fastened to the lifting sling. Machine weight: see the technical data or the nameplate (NP) Lifting with the transport lug (TL) • Check the machine for transport damage. If the machine is secured to a base plate: •... -
Page 8: Installation
• Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 9: Connecting Lines / Pipes
• Make sure that the line size of the connection lines over the entire length is at least as large as the connections of the machine. In case of long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection NOTICE Ingress of foreign objects or liquids. -
Page 10: Filling Oil
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 20] and Oil [► 20]. 1x o-ring part no.:... -
Page 11: Electrical Connection
• Busch recommends installing a D-curve circuit breaker. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. -
Page 12: Commissioning
6 | Commissioning Commissioning NOTICE The machine can be shipped without oil. Operation without oil will ruin the machine in short time! • Prior to commissioning, the machine must be filled with oil, see Filling Oil [► 9]. CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. Risk of burns! •... -
Page 13: Conveying Condensable Vapours
• Do not use incompatible solvents to clean the machine. CAUTION Failing to properly maintain the machine. Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. Instruction Manual R5 RA_RC 0010-0016 C_EN_en 13 / 24... -
Page 14: Maintenance Schedule
(AHE): • Check and/or clean the air-oil heat ex- changer. • Contact Busch for an inspection. Every 5 years If required, overhaul the machine. * Service interval for synthetic oil, shorten the interval when using mineral oil, contact Busch Service 7.2 Oil Level Inspection... -
Page 15: Oil Change
NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. 1x o-ring, part no.: 0486 000 505 Drain pan For oil type and oil capacity see Technical Data [► 20] and Oil [► 20]. -
Page 16: Exhaust Filter Change
7 | Maintenance 7.4 Exhaust Filter Change 10 mm wrench 1x exhaust filter (EF) Busch genuine spare parts 1x exhaust filter (EF), part no.: 0532 140 154 O-ring 10 mm wrench 1x o-ring part no.: 0486 000 524 16 / 24... -
Page 17: Overhaul
• Decontaminate the machine as much as possible and state the contamination sta- tus in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 18: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare Part Kits Description Part no. - Page 19 • Replace the inlet filter car- tional) is partially clogged. tridge. Internal parts are worn or • Repair the machine damaged. (contact Busch). The machine runs very noisi- Worn coupling (CPL). • Replace the coupling (CPL). Stuck vanes. • Repair the machine (contact Busch).
-
Page 20: Technical Data
12 | Technical Data 12 Technical Data RA 0010 C RA 0010 C* RC 0010 C RA 0016 C RA 0016 C* RC 0016 C Nominal pumping speed m³/h 10 / 12 16 / 19 (50Hz / 60Hz) Ultimate pressure... -
Page 21: Eu Declaration Of Conformity
79689 Maulburg 460 01 Liberec 11 Germany Czech Republic declares that the machine(s): R5 RA 0010 C; RA 0016 C; RC 0010 C; RC 0016 C fulfil(s) all the relevant provisions from European directives: – ‘Machinery’ 2006/42/EC – ‘Electromagnetic Compatibility’ 2014/30/EU –... -
Page 22: Declaration Of Conformity
460 01 Liberec 11 Germany Czech Republic declares that the machine(s): R5 RA 0010 C; RA 0016 C; RC 0010 C; RC 0016 C fulfil(s) all the relevant provisions from UK legislations: – Supply of Machinery (Safety) Regulations 2008 – Electromagnetic Compatibility Regulations 2016 –... - Page 23 Note...
