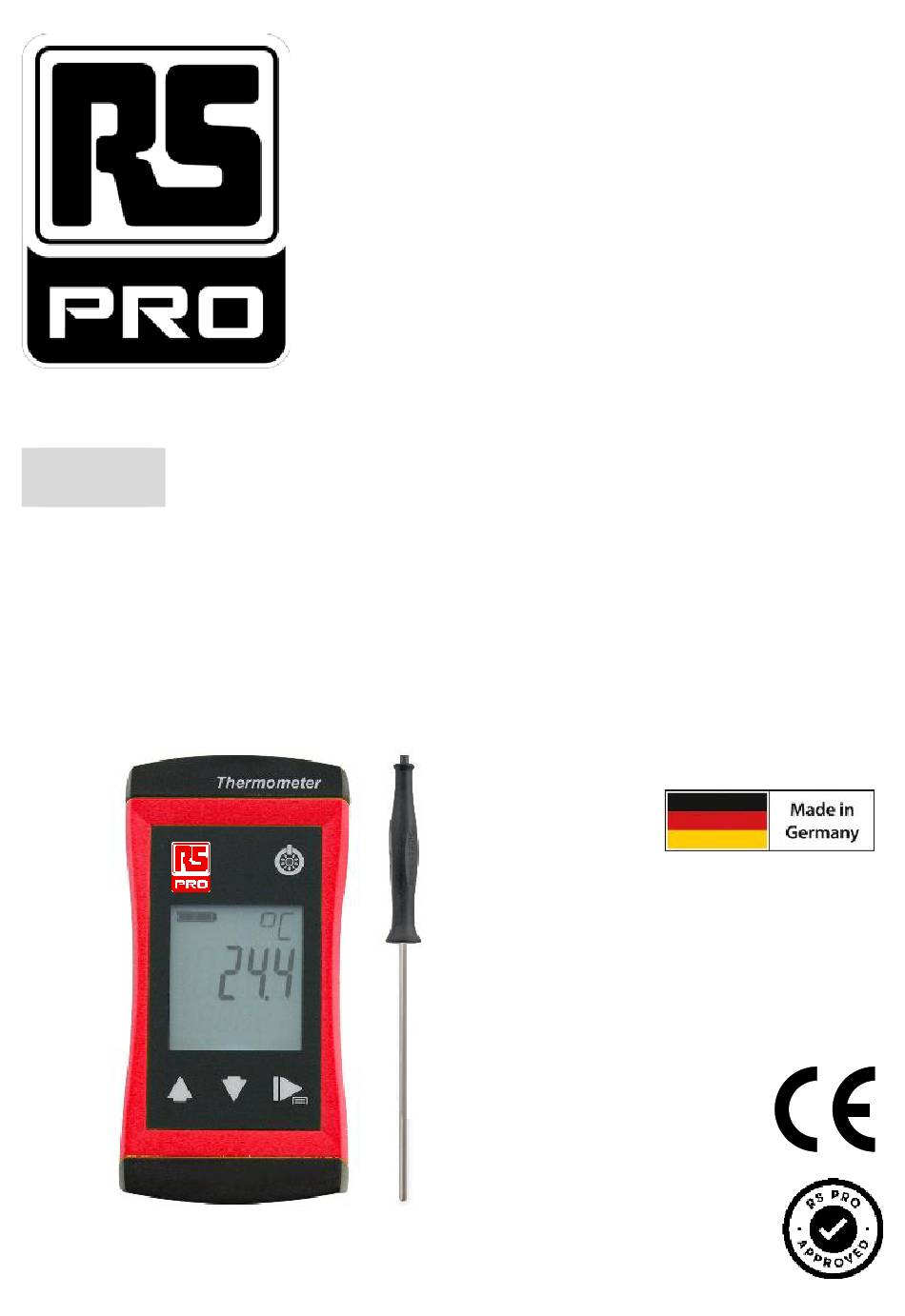

- Page 1 H86.0.0X.DK2RS-2.0 Operating Manual RS 1710 Stock number: 205-0959 RS 1720 Stock number: 205-0960 rspro.com...
-
Page 2: Table Of Contents
page 2 of 16 Operating Manual RS 1700 series Table of contents About this documentation ............3 Purpose of the document ..............3 Legal notices .................. 3 Further information ................. 3 Safety ..................4 Explanation of safety symbols ............4 Foreseeable misuse ............... -
Page 3: About This Documentation
Operating Manual RS 1700 series page 3 of 16 About this documentation Purpose of the document – For this reason, read the operating manual before operating the product for the first time. Legal notices This document is entrusted to the recipient for personal use only. Any impermissible transfer, duplication, translation into other languages or excerpts from this operating manual are prohibited. -
Page 4: Safety
page 4 of 16 Operating Manual RS 1700 series Safety Explanation of safety symbols DANGER This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 5: Safety Instructions
Operating Manual RS 1700 series page 5 of 16 Safety instructions CAUTION Stab injury! Products with insertion probes entail the risk of stab injuries due to the pointed probe design. – Handle insertion probes with care! – Fit a protective cap on the measuring probe! NOTE This product does not belong in children's hands! NOTE... -
Page 6: The Product At A Glance

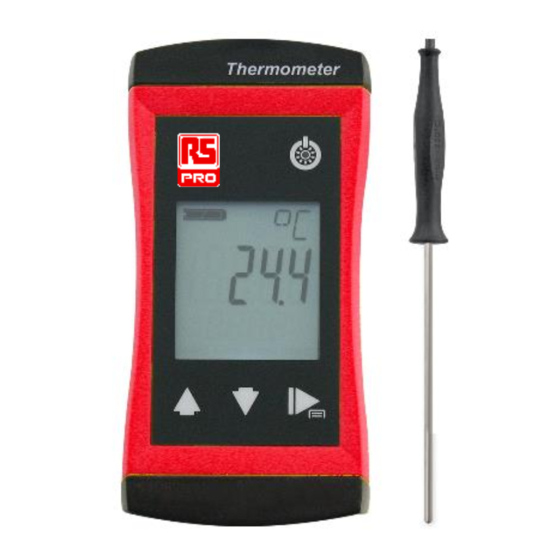

page 6 of 16 Operating Manual RS 1700 series The product at a glance RS 1700 series LCD Display Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units or type of mode, min/max/hold Main display Measurement of the current temperature or value for min/max/hold Auxiliary display... -
Page 7: Operating Elements
Operating Manual RS 1700 series page 7 of 16 Operating elements On / Off button Press briefly Switch on the product Activate / deactivate lighting Long press Switch off the product Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter... -
Page 8: Operation
page 8 of 16 Operating Manual RS 1700 series Operation Opening the configuration menu Press the Function key for 2 seconds to open the Configuration menu. (ONF appears in the display. Release the Function key. Parameter Values Meaning Alarms No active alarm Alarm alerting via text display, acoustic signal and flashing of the backlighting BEEP... - Page 9 Operating Manual RS 1700 series page 9 of 16 Shut-off time POFF No automatic shut-off 15 30 60 120 240 Automatic shut-off after a selected time in minutes, during which no buttons have been pressed Backlight L,TE Backlight deactivated 15 30 60 120 240 Automatic shut-off of the backlight after a selected time in seconds, during which no buttons have been pressed...
-
Page 10: Adjustment Of The Measuring Input
page 10 of 16 Operating Manual RS 1700 series Adjustment of the measuring input The temperature input can be adjusted with the zero point correction and the gradient correction. If an adjustment is made, you change the pre-adjusted factory settings. This is signalled with the T.OF or T.SL display text when the product is switched on. -
Page 11: Operation And Maintenance
Operating Manual RS 1700 series page 11 of 16 Operation and maintenance Operating and maintenance notices NOTE The product and temperature probe must be handled with care and used in accord- ance with the technical data. Do not throw or strike. NOTE Plugs and sockets must be protected from soiling. - Page 12 page 12 of 16 Operating Manual RS 1700 series CAUTION Damage! If the batteries have different charge levels, leaks and thus damage to the product can occur. – Use new, high-quality batteries! – Do not use different types of batteries! –...
-
Page 13: Error And System Messages
Operating Manual RS 1700 series page 13 of 16 Error and system messages Display Meaning Possible causes Remedy ---- No suitable meas- Incorrect measuring Connect a suitable meas- uring probe con- probe uring probe nected Measuring probe or Measurement leaves the Measurement far product defect permissible range... -
Page 14: Technical Data
Durable insertion sensor Ø 3 mm, Pt1000 permanent 2- wire connection, V4A, 1 m cable (RS 1720) Response time T 90 Ø 3 mm: Water 0.4 m/s <2 s (RS 1710) Ø 3 mm: Water 0.4 m/s <2 s (RS 1720) Display... - Page 15 Operating Manual RS 1700 series page 15 of 16 Housing Break-proof ABS housing Protection IP65 / IP67 rating Dimensions 108 * 54 * 28 mm without kink protection L*W*H [mm] Weight 150 g, incl. battery and sensor Operating conditions -20 to 50 °C; 0 to 95 % r.h. (temporarily 100 % r.h.) Storage temperature -20 to 70 °C Current...
-
Page 16: Service
page 16 of 16 Operating Manual RS 1700 series Service Manufacturer If you have any questions, please do not hesitate to contact us: Contact RS Components Limited Birchington Road Corby Northamptonshire NN17 9RS WEE/GF0002ZR rspro.com...
