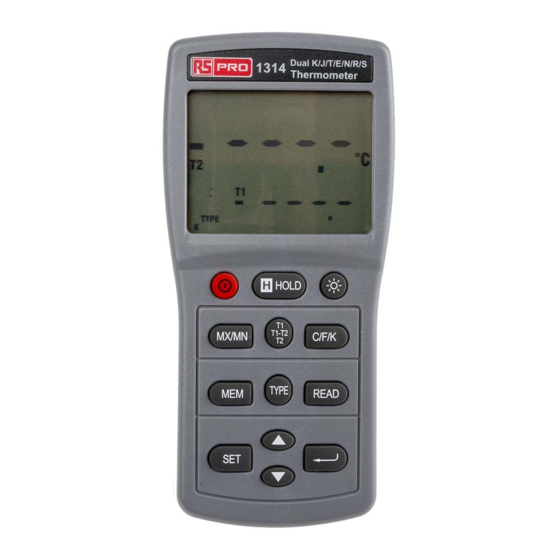

RS PRO RS-1314 Instruction Manual

Dual k/j/t/e/n/r/s thermometer
Hide thumbs

Advertisement

Quick Links

Instruction Manual
RS-1314
Dual K/J/T/E/N/R/S THERMOMETER
EN
FR
IT
DE
T1
T2
ALM
T1
min:sec
hour:min
T2
TYPE
KJTERSN
ES
C
F
Hi
Lo
K
MX
- MN
AVG

Advertisement

loading
Need help?

Need help?

Do you have a question about the RS-1314 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RS PRO RS-1314

Summary of Contents for RS PRO RS-1314

  • Page 1 Instruction Manual RS-1314 Dual K/J/T/E/N/R/S THERMOMETER min:sec hour:min TYPE KJTERSN - MN...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TITLE PAGE 1. INTRODUCTION ............1 2. SPECIFICATIONS............2 3. FRONT PANEL DESCRIPTION........4 4. OPERATION INSTRUCTIONS ........7 5. MAINTENANCE ............13 6. RECALIBRATION PROCEDURE ......13...

  • Page 3: Introduction

    1. INTRODUCTION This instrument is a digital thermometer for use with J, K, T, E, N, R and S-type thermocouples as the temperature sensor. Temperature indication follows the international temperature scale of 1990 (ITS-90). Read the following information carefully before attempting to operate or service the meter.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 Electrical Specifications Measurement Range: J - type: -150.0°C to +1090.0°C (-200.0°F to +1994.0°F) K - type: -150.0°C to +1370.0°C (-200.0°F to +1999.9°F) T - type: -150.0°C to +400.0°C (-200.0°F to +752.0°F) E - type: -150.0°C to +870.0°C (-200.0°F to +1598.0°F) N - type: -150.0°C to +1300.0°C (-200.0°F to +1999.9°F) R - type: 2.0°C to +1767.0°C (+35°F to +1999.9°F) S - type: 2.0°C to +1767.0°C (+35°F to +1999.9°F)
  • Page 5 Maximum Differential Common Mode Voltage: 1V (Maximum voltage difference between T1 and T2). Input Protection: 20V maximum input voltage on any combination of input connectors. Manual Data Memory capacity: 44 sets. 2-2 General Specifications Power Supply: Qty. 6 size AAA batteries. Battery life: approx.

  • Page 6: Front Panel Description

    3. FRONT PANEL DESCRIPTION min:sec hour:min TYPE KJTERSN - MN min:sec hour:min TYPE KJTERSN MN AVG EN-4...
  • Page 7 (1). LCD Display: A. Main display: T1, T2 or T1-T2 reading. B. Secondary display: T1 or T2 reading and MAX, MIN or AVG reading. C. Time display: Time display (100-hour clock) shows elapsed time when MAX, MIN or AVG is on. D.
  • Page 8 (9). ↵ key: Press "↵ " key to store alarm limit value setting. Press "↵ " key to toggle between the "hour:min" and " min:sec" elapsed time in MX/MN mode. (10). TYPE key: Press " TYPE " key to select the thermocouple type (K, J, E, T, R, S or N).

  • Page 9: Operation Instructions

    4. OPERATION INSTRUCTIONS WARNING To avoid electrical shock or personal injury, do not apply more than 20Vrms, between the thermocouples (s), or between any thermocouple and earth ground. If voltage on the measurement surfaces result in potentials more than between thermocouples, then measurement errors may occur.
  • Page 10 4-2 MAX, MIN and AVG Function Operations Press "MX/MN" key to enter to MX/MN mode and to step through the maximum (MAX), minimum (MIN) or the true average (AVG is a true 9.7 hours recording average) mode. Auto power-off function will be automatically disabled.
  • Page 11 min:sec TYPE MX MN T1-T2 present reading + T1-T2 Maximum reading plus elapsed time + T1-T2 Minimum reading plus elapsed time + T1-T2 Averaging reading plus averaging time. Press "MX/MN" key for 2 seconds to exit MX/MN mode. In MX/MN mode, the "C/F/K" and "TYPE" key are not active.
  • Page 12 Press "READ" key to enter the manual memory data mode. The LCD display will show "READ " and a memory location number. Press " " or " " key to scroll through the logged readings. Press "READ" key again to exit READ mode. TYPE EN-10...
  • Page 13 4-5 Alarm Function Operations The ALARM function only operates on the main display temperature value. The resolution of the set value is one degree and independent of the temperature units. Press "SET" key once to enter to Alarm High limit value setting mode.
  • Page 14 To enter ALARM mode, press "SET" key for 2 seconds then release it. The LCD display will show "ALM" mark. When the main display measured temperature value is greater than the setting high temperature value or below the setting low temperature value, the beeper will sound continuously.

  • Page 15: Maintenance

    5. MAINTENANCE 5-1 Cleaning: Periodically clean the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Clean and dry as required. 5-2 Battery Replacement: When LCD display shows “ ”, the battery has had insufficient power to support an accurate test. Replace the batteries with Qty.
