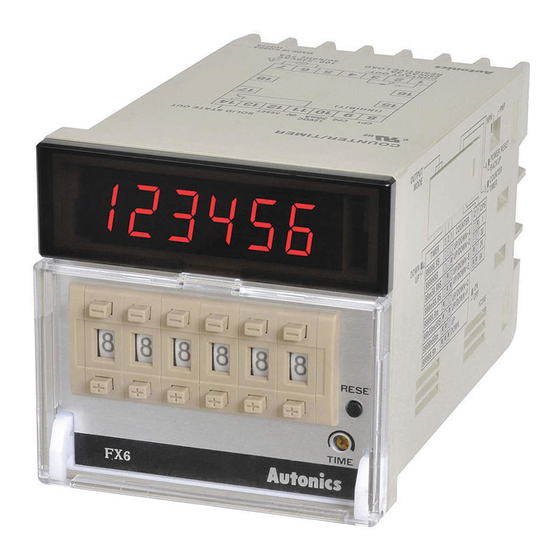

Autonics FX Series Quick Start Manual

FX/FXH/FXL Series
DIN W72×H72, W48×H96, W144×H72mm counter/timer
Features
● 36 input modes and 20 output modes
● Counting speed : 1cps/30cps/2kcps/5kcps
● Selectable voltage input(PNP) or No voltage input(NPN)
● Addition of Up/Down input mode
● Wide range of power supply
: 100-240VAC 50/60Hz, 12-24VAC/DC(Option)
● Selectable Counter/Timer by internal DIP switch
● Various time range
● Built-in Microprocessor
Please read "Caution for your safety" in operation
manual before using.
Ordering information
FX 4 H
Size
Digit
Item
Specifi cations
Single preset
Model Dual preset
Totalizer(Indicator)
Digit
Digit size
Power supply
Allowable voltage range
Power consumption
Max. counting speed for CP1, CP2 Selectable 1cps/30cps/2kcps/5kcps by internal DIP switch
RESET input
Min. input
signal width
INHIBIT input
CP1, CP2 input
(INHIBIT)
Input
RESET input
One-shot output time
Type
Contact
Capacity
Control
output
Type
Solid-
state
Capacity
Memory protection
External sensor power
Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environ
-ment
Ambient humidity
Insulation resistance
Dielectric strength
AC power
Noise
strength
DC power
J-50
2P
I
Output
No mark Single preset
2P
L
H
No mark DIN W72×H72mm
4
6
FX
FX4 FX6
FX4-2P FX6-2P
FX4-I FX6-I
4digit 6digit
W8×H14mm W4×H8mm
100-240VAC 50/60Hz, 12-24VAC/DC(Option)
90 to 110% of rated voltage
• Indicator : Approx. 6VA(240VAC 60Hz), Approx. 2.7W(24VDC), Approx. 5.8VA(24VAC 60Hz)
•Single preset : Approx. 7VA(240VAC 60Hz), Approx. 3.3W(24VDC), Approx. 6.8VA(24VAC 60Hz)
•Dual preset: Approx. 8VA(240VAC 60Hz), Approx. 3.8W(24VDC), Approx. 7.6VA(24VAC 60Hz)
Approx. 20ms
Input logic is selectable
[Voltage input] Input impedance : 5.4kΩ, "H" level : 5-30VDC, "L" level : 0-2VDC
[No-voltage input] Impedance at short-circuit : Max. 1kΩ, Residual voltage at short-circuit : Max. 2VDC,
Impedance at open-circuit : Min. 100kΩ
• Single preset type - 0.05 to 5sec.
• Dual preset type - 1st. output 0.5sec. fi xed, 2st. output : 0.05 to 5sec.
Single preset type : SPDT(1c), Dual preset type : 1st output SPDT(1c), 2nd output SPDT(1c)
250VAC 3A at resistive load
Single preset type : 1 NPN open collector
Dual preset type : 1st output 1 NPN open collector, 2nd output 1 NPN open collector
30VDC Max. 100mA Max.
10 years(When using non-volatile semiconductor memory)
12VDC±10% 50mA Max.
35 to 85%RH, storage: 35 to 85%RH
Min. 100MΩ(at 500VDC megger)
2000VAC 50/60Hz for 1 minute
±2kV the square wave noise(pulse width : 1㎲) by the noise simulator
±500V the square wave noise(pulse width : 1㎲) by the noise simulator
Indicator
Dual preset
DIN W144×H72mm
DIN W48×H96mm
9999(4digit)
999999(6digit)
Counter/Timer
FX4H
FX4H-2P
FX4H-I
4digit
W6×H10mm
- -
FX4L-2P FX6L-2P
FX4L-I FX6L-I
4digit 6digit
W8×H14mm
