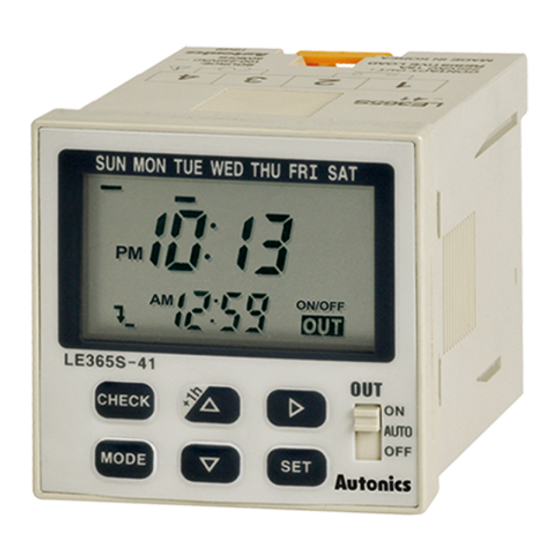

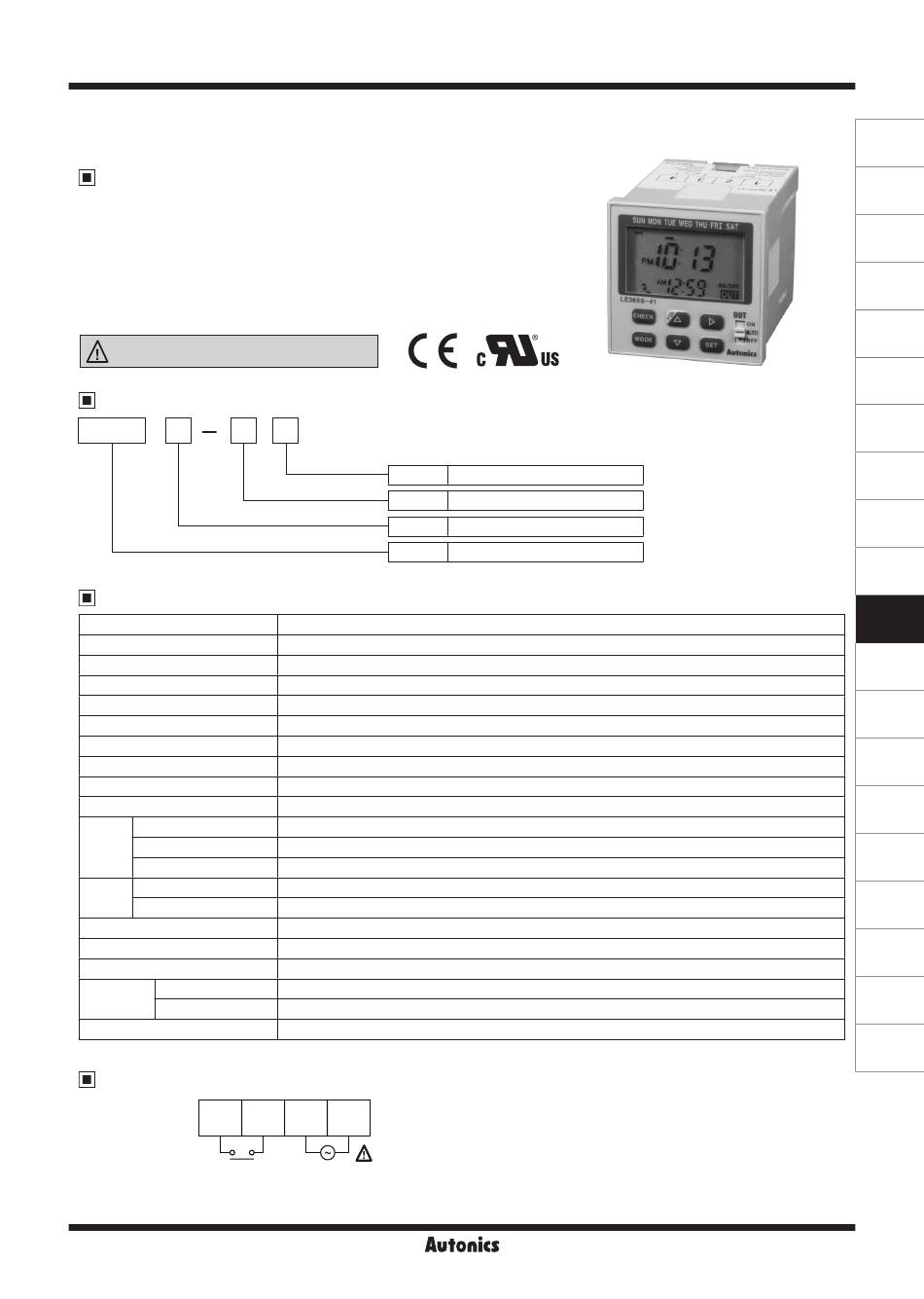

LE365S-41
W48×H48mm, Weekly/Yearly Timer
Features
● Easy to check and change the program setting
● Customizable weekly or yearly unit time setting and
control by user
● Includes daylight saving time function
● 1 independent control output. (relay)
● Flush and surface, DIN rail mounting are in one unit.
Please read "Caution for your safety" in operation
manual before using.
Ordering Information
LE365
S
4
Size
Item
Specifications
Model
Power supply
Allowable voltage range
Power consumption
Timing program
Operation mode
Mounting
Time deviation
Temperature error
Memory protection
Contact type
Control
Contact capacity
Output
Output number
Mechanical
Relay
life cycle
Electrical
Insulation resistance
Dielectric strength
Noise immunity
Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment
Ambient humidity
Unit weight
※ Environment resistance is rated at no freezing or condensation.
Connections
1
CONTACT OUT:
250VAC 15A,
30VDC 5A
RESISTIVE LOAD
1
Output
1
Power supply
4
S
LE365
LE365S-41
100-240VACᜠ 50/60Hz
90 to 110% of rated voltage
Max. 2.4VA (100-240VACᜠ)
48 steps for weekly, 24 steps for yearly
ON/OFF mode, cycle mode, pulse mode
Panel flush, surface, DIN rail
±15sec/month (ambient temperature: 25℃) (±4sec/week)
±0.01% ±0.05sec
Over 5 years (at 25℃)
SPST (Single Pole Single Throw)
250VACᜠ 15A, 30VDCᜡ 5A resistive load
Independent 1 output (1a)
Min. 5,000,000 operations (switching capacity 30 times/min)
50,000 operations<switching capacity 20 times/min, 250VAC 15A (resistive load)>
Over 100MΩ (at 500VDC megger)
2,000VAC 50/60Hz for 1minute
±2kV the square wave noise (pulse width: 1μs) by the noise simulator
35 to 85%RH
Approx. 110g
2
3
4
SOURCE:
100-240VAC
50/60Hz
Weekly/Yearly Timer
1 Relay output
100-240VAC 50/60Hz
DIN W48×H48mm
Weekly/Yearly timer
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Connector Cables/
Sensor Distribution
Boxes/Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software
K-89

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE365S-41 and is the answer not in the manual?

Questions and answers

Related Manuals for Autonics LE365S-41

Summary of Contents for Autonics LE365S-41

  • Page 1 LE365S-41 Weekly/Yearly Timer W48×H48mm, Weekly/Yearly Timer Photoelectric Sensors Features Fiber Optic ● Easy to check and change the program setting Sensors ● Customizable weekly or yearly unit time setting and control by user Door/Area Sensors ● Includes daylight saving time function ●...

  • Page 2: Dimensions And Mounting

    LE365S-41 Dimensions & Mounting (unit: mm) 1) Front panel mounting ● Panel cut-out Min. 55 +0.6 Min. 65 +0.6 2) Surface mounting ● Panel hole cut-out Panel 2-M3 Tap ※ Fix the Weekly/Yearly timer on the panel with M3 tapping screws.

  • Page 3: Unit Description

    Weekly/Yearly Timer Unit Description Photoelectric Sensors Fiber Optic Sensors Door/Area Sensors Proximity Sensors Pressure Sensors Rotary Encoders Connectors/ Connector Cables/ Sensor Distribution Boxes/Sockets 1. Day indicator Temperature 13. Remaining step display Controllers 2. Day display 14. Operation mode display ● Light: Day is selected. 15.

  • Page 4: Program Operation

    LE365S-41 Power restore mode • Set range for ON/OFF time width : 1min to 12 hour 59min In setting group 2 - LEVEL2 ( RET turns ON, AT or NOR • One record in 3 steps (ON day/ON time, OFF day/OFF...

  • Page 5: Daylight Saving Time

    Weekly/Yearly Timer Daylight saving time Current time setting To utilize daylight during the summer season, daylight (E.g.) Set the current time as 10, Mar, 2008, 5:10 PM. Photoelectric Sensors saving time is adjusted forward one hour from standard ① Advance to the current time setting mode time.

  • Page 6: Program Setting

    LE365S-41 Program Setting Setting group 1 Setting group 2 RUN mode RUN mode + SET Press MODE Press MODE Press MODE Press MODE (setting group 1) (setting group 2) for 3sec for 3sec for 3sec key for 3sec LEVEL1 LEVEL2...
  • Page 7 Weekly/Yearly Timer Example of Weekly program setting ⑦ OFF time setting (AM, PM) SUN MON TUE WED THU FRI SAT ● Weekly ON/OFF mode Photoelectric Select PM by Sensors (E.g.) Output 1 (OUT1) is ON from Monday to Friday at 8:00 and move the flashing to hour AM and OFF at 6:10 PM.
  • Page 8 LE365S-41 ④ ON day setting ● Weekly Cycle mode (E.g.) Output 1 (OUT1) is ON for 10min and OFF for 5min SUN MON TUE WED THU FRI SAT Press key to move the from Monday 6:00AM to Saturday 5:30PM. indicator to Monday, it will be...
  • Page 9 Weekly/Yearly Timer Weekly day change Yearly holiday mode When the specified day mode is required to install in other It operates to off the output without program adjustment Photoelectric Sensors day, it is started from the set day and returned to previous during previously set yearly holiday period available from program setting automatically when it is finished.
  • Page 10 LE365S-41 Yearly program setting ⑧ OFF time setting (hour, min) SUN MON TUE WED THU FRI SAT ● Yearly ON/OFF mode Move the flashing to minute (E.g.) Output (OUT) is ON from every 5, Apr to 7, Apr at position after set 5:00 by 9:00AM and OFF 5:10PM.

  • Page 11: Program Check, Modify And Delete

    Weekly/Yearly Timer ⑤ ON time setting (AM, PM) Yearly program check, modify and delete SUN MON TUE WED THU FRI SAT Photoelectric key is pressed, move the Sensors RUN mode flashing to hour position and Press Press MODE CHECK select PM by Fiber for 3sec key for 1sec...
