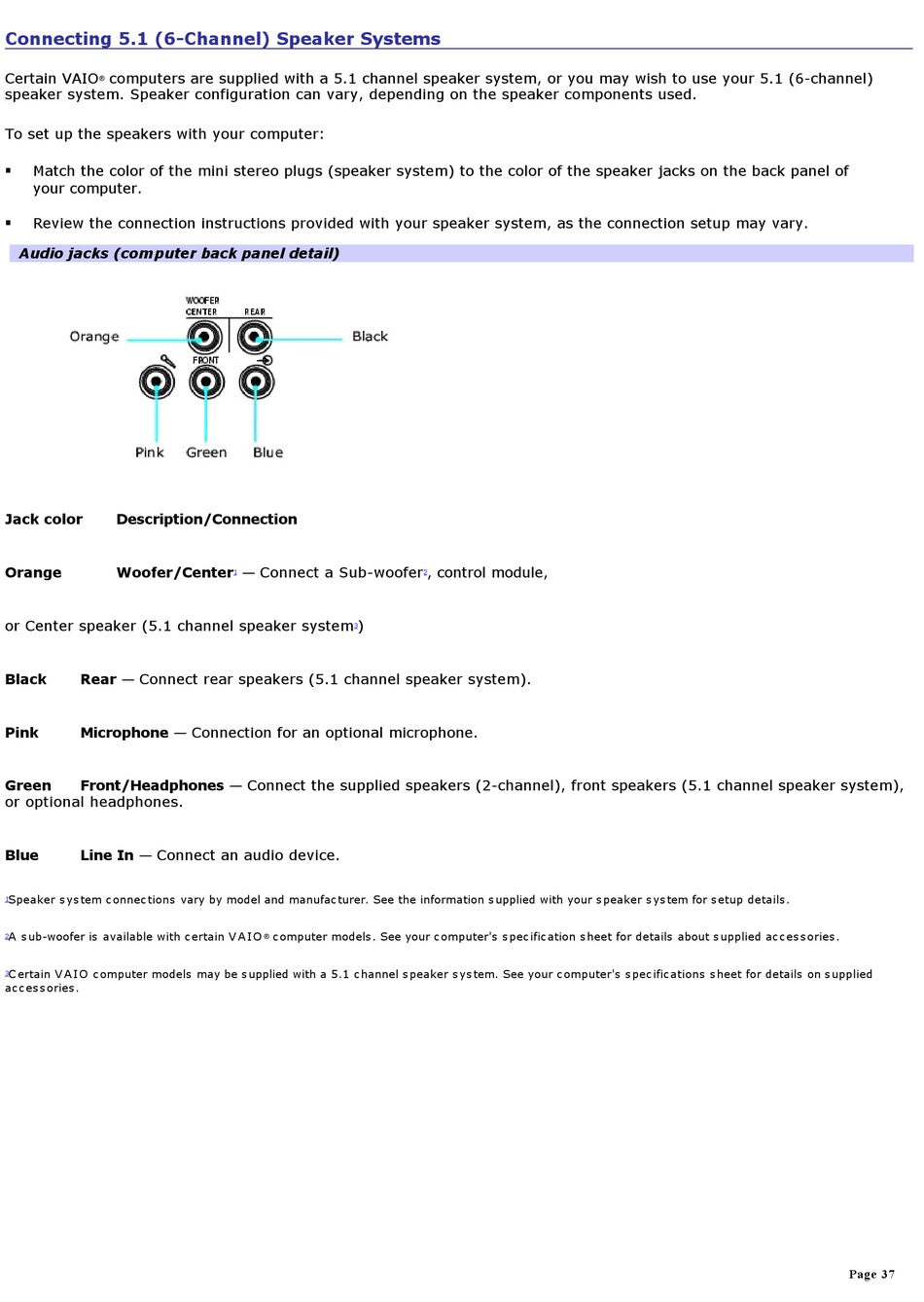

Connecting 5.1 (6-Channel) Speaker Systems

Certain VAIO computers are supplied with a 5.1 channel speaker system, or you may wish to use your 5.1 (6-channel)
®
speaker system. Speaker configuration can vary, depending on the speaker components used.
To set up the speakers with your computer:

Match the color of the mini stereo plugs (speaker system) to the color of the speaker jacks on the back panel of
your computer.
 Review the connection instructions provided with your speaker system, as the connection setup may vary.
Audio jacks (com puter back panel detail)
Jack color Description/Connection
Orange Woofer/Center
or Center speaker (5.1 channel speaker system
Black Rear — Connect rear speakers (5.1 channel speaker system).
Pink Microphone — Connection for an optional microphone.
Green Front/Headphones — Connect the supplied speakers (2-channel), front speakers (5.1 channel speaker system),
or optional headphones.
Blue Line In — Connect an audio device.
Speaker s ys tem c onnec tions vary by model and manufac turer. See the information s upplied with your s peaker s ys tem for s etup details .
1
A s ub-woofer is available with c ertain V A I O
2
C ertain V A I O c omputer models may be s upplied with a 5 .1 c hannel s peaker s ys tem. See your c omputer's s pec ific ations s heet for details on s upplied
3
ac c es s ories .
— Connect a Sub-woofer
1
)
3
c omputer models . See your c omputer's s pec ific ation s heet for details about s upplied ac c es s ories .
®
, control module,
2
Page 37
