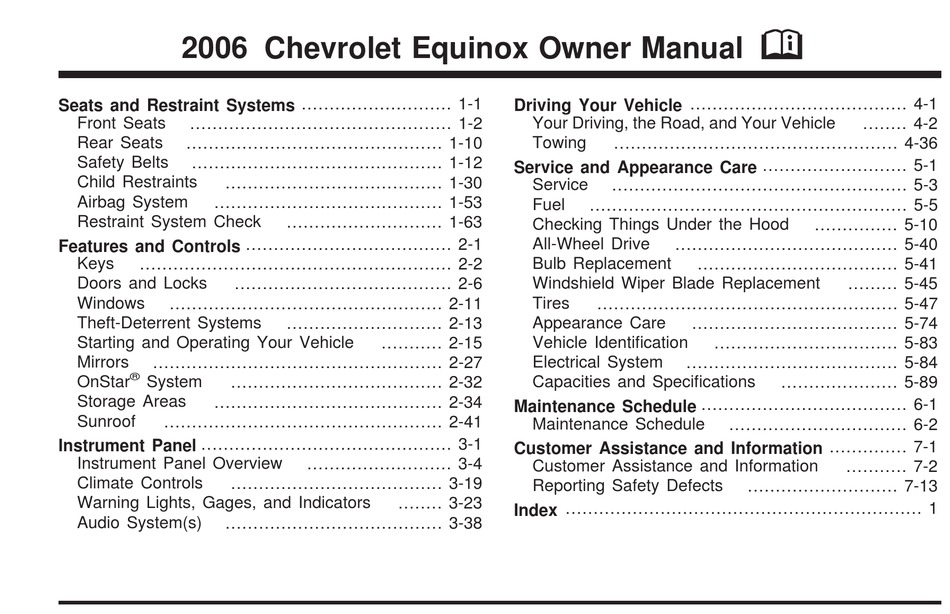

Page 1 2006 Chevrolet Equinox Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-10 Safety Belts ... 1-12 Child Restraints ... 1-30 Airbag System ... 1-53 Restraint System Check ... 1-63 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
We reserve the right to make changes after that time without notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Litho in U.S.A.
Page 3 Index A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. Safety Warnings and Symbols There are a number of safety cautions in this book.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Driver Seat Height Adjuster ...1-3 Six-Way Power Driver Seat ...1-3 Manual Lumbar ...1-4 Heated Seats ...1-4 Reclining Seatbacks ...1-5 Head Restraints ...1-7 Passenger Folding Seatback ...1-8 Rear Seats ...1-10 Split Folding Rear Seat ...1-10 Safety Belts ...1-12 Safety Belts: They Are for Everyone ...1-12 Questions and Answers About Safety Belts ...1-17...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Driver Seat Height Adjuster
Driver Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat near the front of the seat cushion. To raise the seat, move the lever upward repeatedly until the seat is at the desired height.
Page 10: Manual Lumbar
Manual Lumbar If your vehicle has this feature, the knob is located on the front of the driver seat lower cushion on the inboard side. Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support. Heated Seats If your vehicle has heated seats, the switches are located on the...
Page 11: Reclining Seatbacks
Reclining Seatbacks CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. Driver’s Seat with Manual Recline and Manual Height Adjuster shown To adjust the seatback on the driver’s seat, lift the lever...
Page 12 Passenger Seat with Folding Seatback Option shown To adjust the seatback on the front passenger’s seat, lift the lever on the outboard side of the seat and move the seatback to the desired position. Then release the lever to lock the seatback in place. If your front passenger’s seat is a ﬂat folding seat, you must fully raise the lever to disengage the seatback.
Page 13: Head Restraints
Do not have a seatback reclined if your vehicle is moving. Head Restraints Press the button on the side of the head restraint to lower it.
Page 14: Passenger Folding Seatback
Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. Passenger Folding Seatback The front passenger’s seatback may fold ﬂat. CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo...
Page 15 To fold the seatback, do the following: 1. Lower the head restraint all the way. 2. Lift the bar under the front of the seat to unlock it. Slide the seat as far back as it will go and release the bar.
Page 16: Rear Seats
To raise the seatback, do the following: 1. Lift the recliner lever, located on the outboard side of the seat, up fully and push up on the seatback. 2. Continue raising the seatback until the seatback re-engages. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 17 CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
Page 18: Safety Belts
To recline the seatback, do the following: 1. Lift and hold the lever located on top of the seatback. 2. Tilt the seatback rearward, then release the lever when the seatback is in the desired position. To slide the entire seat forward or rearward, do the following: 1.
Page 19 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 20: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-14...
Page 21 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-15...
Page 22 or the instrument panel... 1-16 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 23 Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down.
Page 24: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-30 or Infants and Young Children on page 1-33.
Page 25 Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 5. Move the shoulder belt height adjuster to the height that is right for you. See Shoulder Belt Height Adjustment on page 1-24.
Page 26 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. 1-20 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 27 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 28 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-22 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 29 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 30: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 31: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 32 Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 33 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 34: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 35: Safety Belt Pretensioners
CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 36: Child Restraints
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer will order you an extender. It is free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 37 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 38 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? If the child is sitting in a seat next to a window, move the child toward the center of the vehicle.
Page 39: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 40 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 41 CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders.
Page 42: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 43 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 44 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 45 When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 46: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 47 Conﬁgurations for Use of Two Child Restraints A. Child restraint using LATCH B. Occupant prohibited A. Occupant prohibited B. Child restraint using LATCH A. Child restraint using LATCH B. No occupant recommended C. Child restraint or occupant using safety belt Conﬁgurations for Use of Three Child Restraints A.
Page 48 Lower Anchors and Tethers for Children (LATCH) Your vehicle has the LATCH system. The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 49 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 50 Lower Anchor and Top Tether Anchor Locations Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Rear Seat Each rear seating position has exposed metal anchors located in the crease between the seatback and the seat cushion.
Page 51 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint,...
Page 52 A. Passenger’s Side Rear Seat Lower Anchors B. Center Rear Seat Lower Anchors C. Driver’s Side Rear Seat Lower Anchors Make sure to attach the child restraint at the proper anchor location. 1-46 This system is designed to make installation of child restraints easier.
Page 53 2.3. Route, attach and tighten the top tether according to your child restraint instructions and the following instructions: If the position you are using does not have a head restraint and you are using a single tether, route the tether over the seatback.
Page 54: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-42. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 55 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 56: Securing A Child Restraint In The Right Front Seat Position
To remove the child restraint, if the top tether is attached, disconnect it. Unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger.
Page 57 A rear seat is a safer place to secure a forward-facing child restraint. If you need to secure a forward-facing child restraint in the right front seat, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 58 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-52 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 59: Airbag System
To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. When the safety belt is not in use, slide the latch plate up the safety belt webbing.
Page 60 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 61 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 62: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-26 for more information.
Page 63 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has a side impact airbag for the driver and the person seated directly behind the driver, it is in the ceiling above the side windows. 1-57...
Page 64 If your vehicle has a side impact airbag for the right front passenger and the person seated directly behind that passenger, it is in the ceiling above the side windows. 1-58 CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 65: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 66: How Does An Airbag Restrain
Your vehicle may or may not have side impact airbags. See Airbag System on page 1-53. Side impact airbags are intended to inﬂate in moderate to severe side crashes. A side impact airbag will inﬂate if the crash severity is above the system’s designed “threshold level.” The threshold level can vary with speciﬁc vehicle design.
Page 67: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After a frontal airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Roof-mounted side impact airbags deﬂate more slowly and may still be at least partially inﬂated minutes after the vehicle comes to rest.
Page 68: Servicing Your Airbag-Equipped Vehicle
Your vehicle has a feature that may automatically unlock the doors and turn the interior dome lamp on and ﬂash the parklamps on and off when the airbags inﬂate (if battery power is available.) You can lock the doors again and turn the interior lamps off by using the door lock and interior lamp controls.
Page 69: Restraint System Check
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, front end or side sheet metal or height, they may keep the airbag system from working properly.
Page 70: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 71: Table Of Contents
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-3 Remote Keyless Entry System Operation ...2-4 Doors and Locks ...2-6 Door Locks ...2-6 Power Door Locks ...2-7 Delayed Locking ...2-7 Automatic Door Lock ...2-8 Programmable Automatic Door Unlock ...2-8 Rear Door Security Locks ...2-8 Lockout Protection ...2-9 Liftgate ...2-10 Windows ...2-11...
Page 72: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 73: Remote Keyless Entry System
Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. If your vehicle is equipped with the OnStar an active subscription and you lock your keys inside ®...
Page 74: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation With this feature, you can lock and unlock the doors from about 26 feet (8 m) away using the remote keyless entry transmitter supplied with your vehicle. button on the remote keyless entry transmitter one time to lock the doors. The headlamps will ﬂash once.
Page 75: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 76: Doors And Locks
Resynchronization This is used to keep the transmitter of the vehicle communicating with the receiver of the vehicle. Resynchronization may be required due to the security method used by this system. Your vehicle has an automatic resynchronization function built into the system. If your transmitter is not working properly and you have to manually resynchronize, press the lock and unlock buttons at the same time for seven seconds while you are near...
Page 77: Power Door Locks
There are a couple of ways to manually lock or unlock your vehicle. From the outside, use the key in the driver’s door. From the inside, use the lock control on the door. Power Door Locks The power door lock switches are located on the driver’s and front passenger’s doors.
Page 78: Automatic Door Lock
Automatic Door Lock With this feature, all the doors will automatically lock when the shift lever is moved out of PARK (P) if the ignition is in the run position and all doors are closed. Otherwise, the doors will automatically lock if the vehicle is going faster than 3 mph (5 km/h).
Page 79: Lockout Protection
To open a rear door while the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, the front door power lock switch, or by lifting the rear door manual lock. 2. Open the door from the outside. To cancel the rear door security lock, do the following: 1.
Page 80: Liftgate
Liftgate CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the...
Page 81: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 82: Power Windows
Power Windows The window switches for all doors are located on the center console. A window switch for each rear window is located on each rear door. To open a window, press the bottom of the switch. To close a window, press the top of the switch. The power windows operate when the ignition is RUN or ACC (Accessory), or while in Retained Accessory Power (RAP).
Page 83 Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. Content Theft-Deterrent Your vehicle has a content theft-deterrent alarm system.
Page 84 Content Theft-Deterrent Personalization To change the mode that your vehicle is programmed to, do the following: 1. Turn the ignition to RUN or ACC (Accessory). 2. Press the panic alarm button on the transmitter slowly four times within ﬁve seconds. 3.
Page 85: Theft-Deterrent Systems
® Passlock ® Your vehicle has the Passlock theft-deterrent system. This light will come on for the theft-deterent system and is located on the instrument panel cluster. ® Passlock is a passive theft-deterrent system. ® Passlock enables fuel if the ignition lock cylinder is turned with a valid key.
Page 86: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn it to four different positions. A warning tone will sound if you open the driver’s door when the key has not been removed from the ignition. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key.
Page 87: Starting The Engine
Starting the Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — that is a safety feature. To restart when you are already moving, use NEUTRAL (N) only. Notice: Shifting into PARK (P) with the vehicle moving could damage the transaxle.
Page 88: Engine Coolant Heater
Engine Coolant Heater If your vehicle has this feature, in very cold weather 0°F ( 18°C) or colder, the engine coolant heater can help. You will get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 89: Automatic Transaxle Operation
Automatic Transaxle Operation The shift lever is located on the center console. There are several different positions for the automatic transaxle. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily.
Page 90 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transaxle. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 91 LOW TWO (L2): This position gives you more power but lower fuel economy than AUTOMATIC OVERDRIVE (D). You can use LOW TWO (L2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on.
Page 92: Parking Brake
Parking Brake The parking brake lever is located to the right of the driver’s seat. To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on. 2-22 To release the parking brake, hold the brake pedal down.
Page 93: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 94: Shifting Out Of Park (P)
Torque Lock If you are parking on a hill and you do not shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 95: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 96: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 97: Mirrors
Mirrors Manual Rearview Mirror To adjust the angle of the mirror, move the mirror to a position that allows you see to out of the back window. To adjust the height of the mirror, adjust the arm that connects the mirror to the windshield. To reduce glare from lights behind you, move the lever toward you to the night position.
Page 98: Compass Variance
Compass Variance Press the on/off button twice to turn on the compass. Compass variance is the difference between earth’s magnetic north and true geographic north. If not adjusted to account for compass variance, the mirror’s compass could give false readings. The mirror is set in zone eight upon leaving the factory.
Page 99: Compass Calibration
Compass Calibration The compass may need calibration if one of the following occurs: • After approximately ﬁve seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, magnetic note pad holder, or a similar magnetic item.
Page 100: Temperature And Compass Display
Temperature and Compass Display Press the on/off button, located in the center, to cycle between °F, °C and off. If the display reads CAL, the compass needs to be calibrated. For more information, see “Compass Calibration” later in this section. If an abnormal temperature reading is displayed for an extended period of time, please consult your dealer.
Page 101: Outside Power Mirrors
Compass Calibration The compass may need calibration if one of the following occurs: • If CAL is displayed while driving in the vehicle. • After approximately ﬁve seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic ﬁeld interfering with the compass.
Page 102: Outside Convex Mirrors
Outside Convex Mirrors The passenger’s side mirror is convex. A convex mirror’s surface is curved, creating a wider area of vision for the driver. CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right.
Page 103 Terms and conditions of the Subscription Service Agreement can be found at www.onstar.com or www.onstar.ca. ® OnStar Services For new vehicles equipped with OnStar Sound Plan is included for one year from the date of purchase. You can extend this plan beyond the ﬁrst year, or upgrade to the Directions and Connections Plan to meet your needs.
Page 104: Storage Areas
® OnStar Virtual Advisor Your vehicle may have Virtual Advisor. It is a feature of ® OnStar Personal Calling that uses minutes to access weather, local traffic reports, and stock quotes. By pressing the phone button and giving a few simple voice commands, you can browse through the various topics.
Page 105: Coinholder(S)
Coinholder(s) Your vehicle has a coinholder on the center console. Center Console Storage Area Your vehicle may have a center console armrest with storage area. Use the lever on the front of the console to open it. Garment Hooks Your vehicle has garment hooks located on rear headliner of the vehicle that can be pulled down for hanging garments.
Page 106 The roof rack crossrails can be locked in four positions only. 2-36 Press the lever down and align the crossrails on both sides with the holes on the siderails. Move the crossrail by hand. There will be a notable click as the pins align into the holes locking the crossrail into place.
Page 107 To reposition the crossrail, pull up on the end levers of the crossrail to the upright position. This will release the pins from the holes in the siderail. You will be able to move the crossrail into a new position. Notice: Loading cargo on the luggage carrier that weighs more than 220 lbs (100 kg) or hangs over the rear or sides of the vehicle may damage your...
Page 108: Rear Compartment Storage Panel/Cover
Rear Compartment Storage Panel/Cover Your vehicle may be equipped with an adjustable panel/cargo cover feature. The panel/cargo cover can be adjusted into three positions. There is a ﬂip panel towards the front of the cargo cover. You may have to ﬂip this panel upward in order to gain access to the cargo cover.
Page 109 CAUTION: If you were to carry things on the adjustable panel when it is in the upper (cargo cover) or center positions, during a sudden vehicle movement or a crash, those things could be thrown around in the vehicle. You or others could be injured.
Page 110: Table
Table Your vehicle has an adjustable panel that also functions as a table. The maximum load for the table is 100 lbs. distributed (45 kg). 2-40 To set up the table, do the following: 1. With the adjustable panel in the upper position pull rearward to position it for use as a table.
Page 111: Convenience Net
Convenience Net Your vehicle may have a rear compartment net to prevent items from rolling under the rear seat. Your vehicle is also equipped with four tie-down anchors. Two anchors are located on the side trim, just behind the rear seat, and the other two are located on the ﬂoor at the rear of the cargo area.
Page 112 NOTES 2-42...
Page 113 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Windshield Washer ...3-9 Rear Window Wiper/Washer ...3-10 Cruise Control ...3-10 Headlamps ...3-13...
Page 114 Section 3 Engine Coolant Temperature Gage ...3-31 Malfunction Indicator Lamp ...3-31 Oil Pressure Light ...3-34 Change Engine Oil Light ...3-35 Security Light ...3-35 Reduced Engine Power Light ...3-35 Highbeam On Light ...3-36 Daytime Running Lamps (DRL) Indicator Light ...3-36 Gate Ajar Light ...3-36 Fuel Gage ...3-36 Low Fuel Warning Light ...3-37 Instrument Panel...
Page 115 NOTES...
Page 116: Instrument Panel Overview
Instrument Panel Overview...
Page 117 The main components of your instrument panel are the following: A. Power Mirror Control. See Outside Power Mirrors on page 2-31 B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-24. D.
Page 118: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 119: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-7. • Exterior Lamps. See Headlamps on page 3-13. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-8.
Page 120: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high or high beam to low, pull the turn signal lever all the way towards you. Then release it. When the high beams are on, this light on the instrument panel cluster will also be on.
Page 121: Windshield Washer
Canada The lever on the right side of the steering column operates the windshield wipers. Push up or pull down on the lever to place it in one of the following positions. MIST or (Mist): Pull the lever down and release it for a single wiping cycle.
Page 122: Rear Window Wiper/Washer
Rear Window Wiper/Washer The band on the wiper lever with the smaller arrow operates the rear wiper/washer. (Off): Turn the band to this position to turn off the rear wiper. (Rear Wiper): Turn the band with the smaller arrow to this position to turn on the rear wiper. To set for a shorter or longer delay between wipes, turn the other band with the larger arrow pointing to the numbers (1, 2, or 3).
Page 123 With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h). If you apply your brakes, the cruise control will shut off.
Page 124 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, disengages the cruise control. But you don’t need to reset it. Once you’re going about 25 mph (40 km/h) or more, you can press the cruise control resume button.
Page 125: Headlamps
Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the hills. When going up steep hills, you may have to step on the accelerator pedal to maintain your speed. When going downhill, you may have to brake or shift to a lower gear to keep your speed down.
Page 126: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 127: Fog Lamps
Fog Lamps If your vehicle has this feature, use your fog lamps for better visibility in foggy or misty conditions. The button for your fog lamps is located in the instrument panel above the radio. Push the button to turn the fog lamps on or off. When using fog lamps, the parking lamps or low-beam headlamps must be on.
Page 128: Dome Lamp
Dome Lamp The dome lamp switch has three positions. (Off): The lamp will not come on as long as the switch is in this position. AUTO: The lamp will come on when a door is opened. See Entry Lighting on page 3-16. (On): The lamp will stay on as long as the switch is in this position.
Page 129: Map Lamps
Map Lamps Your vehicle may have lamps located on the headliner above the rearview mirror. Push on the lens in the lamp to turn them on and off. Cargo Lamp The cargo lamp is located over the rear compartment, and is controlled by the dome lamp. See Dome Lamp on page 3-16.
Page 130: Ashtray(S) And Cigarette Lighter
Certain electrical accessories may not be compatible with the accessory power outlets and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer for additional information on the accessory power outlet. Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should.
Page 131: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Operation Temperature Control: Turn the center knob clockwise or counterclockwise to increase or decrease the temperature inside your vehicle. (Fan): Turn the left knob clockwise or counterclockwise to increase or decrease the fan speed.
Page 132: Defogging And Defrosting
You can also select modes by using the following buttons: (Recirculate): Press this button on the center knob to recirculate cabin air through the vehicle. It can be used to prevent outside air and odors from entering your vehicle or to help heat or cool the air inside your vehicle more quickly.
Page 133: Outlet Adjustment
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. The rear window defogger will only work when the ignition is in RUN. < (Rear): Press this button to turn the rear window defogger on or off.
Page 134 To change the passenger compartment air ﬁlter, use the following steps: 1. Remove the push pins from the rear of the passenger’s side air inlet panel. It is located in the rear of the engine compartment on the passenger side of the vehicle. 2.
Page 135: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 136: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you are using, and many other things you will need to drive safely and economically. United States version shown, Canada similar 3-24...
Page 137: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper resistant odometer.
Page 138: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for...
Page 139: Battery Warning Light
CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your...
Page 140: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part isn’t working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the brake system warning light comes on, there is a brake problem.
Page 141: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the anti-lock brake system, the light will come on when your engine is started and may stay on for several seconds. That is normal. If the ABS warning light comes on and stays on, there may be a problem with the anti-lock portion of the brake system.
Page 142: Low Traction Light
If the traction control system warning light comes on and stays on for an extended period of time when the system is turned on, your vehicle needs service. Low Traction Light If your vehicle has the Traction Control System (TCS) and has front-wheel-drive, this light will come on when the system is...
Page 143: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage measures the temperature of the vehicle’s engine. If the indicator needle moves into the shaded area, the engine is too hot. A temperature indicator light will turn on. If you have been operating your vehicle under normal driving conditions, and the temperature indicator light comes on, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 144: If The Light Is Flashing
Notice: Modiﬁcations made to the engine, transaxle, exhaust, intake, or fuel system of your vehicle or the replacement of the original tires with other than those of the same Tire Performance Criteria (TPC) can affect your vehicle’s emission controls and may cause this light to come on. Modiﬁcations to these systems could lead to costly repairs not covered by your warranty.
Page 145 The diagnostic system can determine if the fuel cap has been left off or improperly installed. A loose or missing fuel cap will allow fuel to evaporate into the atmosphere. A few driving trips with the cap properly installed should turn the light off. Did you just drive through a deep puddle of water? If so, your electrical system may be wet.
Page 146: Maintenance Schedule
Oil Pressure Light If you have a low engine oil pressure problem, this light will stay on after you start your engine, or come on when you are driving. This indicates that your engine is not receiving enough oil. The engine could be low on oil, or could have some other oil problem.
Page 147: Change Engine Oil Light
Change Engine Oil Light If this light comes on and stays on for 30 seconds, it means that service is required for your vehicle. See Scheduled Maintenance on page 6-4 for more information. After having the oil changed you will need to reset the light.
Page 148: Highbeam On Light
Highbeam On Light This light will come on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 3-8. Daytime Running Lamps (DRL) Indicator Light This light is located on the instrument panel cluster. It goes on whenever the Daytime Running Lamps are on.
Page 149: Low Fuel Warning Light
Here are four things that some owners ask about. None of these show a problem with your fuel gage: • At the service station, the fuel pump shuts off before the gage reads full. • It takes a little more or less fuel to ﬁll up than the gage indicated.
Page 150: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 4-2. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 151: Setting The Time
Notice: Before adding any sound equipment to your vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units.
Page 152: Radio With Cd (Base Level)
Radio with CD (Base Level) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. 3-40 With RDS, the radio can do the following: •...
Page 153: Playing The Radio
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 154: Finding A Station
Finding a Station AM/FM: Press this button to switch between FM1, FM2 or AM. The display will show the selection. XM/AUX: Press this button to switch between XM1 or XM2 (if equipped). ADJ (Adjust): Turn this knob to select radio stations. SEEK : Press the left or right arrow to go to the previous or the next station and stay there.
Page 155: Setting Preset Stations
Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM/FM to select FM1, FM2 or AM. Press XM/AUX to select XM1 or XM2.
Page 156: Rds And Xm
Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the balance and fade button until FADE appears on the display.
Page 157: Rds Messages
RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is low or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 158 Radio Display Message Not Available The Radio senses that the XM™ system is not present. XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay)
Page 159 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 160: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject or DISP knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 161 (Reverse): Press and hold this pushbutton to reverse quickly within a track. You will hear sound at a reduced volume. Release the button to play the passage. The elapsed time of the track will appear on the display. (Fast Forward): Press and hold this button to advance quickly within a track.
Page 162 EQ (Equalizer): Press this button to select the desired equalization setting while playing a CD. The equalization will be automatically recalled whenever a CD is played. For more information, see “EQ” listed previously in this section. AM/FM: Press this button to listen to the radio when a CD is playing.
Page 163: Radio With Cd (Mp3)
Radio with CD (MP3) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 164 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 165 Finding a Station AM/FM: Press this button to switch between FM1, FM2 or AM. The display will show the selection. XM/AUX: Press this button to switch between XM1 or XM2 (if equipped). ADJ (Adjust): Turn this knob to select radio stations. ©...
Page 166 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM/FM to select FM1, FM2 or AM. Press XM/AUX to select XM1 or XM2 (if equipped).
Page 167 Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the balance and fade button until FADE appears on the display.
Page 168 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is low or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 169 Radio Display Message Not Available The Radio senses that the XM™ system is not present. XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay)
Page 170 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 171 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject or DISP knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 172 (Reverse): Press and hold this pushbutton to reverse quickly within a track. You will hear sound at a reduced volume. Release the button to play the passage. The elapsed time of the track will appear on the display. (Fast Forward): Press and hold this pushbutton to advance quickly within a track.
Page 173: Mp3 Format
AM/FM: Press this button to listen to the radio when a CD is playing. The inactive CD will remain safely inside the radio for future listening. XM/AUX: Press this button to listen to XM™ (if equipped) when a CD is playing. The inactive CD will remain safely inside the radio for future listening.
Page 174 Root Directory The root directory will be treated as a folder. If the root directory has compressed audio ﬁles, the directory will be displayed as ROOT. All ﬁles contained directly under the root directory will be accessed prior to any root directory folders. However, playlists (Px) will always be accessed before root folders or ﬁles.
Page 175 File System and Naming The song name that will be displayed will be the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio will display the ﬁle name without the extension (such as .mp3) as the track name.
Page 176 If there is no apparent damage, try a known good CD. Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen instead.
Page 177 RDM (Random): To random the tracks in the current folder or playlist, press and release this button. FLDR RDM ON will appear on the display. Once all of the tracks in the current folder or playlist have been played the system will move on to the next folder or playlist and play all of the tracks in random order.
Page 178 MSG (Message): Press this button to switch within the ID3 tag information such as title, artist name, and album. AM/FM: Press this button to listen to the radio when a CD is playing. The inactive CD will remain safely inside the radio for future listening. XM/AUX: Press this button to listen to XM™...
Page 179: Radio With Six-Disc Cd
Radio with Six-Disc CD Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 180 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 181 Finding a Station AM/FM: Press this button to switch between FM1, FM2 or AM. The display will show the selection. XM/AUX: Press this button to switch between XM1 or XM2 (if equipped). ADJ (Adjust): Turn this knob to select radio stations. SEEK : Press the left or right arrow to go to the previous or the next station and stay there.
Page 182 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM/FM to select FM1, FM2 or AM. Press XM/AUX to select XM1 or XM2.
Page 183 Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, press and release the balance and fade button until BAL appears on the display. Turn the ADJ knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, press and release the balance and fade button until FADE appears on the display.
Page 184 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is low or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 185 Radio Display Message Not Available The Radio senses that the XM™ system is not present. XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay)
Page 186 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 187 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD icon will appear on the CD.
Page 188 LOAD: Press the LOAD button to load CDs into the CD player. This CD player will hold up to six CDs. To insert one CD, do the following: 1. Turn the ignition on. 2. Press and release the LOAD button. 3.
Page 189 Playing a Speciﬁc Loaded CD For every CD loaded, a number will appear on the display. To play a speciﬁc CD, press the numbered pushbutton that corresponds to the CD you want to play. A small bar will appear under the CD number that is playing, and the track number will appear.
Page 190 SEEK : Press the left arrow to go to the start of the current track if more than eight seconds have played. Press the right arrow to go to the beginning of the next track. If either arrow is held or pressed more than once, the player will continue moving backward or forward through the CD.
Page 191: Using Song List Mode
Using Song List Mode (Song List): The six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the radio on and load it with at least one CD. See “LOAD”...
Page 192 After a track has been deleted, the remaining tracks are moved up the list. When another track is added to the song list, the track will be added to the end of the list. To delete the entire song list, perform the following steps: 5.
Page 193: Theft-Deterrent Feature
Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOCKED will appear on the display.
Page 194: Radio Reception
(Mute/Voice Recognition): Press and release this button to silence the system. Press and release this button again, or any other radio button, to turn the sound on. Press and hold this button for two seconds to interact ® with the OnStar system.
Page 195: Care Of The Cd Player
XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada (if available). Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or tunnels may cause loss of the XM™...
Page 196: Xm™ Satellite Radio Antenna System
XM™ Satellite Radio Antenna System The XM™ Satellite Radio antenna is located on the roof of your vehicle. Keep this antenna clear of snow and ice build up for clear radio reception. If your vehicle has a sunroof, the performance of the XM™...
Page 197: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-9 Traction Control System (TCS) ...4-10 All-Wheel Drive (AWD) System ...4-11 Steering ...4-11 Off-Road Recovery ...4-14 Passing ...4-14...
Page 198: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-12. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 199: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 200 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 201 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 202: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 203: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 204 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 205: Braking In Emergencies
Remember: Anti-lock does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 206: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle may have a traction control system that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction.
Page 207: All-Wheel Drive (Awd) System
All-Wheel Drive (AWD) System If your vehicle has all-wheel drive (AWD), the AWD system operates automatically without any action required by the driver. If the front drive wheels begin to slip, the rear wheels will automatically begin to drive the vehicle as required. There may be a slight engagement noise during hard use but this is normal.
Page 208: Steering Tips
Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control” accidents mentioned on the news happen on curves. Here is why: Experienced driver or beginner, each of us is subject to the same laws of physics when driving on curves.
Page 209: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 210: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 211: Loss Of Control
• Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 212 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
Page 213: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 214: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 215: Driving Through Deep Standing Water
Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you cannot, try to slow down before you hit them. Hydroplaning Hydroplaning is dangerous.
Page 216: City Driving
Some Other Rainy Weather Tips • Turn on your low-beam headlamps — not just your parking lamps — to help make you more visible to others. • Besides slowing down, allow some extra following distance. And be especially careful when you pass another vehicle.
Page 217: Freeway Driving
Here are ways to increase your safety in city driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
Page 218: Before Leaving On A Long Trip
The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic ﬂow. Treat the left lane on a freeway as a passing lane. At the entrance, there is usually a ramp that leads to the freeway.
Page 219: Highway Hypnosis
Is your vehicle ready for a long trip? If you keep it serviced and maintained, it is ready to go. If it needs service, have it done before starting out. Of course, you will ﬁnd experienced and able service experts in GM dealerships all across North America.
Page 220: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-24 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 221 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 222: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-47. 4-26 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 223 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall.
Page 224: If You Are Caught In A Blizzard
Remember, unless you have ABS, if you brake so hard that your wheels stop rolling, you will just slide. Brake so your wheels always keep rolling and you can still steer. • Whatever your braking system, allow greater following distance on any slippery road. •...
Page 225 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 226: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 227: Rocking Your Vehicle To Get It Out
Notice: Spinning your wheels can destroy parts of your vehicle as well as the tires. If you spin the wheels too fast while shifting your transaxle back and forth, you can destroy your transaxle. See Rocking Your Vehicle to Get It Out on page 4-31. For information about using tire chains on your vehicle, see Tire Chains on page 5-61.
Page 228 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label lists the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 229 4. The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
Page 230 Example 2 Item Description Maximum Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight 4-34 Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions.
Page 231 Certiﬁcation Label A vehicle speciﬁc Certiﬁcation/Tire label is found on the rear edge of the driver’s door. The label shows the size of your original tires and the inﬂation pressures needed to obtain the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR).
Page 232: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or...
Page 233: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 234: Towing A Trailer
Dolly Towing If you have a two-wheel-drive vehicle, it can be towed with two of its wheels on the ground. To dolly tow your vehicle, do the following: 1. Put the front wheels on a dolly. 2. Put the vehicle in PARK (P). 3.
Page 235: If You Do Decide To Pull A Trailer
To identify the trailering capacity of your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. Trailering is different than just driving your vehicle by itself. Trailering means changes in handling, acceleration, braking, durability, and fuel economy.
Page 236: Weight Of The Trailer
Three important considerations have to do with weight: • Weight of the trailer • Weight of the trailer tongue • Weight on your vehicle’s tires Weight of the Trailer How heavy can a trailer safely be? If you have the trailer towing package, your vehicle can tow up to 2,900 lbs.
Page 237 If you are using a weight-carrying or a weight-distributing hitch, the trailer tongue weight (A) should be 10 percent to 15 percent of the total loaded trailer weight (B). Do not exceed the maximum allowable tongue weight for your vehicle. After you have loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 238: Safety Chains
Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer to help prevent the tongue from contacting the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 239: Making Turns
Towing a trailer requires a certain amount of experience. Before setting out for the open road, you will want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 240: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle has to have extra wiring. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also ﬂash, telling other drivers you are about to turn, change lanes or stop.
Page 241: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you do the following: • Start your engine. • Shift into a gear. • Release the parking brake. 2.
Page 242 NOTES 4-46...
Page 243: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling the Tank ...5-8 Filling a Portable Fuel Container ...5-10...
Page 244 Section 5 Wheel Replacement ...5-60 Tire Chains ...5-61 If a Tire Goes Flat ...5-62 Changing a Flat Tire ...5-63 Removing the Spare Tire and Tools ...5-64 Removing the Flat Tire and Installing the Spare Tire ...5-65 Storing a Flat or Spare Tire and Tools ...5-72 Compact Spare Tire ...5-73 Appearance Care ...5-74 Cleaning the Inside of Your Vehicle ...5-74...
Page 245: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 246: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 247: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 248: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 249: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty.
Page 250: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 251 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 252: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 253: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located inside the vehicle, to the left of the steering column. 2. Then go to the front of the vehicle and lift up on the secondary hood release lever.
Page 254: Engine Compartment Overview
Engine Compartment Overview When you open the hood you will see the following: 5-12...
Page 255: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-18. B. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 5-13. C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-13. D.
Page 256: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-89.
Page 257: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 258: Engine Oil Life System
Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
Page 259: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a change engine oil light being turned on, reset the system.
Page 260: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 261 3. Disconnect the crank case ventilation tube. 5. Remove the air outlet duct. 4. Loosen the screws on the clamps holding the air outlet duct in place. Do not pry the clamps off. 5-19...
Page 262 6. Undo the clamps on the ﬁlter cover. To remove the cover, pull up on the front and then pull the cover out. 7. Inspect or replace the engine air cleaner/ﬁlter. Wipe all dust from inside of the housing and inspect the air cleaner and air outlet duct for cracks, cuts, and deterioration.
Page 263: Automatic Transaxle Fluid
Automatic Transaxle Fluid It is not necessary to check the transaxle ﬂuid level. A transaxle ﬂuid leak is the only reason for ﬂuid loss. If a leak occurs, take your vehicle to the dealership service department and have it repaired as soon as possible.
Page 264: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 265: Checking Coolant
Checking Coolant The surge tank is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 266: Engine Overheating
Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 267: If No Steam Is Coming From Your Engine
Notice: If your engine catches ﬁre because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty. See Overheated Engine Protection Operating Mode on page 5-26 for information on driving to a safe place in an emergency.
Page 268: Overheated Engine Protection
Overheated Engine Protection Operating Mode This emergency operating mode allows your vehicle to be driven to a safe place in an emergency situation. If an overheated engine condition exists, an overheat protection mode which alternates ﬁring groups of cylinders helps prevent engine damage. In this mode, you will notice a signiﬁcant loss in power and engine performance.
Page 269 If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down. The vehicle should be parked on a level surface. The coolant level should be at the COLD FILL line. If it is not, you may have a leak at the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system.
Page 270: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank Notice: This vehicle has a speciﬁc coolant ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If you have not found a problem yet, check to see if coolant is visible in the surge tank.
Page 271 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 272 3. Fill the coolant surge tank with the proper ® DEX-COOL coolant mixture, to the COLD FILL line. 5-30 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 273: Windshield Washer Fluid
Check the level in the surge tank when the cooling system has cooled down. If the coolant is not at the proper level, repeat Steps 1 through 3 and reinstall the pressure cap. If the coolant is not at the proper level when the system cools down again, see your dealer.
Page 274: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 275: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 276: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 277: Jump Starting
Vehicle Storage If you are not going to drive your vehicle for 25 days or more, remove the black, negative (-) cable from the battery. This will help keep your battery from running down. CAUTION: Batteries have acid that can burn you and gas that can explode.
Page 278 Notice: Ignoring these steps could result in costly damage to your vehicle that would not be covered by your warranty. Trying to start your vehicle by pushing or pulling it will not work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system.
Page 279 The remote negative ( ) terminal is located in the front of the engine compartment, near the engine oil dipstick. See Engine Compartment Overview on page 5-12 for more information on the location of the remote positive (+) terminal and the engine oil dipstick.
Page 280 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 281 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 282: All-Wheel Drive
All-Wheel Drive If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. However, there are two additional systems that need lubrication. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant.
Page 283: Bulb Replacement
How to Check Lubricant AWD Differential Case A. Fill Plug B. Drain Plug To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you’ll need to add some lubricant. Add enough lubricant to raise the level to the bottom of the ﬁller plug hole.
Page 284: Headlamps, Front Turn Signal, Sidemarker, And Parking Lamps
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps To replace one of these bulbs, do the following: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Remove the fastener plugs from the top of the radiator cover/front grill.
Page 285 5. Pull the radiator cover/front grill toward you and pull the headlamp assembly up and out from the vehicle. A. Parking Lamp B. Sidemarker Lamp C. Low/High-Beam Headlamp D. Turn Signal Lamp 6. Press the clip (A) on the electrical connector when replacing the low-beam or high-beam bulb, then pull it...
Page 286: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Taillamps, Turn Signal, Stoplamps and Back-up Lamps A. Turn Signal Lamp/Taillamp B. Stoplamp/Taillamp C. Sidemarker Lamp D. Back-Up Lamp To replace one of these bulbs, do the following: 1. Open the liftgate. See Liftgate on page 2-10 for more information. 2.
Page 287: Replacement Bulbs
Replacement Bulbs Exterior Lamp Back-Up Lamp Front Parking Lamp Front Sidemarker Lamp Front Turn Signal Lamp Low/High-Beam Lamp Rear Sidemarker Lamp Rear Turn Signal Lamp/Taillamp Stoplamp/Taillamp For replacement bulbs not listed here, contact your dealer. Windshield Wiper Blade Replacement Bulb Number Windshield wiper blades should be inspected for wear or cracking.
Page 288 3. Pull up the release clip, located at the connecting point of the blade and the arm. Then, pull the blade assembly down toward the glass to remove it from the wiper arm. 4. Push the new wiper blade securely on the wiper arm until you hear the release clip “click”...
Page 289: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner Manual.
Page 290: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 291 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 292: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 293 Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim. Bias Ply Tire: A pneumatic tire in which the plies are laid at alternate angles less than 90 degrees to the centerline of the tread.
Page 294 Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 295: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 296: Tire Inspection And Rotation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are under-inﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 297: When It Is Time For New Tires
Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque”...
Page 298: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 299: Different Size Tires And Wheels
CAUTION: If you use bias-ply tires on your vehicle, the wheel rim ﬂanges could develop cracks after many miles of driving. A tire and/or wheel could fail suddenly, causing a crash. Use only radial-ply tires with the wheels on your vehicle. If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and...
Page 300: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 301: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 302: Wheel Replacement
Wheel Replacement Replace any wheel that is bent, cracked or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired). See your dealer if any of these conditions exist.
Page 303: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 304: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 305: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your vehicle’s hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6 for more information. CAUTION: Changing a tire can be dangerous.
Page 306: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The spare tire is located under the load ﬂoor in the rear cargo area. You may need to remove the rear compartment storage panel/cover and/or the table to access the load ﬂoor. See Rear Compartment Storage Panel/Cover on page 2-38 and Table on page 2-40 for more information.
Page 307: Removing The Flat Tire And Installing The Spare Tire
5. Remove the wing-bolt on the jack and then remove it. 6. Remove the hook and loop fastener straps holding the bag containing the wheel wrench. Remove the wheel wrench from the bag. 7. Fold out the socket portion of the wrench from the handle.
Page 308 4. Attach the wheel wrench to the jack bolt head and rotate the wheel wrench clockwise. That will raise the lift head a little. 5. Place the jack near the ﬂat tire. Notice: Make sure that the jack lift head is in the correct position or you may damage your vehicle.
Page 309 With the jack head positioned correctly on the metal jacking ﬂange, it should look like this from underneath. Do not lift the vehicle using the plastic lower body panel. 7. Put the compact spare tire near you. CAUTION: Getting under a vehicle when it is jacked up is dangerous.
Page 310 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 311 9. Remove all of the wheel nuts. 10. Remove the ﬂat tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 312 12. Place the compact spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 13. Reinstall the wheel nuts. Tighten each nut by hand until the wheel is held against the hub.
Page 313 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 314: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. 5-72 To store the ﬂat or spare tire and tools, do the following: 1.
Page 315: Compact Spare Tire
5. Screw the threaded wheel stow rod onto the spare tire bracket. The ﬁnal position of the wheel stow rod must be rotated to the farthest forward position. 6. Replace the rear compartment storage panel/cover and/or table load ﬂoor over the wheel stow rod through the hole in the ﬂoor.
Page 316: Appearance Care
Appearance Care Cleaning the Inside of Your Vehicle Your vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on your upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from your upholstery.
Page 317: Fabric/Carpet
Do not clean your vehicle using the following cleaners or techniques: • Never use a knife or any other sharp object to remove a soil from any interior surface. • Never use a stiff brush. It can cause damage to your vehicle’s interior surfaces.
Page 318: Special Fabric Cleaning Problems
Most stains can be removed with club soda water. To clean, use the following instructions: 1. For liquids: blot with a clean, soft white cloth. For solids: remove as much as possible and then vacuum or brush. 2. Apply club soda water to a clean, soft white cloth. Do not over-saturate;...
Page 319: Leather
Stains caused by oil and grease can be cleaned with an approved GM cleaner and a clean, white cloth. 1. Carefully scrape off excess stain. 2. Clean with cool water and allow to dry completely. 3. If a stain remains, follow the cleaner instructions described earlier.
Page 320: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 321: Finish Care
Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish. GM-approved cleaning products can be obtained from your dealer. See Vehicle Care/Appearance Materials on page 5-82. Notice: Machine compounding or aggressive polishing on a basecoat/clearcoat paint ﬁnish may damage it.
Page 322: Aluminum Wheels
Aluminum Wheels Notice: If you use strong soaps, chemicals, abrasive polishes, cleaners, brushes, or cleaners that contain acid on aluminum or chrome-plated wheels, you could damage the surface of the wheel(s). The repairs would not be covered by your warranty. Use only GM-approved cleaners on aluminum or chrome-plated wheels.
Page 323: Sheet Metal Damage
Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection. Original manufacturer replacement parts will provide the corrosion protection while maintaining the warranty.
Page 324: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 325: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 326: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 327: Instrument Panel Fuse Block
Instrument Panel Fuse Block The instrument panel fuse block is located on the passenger’s side of the instrument panel. Fuses Usage LOCK/MIRROR Door Lock, Power Mirror CRUISE Cruise Control System Electric Power Steering IGN 1 Switches, Instrument Panel Cluster PRNDL/ PRNDL/Powertrain PWR TRN BCM (IGN)
Page 328: Engine Compartment Fuse Block
Fuses Body Control Module, Instrument BCM/CLSTR Panel Cluster INT LTS/ Interior Lights/OnStar ® ONSTAR DR LCK Door Locks Relays PARK LAMP Parking Lamps Relay HVAC Heating, Ventilation and Air BLOWER Conditioning Blower Motor DR LCK Door Locks Relay PASS DR Passenger Door Unlock Relay UNLOCK DRV DR...
Page 329 Fuses Usage HTD SEATS Heated Seats HVAC Heating, Ventilation, Air Conditioning BLOWER Blower Control PREM AUD Premium Audio System, Ampliﬁer ABS PWR Anti-lock Brake System RR WIPER Rear Window Wiper FRT WIPER Front Window Wiper SUNROOF Sunroof Electronic Throttle Control PWR WDW Power Windows A/C CLUTCH...
Page 330 Fuses COOL FAN LO Cooling Fan Low RR DEFOG Rear Window Defogger Anti-lock Brake System FOG LP Fog Lamps Ignition Switch Relays ENG MAIN Engine Relay RR WIPER Rear Window Wiper Relay FRT WIPER Front Window Wiper Relay PWR WDW Power Windows Relay COOL FAN HI Cooling Fan High Relay...
Page 331: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Cooling System Engine Oil with Filter Fuel Tank Transaxle Fluid Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual.
Page 332 NOTES 5-90...
Page 333 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 334: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 335 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-31. • are driven on reasonable road surfaces within legal driving limits.
Page 336: Scheduled Maintenance
Scheduled Maintenance When the change engine oil message comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 337 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-13. Reset oil life system. See Engine Oil Life System on page 5-16. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 338: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 339: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect drum brake linings/shoes for wear or cracks. Inspect other brake parts, including drums, wheel cylinders, calipers, parking brake, etc.
Page 340: Owner Checks And Services
(h) Change automatic transaxle ﬂuid if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. − When doing frequent trailer towing. −...
Page 341: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 5-13 for further details.
Page 342: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 343: Ignition Transaxle Lock Check
Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 344: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol. Engine Oil GM Goodwrench the requirements for your vehicle.
Page 345: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Passenger Compartment Air Filter Element Replacement Battery Spark Plugs Windshield Wiper Blades Driver’s Side – 24 inches (60.0 cm) Passenger’s Side –...
Page 346: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 347 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-15...
Page 348 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 349: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Collision Damage Repair ...7-10 Customer Assistance and Information...
Page 350: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 351: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 352: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Chevrolet, refer to the addresses below. United States — Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 353: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 354: Roadside Assistance Program
Roadside Assistance Program As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Call Chevrolet’s...
Page 355: Courtesy Transportation
Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Chevrolet reserves the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 356: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Participating dealers can provide you with shuttle service to get you to your destination with minimal...
Page 357: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 358: Collision Damage Repair
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 359 Recycled original equipment parts may also be used for repair. These parts are typically removed from vehicles that were total losses in prior accidents. In most cases, the parts being recycled are from undamaged sections of the vehicle. A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts is not known.
Page 360 If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 361: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 362: Reporting Safety Defects To The Canadian Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify General Motors. Please call the Chevrolet Customer Assistance Center at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 363: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 364 NOTES 7-16...
Page 365 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlet(s) ... 3-17 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-63 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-84 Air Cleaner/Filter, Engine ... 5-18 Air Conditioning ... 3-19 Airbag Readiness Light ... 3-26 Airbag Sensing and Diagnostic Module (SDM) ...
Page 366 Ashtray(s) ... 3-18 Audio System(s) ... 3-38 Audio Steering Wheel Controls ... 3-81 Care of Your CD Player ... 3-83 Care of Your CDs ... 3-83 Chime Level Adjustment ... 3-84 Fixed Mast Antenna ... 3-83 Radio with CD ... 3-40, 3-51 Radio with Six-Disc CD ...
Page 367 Care of Safety Belts ... 5-78 Your CD Player ... 3-83 Your CDs ... 3-83 Cargo Lamp ... 3-17 Center Console Storage Area ... 2-35 Chains, Tire ... 5-61 Check Engine Light ... 3-31 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ...
Page 368 Convenience Net ... 2-41 Coolant Engine Temperature Gage ... 3-31 Engine Temperature Warning Light ... 3-30 Heater, Engine ... 2-18 Cooling System ... 5-26 Cruise Control ... 3-10 Cupholder(s) ... 2-34 Customer Assistance Information Courtesy Transportation ... 7-7 Customer Assistance for Text Telephone (TTY) Users ...
Page 369 Driving (cont.) Freeway ... 4-21 Hill and Mountain Roads ... 4-24 In Rain and on Wet Roads ... 4-18 Rocking Your Vehicle to Get it Out ... 4-31 Winter ... 4-26 Electrical System Add-On Equipment ... 5-84 Engine Compartment Fuse Block ... 5-86 Fuses and Circuit Breakers ...
Page 370 Fluid Automatic Transaxle ... 5-21 Windshield Washer ... 5-31 Fog Lamps ... 3-15 Folding Rear Seat ... 1-10 Folding Seatback, Passenger ... 1-8 Fuel ... 5-5 Additives ... 5-6 California Fuel ... 5-6 Filling a Portable Fuel Container ... 5-10 Filling Your Tank ...
Page 371 Headlamps (cont.) Flash-to-Pass ... 3-8 Halogen Bulbs ... 5-41 Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps ... 5-42 High/Low Beam Changer ... 3-8 On Reminder ... 3-13 Heated Seats ... 1-4 Heater ... 3-19 Height Adjuster, Driver Seat ... 1-3 Highbeam On Light ...
Page 372 LATCH System Child Restraints ... 1-42 Liftgate ... 2-10 Light Airbag Readiness ... 3-26 Anti-Lock Brake System Warning ... 3-29 Battery Warning ... 3-27 Brake System Warning ... 3-28 Change Engine Oil ... 3-35 Daytime Running Lamps Indicator ... 3-36 Engine Coolant Temperature Warning ...
Page 373 Maintenance Schedule (cont.) Maintenance Footnotes ... 6-7 Maintenance Record ... 6-14 Maintenance Requirements ... 6-2 Normal Maintenance Replacement Parts ... 6-13 Owner Checks and Services ... 6-8 Recommended Fluids and Lubricants ... 6-12 Scheduled Maintenance ... 6-4 Using ... 6-2 Your Vehicle and the Environment ...
Page 374 Park (P) Shifting Into ... 2-23 Shifting Out of ... 2-24 Parking Brake ... 2-22 Over Things That Burn ... 2-25 Passenger Compartment Air Filter ... 3-21 Passing ... 4-14 ® Passlock ... 2-15 Power ... 1-3 Accessory Outlet(s) ... 3-17 Door Locks ...
Page 375 Removing the Flat Tire and Installing the Spare Tire ... 5-65 Removing the Spare Tire and Tools ... 5-64 Replacement Bulbs ... 5-45 Reporting Safety Defects Canadian Government ... 7-14 General Motors ... 7-14 United States Government ... 7-13 Restraint System Check Checking the Restraint Systems ...
Page 376 Securing a Child Restraint Rear Seat Position ... 1-48 Right Front Seat Position ... 1-50 Security Light ... 3-35 Service ... 5-3 Accessories and Modiﬁcations ... 5-3 Adding Equipment to the Outside of Your Vehicle ... 5-5 California Proposition 65 Warning ... 5-3 Doing Your Own Work ...
Page 377 TCS Warning Light ... 3-29 Theft-Deterrent, Radio ... 3-81 Theft-Deterrent Systems ... 2-13 Content Theft-Deterrent ... 2-13 ® Passlock ... 2-15 Tilt Wheel ... 3-6 Tires ... 5-47 Aluminum Wheels, Cleaning ... 5-80 Buying New Tires ... 5-56 Chains ... 5-61 Changing a Flat Tire ...
Page 378 Vehicle Control ... 4-6 Damage Warnings ... iv Loading ... 4-31 Symbols ... iv Vehicle Data Collection and Event Data Recorders ... 7-9 Vehicle Identiﬁcation Number (VIN) ... 5-83 Service Parts Identiﬁcation Label ... 5-83 Ventilation Adjustment ... 3-21 Visors ... 2-12 Warning Lights, Gages and Indicators ...

Chevrolet 2006 Equinox Owner's Manual

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Chevrolet 2006 Equinox

Summary of Contents for Chevrolet 2006 Equinox
