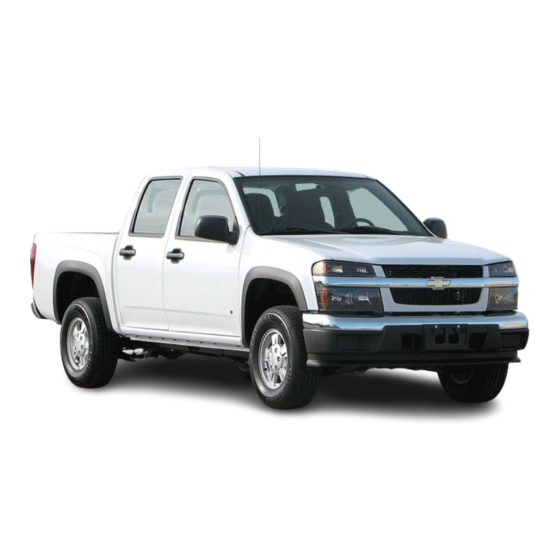

Page 1 2006 Chevrolet Colorado Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-10 Safety Belts ... 1-13 Child Restraints ... 1-34 Airbag System ... 1-63 Restraint System Check ... 1-79 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Keep this manual in the vehicle, so it will be there if it is needed while you are on the road.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Power Seats ...1-3 Manual Lumbar ...1-3 Power Lumbar ...1-4 Heated Seats ...1-4 Reclining Seatbacks ...1-5 Head Restraints ...1-8 Seatback Latches ...1-9 Rear Seats ...1-10 Rear Seat Operation (Crew Cab) ...1-10 Rear Seat Operation (Extended Cab) ...1-12 Safety Belts ...1-13 Safety Belts: They Are for Everyone ...1-13 Questions and Answers About Safety Belts ...1-17...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Power Seats
Power Seats If your vehicle has this feature, there is a control on the outboard side of the front seat(s). Horizontal Control: Raise or lower the front of the seat by raising or lowering the front of the control. Raise or lower the rear of the seat by raising or lowering the rear of the control.
Page 10: Power Lumbar
Power Lumbar If your vehicle has this feature, the control is located on the outboard side of the seat(s). Press and hold the front of the control until you have the desired lumbar support. To decrease lumbar support, press and hold the rear of the control. Heated Seats If your vehicle has this feature, the controls are...
Page 11: Reclining Seatbacks
Reclining Seatbacks If your seats have manual reclining seatbacks, the lever is located on the outboard side of the seat(s). To recline the seatback, do the following: 1. Lift the recline lever. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place.
Page 12 To return the seatback to an upright position, do the following: 1. Pull up on the lever fully without applying pressure to the seatback and the seatback will return to the upright position. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 13 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 14: Head Restraints
Head Restraints Your front seats may have adjustable head restraints. If your vehicle has rear seats, they may have adjustable head restraints. Pull up on the head restraint to raise it. To lower the head restraint, press the button located on top of the seatback and push down on the head restraint.
Page 15: Seatback Latches
Seatback Latches Your vehicle may have front seatbacks that fold forward for easy access to the rear seats or the storage area behind the seats. To fold the seatback forward, push the lever on the side of the seat rearward and pull the seatback forward.
Page 16: Rear Seats
Rear Seats Rear Seat Operation (Crew Cab) The rear seatback(s) in the crew cab can be folded forward. To fold the rear seatback(s) forward, do the following: 1. Disconnect the rear center safety belt latch from the mini buckle by inserting the tip of the safety belt tongue into the slot on the buckle.
Page 17 To return the seatback(s) to the upright position, do the following: 1. Lift the seatback(s) and push it into place. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 18: Rear Seat Operation (Extended Cab)
Rear Seat Operation (Extended Cab) If your vehicle has an extended cab, there may be forward folding seats in the rear area. To fold the rear seat cushion(s) from the stored position to the sitting position, pull the front of the seat cushion down completely.
Page 19: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 20: Why Safety Belts Work
In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 21 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop. 1-15...
Page 22 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-16...
Page 23: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident...
Page 24: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 25 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 26 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 27 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 28 What is wrong with this? The belt is buckled in the wrong place. 1-22 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 29 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 30 What is wrong with this? The belt is twisted across the body. 1-24 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 31: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. When the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
Page 32: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 33 When you sit in the center front seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt. To make the belt shorter, pull its free end as shown until the belt is snug.
Page 34: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 35 If the belt is not long enough, see Safety Belt Extender on page 1-33. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 3.
Page 36 The safety belt locks if there is a sudden stop or a crash. The safety belt also locks if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 37: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Your vehicle may have rear safety belt comfort guides for the rear outside positions. Rear safety belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When attached to a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 38 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 1-32 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured.
Page 39: Safety Belt Pretensioners
4. Buckle, position, and release the safety belt as described in Rear Seat Passengers on page 1-28. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 40: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-34 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 41 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 42: Infants And Young Children
CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 43 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms.
Page 44 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 45: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 46 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-40 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 47 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 48 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in...
Page 49 Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 50: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that child restraints be secured in a rear seat including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 51 Never put a rear facing child restraint in the right front passenger seat unless the airbag is off. Here is why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag.
Page 52: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) Your vehicle has the LATCH system. The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.
Page 53 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 54 Lower Anchor and Top Tether Anchor Locations (Lower Anchor): Seating positions with two lower anchors. Seating positions with top tether anchors. Crew Cab — Rear Seat 1-48 (Top Tether Anchor): Cab — Rear Seat Front Seat — Regular and Extended Cab without Rear Seats (Lower Anchor): Seating positions with...
Page 55 For crew cab models, there are exposed metal lower anchors for each rear outboard seating position, located where the seatback meets the back of the seat cushion. For extended cab models with rear seats, there are exposed metal lower anchors for each rear seating position, attached to the back wall, near the seat cushion.
Page 56 Extended Cab — Rear Seat For regular and extended cab models without rear seats, there is a top tether anchor located behind a removable cover on the back wall behind the right front passenger seat. You may have to pull the seatback forward to access the anchor.
Page 57 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint, following the...
Page 58 Crew Cab — Rear Seat 1. Put the child restraint on the seat. 2. If the child restraint manufacturer’s instructions recommends that the top tether be attached, attach the top tether to the top tether anchor (A). Refer to the child restraint instructions and the following steps: 2.1.
Page 59 If the position you are using has a ﬁxed or adjustable head restraint and you are using a dual tether, route the tether around the head restraint. 2.3. Attach the top tether to the anchor (A). Make sure that you secure the top tether to the top tether anchor and not to the seatback latch (B).
Page 60 Extended Cab — Rear Seat 1. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual.
Page 61 3. Tighten the lower anchor attachments and the top tether. The child restraint instructions will show you how. 4. Push and pull the child restraint in different directions to be sure it is secure. Front Seat — Regular/Extended Cab without Rear Seats Your vehicle has a right front passenger’s airbag and a passenger sensing system.
Page 62: Securing A Child Restraint In A Rear Seat Position
If the position you are using has an adjustable head restraint and you are using a single tether, route the tether under the head restraint and in between the head restraint posts. If the position you are using has a ﬁxed or adjustable head restraint and you are using a dual tether, route the tether...
Page 63 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-57...
Page 64: Securing A Child Restraint In The Center Front Seat Position
5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 65: Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger’s airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-44. In addition, your vehicle has a passenger sensing system.
Page 66 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat the unless passenger airbag status indicator shows off. Never put a rear facing child restraint in the right front passenger seat unless the airbag is off.
Page 67 You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
Page 68 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-62 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 69: Airbag System
8. Push and pull the child restraint in different directions to be sure it is secure. 9. If the airbag is off, the off indicator on the instrument panel will be lit and stay lit when the key is turned to ON or START.
Page 70 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 71 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 72: Where Are The Airbags
There is an airbag readiness light on the instrument panel which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-26 for more information.
Page 73 The right front passenger’s airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows. 1-67...
Page 74 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger, it is located in the ceiling above the side windows. 1-68 CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 75: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 76: What Makes An Airbag Inﬂate
Your vehicle has seat position sensors which enable the sensing system to monitor the position of the driver’s seat and the right front passenger’s seat. Seat position sensors provide information that is used to determine if the airbags should deploy at a reduced level or at full deployment.
Page 77: What Will You See After An Airbag Inﬂates
Airbags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the driver’s and right front passenger’s frontal airbags, and only in moderate to severe side collisions for side impact airbags.
Page 78: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 79 The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt. The sensors are designed to detect the presence of a properly seated occupant and determine if the passenger’s frontal airbag should be enabled (may inﬂate) or not.
Page 80 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat the unless passenger airbag status indicator shows off. Never put a rear facing child restraint in the right front passenger seat unless the airbag is off.
Page 81 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • the right front passenger seat is unoccupied • the system determines that an infant is present in a rear-facing infant seat • the system determines that a small child is present in a forward-facing child restraint •...
Page 82 If a person of adult-size is sitting in the right front passenger’s seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, turn the vehicle off and ask the person to place the seatback in the fully upright position, then sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended.
Page 83: Servicing Your Airbag-Equipped Vehicle
Aftermarket equipment, such as seat covers, can affect how well the passenger sensing system operates. You may want to consider not using seat covers or other aftermarket equipment if your vehicle has the passenger sensing system. See Adding Equipment to Your Airbag-Equipped Vehicle on page 1-78 for more information about modiﬁcations that can affect how the system operates.
Page 84: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, front end or side sheet metal or height, they may keep the airbag system from working properly.
Page 85: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 86: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 87: Features And Controls
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-3 Remote Keyless Entry System Operation ...2-4 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-8 Programmable Automatic Door Locks ...2-8 Rear Door Security Locks (Crew Cab) ...2-9 Lockout Protection ...2-10 Rear Doors (Extended Cab) ...2-10 Tailgate ...2-10 Windows ...2-12...
Page 88: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 89: Remote Keyless Entry System
There is one double-sided key for the ignition, driver’s door lock, and tailgate. When a new vehicle is delivered, the dealer provides the owner with a pair of identical keys and a key code number. The key code number tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 90: Remote Keyless Entry System Operation
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment.
Page 91 LOCK: Press this button to lock all the doors. The parking lamps may also ﬂash and the horn may chirp when this button is pressed. If a door is open or ajar when the lock button is pressed, the horn will chirp several times to let you know the doors did not lock and the content theft-deterrent system is not armed.
Page 92: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about two years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 93: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 94: Power Door Locks
Power Door Locks If your vehicle has power door locks, the switches are located on the driver’s and the front passenger’s armrests. Driver’s Switch Shown, Front Passenger’s Switch Similar Press L (lock) to lock all the doors at once. To unlock all the doors, press U (unlock).
Page 95: Rear Door Security Locks (Crew Cab)
Rear Door Security Locks (Crew Cab) If your vehicle is a crew cab model, it may have rear door security locks. With this feature, you can lock the rear doors so they cannot be opened from the inside. The rear door security lock is located on the inside edge of each rear door below the security...
Page 96: Lockout Protection
Lockout Protection If you have power door locks, this feature protects you from locking your key in the vehicle when the key is in the ignition and a door is open. If the power door lock switch is pressed when a door is open and the key is in the ignition, all of the doors will lock and then the driver’s door will unlock.
Page 97 Removing the Tailgate Follow these steps if you want to remove the tailgate: 1. With the tailgate fully open, lift up slightly on the entire tailgate assembly. Remove the retaining cables from both sides of the tailgate by pulling the clips away from the bolt heads while pushing the cable bracket forward.
Page 98: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 99: Power Windows
Power Windows The power window switches for all windows are located on the driver’s door armrest. In addition, each passenger’s door has its own switch. Crew Cab Switches Shown The power windows will work when the ignition is in ACC (Accessory) or ON or while Retained Accessory Power (RAP) is active.
Page 100: Sliding Rear Window
Sliding Rear Window If your vehicle has this feature, squeeze the latch in the center of the window and slide the glass to open it. When you close the window, be sure the latch is engaged. Sun Visors To block glare, pull the sun visor down. It can also be detached from the center mount and moved to the side to block glare from that direction.
Page 101: Testing The Alarm
If the lock button on the remote keyless entry transmitter is pressed, but a door is open, the horn will chirp six times. Press the lock button again, within three seconds, and the doors will lock. Close the open door and the system will be activated. If a locked door is not opened using the remote keyless entry transmitter, or by OnStar will go off.
Page 102: Passlock
® Passlock ® Your vehicle has the Passlock theft-deterrent system. ® Passlock is a passive theft-deterrent system. ® Passlock enables fuel if the ignition lock cylinder is turned with a valid key. If an incorrect key is used or the ignition lock cylinder is tampered with, the fuel system is disabled and the vehicle will not start.
Page 103: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn to four different positions. LOCK (A): This position locks your ignition. It also locks your transmission on automatic transmission vehicles. It will lock your steering wheel on manual transmission vehicles when the key is removed.
Page 104: Retained Accessory Power (Rap)
Retained Accessory Power (RAP) Your vehicle has Retained Accessory Power (RAP) which will allow certain features of your vehicle to continue working for up to 20 minutes after the ignition key is turned to LOCK. Your radio, wipers and power windows will work when the ignition key is in ON or ACC.
Page 105 For both the manual and automatic transmissions, when starting the vehicle after it has been sitting idle and the engine is cold, the engine starter may continue cranking the engine up to approximately four seconds after you release the ignition key. This is normal. When starting your engine in very cold weather (below 0°F or 18°C), do this: 1.
Page 106 To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located in the engine compartment behind the underhood fuse block on the driver’s side of the vehicle. 3.
Page 107 If you need to leave your key in the ignition but not in LOCK for an extended period, it is recommended that you disconnect the battery cable from the battery to prevent discharging your battery. There are several different positions for your shift lever. PARK (P): This position locks your rear wheels.
Page 108 NEUTRAL (N): In this position, your engine does not connect with the wheels. To restart when you are already moving, use NEUTRAL (N) only. CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly.
Page 109 Manual Transmission Operation This is your shift pattern. Here is how to operate your manual transmission: FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you slowly press down on the accelerator pedal. You can shift into FIRST (1) when you are going less than 20 mph (30 km/h).
Page 110: Four-Wheel Drive
Up-Shift Light This light will show you when to shift to the next higher gear for best fuel economy. When this light comes on, you can shift to the next higher gear if weather, road and traffic conditions permit. For the best fuel economy, accelerate slowly and shift when the light comes on.
Page 111 The transfer case buttons are located to the right of the steering wheel on the instrument panel. Recommended Transfer Case Settings Transfer Case Settings Driving Conditions Normal Severe Extreme Vehicle in Tow* *See Recreational Vehicle Towing on page 4-51 or Towing Your Vehicle on page 4-50 for further information.
Page 112 (Four-Wheel Low): This setting also engages your front axle to give you extra traction. It sends the maximum power to all four wheels. You might choose four-wheel low if you were driving off-road in sand, mud, or deep snow and while climbing or descending steep hills.
Page 113 Shifting from Four-Wheel Low to Two-Wheel High or Four-Wheel High To shift from Four-Wheel Low to Two-Wheel High or Four-Wheel High, your vehicle must be stopped or moving less than 3 mph (5 km/h) with the transmission in NEUTRAL (N) for an automatic transmission or the clutch pedal engaged for a manual transmission.
Page 114: Parking Brake
Shifting Out of NEUTRAL After towing your vehicle, you will have to shift out of NEUTRAL in order to drive. To shift out of NEUTRAL, do the following: 1. Set the parking brake and apply the regular brake pedal. 2. Start a vehicle with an automatic transmission in PARK (P).
Page 115 A chime will activate and the brake warning light, located on the instrument panel, will ﬂash when the parking brake is applied and the vehicle is moving at least 3 mph (5 km/h) for at least three seconds. The chime will deactivate and the light will turn off when the parking brake is set and the vehicle is moving below 3 mph (5 km/h).
Page 116: Shifting Into Park (P)
Shifting Into Park (P) (Automatic Transmission) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 117 Leaving Your Vehicle With the Engine Running (Automatic Transmission) CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 118: Parking Your Vehicle (Manual Transmission)
Shifting Out of Park (P) (Automatic Transmission) Your vehicle has an automatic transmission shift lock control system which locks the shift lever in PARK (P) when the ignition is in the LOCK position. In addition, you have to fully apply the regular brakes before you can shift from PARK (P) when the ignition is in ON.
Page 119: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 120: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 121: Mirrors
CAUTION: Four-wheel drive vehicles with the transfer case in NEUTRAL will allow the vehicle to roll, even if your automatic transmission shift lever is in PARK (P). So, be sure the transfer case is in a drive gear — not in NEUTRAL. Always set your parking brake.
Page 122: Automatic Dimming Rearview Mirror With Compass And Temperature Display
Map Lamps The mirror has map lamps located at the bottom of the mirror. To manually turn the lamps on or off, press the button next to each lamp. Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner.
Page 123: Compass Calibration
Compass Calibration If after two seconds the display does not show a compass heading, there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, note pad holder or similar object. If the letter C appears in the compass window, the compass needs calibration.
Page 124: Outside Manual Mirrors
Temperature Display Operation The outside air temperature is displayed in the window located at the lower center of the mirror face. Press and hold the far right button for four seconds and release. This will change the temperature reading between degrees Fahrenheit, degrees Celsius, or turn the display off.
Page 125: Outside Convex Mirror
If the mirror begins making a ratcheting sound, the mirror has reached the end of its travel and can go no farther in that direction. To stop the sound, reverse the mirror direction using the control pad. The mirrors can be manually folded inward to prevent damage when going through an automatic car wash.
Page 126 ® A complete OnStar User’s Guide and the Terms and ® Conditions of the OnStar Subscription Service Agreement are included in the vehicle’s glove box literature. For more information, visit www.onstar.com or ® www.onstar.ca. Contact OnStar (1-888-466-7827), or press the OnStar ®...
Page 127: Storage Areas
® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability allows you to make hands-free calls using a wireless system that is integrated into the vehicle. Calls can be placed nationwide using simple voice commands with no additional contracts and no additional roaming charges.
Page 128: Front Armrest Storage Area
Front Armrest Storage Area For vehicles with bench seats, you may have a center armrest storage area. Lift up on the upper tab located at the front of the armrest to release the latch. Lift the lid to open the storage area. For vehicles with bucket seats or uplevel packages, your vehicle may have a two-tiered center armrest storage area.
Page 129 To open a storage box, unhook the bottom and lift the two latches on each side of the storage box. Lift the lid from the center area to access the storage box. 2-43...
Page 130 NOTES 2-44...
Page 131 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-9 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-11 Exterior Lamps ...3-14 Headlamps on Reminder ...3-15...
Page 132 Section 3 Driver Information Center (DIC) ...3-38 DIC Controls and Displays ...3-38 DIC Warnings and Messages ...3-41 Audio System(s) ...3-44 Setting the Time for Radios without Radio Data Systems (RDS) ...3-45 Setting the Time for Radios with Radio Data Systems (RDS) ...3-45 AM-FM Radio ...3-46 Radio with CD (MP3) ...3-48 Instrument Panel...
Page 133 NOTES...
Page 134: Instrument Panel Overview
Instrument Panel Overview Manual Transmission shown, Automatic Transmission similar...
Page 135 The main components of your vehicle’s instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-21. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-23. D.
Page 136: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on the instrument panel, between the two air vents in the center.
Page 137: Turn Signal/Multifunction Lever
The tilt lever is located on the left side of the steering column, under the turn signal lever. To tilt, hold the steering wheel and pull the tilt lever toward you. Move the wheel to a comfortable level, then release the tilt lever to lock the wheel in place. Do not adjust the steering wheel while driving.
Page 138: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will automatically return to the off position.
Page 139: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer (Headlamp High/Low Beam Changer): To change the headlamps from low to high beam, push the lever toward the instrument panel. To return to low-beam headlamps, pull the multifunction lever toward you. Then release it. When the high beams are on, this indicator light on the instrument panel cluster will also be on.
Page 140: Windshield Washer
(Delay): You can set the wiper speed for a long or short delay between wipes. This can be very useful in light rain or snow. Turn the band to choose the delay time. The closer to the top of the lever, the shorter the delay.
Page 141: Cruise Control
Cruise Control Your vehicle may be equipped with cruise control. turns the system off. (On): This position activates the system. + (Resume/Accelerate): Move the lever to this symbol to make the vehicle accelerate or resume to a previously set speed. (Set): Press this button to set the speed.
Page 142 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 143 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: • Use the accelerator pedal to get to the higher speed. Press the set button at the end of the lever, then release the button and the accelerator pedal.
Page 144: Exterior Lamps
Exterior Lamps The control on the driver’s side of your instrument panel operates the exterior lamps. (Exterior Lamps): Turn the knob, located to the right of this symbol, to choose one of the four exterior lamp positions. (Off): Turn the knob to this position to turn off all exterior lamps including the DRLs.
Page 145: Headlamps On Reminder
Headlamps on Reminder If a door is open, a reminder chime will sound when your headlamps or parking lamps are manually turned on and your key is out of the ignition. To turn off the chime, turn the headlamp switch to off and then back on.
Page 146: Fog Lamps
The system may also turn on your headlamps when driving through a parking garage, heavy overcast weather or a tunnel. This is normal. There is a delay in the transition between the daytime and nighttime operation of the Daytime Running Lamps (DRL) and the automatic headlamp system so that driving under bridges or bright overhead street lights does not affect the system.
Page 147: Exterior Cargo Lamps
Exterior Cargo Lamps You can use the cargo lamps if you need more light in the cargo area of your vehicle or in the top-box storage units. Press this button, located on the driver side of the instrument panel near the exterior lamp control to turn the cargo lamps on and off.
Page 148: Exit Lighting
Exit Lighting With exit lighting, the interior lamps will come on when you remove the key from the ignition. The lamps will not come on if the dome override button is pressed in. Battery Run-Down Protection This feature shuts off the dome lamp if it is left on for more than 20 minutes when the ignition is in LOCK.
Page 149: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter Your vehicle may have an ashtray and cigarette lighter. Your ashtray is located in your center console area. The ashtray can be removed for cleaning. When the ashtray is removed, this area can also be used as a cupholder.
Page 150: Fan Knob
Fan Knob (Fan): The center knob on the control panel is used to control the fan speed. Turn the knob clockwise or counterclockwise to increase or decrease the fan speed. If the knob is set on “0” (zero), some outside air will still enter the vehicle and will be directed according to the position of the mode knob.
Page 151: Outlet Adjustment
You may notice a slight change in engine performance when the air conditioning compressor shuts off and turns on again. This is normal. The system is designed to make adjustments to help with fuel economy while still maintaining the selected temperature. The air conditioning system removes moisture from the air, so you may sometimes notice a small amount of water dripping underneath your vehicle while idling...
Page 152: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 153: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 154: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running.
Page 155: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to ON or START, a chime will be provided for several seconds to remind people to buckle their safety belts. The driver safety belt light will also be provided and stay on for several seconds, then it will ﬂash for several more.
Page 156: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensors, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 157: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When the ignition key is turned to ON or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 158 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat the unless passenger airbag status indicator shows off. Never put a rear facing child restraint in the right front passenger seat unless the airbag is off.
Page 159: Battery Warning Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 1-72 for more on this, including important safety information. If, after several seconds, all status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing...
Page 160: Up-Shift Light (Manual Transmission)
Up-Shift Light (Manual Transmission) This light appears when you need to shift to the next higher gear on a manual transmission vehicle. Shifting when the indicator light is on will help you get the best fuel economy. See “Up-Shift Light” under Manual Transmission Operation on page 2-23 for more information.
Page 161: Anti-Lock Brake System Warning Light
When the ignition is on, the brake system warning light will also come on when you set your parking brake. See Parking Brake on page 2-28 for more information. The light will stay on if your parking brake does not release fully.
Page 162: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the gage pointer is near the top of the gage, the engine is too hot. It means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 163: If The Light Is Flashing
Notice: Modiﬁcations made to the engine, transmission, exhaust, intake, or fuel system of your vehicle or the replacement of the original tires with other than those of the same Tire Performance Criteria (TPC) can affect your vehicle’s emission controls and may cause this light to come on. Modiﬁcations to these systems could lead to costly repairs not covered by your warranty.
Page 164: If The Light Is On Steady
If the Light Is On Steady You may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. See Filling the Tank on page 5-8. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
Page 165: Maintenance Schedule
Oil Pressure Light CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced.
Page 166: Security Light
Security Light This light will come on brieﬂy when you turn the key to START. The light will stay on until the engine starts. If the ignition is turned on, and the light ﬂashes, the ® Passlock system has entered a tamper mode. If the vehicle fails to start, see Passlock If the light comes on continuously while driving and stays on, there may be a problem with the Passlock...
Page 167: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Indicator Light This light turns on whenever the Daytime Running Lamps are on. See Daytime Running Lamps (DRL) on page 3-15 for more information. Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have remaining in the fuel tank.
Page 168: Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) displays information such as the trip odometer, personalization features, and warning messages. The DIC display is located on the instrument panel cluster. DIC Controls and Displays The Driver Information Center (DIC) comes on when the ignition is on.
Page 169: Automatic Door Locks
In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule in this manual. See Engine Oil on page 5-13 and Scheduled Maintenance on page 6-4 for more information. Language This feature allows you to choose the language in which the DIC display will show information.
Page 170 Lock 2: On vehicles with an automatic transmission, this mode locks all of the doors when the vehicle is shifted out of PARK (P) and unlocks the driver’s door when the vehicle is shifted into PARK (P). On vehicles with a manual transmission, this mode locks all of the doors when the vehicle speed is greater than 15 mph (24 km/h) and unlocks the driver’s door when the key is removed from the ignition.
Page 171: Dic Warnings And Messages
DIC Warnings and Messages Warning messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. More than one message may appear at one time.
Page 172: Change Oil
CHANGE OIL This message will be displayed when the oil needs to be changed. Check the oil in your vehicle as soon as possible and have your vehicle serviced by your GM dealer. See Engine Oil on page 5-13 and Scheduled Maintenance on page 6-4 for more information.
Page 173 LOW TRAC (Traction) If you have the Traction Control System (TCS), you will see this message when a low traction condition is detected. See Traction Control System (TCS) on page 4-9 for more information. Press and release the reset stem to acknowledge the message and clear it from the DIC display.
Page 174: Audio System(S)
Audio System(s) Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 4-2. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 175: Setting The Time For Radios Without
Notice: The chime signals related to seat belts, parking brake, and other functions of your vehicle operate through the GM radio/entertainment system. If that equipment is replaced or additional equipment is added to your vehicle, the chimes may not work. Make sure that replacement or additional equipment is compatible with your vehicle before installing it.
Page 176: Am-Fm Radio
AM-FM Radio Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. RCL (Recall): Press this knob to switch the display between the radio station frequency, band, and the time.
Page 177: Setting Preset Stations
Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM) can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM FM to select FM1, FM2, or AM. 3.
Page 178: Radio With Cd (Mp3)
To adjust all tone and speaker controls to the middle position, ﬁrst exit out of audio mode by pressing another button, causing the radio to perform that function or by waiting ﬁve seconds for the display to return to time of day.
Page 179: Playing The Radio
This system relies upon receiving speciﬁc information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly. If this happens, contact the radio station.
Page 180: Finding A Station
Set the volume at the desired level. Press this button to select LOW, MEDIUM, or HIGH. AVOL will appear on the display. Each higher setting will allow for more volume compensation at faster vehicle speeds. Then as you drive, automatic volume increases the volume, as necessary, to overcome noise at any speed.
Page 181: Setting The Tone (Bass/Treble)
Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or the treble level. If a station is weak or noisy, decrease the treble.
Page 182: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Turn the P-TYPE knob to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the P-TYPE knob again, to select a PTY. 3.
Page 183: Radio Messages
INFO (Information): If the current station has a message, the information symbol will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
Page 184 Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signl Loss of signal Loading Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no...
Page 185 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM...
Page 186: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in, and READING will appear on the display. The CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the DISPL knob.
Page 187 3 REV (Reverse): Press and hold this pushbutton to reverse quickly within a track. Press and hold this pushbutton for less than two seconds to reverse at 10 times the normal playing speed. Press and hold it for more than two seconds to reverse at 20 times the normal playing speed.
Page 188: Mp3 Format
Using an MP3 CD MP3 Format If you burn your own MP3 disc on a personal computer: • Make sure the MP3 ﬁles are recorded on a CD-R disc. • Make sure to ﬁnalize the disc when burning an MP3 disc, using multiple sessions.
Page 189 No Folder When the CD contains only compressed ﬁles, the ﬁles will be located under the root folder. The next and previous folder functions will have no function on a CD that was recorded without folders or playlists. When displaying the name of the folder the radio will display ROOT.
Page 190 Playing an MP3 Insert a CD partway into the slot, label side up. The player will pull it in, and READING will appear on the display. The CD should begin playing and the CD symbol will appear on the display. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the DISPL knob.
Page 191 3 REV (Reverse): Press and hold this pushbutton to reverse quickly within a track. Press and hold this pushbutton for less than two seconds to reverse at 10 times the normal playing speed. Press and hold it for more than two seconds to reverse at 20 times the normal playing speed.
Page 192 DISPL (Display): Press this knob to switch between track mode, folder/playlist mode, and time of day mode. The display will show only eight characters, but there can be up to four pages of text. If there are more than eight characters in the song, folder, or playlist name, pressing this knob within two seconds will take you to the next page of text.
Page 193: Radio With Six-Disc Cd
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 194 INFO (Information): When the ignition is off, press this knob to display the time. For RDS, press the INFO knob to change what appears on the display while using RDS. The display options are station name, RDS station frequency, PTY, and the name of the program (if available).
Page 195 Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, or AM. 3.
Page 196 Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release the AUDIO knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and rear speakers, push and release the AUDIO knob until FAD appears on the display.
Page 197 Finding a Program Type (PTY) Station To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. P-TYPE and the last selected PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 198 RDS Messages INFO (Information): If the current station has a message, INFO will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
Page 199 Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you could damage the CD player. When using the CD player, use only CDs in good condition without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials, liquids, and debris.
Page 200 Playing a Speciﬁc Loaded CD For every CD loaded, a number will appear on the display. To play a speciﬁc CD, ﬁrst press the CD AUX button (if not already in CD mode), then press the numbered pushbutton that corresponds to the CD. A small bar will appear under the CD number that is playing and the track number will appear on the display.
Page 201 To use repeat, do the following: • To repeat the track you are listening to, press and release the RPT button. RPT will appear on the display. Press RPT again to turn off repeat play. • To repeat the CD you are listening to, press and hold the RPT button for two seconds.
Page 202: Using Song List Mode
Using Song List Mode The six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the CD player on and load it with at least one CD.
Page 203 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST will appear on the display. 3. Press and hold the SONG LIST button for more than four seconds.
Page 204: Theft-Deterrent Feature (Non-Rds Radios)
Theft-Deterrent Feature (Non-RDS Radios) ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOC will appear on the display. ®...
Page 205: Care Of Your Cds
FM Stereo FM stereo will give the best sound, but FM signals will reach only about 10 to 40 miles (16 to 65 km). Tall buildings or hills can interfere with FM signals, causing the sound to fade in and out. XM™...
Page 206: Care Of The Cd Player
Care of the CD Player The use of CD lens cleaners for CD players is not advised, due to the risk of contaminating the internal lens of the CD optics with lubricants. Fixed Mast Antenna The ﬁxed mast antenna can withstand most car washes without being damaged.
Page 207: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-5 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-8 Traction Control System (TCS) ...4-9 Steering ...4-10 Off-Road Recovery ...4-12 Passing ...4-12 Loss of Control ...4-14 Off-Road Driving ...4-15...
Page 208: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-13. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 209: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 210 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 211: Control Of A Vehicle
But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 212: Braking
Braking See Brake System Warning Light on page 3-30. Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about three-fourths of a second.
Page 213: Anti-Lock Brake System (Abs)
Anti-Lock Brake System (ABS) Your vehicle has anti-lock brakes. ABS is an advanced electronic braking system that will help prevent a braking skid. When you start your engine and begin to drive away, your anti-lock brake system will check itself. You may hear a momentary motor or clicking noise while this test is going on.
Page 214: Braking In Emergencies
The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 215: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle may have a Traction Control System (TCS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the rear wheels are spinning or beginning to lose traction.
Page 216: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 217: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 218: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 219 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 220: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 221: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have four-wheel drive. Also, see Braking on page 4-6 and Anti-Lock Brake System (ABS) on page 4-7. If your vehicle does not have four-wheel drive, you should not drive off-road unless you are on a level, solid surface. Off-road driving can be great fun.
Page 222 Loading Your Vehicle for Off-Road Driving There are some important things to remember about how to load your vehicle. • The heaviest things should be on the load ﬂoor and forward of the rear axle. Put heavier items as far forward as you can.
Page 223: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving;...
Page 224: Scanning The Terrain
Controlling your vehicle is the key to successful off-road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: • You approach things faster and you have less time to scan the terrain for obstacles.
Page 225 When you drive over obstacles or rough terrain, keep a ﬁrm grip on the steering wheel. Ruts, troughs, or other surface features can jerk the wheel out of your hands if you are not prepared. When you drive over bumps, rocks, or other obstacles, your wheels can leave the ground.
Page 226: Driving Uphill
Approaching a Hill When you approach a hill, you need to decide if it is one of those hills that is just too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 227 • Ease up on your speed as you approach the top of the hill. • Attach a ﬂag to the vehicle to make you more visible to approaching traffic on trails or hills. • Sound the horn as you approach the top of the hill to let opposing traffic know you are there.
Page 228: Driving Downhill
Here are some things you must not do if you stall, or are about to stall, when going up a hill. • Never attempt to prevent a stall by shifting into NEUTRAL (N), or pressing the clutch if your vehicle has a manual transmission, to rev-up the engine and regain forward momentum.
Page 229 CAUTION: Heavy braking when going down a hill can cause your brakes to overheat and fade. This could cause loss of control and a serious accident. Apply the brakes lightly when descending a hill and use a low gear to keep vehicle speed under control.
Page 230: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: •...
Page 231: Stalling On An Incline
Stalling on an Incline If your vehicle stalls when you are crossing an incline, be sure you, and any passengers, get out on the uphill side, even if the door there is harder to open. If you get out on the downhill side and the vehicle starts to roll over, you will be right in its path.
Page 232 Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud — the deeper the mud, the lower the gear.
Page 233: Driving In Water
Driving in Water Heavy rain can mean ﬂash ﬂooding, and ﬂood waters demand extreme caution. Find out how deep the water is before you drive through it. If it is deep enough to cover the wheel hubs, axles, or exhaust pipe, do not try it — you probably will not get through.
Page 234: Driving At Night
After Off-Road Driving Remove any brush or debris that has collected on the underbody, chassis, or under the hood. These accumulations can be a ﬁre hazard. After operation in mud or sand, have the brake linings cleaned and checked. These substances can cause glazing and uneven braking.
Page 235: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little.
Page 236 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 237: Driving Through Deep Standing Water
Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle. If you cannot avoid deep puddles or standing water, drive through them very slowly.
Page 238: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-32 Here are ways to increase your safety in city driving: •...
Page 239: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 240: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 241: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 242: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-36 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 243 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 244: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-53. 4-38 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 245 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall.
Page 246: If You Are Caught In A Blizzard
If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 247 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 248: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
If Your Vehicle is Stuck in Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 249: Recovery Hooks
Recovery Hooks Your vehicle may be equipped with recovery hooks. The hooks are provided at the front of your vehicle. You may need to use them if you are stuck off-road and need to be pulled to some place where you can continue driving.
Page 250: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 251 The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 5-53 and Inﬂation - Tire Pressure on page 5-59. There is also important information on the Certiﬁcation/Tire label.
Page 252 Example 1 Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) x 2 Available Cargo Weight = 4-46 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity Weight 1,000 lbs (453 kg)
Page 253 Example 3 Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) x 5 = Available Cargo Weight = Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 254 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle. Your dealer can help you with this.
Page 255 CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the cargo area of your vehicle. Try to spread the weight evenly. • Never stack heavier things, like suitcases, inside the vehicle so that some of them are above the tops of the seats.
Page 256: Truck-Camper Loading Information
Add-On Equipment When you carry removable items, you may need to put a limit on how many people you carry inside your vehicle. Be sure to weigh your vehicle before you buy and install the new equipment. Notice: Overloading your vehicle may cause damage.
Page 257: Recreational Vehicle Towing
Recreational Vehicle Towing Recreational vehicle towing means towing your vehicle behind another vehicle — such as behind a motorhome. The two most common types of recreational vehicle towing are known as “dinghy” (towing your vehicle with all four wheels on the ground) and “dolly” (towing your vehicle with two wheels on the ground and two wheels up on a device known as a “dolly”).
Page 258 Four-Wheel Drive Vehicles Use the following procedure to tow your vehicle with all four wheels on the ground: 1. Drive the vehicle to be towed into position behind the tow vehicle. 2. Firmly set the parking brake. See Parking Brake on page 2-28 for more information.
Page 259: Dolly Towing
Dolly Towing Front Towing (Front Wheels Off the Ground) Two-Wheel-Drive Vehicles Notice: If you tow a two-wheel-drive vehicle with the rear wheels on the ground, the transmission could be damaged. The repairs would not be covered by your warranty. Never tow your vehicle with the rear wheels on the ground.
Page 260 CAUTION: Shifting a four-wheel-drive vehicle’s transfer case into NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P) for an automatic transmission, or if your vehicle is in gear, for a manual transmission. You or others could be injured.
Page 261 4. Follow the dolly manufacturer’s instructions to attach and secure the vehicle being towed to the dolly and then the loaded dolly to the tow vehicle. Make sure the wheels are straight before towing. For manual transmission vehicles, make sure the wheels are straight before proceeding to the next steps.
Page 262 4. Follow the dolly manufacturer’s instructions to attach and secure the vehicle being towed to the dolly and then the loaded dolly to the tow vehicle. For manual transmission vehicles, make sure the wheels are straight before proceeding to the next steps.
Page 263: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 264: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 265 Vehicle* Axle Ratio 2WD Regular Cab Automatic Transmission, 3.73 2.8L Engine Automatic Transmission, 3.42 3.5L Engine Automatic Transmission, 3.73 3.5L Engine Manual Transmission, 3.42 2.8L Engine Manual Transmission, 3.73 2.8L Engine Manual Transmission, 3.42 3.5L Engine Manual Transmission, 3.73 3.5L Engine Vehicle* Axle Ratio 2WD Extended Cab...
Page 266 Vehicle* Axle Ratio Automatic Transmission, 3.73 3.5L Engine Manual Transmission, 3.42 2.8L Engine Manual Transmission, 3.73 2.8L Engine Manual Transmission, 3.42 3.5L Engine Manual Transmission, 3.73 3.5L Engine Vehicle* Axle Ratio 2WD Crew Cab Automatic Transmission, 3.73 2.8L Engine Automatic Transmission, 3.42 3.5L Engine Automatic Transmission,...
Page 267 Vehicle* Axle Ratio 4WD Regular Cab Automatic Transmission, 3.73 2.8L Engine Automatic Transmission, 4.10 2.8L Engine Automatic Transmission, 3.42 3.5L Engine Automatic Transmission, 3.73 3.5L Engine Automatic Transmission, 4.10 3.5L Engine Manual Transmission, 3.73 2.8L Engine Manual Transmission, 4.10 2.8L Engine Manual Transmission, 3.42 3.5L Engine...
Page 268 Vehicle* Axle Ratio 4WD Extended Cab Automatic Transmission, 3.73 2.8L Engine Automatic Transmission, 4.10 2.8L Engine Automatic Transmission, 3.42 3.5L Engine Automatic Transmission, 3.73 3.5L Engine Automatic Transmission, 4.10 3.5L Engine Manual Transmission, 4.10 2.8L Engine Manual Transmission, 3.42 3.5L Engine Manual Transmission, 3.73 3.5L Engine...
Page 269 Vehicle* Axle Ratio 4WD Crew Cab Automatic Transmission, 3.73 2.8L Engine Automatic Transmission, 4.10 2.8L Engine Automatic Transmission, 3.42 3.5L Engine Automatic Transmission, 3.73 3.5L Engine Automatic Transmission, 4.10 3.5L Engine Manual Transmission, 4.10 2.8L Engine **The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions.
Page 270: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 271 Consider the following example: A vehicle model base weight is 5,500 lbs (2 495 kg); 2,800 lbs (1 270 kg) at the front axle and 2,700 lbs (1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs (3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a GCWR (Gross Combination Weight Rating) of 14,000 lbs (6 350 kg).
Page 272: Safety Chains
It is important that you make sure your vehicle does not exceed any of its ratings — GCWR, GVWR, RGAWR, Maximum Trailer Rating or Tongue Weight. The only way to be sure you are not exceeding any of these ratings is to weigh your vehicle and trailer. Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires.
Page 273: Trailer Brakes
Trailer Brakes If your trailer weighs more than 1,000 lbs (450 kg) loaded, then it needs its own brakes — and they must be adequate. Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly.
Page 274: Driving On Grades
Backing Up Hold the bottom of the steering wheel with one hand. Then, to move the trailer to the left, just move that hand to the left. To move the trailer to the right, move your hand to the right. Always back up slowly and, if possible, have someone guide you.
Page 275: Parking On Hills
Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here’s how to do it: 1.
Page 276: Trailer Recommendations
Maintenance When Trailer Towing Your vehicle will need service more often when you’re pulling a trailer. See Scheduled Maintenance on page 6-4 for more on this. Things that are especially important in trailer operation are automatic transmission ﬂuid (don’t overﬁll), engine oil, axle lubricant, belt, cooling system and brake system.
Page 277: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling the Tank ...5-8 Filling a Portable Fuel Container ...5-10...
Page 278 Section 5 Windshield Wiper Blade Replacement ...5-51 Tires ...5-53 Tire Sidewall Labeling ...5-54 Tire Terminology and Deﬁnitions ...5-56 Inﬂation - Tire Pressure ...5-59 Tire Inspection and Rotation ...5-60 When It Is Time for New Tires ...5-62 Buying New Tires ...5-62 Different Size Tires and Wheels ...5-64 Uniform Tire Quality Grading ...5-64 Wheel Alignment and Tire Balance ...5-66...
Page 279: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 280: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 281: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 282: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 283: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty.
Page 284: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 285 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 286: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 287: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located inside the vehicle on the lower left side of the instrument panel. 2. Release the secondary latch on the hood. It is located below the front center of the hood.
Page 288: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.8L engine (3.5L engine similar), you will see the following: 5-12...
Page 289: Engine Oil
A. Windshield Washer Fluid. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-35. B. Engine Coolant Recovery Tank. See Engine Coolant on page 5-24. C. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-18. D. Power Steering Fluid Reservoir (low in engine compartment).
Page 290: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area (L), you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-104.
Page 291: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 292: Engine Oil Additives
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for your engine at extremely low temperatures.
Page 293: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE OIL message being turned on, reset the system.
Page 294: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. 5-18 When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 295: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 296 Wait at least 30 minutes before checking the transmission ﬂuid level if you have been driving: • When outside temperatures are above 90°F (32°C). • At high speed for quite a while. • In heavy traffic — especially in hot weather. •...
Page 297: How To Add Automatic Transmission Fluid
2. Push it back in all the way, wait three seconds and then pull it back out again. 3. Check both sides of the dipstick, and read the lower level. The ﬂuid level must be in the COLD area, below the cross-hatched area, for a cold check or in the HOT or cross-hatched area for a hot check.
Page 298: Manual Transmission Fluid
Manual Transmission Fluid When to Check A good time to have it checked is when the engine oil is changed. However, the ﬂuid in your manual transmission does not require changing. How to Check Because this operation can be a little difficult, you may choose to have this done at your GM dealership service department.
Page 299: Hydraulic Clutch
How to Add Fluid Here is how to add ﬂuid. Refer to the Maintenance Schedule to determine what kind of ﬂuid to use. See Recommended Fluids and Lubricants on page 6-12. 1. Remove the ﬁller plug. 2. Add ﬂuid at the ﬁller plug hole. Add only enough ﬂuid to bring the ﬂuid level up to the bottom of the ﬁller plug hole.
Page 300: Engine Coolant
When to Check and What to Use Refer to the Maintenance Schedule to determine how often you should check the ﬂuid level in your clutch master cylinder reservoir and for the proper ﬂuid. See Recommended Fluids and Lubricants on page 6-12. How to Check and Add Fluid The proper ﬂuid should be added if the level does not reach the bottom of the diaphragm when it is in place in...
Page 301: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 302: Checking Coolant
Checking Coolant The coolant recovery tank cap has this symbol on it. It is located toward the rear of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. The vehicle must be on a level surface.
Page 303: Radiator Pressure Cap
Radiator Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. See Engine Compartment Overview on page 5-12 for more information on location. Engine Overheating You will ﬁnd a coolant temperature gage on your vehicle’s instrument panel.
Page 304: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 305: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Coolant Recovery Tank B. Engine Cooling Fan C. Radiator Pressure Cap If the coolant inside the coolant recovery tank is boiling, do not do anything else until it cools down.
Page 306 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 307 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 308: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator 1. You can remove the radiator pressure cap when the cooling system, including the upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise about one full turn. If you hear a hiss, wait for that to stop. A hiss means there is still some pressure left.
Page 309: Engine Fan Noise
6. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. 7. By this time, the coolant level inside the radiator ﬁller neck may be lower. If the level is lower, add more of the proper DEX-COOL through the ﬁller neck until the level reaches the base of the ﬁller neck.
Page 310: Power Steering Fluid
Power Steering Fluid The power steering ﬂuid reservoir is located near the front of the engine compartment, behind the radiator. See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 311: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 312: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 313 Checking Brake Fluid You can check the brake ﬂuid without taking off the cap. Look at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN but not over the MAX mark.
Page 314: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 315: Battery
Brake Adjustment Every time you make a brake stop, your brakes adjust for wear. Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking.
Page 316: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 317 4. Open the hoods and locate the positive (+) and negative ( ) terminal locations on the other vehicle. Your vehicle has a remote positive (+) and a remote negative ( ) jump starting terminal. See Engine Compartment Overview on page 5-12 for more information on the terminal locations.
Page 318 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 319 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 320: Rear Axle
Rear Axle When to Check and Change Lubricant It is not necessary to regularly check rear axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 321: Front Axle
A. Drain Plug B. Filler Plug If the level is below the bottom of the ﬁller plug hole, located on the transfer case, you’ll need to add some lubricant. Remove the plug and add enough lubricant to raise the level to the bottom of the ﬁller plug hole.
Page 322: Bulb Replacement
If the level is below the bottom of the ﬁller plug hole, located on the front axle, you may need to add some lubricant. When the differential is cold, add enough lubricant to raise the level to 1/2 inch (12 mm) below the ﬁller plug hole.
Page 323: Headlamps
Headlamps Composite Headlamp System A. Low-Beam Headlamp/DRL B. High-Beam Headlamp To replace the headlamp bulbs, do the following: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Reach in and access the bulb sockets from inside the engine compartment.
Page 324: Front Turn Signal, Parking And Daytime Running Lamps (Drl)
Sealed Beam Headlamps To replace the headlamp capsule, do the following: 1. Remove the four retainer screws and the retainer. 2. Pull the headlamp capsule toward you and unplug the electrical connector from it. 3. Remove the old headlamp capsule. 4.
Page 325: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) To replace the CHMSL bulb, do the following: 1. Remove the two screws and lift off the lamp assembly. 2. Turn the bulb socket counterclockwise and remove it from the housing. 3. Pull the bulb straight out of the socket. 4.
Page 326: Replacement Bulbs
2. Remove the two rear lamp assembly screws near the tailgate latch. 3. Pull out the lamp assembly. 4. Turn the bulb socket counterclockwise to remove it from the taillamp housing. 5. Pull the old bulb straight out from the socket. 6.
Page 327: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 6-14.
Page 328 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 329: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner Manual.
Page 330: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger Vehicle Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 331 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 332: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) P-Metric Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 333 Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim. Bias Ply Tire: A pneumatic tire in which the plies are laid at alternate angles less than 90 degrees to the centerline of the tread.
Page 334 Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 335: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 336: Tire Inspection And Rotation
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are underinﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 337 When rotating your tires, always use one of the correct rotation patterns shown here. If your vehicle has a compact spare tire or a spare tire that does not match your vehicle’s road tires and wheels, in size and type, do not include the spare in the tire rotation.
Page 338: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. Some commercial truck tires may not have treadwear indicators.
Page 339 CAUTION: Mixing tires could cause you to lose control of your vehicle while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
Page 340: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability and resistance to rollover.
Page 341 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 342: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis. However, if you notice unusual tire wear or your vehicle pulling to one side or the other, the alignment may need to be checked.
Page 343: Used Replacement Wheels
CAUTION: Using the wrong replacement wheels, wheel bolts, or wheel nuts on your vehicle can be dangerous. It could affect the braking and handling of your vehicle, make your tires lose air and make you lose control. You could have a collision in which you or others could be injured.
Page 344: Tire Chains
Tire Chains CAUTION: If your vehicle has P225/75R15, P265/75R15, P235/75R15, P235/50R17 or P235/50R18 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 345: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 346: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6 for more information. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 347: Removing The Spare Tire And Tools
When your vehicle has a ﬂat tire, use the following example as a guide to assist you in the placement of the wheel blocks. The following information will tell you next how to use the jack and change a tire. Removing the Spare Tire and Tools The tools you will need are located under the passenger’s seat.
Page 348 For regular and extended cab vehicles, the jack and wheel blocks are located under the cover at the center of the vehicle behind the front seats. Regular/Extended Cab The vehicle will have a cover if it is an extended or regular cab.
Page 349 4. Put the wheel blocks at the front and rear of the tire farthest away from the one being changed. That would be the tire on the other side, at the opposite end of the vehicle. 5. Locate the wing nut used to retain the storage bag and tools which is under the front passenger’s seat.
Page 350: Removing The Flat Tire And Installing The Spare Tire
3. Turn the wheel wrench (D) counterclockwise to lower the spare tire to the ground. Continue to turn the wheel wrench until the spare tire can be pulled out from under the vehicle. If the spare tire does not lower to the ground, the secondary latch is engaged causing the tire not to lower.
Page 351 1. Remove the center cap by placing the chisel end of the wheel wrench (E) into one of the slots on the wheel and gently prying the cap out. If your vehicle has the Xtreme package, remove each wheel nut cap with the wheel wrench and remove the center cap by hand.
Page 352 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 353 Front Position If the ﬂat tire is on the front of the vehicle, position the jack to the rear of the front tire in the pocket off of the frame. Rear Position If the ﬂat tire is on the rear, position the jack under the rear axle and get as close as possible to the shock absorber.
Page 354 6. Remove all the wheel nuts and take off the ﬂat tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 355 9. Put the wheel nuts back on with the rounded end of the nuts toward the wheel. Tighten each wheel nut by hand. Then use the wheel wrench to tighten the nuts until the wheel is held against the hub. Rear Position 10.
Page 356 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 357: Secondary Latch System
Secondary Latch System Your vehicle has an underbody-mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle. For the secondary latch to work, the spare must be installed with the valve stem pointing down.
Page 358 5. Turn the wrench counterclockwise until approximately 6 inches (15 cm) of cable is exposed. 6. Stand the wheel blocks on their shortest ends, with the backs facing each other. 7. Place the bottom edge of the jack (A) on the wheel blocks (B), separating them so that the jack is balanced...
Page 359 11. Remove the jack handle and insert the hoist end of the extension through the hole in the rear bumper. Turn the wheel counterclockwise one turn or until the wheel retainer assembly falls out. 12. Reinsert the jack handle into the jack. Lower the jack by turning the wheel wrench counterclockwise.
Page 360: Storing A Flat Or Spare Tire And Tools
14. Tilt the tire retainer at the end of the cable and pull it through the wheel opening. Pull the tire out from under the vehicle. 15. If the cable is hanging under the vehicle, turn the wheel wrench clockwise to raise the cable back up. Have the hoist assembly inspected as soon as you can.
Page 361 Store the tire under the rear of the vehicle in the spare tire carrier. Use the following art and text to help you. 1. Put the tire on the ground at the rear of the vehicle with the valve stem pointed down. 2.
Page 362 4. Insert the hoist end through the hole in the rear bumper and into the funnel-shaped guide. 5. Turn the wheel wrench clockwise to raise the tire part way up. Make sure the retainer is seated in the wheel opening and the valve stem is pointed down. 6.
Page 363 To store the tools, do the following: 1. Return the wheel wrench, jack extensions and the storage bag to the locations described under Removing the Spare Tire and Tools on page 5-71. 2. Install the wheel blocks ﬁrst. Then install the jack. 3.
Page 364: Spare Tire
Spare Tire Compact Spare Tire Your vehicle may have a compact spare tire. Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air over time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). Notice: If your vehicle has four-wheel drive and the compact spare tire is installed on your vehicle, do not drive in four-wheel drive until you can have...
Page 365: Appearance Care
This spare was developed for use on your vehicle, so it is all right to drive on it. If your vehicle has four-wheel drive and the different size spare tire is installed, keep the vehicle in two-wheel drive. Notice: If your vehicle has four-wheel drive and the different size spare tire is installed on your vehicle, do not drive in four-wheel drive until you can have your ﬂat tire repaired and/or replaced.
Page 366 When cleaning your vehicle’s interior, only use cleaners speciﬁcally designed for the surfaces being cleaned. Permanent damage may result from using cleaners on surfaces for which they were not intended. Use glass cleaner only on glass. Remove any accidental over-spray from other surfaces immediately. To prevent over-spray, apply cleaner directly to the cleaning cloth.
Page 367: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 368: Leather
Leather A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a soft cloth dampened with a mild soap solution can be used. Allow the leather to dry naturally. Do not use heat to dry.
Page 369: Weatherstrips
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 370: Cleaning Exterior Lamps/Lenses
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under Washing Your Vehicle on page 5-93. Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish.
Page 371: Windshield And Wiper Blades
Windshield and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap, or other material may be on the blade or windshield. Clean the outside of the windshield with a glass cleaning liquid or powder and water solution.
Page 372: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
Page 373: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 374: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 375: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 376: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of ﬁres caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 377 Fuses Usage Daylight Running Lamps (If Equipped) AUX PWR 1 Accessory Power 1 STOP Brake Switch, Stoplamps BLWR Climate Control Fan Fuses Usage S/ROOF Sunroof (If Equipped) Air Conditioning Control Head Power Seat Circuit Breaker PWR/SEAT (If Equipped) 5-101...
Page 378 Fuses RT HDLP Passenger’s Side Headlamp LT HDLP Driver’s Side Headlamp AUX PWR 2 Accessory Power 2 FOG/LAMP Fog Lamps (If Equipped) A/C CMPRSR Air Conditioning Compressor Wiper/Washer Switch PWR/WNDW Power Windows (If Equipped) FUEL/PUMP Fuel Pump STRTR Starter Solenoid Relay Wiper ABS 2 Anti-lock Brake System 2 (ABS Pump)
Page 379 Fuses Usage CLSTR Cluster TRN/HAZRD Turn/Hazard/Courtesy/Cargo Lamps/Mirrors TCCM Transfer Case Control Module HORN Horn Truck Body Controller IGN TRNSD Ignition Transducers Radio ® ONSTAR OnStar CNSTR VENT Fuel Canister Vent Solenoid PCM B Powertrain Control Module (PCM) B Relays Usage Daylight Running Lamps (If Equipped) BEAM SEL Beam Selection...
Page 380: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate conversion capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Cooling System 2.8L Engine 3.5L Engine Engine Oil with Filter 2.8 L Engine 3.5 L Engine Fuel Tank Transmission (Drain and Reﬁll)
Page 381 Engine Speciﬁcations Type VIN Code 2.8L 3.5L Transmission Spark Plug Gap Automatic 0.042 inches (1.07 mm) Manual Automatic 0.042 inches (1.07 mm) Manual 5-105...
Page 382 NOTES 5-106...
Page 383 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-12...
Page 384: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 385 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-44. • are driven on reasonable road surfaces within legal driving limits.
Page 386: Scheduled Maintenance
If you want to purchase service information, see Service Publications Ordering Information on page 7-14. Owner Checks and Services on page 6-8 tells you what should be checked, when to check it, and what you can easily do to help keep your vehicle in good condition. The proper replacement parts, ﬂuids, and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-12 and Normal Maintenance Replacement...
Page 387 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-13. Reset oil life system. See Engine Oil Life System on page 5-16. An Emission Control Service. Visually check for any leaks or damage. See footnote (g). Inspect engine air cleaner ﬁlter.
Page 388: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 389: Maintenance Footnotes
Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 390: Owner Checks And Services
(h) Change automatic transmission ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 391: At Least Once A Month
Engine Coolant Level Check Check the engine coolant level and add ® DEX-COOL coolant mixture if necessary. See Engine Coolant on page 5-24 for further details. Windshield Washer Fluid Level Check Check the windshield washer ﬂuid level in the windshield washer ﬂuid reservoir and add the proper ﬂuid if necessary.
Page 392: Ignition Transmission Lock Check
Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 393: Underbody Flushing Service
Parking Brake and Automatic Transmission Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 394: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol.
Page 395 Usage Fluid/Lubricant SAE 75W-90 Synthetic Axle Lubricant (GM Part Front and No. U.S. 12378261, in Rear Axle Canada 10953455) meeting GM Speciﬁcation 9986115. Synchromesh Transmission Fluid Transfer Case (GM Part No. U.S. 12345349, in Canada 10953465). Chassis Lubricant Rear Driveline (GM Part No.
Page 396: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Part Automatic Transmission Filter Kit 4WD Vehicle 2WD Vehicle Engine Air Cleaner/Filter Engine Oil Filter 2.8L Engine 3.5L Engine Spark Plugs Windshield Wiper Blades Driver’s Side —...
Page 397: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 398 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 399 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 400 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 401: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Collision Damage Repair ...7-10 Customer Assistance and Information...
Page 402: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 403: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 404: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Chevrolet, refer to the addresses below. United States — Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 405: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 406: Roadside Assistance Program
Roadside Assistance Program As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Call Chevrolet’s...
Page 407: Courtesy Transportation
Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. Chevrolet reserves the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 408: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Participating dealers can provide you with shuttle service to get you to your destination with minimal...
Page 409: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 410: Collision Damage Repair
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 411 Aftermarket collision parts are also available. These are made by companies other than GM and may not have been tested for your vehicle. As a result, these parts may ﬁt poorly, exhibit premature durability/corrosion problems, and may not perform properly in subsequent collisions. Aftermarket parts are not covered by your GM New Vehicle Limited Warranty, and any vehicle failure related to such parts are not covered by that warranty.
Page 412 If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 413: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 414: Reporting Safety Defects To The Canadian Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify General Motors. Please call the Chevrolet Customer Assistance Center at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 415: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 416 NOTES 7-16...
Page 417 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlet(s) ... 3-18 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-78 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-99 Air Cleaner/Filter, Engine ... 5-18 Air Conditioning ... 3-19 Airbag Passenger Status Indicator ... 3-27 Readiness Light ...
Page 418 Audio System(s) ... 3-44 AM-FM Radio ... 3-46 Care of Your CD Player ... 3-76 Care of Your CDs ... 3-75 Chime Level Adjustment ... 3-76 Fixed Mast Antenna ... 3-76 Radio with CD ... 3-48 Radio with Six-Disc CD ... 3-63 Setting the Time for Radios with Radio Data Systems (RDS) ...
Page 419 California Fuel ... 5-6 California Proposition 65 Warning ... 5-3 Canadian Owners ... ii Capacities and Speciﬁcations ... 5-104 Carbon Monoxide ... 2-10, 2-33, 4-38, 4-57 Care of Safety Belts ... 5-93 Your CD Player ... 3-76 Your CDs ... 3-75 Center Front Passenger Position, Safety Belts ...
Page 420 Coolant Engine Temperature Gage ... 3-32 Heater, Engine ... 2-19 Cooling System ... 5-29 Cruise Control ... 3-11 Cruise Control Light ... 3-36 Cupholder(s) ... 2-41 Customer Assistance Information Courtesy Transportation ... 7-7 Customer Assistance for Text Telephone (TTY) Users ... 7-4 Customer Assistance Offices ...
Page 421 Electrical System Add-On Equipment ... 5-99 Engine Compartment Fuse Block ... 5-100 Fuses and Circuit Breakers ... 5-100 Power Windows and Other Power Options ... 5-99 Windshield Wiper Fuses ... 5-99 Engine Air Cleaner/Filter ... 5-18 Battery ... 5-39 Check and Service Engine Soon Light ... 3-32 Coolant ...
Page 422 Fuses Engine Compartment Fuse Block ... 5-100 Fuses and Circuit Breakers ... 5-100 Windshield Wiper ... 5-99 Gage Engine Coolant Temperature ... 3-32 Fuel ... 3-37 Speedometer ... 3-24 Tachometer ... 3-24 Gasoline Octane ... 5-5 Speciﬁcations ... 5-5 Glove Box ... 2-41 GM Mobility Reimbursement Program ...
Page 423 Ignition Positions ... 2-17 Infants and Young Children, Restraints ... 1-36 Inﬂation -- Tire Pressure ... 5-59 Instrument Panel Overview ... 3-4 Instrument Panel (I/P) Brightness ... 3-17 Cluster ... 3-23 Interior Lamps ... 3-17 Jump Starting ... 5-40 Keyless Entry System ... 2-3 Keys ...
Page 424 Light (cont.) Oil Pressure ... 3-35 Passenger Airbag Status Indicator ... 3-27 Passenger Safety Belt Reminder ... 3-25 Safety Belt Reminder ... 3-25 Security ... 3-36 Up-Shift ... 3-30 Lighting Exit ... 3-18 Loading Your Vehicle ... 4-44 Lockout Protection ... 2-10 Locks Door ...
Page 425 New Vehicle Break-In ... 2-16 Normal Maintenance Replacement Parts ... 6-14 Odometer ... 3-24 Odometer, Trip ... 3-24 Off-Road Driving ... 4-15 Off-Road Recovery ... 4-12 Engine ... 5-13 Pressure Light ... 3-35 Oil, Engine Oil Life System ... 5-16 Older Children, Restraints ...
Page 426 Radiator Pressure Cap ... 5-27 Radios ... 3-44 AM-FM Radio ... 3-46 Care of Your CD Player ... 3-76 Care of Your CDs ... 3-75 Radio with CD ... 3-48 Radio with Six-Disc CD ... 3-63 Setting the Time for Radios with Radio Data Systems (RDS) ...
Page 427 Safety Belt Passenger Reminder Light ... 3-25 Pretensioners ... 1-33 Reminder Light ... 3-25 Safety Belts Care of ... 5-93 Center Front Passenger Position ... 1-26 Driver Position ... 1-18 How to Wear Safety Belts Properly ... 1-18 Questions and Answers About Safety Belts ... 1-17 Rear Safety Belt Comfort Guides ...
Page 428 Spare Tire ... 5-88 Installing ... 5-74 Removing ... 5-71 Storing ... 5-84 Speciﬁcations, Capacities ... 5-104 Speedometer ... 3-24 Starting Your Engine ... 2-18 Steering ... 4-10 Steering Wheel, Tilt Wheel ... 3-6 Storage Areas Cupholder(s) ... 2-41 Front Armrest Storage Area ... 2-42 Glove Box ...
Page 429 Traction Control System (TCS) ... 4-9 Trailer Recommendations ... 4-70 Transmission Fluid, Automatic ... 5-19 Fluid, Manual ... 5-22 Up-Shift Light ... 3-30 Transmission Operation, Automatic ... 2-20 Transmission Operation, Manual ... 2-23 Trip Odometer ... 3-24 Truck-Camper Loading Information ... 4-50 Turn and Lane-Change Signals ...
Page 430 Warning Lights, Gages and Indicators ... 3-22 Warnings DIC Warnings and Messages ... 3-41 Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-66 Different Size ...

Chevrolet 2006 Colorado Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Checking Things under the Hood

Rear Axle

Four-Wheel Drive

Front Axle

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Quick Links

Chapters

Related Manuals for Chevrolet 2006 Colorado

Summary of Contents for Chevrolet 2006 Colorado
