- Page 1 MANUFACTURER AND SELLER OF AMUSEMENT MACHINES JAKAR, 44 – 240 Żory, ul. Fabryczna 10, Poland Tel./fax. +48 32 435 79 22; www.jakar.pl e-mail: info @jakar.pl SPEED HUNTER OPERATOR'S MANUAL...

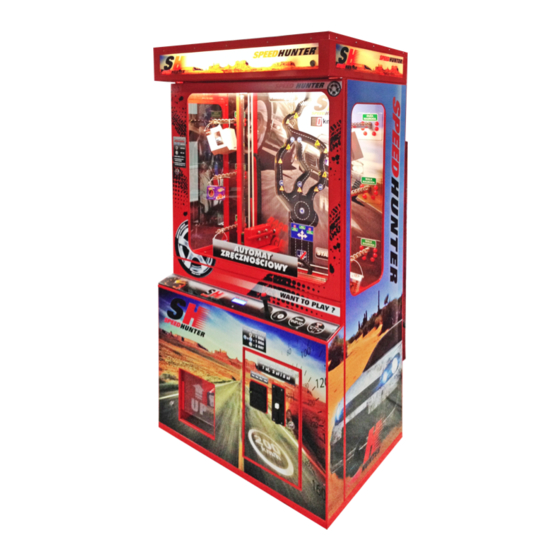

- Page 2 I. INTRODUCTION Speed hunter is a brand new amusement machine on the market! It has been made from the best quality materials. The Speed Hunter can be placed indoor, ex. in shopping centres, clubs, playgrounds or discos. Every player has guaranteed great fun during playing this game.
- Page 3 Press SET button to choose function. All messages are shown on LCD display, on the front panel. VOLUME DEMO – use buttons DOWN / UP to set demonstration volume VOUME VOICE – use buttons DOWN / UP to set voice volume VOLUME MUSIC –...
- Page 4 Off – free play mode off On – free play mode on TICKET DISP IV. SPEED HUNTER SETUP To enter SETUP there have to be 0 credits on the machine. Press simultaneously buttons DOWN and UP to enter the SETUP.
- Page 5 Apply grease on m. Y and repeat calibration Apply grease on m. X and repeat calibration...
- Page 6 When calibration will be finished on the LCD display you will see “CALIBRATION OK”. Then, switch off and switch on the machine. V. ERRORS ER 1 – Tilt ER 2 – Prize sensor tilt ER 3 – Switch Win (mechanism does not reach position “UP”) ER 4 –...
- Page 7 ER 6 – prize is won, but blocks are still on (cable from rod ending is disconnected or cable from edge is disconnected) ERROR Sens 03 (Cz.Na) – prize sensors do not work correctly (please clean them, check cable connection) IMPORTANT: ERRORS 4, 5, and 6 will block the machine.
- Page 8 VII. HOW TO PUT THE PRIZES ON THE PRIZE ARMS Prize Arm with locking pin inside Locking Pin Hanging Ties 1. Unscrew the Locking Pin, by turning it in a clockwise direction. 2. Remove the locking pin by pulling it all the way out. 3.
