FF1293SSIM
Product Features:
Frost-free operation
Large capacity
Thin-line design
Factory installed icemaker
Adjustable glass shelves
Door storage
Gallon door storage
Crisper drawer
Humidity gauge
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799
No-frost convenience for reduced user maintenance
12 cu.ft. interior to meet all your storage needs
Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit
spots
Forget the plastic trays and enjoy the convenience of ready-made ice in your freezer
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves
for a simple clean-up
Store tall bottles and condiments right on the door for convenient access
Door shelf can hold a gallon container
Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Allows you to manage the humidity in the crisper drawer for optimum produce storage
65" x 23.5" x 27.63" (H x W x D)

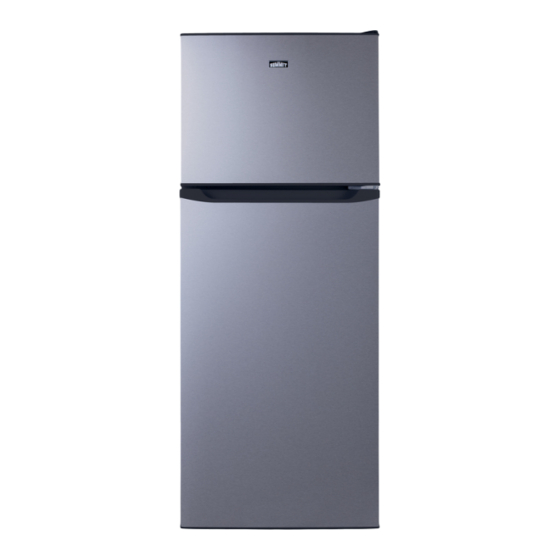

24" wide 12 cu.ft. frost-free refrigerator-freezer in a
stainless steel look with factory installed icemaker
Highlights:
True frost-free operation saves you maintenance by
preventing icy buildup
Keep a constant supply of ice with a factory installed
icemaker in the freezer
Includes adjustable glass shelves
info@summitappliance.com
www.summitappliance.com
Advertisement
Table of Contents
Related Manuals for Summit FF1091WIM
Summary of Contents for Summit FF1091WIM
- Page 1 Get the longest life and best taste out of produce by storing it in a convenient slide drawer Humidity gauge Allows you to manage the humidity in the crisper drawer for optimum produce storage SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified 770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 info@summitappliance.com...
- Page 2 22.5" (57 cm) Refrigerator - Shelf Type Glass Refrigerator - Shelf Qty Refrigerator - Full Door Shelves SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified 770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 info@summitappliance.com www.summitappliance.com...
- Page 3 U.S. Government Federal law prohibits removal of this label before consumer purchase. Refrigerator-Freezer Felix Storch, Inc. • Automatic Defrost Model FF1293SSIM Capacity: 12.0 Cubic Feet • Top-Mounted Freezer • Automatic Icemaker • No through-the-door ice Compare ONLY to other labels with yellow numbers. Labels with yellow numbers are based on the same test procedures.
- Page 5 HOUSEHOLD REFRIGERATOR Models: FF1091WIM LRF101WIM FF1093SSIM LRF103SIM FF1293SSIM LRF129SIM User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model and Serial Nos. (on lower left corner of inside cabinet) here: Felix Storch, Inc. An ISO 9001:2015 registered company Model No.: _______________________...
-
Page 6: Table Of Contents
TABLE OF CONTENTS Equipment Safety Important Safeguards Installation Instructions Before Using your Appliance Installing your Appliance Electrical Connection Connecting the Water Line Reversing the Door Swing Operating your Appliance Setting the Refrigerator Temperature Setting the Freezer Temperature Using the Ice Maker Defrosting Care and Maintenance Cleaning your Appliance... -
Page 7: Equipment Safety
EQUIPMENT SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your unit. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. - Page 8 • In the event of any damage: Avoid open flames and anything that creates a spark, Disconnect from the electrical power line, Air the room in which the unit isolated for several minutes, and Contact the Service Department for advice. •...
- Page 9 LOCATION OF PARTS FF1091WIM/LRF101WIM FF1293SSIM/LRF129SIM FF1093SSIM/LRF103SIM 1. Ice maker (on some models) 6. Crisper cover 2. Ice bucket (on some models) 7. Crisper drawer 3. Shelves 8. Door rack 4. Freezer control 9. Can rack 5. Lamp and Refrigerator control 10.
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Appliance • Remove the exterior and interior packing. • Before connecting the freezer to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 11: Connecting The Water Line
Connecting the Water Line • Connecting your unit to a water line will require: Adjustable flat wrench Flat head screwdriver Phillips head screwdriver Shutoff valve (DO NOT use a self-piercing shutoff valve) Compression nut and ferrule (sleeve) • You will also require access to a household cold water line with water pressure between 20 and 120psi. -
Page 12: Reversing The Door Swing
Reversing the Door Swing NOTE: For safety, it is recommended at least two people are present when reversing the direction of the door swing. You may choose to open your unit from the right or the left side. To reverse the direction of your door opening, follow the steps below. - Page 13 6. Open the bottom door. 7. Remove the two screws from the middle hinge, and save these screws. 8. Remove the middle hinge. 9. Lift the bottom door off of the lower hinge, and set it aside. NOTE: Set the lower door on a soft cloth to prevent any scratching or damage when not installed on the unit.
-
Page 14: Operating Your Appliance
OPERATING YOUR APPLIANCE Setting the Refrigerator Temperature • The temperature of refrigerator can be controlled manually. However, the number shown on the display does not directly represent the temperature. The larger the set number, the lower the interior temperature will be. •... -
Page 15: Care And Maintenance
CARE AND MAINTENANCE NOTE: Be sure to unplug your unit before performing any cleaning or maintenance to prevent the risk of electric shock. Cleaning your Appliance CAUTION: Cleansers such as soap powder, abrasive cleaning powder, alkali cleansers, chemical cloth, thinner, alcohol, acid petroleum product and hot water should NOT be used for cleaning, as they may damage the appliance. -
Page 16: Troubleshooting
TROUBLESHOOTING You can solve many common freezer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service agent. PROBLEM POSSIBLE SOLUTION appliance It may not be connected to the power supply. does not work Voltage is too low. - Page 17 NOTES...
-
Page 18: Limited Warranty
For more information go to www.P65Warnings.ca.gov Note: Nickel is a component in all stainless steel and some other metal compositions. Felix Storch, Inc. Summit Appliance Division An ISO 9001:2015 registered company For parts and accessory ordering, 770 Garrison Avenue troubleshooting and helpful hints, visit: Bronx, NY 10474 www.summitappliance.com/support...
