Download
Share
Print this page
  1. Manuals
  2. Brands
  3. Femco Manuals
  4. Tractor Accessories
  5. WEATHERBRAKE 2175
  6. Instructions manual

Femco WEATHERBRAKE 2175 Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

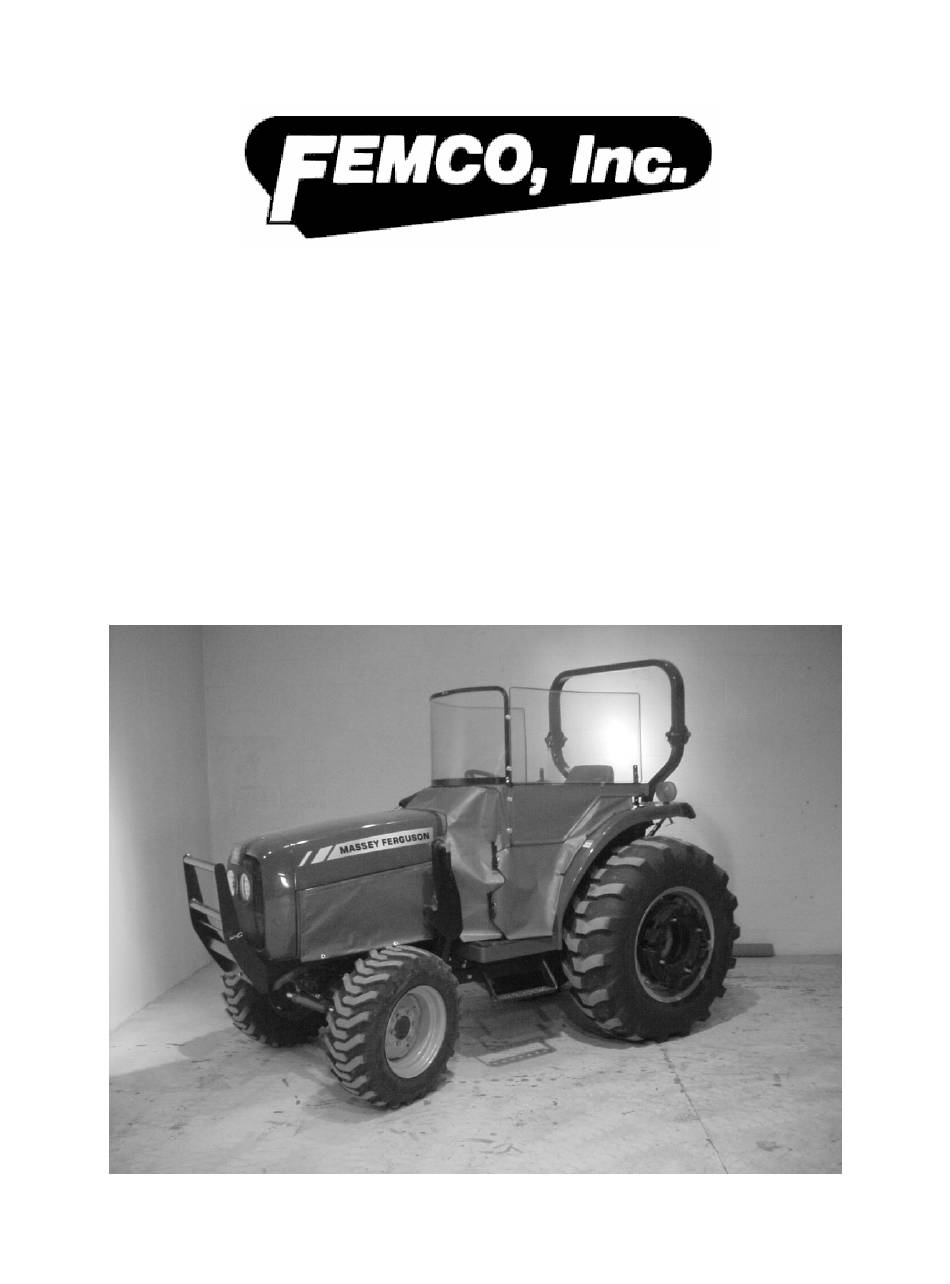

INSTRUCTIONS
WEATHERBRAKE
2175
FITS
MF 1533,1540, 1635,
1643, 1648,1652, 1655, 1660
Challenger: MT 265B, MT 275B
AGCO Allis: ST 34A, ST41A
General Offices
1132 W. 1ST STREET
McPherson, KS 67460
Phone: (620) 241-3513
Web: www.femcomfg.com
Form No. 286324500 / 12-2005

Advertisement

loading
Need help?

Need help?

Do you have a question about the WEATHERBRAKE 2175 and is the answer not in the manual?

Questions and answers

Related Manuals for Femco WEATHERBRAKE 2175

Summary of Contents for Femco WEATHERBRAKE 2175

  • Page 1 INSTRUCTIONS WEATHERBRAKE 2175 FITS MF 1533,1540, 1635, 1643, 1648,1652, 1655, 1660 Challenger: MT 265B, MT 275B AGCO Allis: ST 34A, ST41A General Offices 1132 W. 1ST STREET McPherson, KS 67460 Phone: (620) 241-3513 Web: www.femcomfg.com Form No. 286324500 / 12-2005...
  • Page 2 IMPORTANT READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE MOUNTING WEATHER BRAKE. DO NOT TIGHTEN HARDWARE UNTIL INSTRUCTED TO DO SO YOKE BRACE 1. Lift hood and remove bolt (A) 2. Attach yoke brace (B) using bolt removed 3. Yoke brace is to be parallel with tractor. Tighten bolt. 4.
  • Page 3 YOKE BRACKET TAB 1. Attach yoke bracket tab (A) to yoke bracket so holes 3/8” from top edge point up, using two (2) 1/4” x 3/4” bolts and nuts. 2. Tighten bolts. DOOR POST HOLE 1. Drill a 9/32” diameter hole into foot rest at location (A) DOOR POST 1.

  • Page 4: Motor Cover

    MOTOR COVER 1. Arrange motor cover (A) over hood of tractor. 2. Slide 3” hem of motor cover down over top of door post. YOKE 1. Insert yoke (A) into top 3” hem of motor cover. 2. Attach yoke to yoke bracket using two (2) 1/4” x 3/4” bolts and nuts.

  • Page 5: Windshield Assembly

    DUAL LOCK® is a registered trademark of 3M Co. 1. Cut the plastic Dual Lock into 2” lengths. 2. The surface must be cleaned with a mild detergent to assure proper application of Dual Lock strips. 3. Apply cut Dual Lock to all Dual Lock sewn to the mo- tor cover.
  • Page 6 WINSHIELD ATTACHMENT 1. Remove nut from yoke and door post and attach as- sembled windshield. 2. Attach assembled windshield to outside of yoke with nut removed and 1/4” x 1” bolt and nut to other side of windshield 3. Tighten all bolts. DOORS 1.

  • Page 7: Door Latch

    LEFT WINDOW 1. Mark location of holes in windshield to left window (A). 2. Cut 5/8” slots next to wire frame of left window and at- tach to windshield using two (2) #10 x 3/4 bolts and nuts. 3. About 6” from back of left window at location (B) cut 5/8”...
  • Page 8 NOTES...
