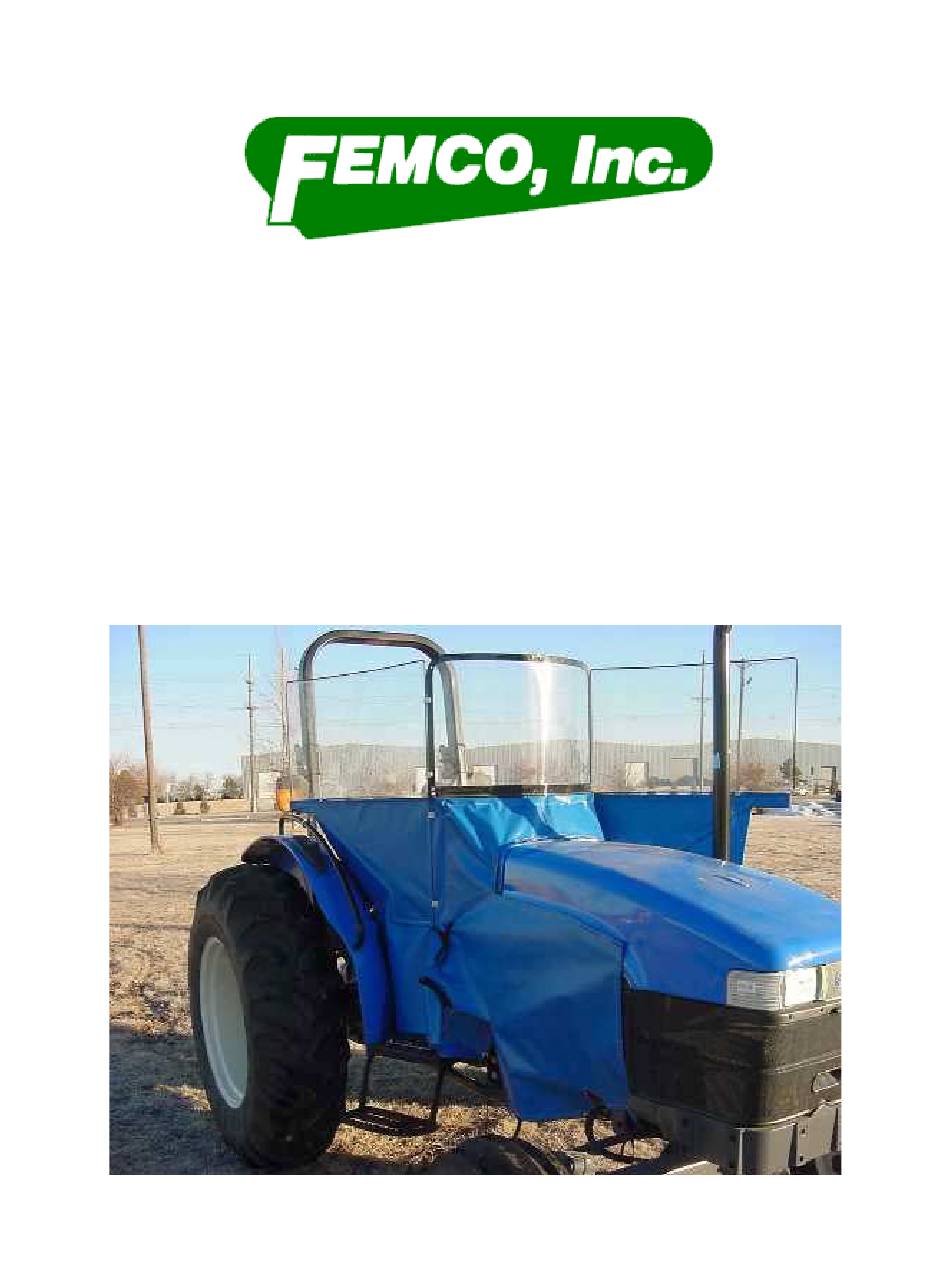

- Page 1 INSTRUCTIONS WEATHER - BRAKE 2145 FITS New Holland TN General Offices 1132 W. 1ST STREET McPherson, KS 67460 Phone: (620) 241-3513 Web: www.femcomfg.com Form No. 286307300 / 06-2002...
- Page 2 PARTS LIST 720902901 Motor Cover 720903001 Door L.H. 720903101 Door R.H. 712106701 Yoke 711167201 Door Latch 720903201 Yoke Bracket 711763001 Door Post L.H. 711763101 Door Post R.H. 712181101 Windshield R.H. 712181301 Windshield L.H. 711181301 Windshield Angle 711181401 Windshield Flat 720735000 Side Window 711389800 Windshield...
- Page 3 YOKE BRACKET 1. Remove three (3) screws (A) from top of dash. 2. Attach yoke bracket (B) to top of dash using three (3) #8 x 1” screws and washers. 3. Tighten screws. DOOR POSTS 1. Attach door post (A) to foot rest using two (2) 1/4” x 1” bolts, fender washers, and nuts.
- Page 4 YOKE 1. Insert yoke (A) into top 3” hem of motor cover. 2. Attach yoke to yoke bracket using two (2) 1/4” x 3/4” bolts and nuts. Head of bolt outside, nut inside 3. TIGHTEN THESE BOLTS ONLY. WINDSHIELD ASSEMBLY 1.
- Page 5 Dual Lock® a registered trademark of 3M Co. 1. Cut plastic Dual Lock into 2” lengths. 2. Surface must be cleaned with a mild detergent to as- sure proper application of Dual Lock strips. NOTE: Do not peel the backing from the Dual Lock. 3.
- Page 6 SIDE WINDOWS 1. Mark location of holes in windshield to side window (A). 2. Cut 5/8” slots next to wire frame of window and attach to windshield using four (4) #10 x 3/4” bolts, nuts, and clips. 3. At location (B), cut a 5/8” slot in bottom side of win- dow and top of doors and attach using two (2) #10 x 3/4”...
