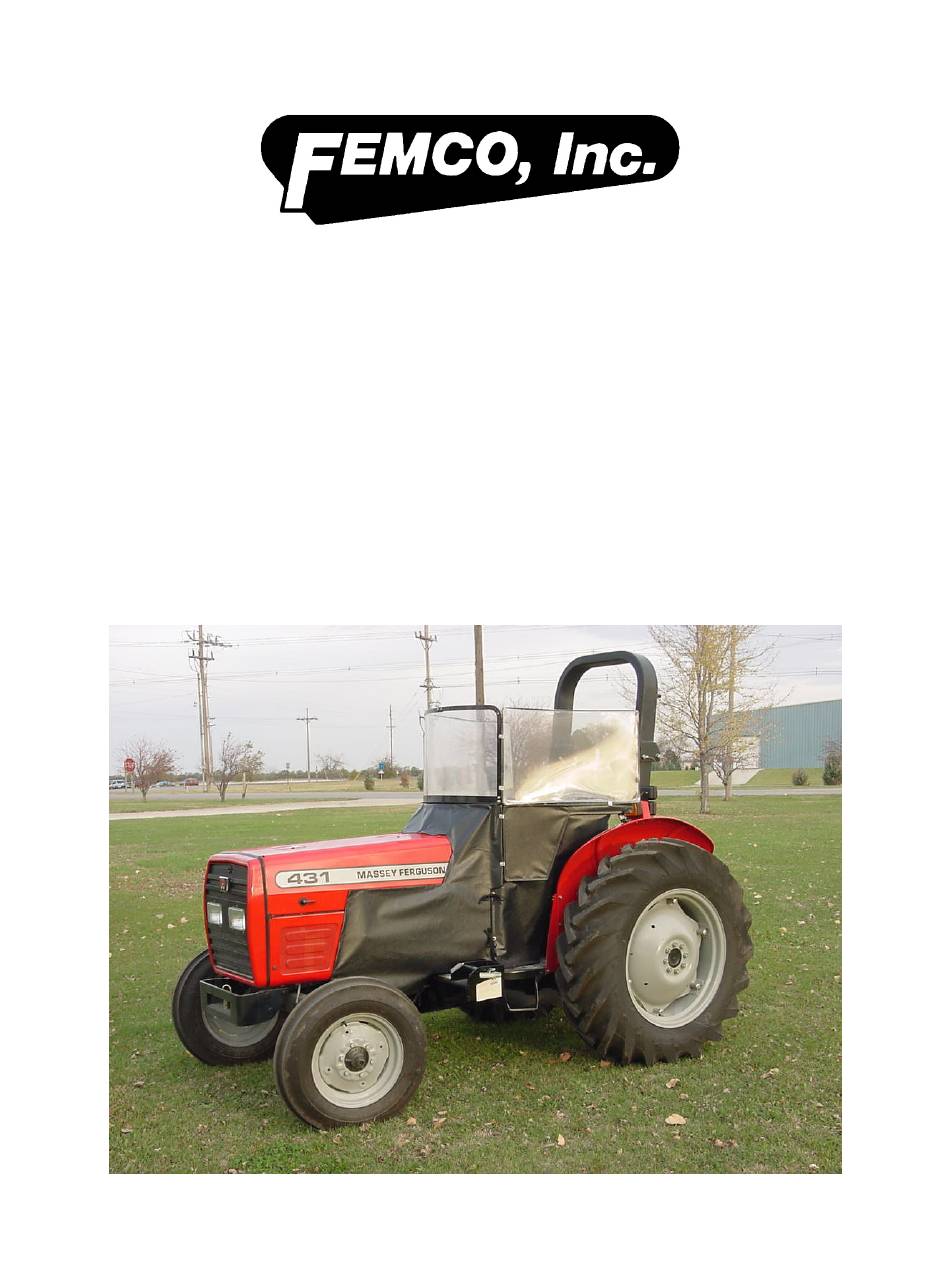

- Page 1 INSTRUCTIONS WEATHERBRAKE 307022174 FITS 431 & 461 General Offices 1132 W. 1ST STREET McPherson, KS 67460 Phone: (620) 241-3513 Web: www.femcomfg.com Form No. 286324300 / 11-2005...
- Page 2 IMPORTANT CAREFULLY STUDY THE PHOTO DIAGRAMS SHOWING THE LOCATION OF EACH PART. LEAVE ALL HARDWARE LOOSE UNTIL INSTRUCTED TO TIGHTEN. YOKE BRACKET DASH 1. Remove bolts from side of dash. 2. Attach yoke bracket dash (A) to dash using four (4) M6 bolts.
- Page 3 MUFFLER GUARD 1. Remove bolt A 2. Attach muffler guard (B) using same bolt removed. 3. Tighten bolt. DOOR POST 1. Remove bolt from front of platform. 2. Attach door post (A) to platform using bolt removed. Repeat procedure for the other side. 3.
- Page 4 YOKE 1. Insert yoke (A) into top 3” hem of motor cover. 2. Attach yoke to yoke bracket using two (2) 1/4” x 3/4” bolts and nuts 3. Attach yoke to door post using one (1) 1/4” x 1” bolt and nut.
- Page 5 TIE STRAPS 1. Thread cloth strap through grommets at bottom of mo- tor cover and tie. 2. Route cloth straps to other side or to a point on tractor and tie. IMPORTANT Cloth straps are not to be attached to any moving, ro- tating, or heat generating points of tractor.
- Page 6 DOORS 1. Locate holes in door post and cut holes in the fabric. 2. Hold door (A) to door post and bottom of the wind- shield. 3. Mark location of holes in the door post to the door. 4. Cut 5/8” slots next to wire frame of door and attach to door post using four (4) #10 x 3/4”...
- Page 7 NOTES...
