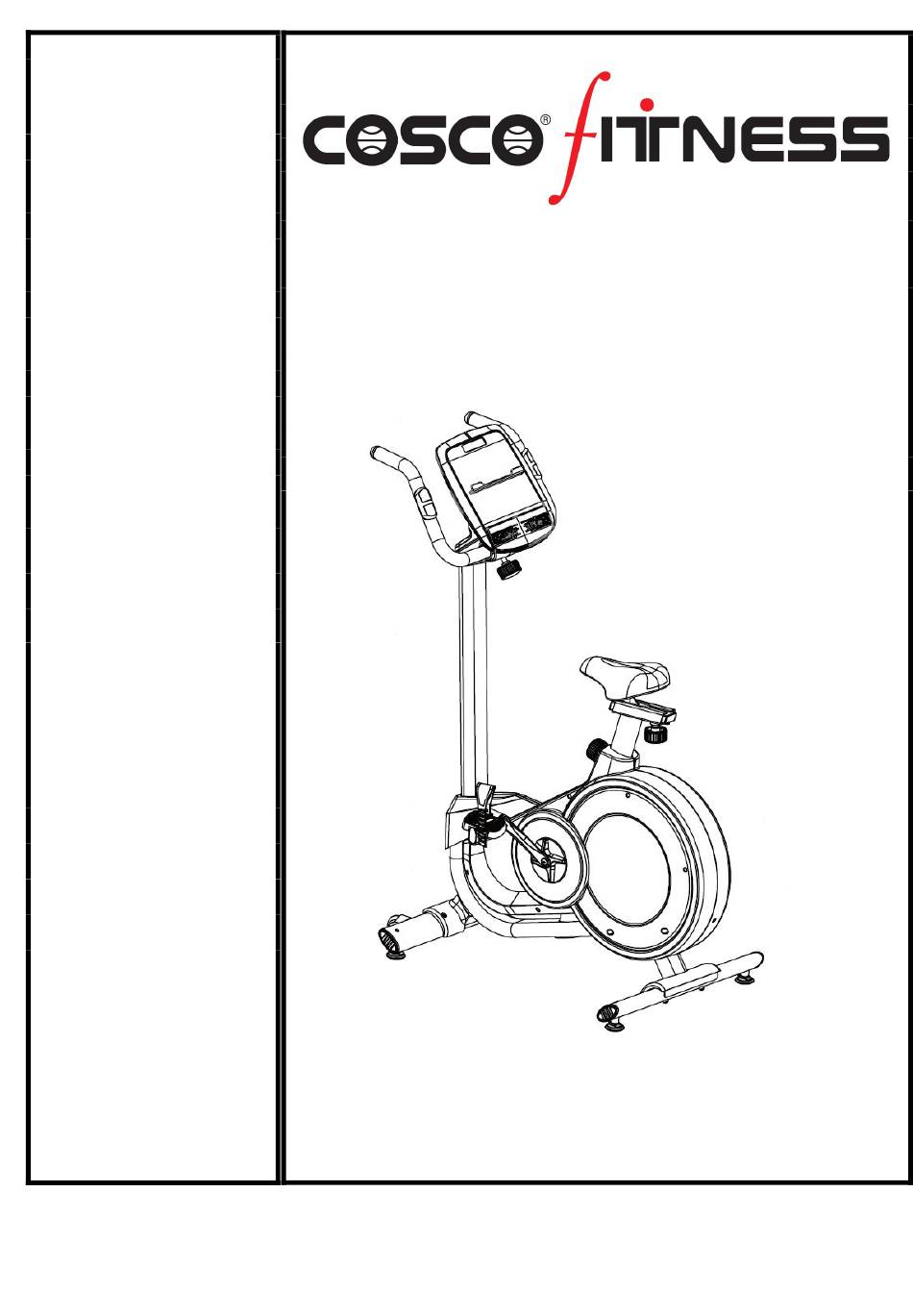

Cosco Fitness 170U Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Attention:
Please read all
instructions carefully
before using the
product.
Contents
Safety Information
Components-Parts
Assembly Instructions
Computer Operation
Parts List
Model:
170U
Retain this
manual for
reference
2020-12-13
OWNER'S
MANUAL
170U
Upright Bike
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 170U and is the answer not in the manual?

Questions and answers

Related Manuals for Cosco Fitness 170U

Summary of Contents for Cosco Fitness 170U

  • Page 1 Attention: Please read all instructions carefully before using the product. 170U Contents Upright Bike Safety Information Components-Parts Assembly Instructions Computer Operation Parts List Model: 170U Retain this manual for reference 2020-12-13 OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Contents Safety Information Components - Parts Assembly Instructions 6-12 Computer Operation 13-20 Maintenance Parts List 22-23...

  • Page 3: Safety Information

    、 Safety Information 1. Please read the entire instruction before starting using this machine. 2. It is the responsibility of the owner of this machine to inform all users of all preventive measures. Follow the instruction strictly. 3. Please place this machine on a flat ground, away from moisture and dust. Place a mat under the machine to protect the floor and carpet.

  • Page 4: Components - Parts

    Components - Parts Please check you have all parts listing below...
  • Page 5 Components - Parts...

  • Page 6: Assembly Instructions

    Assembly Instructions Step 1 1. Attach (G) to the Main Frame (D) and secure by using (K-1), (K-2), (K-3). 2. Attach (H) to the Main Frame (D) and secure by using (K-1), (K-2), (K-3). 3. Attach the (H-4) to (H).
  • Page 7 Assembly Instructions Step 2 1. Attach (L-6) to the Main Frame (D) and secure by using (K-8). 2. Attach (L-7) to the Main Frame (D) and secure by using (K-8).
  • Page 8 Assembly Instructions Step 3 1. Attach the (L-1L) to (D-19). 2. Attach the (L-1R) to (D-18).
  • Page 9 Assembly Instructions Step 4 1. Insert the (I) into the Main Frame (D) and secure by (D-9). 2. Attach the (L-2) to the (I).
  • Page 10 Assembly Instructions Step 5 1. Connect the Wire (B-2) with (D-33) as shown in the diagram. 2. Attach the (B-1) to the Main Frame (D) using (D-6),(D-34) and (D-35).
  • Page 11 Assembly Instructions Step 6 1. Attach the (L-4) and (L-5) to (C). 2. Connect the Wire (C-4) to the wire from (B-1), then attach the (C) to (B-1). 3. Attach the (A) to (B-1) using (A-1).
  • Page 12 Assembly Instructions Step 7 1. Attach the (L-4) to the (B-1) and secure by using (K-9) and (B-3). 2. Attach the (L-5) to the (B-1) and secure by using (K-9) and (B-3).

  • Page 13: Computer Operation

    Computer Instruction A) Function Description： 1. MANUAL：Basic training, you can set the TIME、CAL、DIST、PULSE target manually. 2. PROGRAM：P1~P12 ，12 sets of different programs 3. CALORIES PROGRAM：Low, Medium, High, three different levels of target Calories program 4. INTERVAL： 3 sets of different Interval programs 5.
  • Page 14 Computer Instruction WATT CONSTANT QUICK KEY：Under the workout mode，press the button and enter WATT H.R.C. QUICK KEY ： Under the workout mode ， press the button and enter H.R.C. mode 。 USER PROGRAM QUICK KEY ： Under the workout mode ， press the button and enter USER PROGRAM mode。...
  • Page 15 Computer Instruction Drawing 4 Drawing 5 Drawing 6 Drawing 7 Drawing 8 4. Program Mode: use [Plus/Minus] to choose the Program(Drawing 9) , press [enter] to enter the Program Mode. You can also press [Program] button to enter the mode directly. Firstly choose Program pattern(Drawing 10), there are 12 sets of different Program patterns.
  • Page 16 Computer Instruction Drawing 12 Drawing 13 6. Interval Mode: use [Plus/Minus] to choose the Interval (Drawing 14) , press [enter] to enter the Interval Mode. You can also press [Interval] button to enter the mode directly. Firstly choose Interval (Drawing 15), there are 3 sets of different Interval. In Interval 1 & 2, press [Start] to start the workout, In Interval 3, press [Enter] to set Interval time and Cycles.
  • Page 17 Computer Instruction 8. Watt Constant Mode: use [Plus/Minus] to choose the Watt Constant (Drawing 18) , press [enter] to enter the Watt Constant Program. You can also press [Watt Constant] button to enter the mode directly. Use [Plus/Minus] to adjust value. Press [Enter] to enter time setting. During the training, press [Plus/Minus] to adjust the Watt LOAD.
  • Page 18 Computer Instruction Drawing 23 Drawing 24 Drawing 25 D、Remarks 1. Program Patterns： 2. Calories Patterns：...
  • Page 19 Computer Instruction 3.Watt Paterns： 4. Stage Mode Default Paterns： Stage Mode Description： (1).INTERVAL1：Intense work out for 25 seconds/Rest for 15 seconds, continue for 8 cycles (2).INTERVAL2：Intense work out for 60 seconds/Rest for 75 seconds, continue for 12 cycles (3).INTERVAL3：Custom mode，you can set the Intensity/Rest/Cycle value Noted: 1.
  • Page 20 Computer Instruction 1. This console can connect APP on the smart device by Bluetooth or Tunelinc. 2. Once console is connect to smart device via Bluetooth or Tunelinc, the console will power off. 3. Down load and install app IOS system please search “ IC + Training APP” at Apple Store. Android system please search “...

  • Page 21: Maintenance

    Maintenance 1. Regularly check whether the bolts and nuts of each part are fastened, whether the adjusting knob is locked, whether the rotating part is flexible, and whether there are any worn or damaged parts.These parts are in good condition, the safety of the equipment can be guaranteed; 2.

  • Page 22: Parts List

    Parts List Console assembly 1 D-24 Sensor wire M5x14L Phillips screw 4 D-25 DC wire Handle tube assembly 1 D-26 Poly V-belt Handle tube 1 D-32 Rectifier Wire 950mm 1 D-33 Motor wire M5x20L Phillips screw Magnet assembly Bottle holder 1 E-1 M6xP1.0*16L Hex screw Handle assembly...
  • Page 23 Saddle sliding tube 1 K-3 φ8xφ19x2t Flat washer 1 K-4 Harpoon spanner Sliding tube end cap 2 K-5 6mm Allen wrench M4x10L screw 1 K-6 Socket spanner Idle Wheel Assembly 1 K-7 Knob Bracket 1 K-8 M5x20L Phillips screw Idle Wheel 1 K-9 M4x50L Phillips self tapping screw 2 L-1L...
