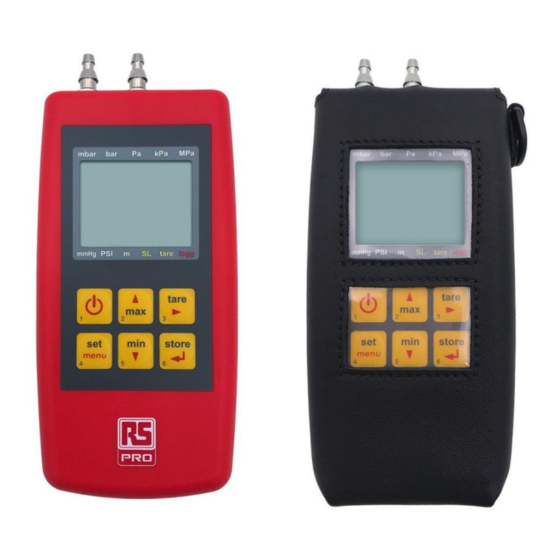

- Page 1 H61.0.RS.6C-04 Operating Manual RS MH 3161-002 - ex RS Stock number: 205-1446 RS MH 3161-13 - ex RS Stock number: 205-1444 device without case device in leather case (ready for use in Ex-Zone) rspro.com...
-
Page 2: Table Of Contents
page 2 of 14 Operating Manual RS MH 3161-… - ex H61.0.RS.6C-04 CONTENTS GENERAL NOTE ............................ 3 SAFETY ..............................3 ............................ 3 NTENDED ....................... 3 AFETY SIGNS AND SYMBOLS ..........................4 AFETY GUIDELINES PRODUCT SPECIFICATION ........................5 ..........................5 COPE OF SUPPLY .................... -
Page 3: General Note
Operating Manual RS MH 3161-… - ex page 3 of 14 H61.0.RS.6C-04 1 General Note Read this document carefully and get used to the operation of the device before you use it. Keep this document within easy reach near the device for consulting in case of doubt. Mounting, start-up, operating, maintenance and removing from operation must be done by qualified, specially trained staff that have carefully read and understood this manual before starting any work. -
Page 4: Safety Guidelines
page 4 of 14 Operating Manual RS MH 3161-… - ex H61.0.RS.6C-04 2.3 Safety guidelines This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 5: Product Specification
Operating Manual RS MH 3161-… - ex page 5 of 14 H61.0.RS.6C-04 Do not use these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury or material damage. Failure to comply with these instructions could result in death or serious injury and material DANGER damage. -
Page 6: Handling
page 6 of 14 Operating Manual RS MH 3161-… - ex H61.0.RS.6C-04 4 Handling 4.1 Display Main display: shows actual value Arrow points to the chosen measuring unit Secondary display: shows min./max. or hold value SL: appears if sea-level-correction is activated (only at devices with absolute pressure sensor) Tara: appears if tara-function is activated Not used... -
Page 7: Connections
Operating Manual RS MH 3161-… - ex page 7 of 14 H61.0.RS.6C-04 4.3 Connections Interface: Connection for el. Isolated interface adapter (please refer to chapter 8.1) Connection for pressure tubes: „+“ higher pressure „-“ lower pressure Power supply: the mains adapter socket is located at the left side of the device. 4.4 Pop-up clip Handling: •... -
Page 8: Start Operation
page 8 of 14 Operating Manual RS MH 3161-… - ex H61.0.RS.6C-04 5 Start Operation Connect sensor, turn on device via key. After segment test the device displays some configuration: • If a zero point adjustment was carried out the display shows shortly „nuLL Corr“. After that the device is ready for measuring. -
Page 9: Output
Operating Manual RS MH 3161-… - ex page 9 of 14 H61.0.RS.6C-04 8 Output 8.1 Serial Interface By means of the serial interface and a suitable electrically isolated interface adapter (USB 3100, USB 3100 N, GRS 3100 or GRS 3105) the device can be connected to a computer for data transfer. With the GRS 3105 up to 5 devices of the GMH3xxx- series can be connected to one interface (see also manual of GRS 3105). -
Page 10: Pressure Connection
page 10 of 14 Operating Manual RS MH 3161-… - ex H61.0.RS.6C-04 10 Pressure Connection 2 universal pressure connector for 6 x 1 mm (4 mm tube inner diameter) or 8 x 1 mm (6 mm tube inner diameter ) plastic tubes. 10.1 Device type with relative pressure ... -
Page 11: Specification
Operating Manual RS MH 3161-… - ex page 11 of 14 H61.0.RS.6C-04 12 Specification RS MH 3161-002 - ex RS MH 3161-13 - ex -500.0 … 500.0 Pa -1000 … 2000 mbar Measuring ranges: (-5.000 … 5.000 mbar) Overload: (max.) max. -
Page 12: Reshipment And Disposal
The device must not be disposed in the unsorted municipal waste! Send the device directly to us (sufficiently stamped), if it should be disposed. We will dispose the device appropriate and environmentally sound. WEEE-Reg.-Nr.: DE 93889386 14 Manufacturer address GHM Messtechnik GmbH Standort Greisinger Hans-Sachs-Straße 26 93128 Regenstauf Germany... -
Page 13: Ec-Type Examination Certificate
Operating Manual RS MH 3161-… - ex page 13 of 14 H61.0.RS.6C-04 16 EC-Type Examination Certificate... - Page 14 page 14 of 14 Operating Manual RS MH 3161-… - ex H61.0.RS.6C-04 17 EU-Declaration of conformity...
