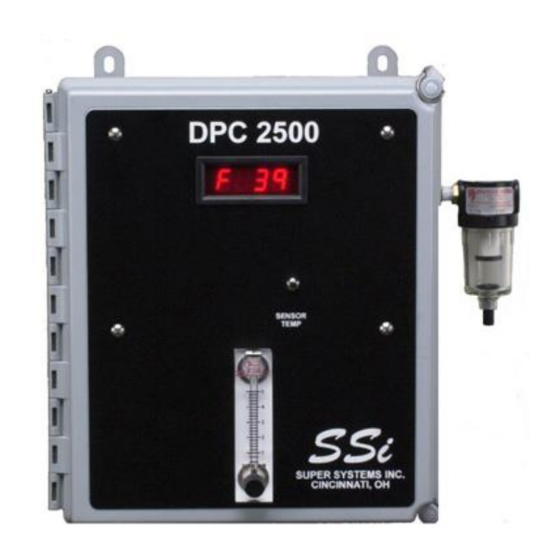

Model DPC2500 –continuous dew point analyzer
Product manual

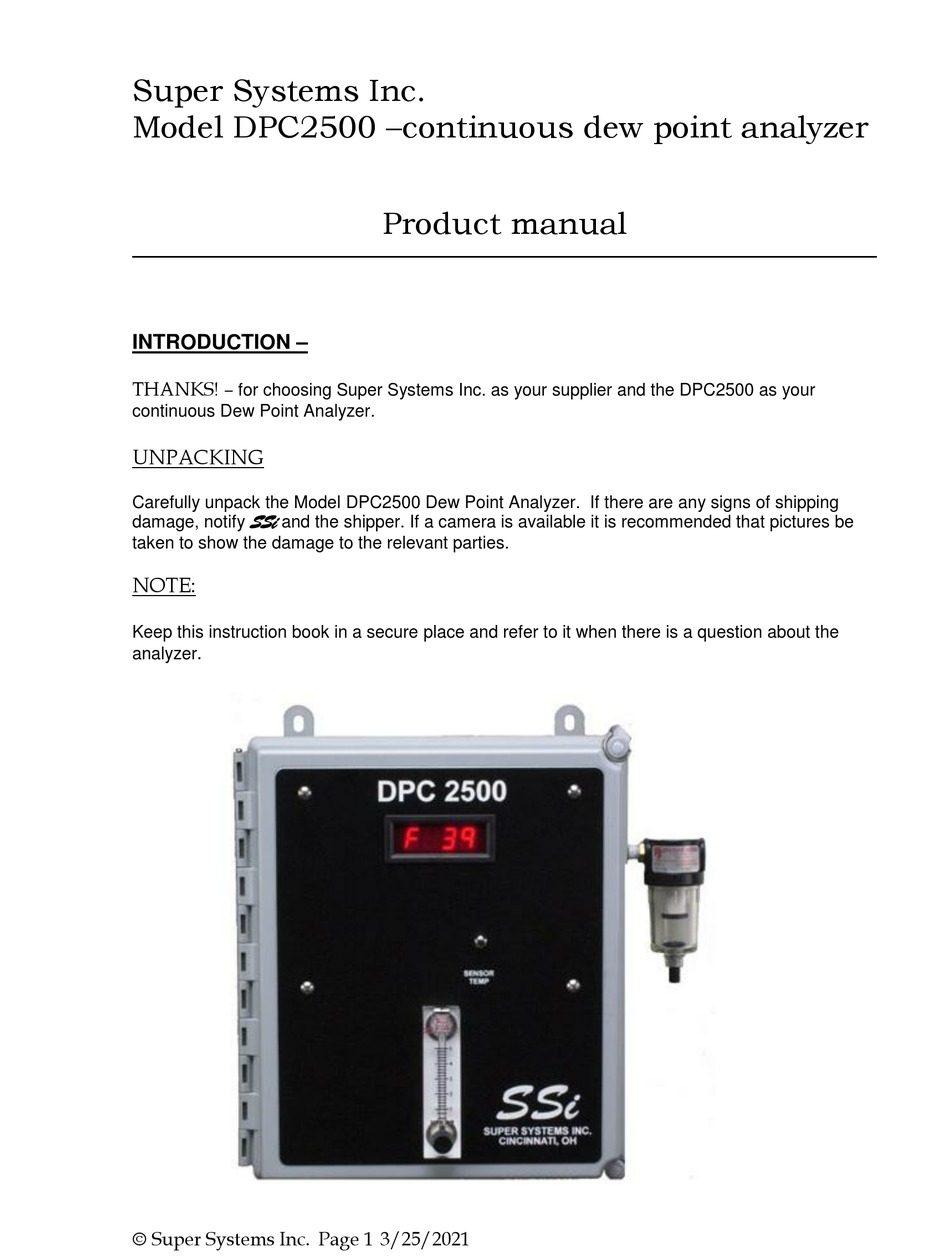

INTRODUCTION –
THANKS! –
for choosing Super Systems Inc. as your supplier and the DPC2500 as your
continuous Dew Point Analyzer.
UNPACKING
Carefully unpack the Model DPC2500 Dew Point Analyzer. If there are any signs of shipping
SSi
damage, notify
and the shipper. If a camera is available it is recommended that pictures be
taken to show the damage to the relevant parties.
NOTE:
Keep this instruction book in a secure place and refer to it when there is a question about the
.
analyzer
Super Systems Inc. Page 1 3/25/2021
Advertisement
Table of Contents
Related Manuals for Super Systems DPC2500
Summary of Contents for Super Systems DPC2500
-
Page 1: Introduction
Super Systems Inc. as your supplier and the DPC2500 as your continuous Dew Point Analyzer. UNPACKING Carefully unpack the Model DPC2500 Dew Point Analyzer. If there are any signs of shipping damage, notify and the shipper. If a camera is available it is recommended that pictures be taken to show the damage to the relevant parties. -
Page 2: Table Of Contents
HOW IT WORKS – ............................ 3 WHAT IT MEASURES – ........................... 3 FACTORY CALIBRATION - ........................5 FIELD CALIBRATION - ..........................5 FIELD CALIBRATION - CONTINUED ...................... 6 SPARE PARTS – ............................7 Super Systems Inc. Page 2 3/25/2021... -
Page 3: Operation
Chlorine, HCL, etc. The range of measurement of this analyzer is -50 F to +80 One of the added features of the DPC2500 is the ability to monitor the sensor’s “operating” temperature. It has a built-in thermister temperature sensor to determine its “dry bulb”... - Page 4 This is particularly important for units that have been sitting overnight in a delivery van in sub-zero weather. After power is applied allow the DPC2500 to warm up for approximately 3 minutes. When connecting the sample hose to either the furnace or the generator, make sure that the bowl filter (P/N 37048 or equivalent) is clean and functional (for generator operation you should turn the pump toggle switch “OFF”).
-
Page 5: Factory Calibration
Model DPC2500 –continuous dew point analyzer Product manual FACTORY CALIBRATION - It is suggested that this device should be calibrated on a routine basis, such as once every 6 months or as prescribed by the user’s quality system requirements. FIELD CALIBRATION - To perform a field calibration, obtain the optional CALIBRATION KIT (P/N 31030). -
Page 6: Field Calibration - Continued
Model DPC2500 –continuous dew point analyzer Product manual FIELD CALIBRATION - Continued Step No. 2 - Next, remove the R.H./TEMP sensor probe from its flow through chamber by loosening the black plastic gland nut, sliding it out through its seal. Note that the probe has a white mark at the wire entry point, which must be aligned with the corresponding white mark in plastic gland. -
Page 7: Spare Parts
Super Systems Inc. Model DPC2500 –continuous dew point analyzer Product manual SPARE PARTS – Description Part No. Factory Calibration 13045 Sample Pump 31401 Filter 37048 Replacement filter element 31027 Flow meter 36027 Microprocessor Display Board 31501 Dew Point Sensor 31038... - Page 8 Revision History Rev. Description Date Initial Release 11-01-2000 Added Revision History Page 07-09-2001 SSi Address Update, General Update 04-13-2005 Corrected terminal block wiring chart 3/18/2020 Adjusted calibration interval text 3/25/2021 Super Systems Inc. Page 8 3/25/2021...
