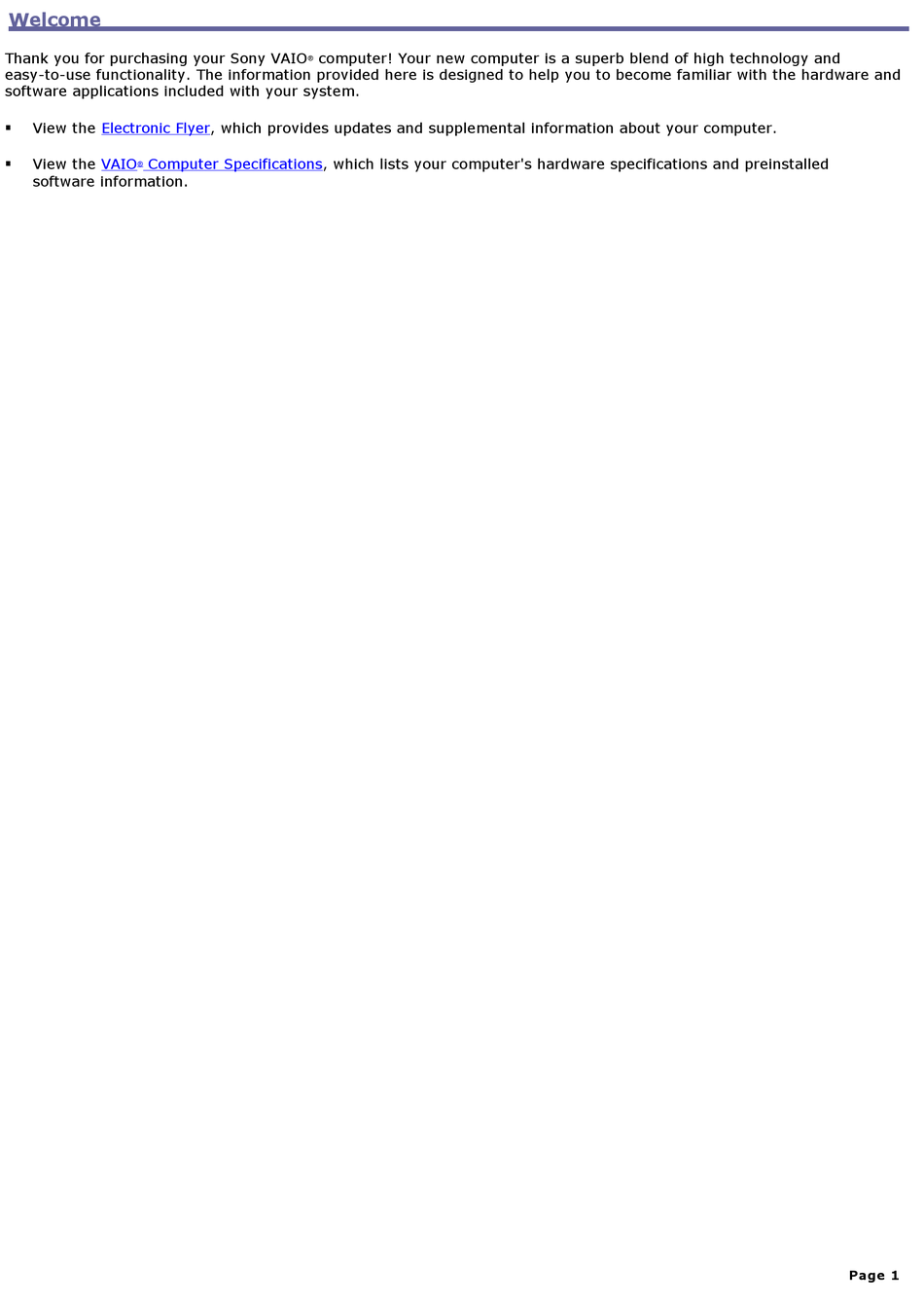

Welcome
Thank you for purchasing your Sony VAIO
easy-to-use functionality. The information provided here is designed to help you to become familiar with the hardware and
software applications included with your system.
View the
Electronic
Flyer, which provides updates and supplemental information about your computer.
View the
VAIO
Computer
®
software information.
computer! Your new computer is a superb blend of high technology and
®
Specifications, which lists your computer's hardware specifications and preinstalled
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Sony PCV-W30 VAIO User Guide (primary manual)

Summary of Contents for Sony PCV-W30 VAIO User Guide (primary manual)

  • Page 1 Welcome Thank you for purchasing your Sony VAIO easy-to-use functionality. The information provided here is designed to help you to become familiar with the hardware and software applications included with your system.  View the Electronic Flyer, which provides updates and supplemental information about your computer.

  • Page 2: Getting Started

    Getting Started Congratulations on your purchase of the Sony VAIO state-of-the-art computer functionality with the latest audio, video and information technology features.  Unpacking your Computer  Planning An Ergonomic Work Space computer! Your new, high-performance, multimedia computer combines ®...

  • Page 3: Unpacking Your Computer

    Unpacking your Computer Your computer may not be supplied with all of the accessories shown, depending on the system configuration you purchased. For details on the accessories supplied with your computer, see the online Com puter and supplied accessories Handling the system unit Manuals ...
  • Page 4 Click Start in the Windows ® From the VAIO Help and Support Center menu, click VAIO Recovery Options. Other Software Library containing the Microsoft software license agreement and Sony end-user license agreement. Computer Specifications..." ® taskbar, then click Help and Support.

  • Page 5: Planning An Ergonomic Work Space

    Planning An Ergonomic Work Space Before you set up your new computer, find the best location for your new computer and plan your work space. There are several ergonomic factors to consider when you arrange your work space:  Stable work surface — Use a stable work surface large enough to support the computer and other peripheral equipment.

  • Page 6: Locating Controls And Ports

    Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.

  • Page 7: About The Front Panel

    About the Front Panel The front panel of your VAIO computer is equipped with built-in stereo speakers and indicator lights. ® Opening the com puter Front panel Stereo speakers (built-in) The stereo speakers provide sound for software, audio and video CDs. Liquid Crystal Display (LCD) screen The attached LCD screen provides on-screen visual output to your computer's functional capabilities.
  • Page 8 CD-RW/DVD combo drive access indicator Light is amber while reading and writing data from and to the combo drive. Power button Turns the computer on and off. Hard disk drive access indicator Light is amber while reading and writing data from and to the hard disk. Power indicator Light is green while the power is on and amber when the computer is in Stand by mode.

  • Page 9: About The Side Panels

    About the Side Panels The side panels of your computer contain the connections for supplied and optional accessories. The icons on the side panels help to locate and identify the connections on your computer. Right panel Headphones jack Connection for optional speakers or headphones. Line In jack Connection for an audio device.
  • Page 10 Connections for i.LINK compatible digital devices (IEEE 1394). CD-RW/DVD combo drive eject button Ejects a disc from the combo drive. Ethernet port Connection for a 10BASE-T/100BASE-TX Ethernet. (The port marked with (Network) is for LAN connections only.) Universal Serial Bus (USB 2.0) ports (3) Connections for compatible high/full/low-speed USB devices.
  • Page 11 Memory Stick media slot ® Reads and writes data from a Memory Stick media. AC Input port Connection for the supplied power cord. Page 11...

  • Page 12: Setting Up Your Computer

    Setting Up Your Computer You can set up your system quickly and easily with the instructions provided in this section. For details on your system's hardware configuration, see the online specifications sheet. Install your equipment so that you can easily reach the power outlet in the event of an emergency. ...

  • Page 13: Connecting A Usb Optical Mouse

    Connecting a USB Optical Mouse Plug the USB optical mouse connector into the USB mouse port, located on the right panel of your computer. Place the optical mouse on an appropriate surface to enable precision tracking. To connect a USB m ouse To use an optical mouse An optical mouse requires an ideal surface texture in order to provide precision pointing and tracking.

  • Page 14: Connecting The Telephone And Modem Cables

    Connecting the Telephone and Modem Cables Your supplied accessories may include a ferrite core. The ferrite core is designed to reduce or eliminate electrical interference when a telephone is connected to your computer. Unplug your telephone's cable from the wall jack. Open the supplied ferrite core and place the ferrite core approximately 3-4 inches from the end of the telephone cable.
  • Page 15 Your computer has a protective sticker covering the Ethernet port located on the rear panel. Connect only 10BASE-T and 100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable may result in an electric current overload that can cause a malfunction, excessive heat, or fire in the port. For help on connecting to a network, see your network administrator.

  • Page 16: Connecting The Power Cord

    Connecting the Power Cord Plug the power cord into the AC input port on the left panel of the computer. Plug the power cord into a grounded AC wall outlet or a power strip. To connect the power cord Page 16...

  • Page 17: Turning On Your Computer

    Turning on Your Computer Initially when you start your system, the computer may detect new hardware and prompt you to restart your computer. Respond to this prompt immediately. Press the power button on the computer to turn on the system. To turn on your com puter Page 17...

  • Page 18: Registering Your Computer

    Registering your Computer Take advantage of Sony's commitment to quality customer support and receive these benefits by registering your computer:  Sony Customer Support — Communicate with a Support Representative to troubleshoot problems you may be having with your computer.

  • Page 19: Configuring Your Vaio Computer

    Configuring Your VAIO Computer This section provides basic information about managing your computer's hard disk drive performance, using i.LINK devices, Memory Stick media, PC Cards, and changing default settings.  About i.LINK Compatibility  About the Memory Stick Media Slot ...
  • Page 20 Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, operating system and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.
  • Page 21 Connecting an i.LINK (IEEE 1394) device Use the symbol to locate the i.LINK port on your compatible i.LINK device and on your computer. Plug the i.LINK cable connector into this port. Plug the other end of the cable into the corresponding 4- or 6-pin i.LINK port on your computer. See the instructions that came with your i.LINK device for more information on installation and use.

  • Page 22: Vaio Action Setup

    VAIO Action Setup VAIO Action Setup manages the settings for your computer's Shortcut keys (S Keys). ® Page 22...
  • Page 23 Shortcut keys The programmable S Keys are set to launch the following applications:  S1 Mail — Microsoft Outlook ® ®  S2 Internet — Microsoft Internet Explorer ®  S3 Music — SonicStage  S4 Picture — PictureGear Studio ...
  • Page 24 Changing the settings of the S keys You can reprogram the S keys to launch other applications. Click Start in the Windows taskbar and select All Programs. Select S-key settings (VAIO Action Setup), then click VAIO Action Setup. You can also double-click Setup.
  • Page 25 About the Memory Stick Media Slot Your VAIO computer is equipped with a Memory Stick slot that supports certain types of Memory Stick media. ® ® ® Page 25...
  • Page 26 (MagicGate Memory Stick media) — Provides copyright protection with MagicGate technology. Authentication ensures that protected content is ® computers support Memory Stick PRO media for data ® software are not compatible with the new Memory Stick PRO media. Sony http://www.sony.com/pcsupport regularly for the latest information on Page 26...
  • Page 27 To insert a Memory Stick media Insert the Memory Stick media into the Memory Stick media slot, located on the left panel. Inserting a Mem ory Stick m edia If the media does not insert easily, remove it from the slot and verify that it is not upside-down or backwards. Carefully reinsert the Memory Stick media, but do not force it into the slot.
  • Page 28 To remove a Memory Stick media A small portion of the Memory Stick media remains extended when it is inserted into the Memory Stick media slot. Press the extended Memory Stick media to release it from the Memory Stick slot. The media extends further, enabling you to grasp it.
  • Page 29 Protecting data on Memory Stick media from accidental changes Memory Stick media contain a write-protect tab. The write-protect tab prevents accidental changes to information recorded on your Memory Stick media. When you slide the write-protect tab to the LOCK position, your Memory Stick media is write-protected.
  • Page 30 About the PC Card Slot Your computer has a card bus PC Card slot that supports Type I or Type II PC (PCMCIA) Cards. You do not need to shut down your computer when inserting a PC Card. For more information, see the instructions supplied with your PC Card. Page 30...
  • Page 31 Inserting a PC Card With the label facing upwards, insert the PC Card into the PC Card slot. Inserting a PC Card Push the PC Card gently into the slot. The card is automatically detected and the icon appears in the Windows If the PC Card does not insert easily, remove it from the PC Card slot and verify that it is not upside-down or backwards.
  • Page 32 Removing a PC Card Close all applications that may access the PC Card to avoid data loss. Double-click the Safely Remove Hardware icon in the Windows Click to select the name of the card that you want to eject and click Stop. The Stop a Hardware Device window appears.
  • Page 33 Upgrading and Maintaining your VAIO Computer In the future you may want to increase the functionality of your VAIO computer. This section provides information about upgrading and maintaining your system.  Overview  Installing Memory  Replacing the Lithium Battery ...
  • Page 34 Overview Sony recommends that you contact your local dealer for upgrade or maintenance of your new computer. Your local dealer is knowledgeable of this specialized personal computer and familiar with the safety practices and regulatory compliance required for using and modifying electronic equipment.

  • Page 35: Installing Memory

    Installing Memory The amount of preinstalled memory may vary, depending on the system configuration you purchased. Your computer may ship with all available memory slots filled. See the online specifications sheet for details about the memory installed in your computer. Do not attempt to remove or replace the memory modules.

  • Page 36: Replacing The Lithium Battery

    Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or business trash may be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center or Factory Service Center. To locate a Service Center near you, visit the Sony Computing Web site at http://www.sony.com/pcsupport.

  • Page 37: Replacing A Hard Disk Drive

    From the list of accessories, locate the Partition Recovery ASSY and click the option, Add to Cart. Click Continue to Check Out, and follow the on-screen instructions to complete your purchase. If you are not able to access the Sony Direct Accessories and Parts Center Web site, contact a customer service representative at 1-800-488-7669.

  • Page 38: Troubleshooting

    Troubleshooting This section describes how to troubleshoot common problems. You can also find helpful information on how to use your computer's hardware features and preinstalled software. Your computer may not be equipped with all of the features or software discussed in this section, depending on the system configuration purchased. ...

  • Page 39: About Vaio Computer Functions

    About VAIO Computer Functions My computer does not start.  Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit on the front panel of the computer. ...
  • Page 40 About VAIO Computer Functions My computer does not start.  Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit on the front panel of the computer. ...
  • Page 41 Why did my computer or software stop responding? You can try to locate and close the software application that has stopped responding. Press the Ctrl+Alt+Delete keys. The Windows Task Manager window appears. From the Applications tab, locate the application that has the status message, "Not responding." Select the application that has a Not Responding status and click End Task.
  • Page 42 Why does the Windows operating system stop responding during shutdown? The Windows operating system may not shut down properly for many reasons, including incompatible or conflicting drivers, damaged files, or non-responsive hardware. For troubleshooting information, you can search Windows Help. Click Start in the Windows taskbar and select Help and Support.
  • Page 43 Why is my system running slowly?  The system responsiveness varies depending with the number of applications that are open and running. Close any applications that you are not currently using.  Increasing the system memory may also help. For information on installing memory, please see the online VAIO User Guide.
  • Page 44 How do I change the video resolution of my display? Click Start in the Windows taskbar, and then select Control Panel. Select Appearance and Themes, and then select Change the screen resolution. Click the Settings tab. Change the Screen resolution and Color quality to the desired levels. Click Apply and then click OK.

  • Page 45: About Using The Optical Disc Drive(S)

    About Using the Optical Disc Drive(s) Your computer may not be equipped with all of the hardware features listed in this section. To view the specific hardware configuration for your system, see the online specifications sheet. Page 45...
  • Page 46 Why doesn't my optical drive tray open? To use the Eject button Make sure the computer is turned on. Press the Eject button on the drive. To use the My Computer icon Click Start in the Windows taskbar, then select My Computer. Right-click the appropriate optical drive icon.
  • Page 47 Why can't I play a DVD or CD media?  After inserting your CD or DVD, wait a few seconds for the system to detect it before trying to access it.  Confirm that the disc is in the tray with the label side facing up. ...
  • Page 48 Why isn't my DVD playing properly?  If a region code warning appears when you are using the DVD player application, it may be that the region code of the DVD you are trying to play is incompatible with the region code setting of your optical drive. A region code is listed on the disc packaging.

  • Page 49: About The Speakers

    About the Speakers Why is there no sound in any application?  Check that the speakers are plugged into the Headphones jack.  If your speakers have a mute button, verify that it is turned off.  If your speakers are powered by batteries, verify that the batteries are inserted properly and that they are charged.
  • Page 50 About the Speakers Why is there no sound in any application?  Check that the speakers are plugged into the Headphones jack.  If your speakers have a mute button, verify that it is turned off.  If your speakers are powered by batteries, verify that the batteries are inserted properly and that they are charged.

  • Page 51: About The Modem

    About the Modem Why is my modem connection slow? Many factors can influence modem connection speed, such as:  Telephone line noise.  Incompatibility with other telephone equipment such as fax machines or other modems.  Internet Service Providers (ISP) connection capability may vary. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, check the following: ...
  • Page 52 About the Modem Why is my modem connection slow? Many factors can influence modem connection speed, such as:  Telephone line noise.  Incompatibility with other telephone equipment such as fax machines or other modems.  Internet Service Providers (ISP) connection capability may vary. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, check the following: ...
  • Page 53 Check that the access telephone number (POP) is correct.  All software applications that are preinstalled by Sony are compatible with your computer's modem. If you have installed other software, contact the software publisher for information on how to configure the software in order to recognize the modem.
  • Page 54 How do I change my modem to rotary or Touch-tone dialing? Click Start in the Windows taskbar, then click Control Panel. Click Printers and Other Hardware, then click Phone and Modem options. From the Dialing Rules tab, click Edit. The Edit Location dialog box appears. Select the Tone or Pulse option.
  • Page 55 About Using a Microphone Why doesn't my microphone work properly? Check that the microphone is plugged into the Microphone jack. Page 55...
  • Page 56 About Using a Microphone Why doesn't my microphone work properly? Check that the microphone is plugged into the Microphone jack. Page 56...
  • Page 57 Why is my microphone so sensitive to background noise? If you find there is too much background noise when you record sound, you should adjust the microphone by following these steps: Click Start in the Windows taskbar, then click Control Panel. Click Sounds, Speech, and Audio Devices, then click Sounds and Audio Devices.

  • Page 58: About The Mouse And Keyboard

    About the Mouse and Keyboard Why doesn't my mouse work properly?  Confirm that the mouse is plugged securely into the mouse port. If you are using a USB mouse, verify that the mouse is plugged securely into the appropriate USB port. ...
  • Page 59 About the Mouse and Keyboard Why doesn't my mouse work properly?  Confirm that the mouse is plugged securely into the mouse port. If you are using a USB mouse, verify that the mouse is plugged securely into the appropriate USB port. ...
  • Page 60 How do I set up my mouse for left-hand use? Click Start in the Windows taskbar, then click Control Panel. Click Printers and Other Hardware, then click Mouse. The Mouse Properties dialog box appears. From the Buttons tab, select Switch primary and secondary buttons under the Button Configuration options. Click Apply, then click OK.
  • Page 61 Why doesn't my keyboard work properly?  Check that the keyboard is securely plugged into the keyboard port.  Save and close all open applications. Turn off your computer, wait approximately 10 seconds, and then restart your computer. T he V A I O "W" s eries c omputer has a built-in keyboard. Page 61...

  • Page 62: About Using Peripheral Equipment

    About Using Peripheral Equipment How do I install a printer?  Connect your USB or IEEE 1394 printer to the appropriate port on your computer's front, back or side panels your printer has a USB, IEEE 1394, or infrared connection, contact the printer manufacturer for information or updates that may be required for proper installation.
  • Page 63 About Using Peripheral Equipment How do I install a printer?  Connect your USB or IEEE 1394 printer to the appropriate port on your computer's front, back or side panels your printer has a USB, IEEE 1394, or infrared connection, contact the printer manufacturer for information or updates that may be required for proper installation.
  • Page 64 The connected printer does not function properly when the computer resumes from a power saving mode.  Clear the printer memory by turning the printer off for approximately 10 seconds, and then turning it back on.  If your printer does not resume normal operations, try restarting your computer. Page 64...

  • Page 65: Notes On Use

    Notes On Use The information in this section provides basic procedures for handling your system and common peripheral devices, using storage media, and locating upgrade procedures. A support resource listing is also provided to help you locate the appropriate support options. ...

  • Page 66: About The Power Source

    About the Power Source Before opening your computer, turn the system off and let it cool down for 10 minutes. This protects you against internal components that may be too hot to handle.  Your computer operates on 100-120 V AC 50/60 Hz only. ...

  • Page 67: About Disposing Of The Lithium Battery

    Do not handle damaged or leaking lithium batteries. The lithium battery may explode if mistreated. Do not disassemble it or dispose of it in fire. Replace the battery with a Sony CR2032 lithium battery. Using a type of battery other than a CR2032 may present a risk of fire or explosion.

  • Page 68: About Handling The Computer System

    Your computer, keyboard, and mouse consist of high-precision electronic parts. Do not drop them or bump them against other objects.  Your Sony computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a private branch exchange (PBX). ...

  • Page 69: About Handling A Monitor (Display)

    About Handling a Monitor (Display)  DVD playback and certain video-related software may not function correctly when your monitor is set to a high refresh rate. If your monitor does not play back video content properly, try setting the display to a lower refresh rate.
  • Page 70 Memory Stick and Memory Stick PRO Currently, Sony SonicStage ® Sony suggests using only the MagicGate Memory Stick media to store and transfer any data created with SonicStage and OpenMG software.  Currently, the Memory Stick slot on VAIO control features of the new Memory Stick PRO media.

  • Page 71: Support Options

    Support Options Sony provides several options to help solve common problems or to locate support for your VAIO describes all available resources and offers suggestions on how to access this information for maximum results.  Immediate Help and Support ...

  • Page 72: Immediate Help And Support

    From the menu bar, click Help. The Help file appears. Y ou c an loc ate the online H elp for Sony s oftware applic ations by pointing to the individual applic ation's ic on and s elec ting H elp from the s ubmenu.

  • Page 73: Help And Support Resources

    Sony Computing Support Web site Online help and support are available 24 hours a day, seven days a week, when you visit the Sony Computing Support Web site. You can access the Web site at http://www.sony.com/pcsupport. The Sony Computing Support Web site provides: ...
  • Page 74 Brief description of the issue. For VAIO computers purchased in the U.S. and Canada, contact a Sony Support representative at 1-888-476-6972. ® T he s erial number is loc ated on the bac k panel of your c omputer. T he s erial number is on a white barc ode label.
