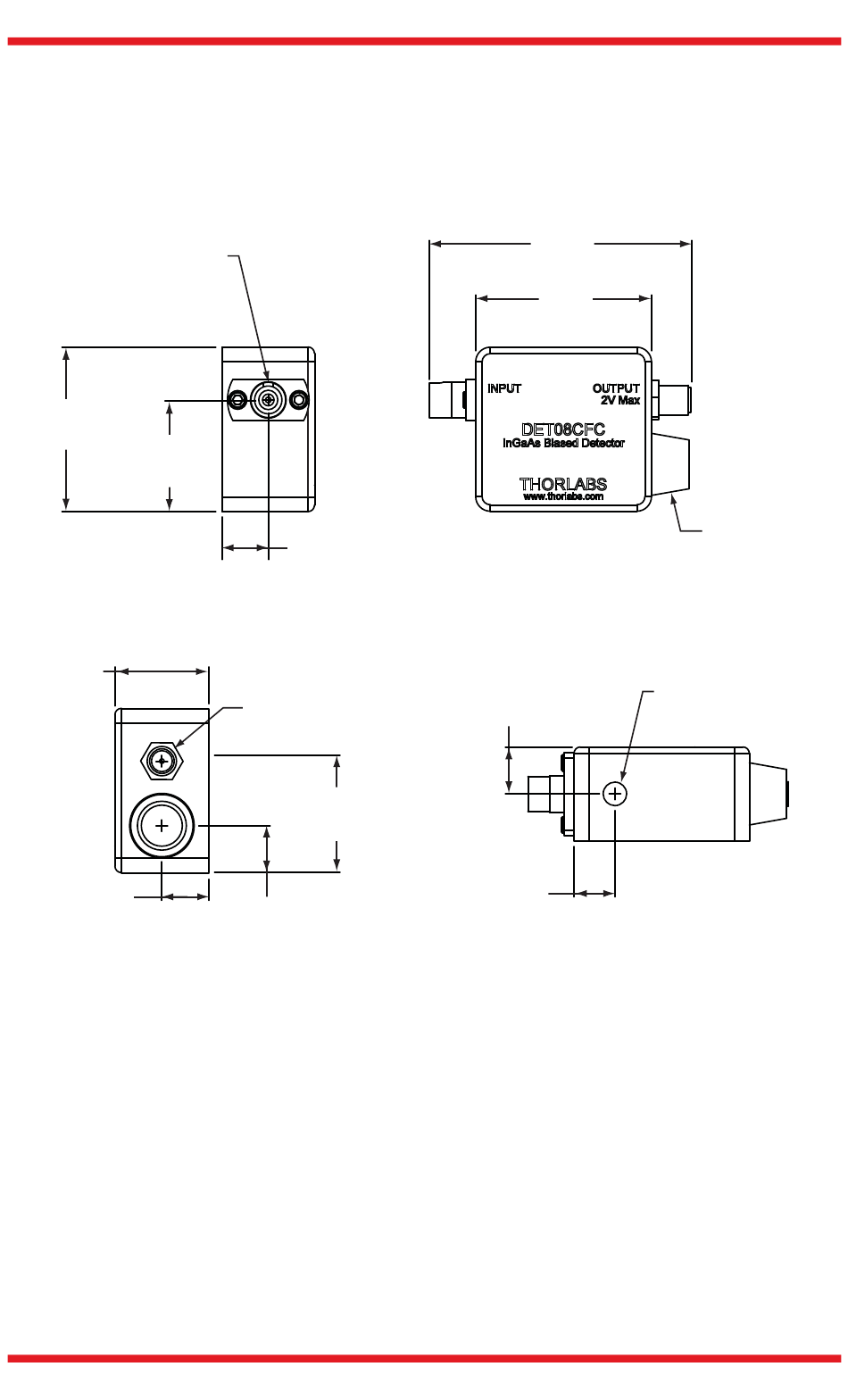

Mechanical Drawing

FC/PC Fiber
Input Connector
InGaAs Photodetector
1.40"
(35.6 mm)
0.95"
(24.1 mm)
0.80"
(20.3 mm)
0.40"
(10.2 mm)
TTN020103-D02
0.40"
(10.2 mm)
SMA (Female)
Output Connector
0.95"
(25.1 mm)
0.40"
(10.2 mm)
Chapter 6: Specifications
2.23"
(56.6 mm)
1.50"
(38.1 mm)
0.40"
(10.2 mm)
0.35"
(8.9 mm)
Battery Tube
(Use Only A23
12 V Batteries)
Mounting Hole
8-32 (M4) x 0.25"
