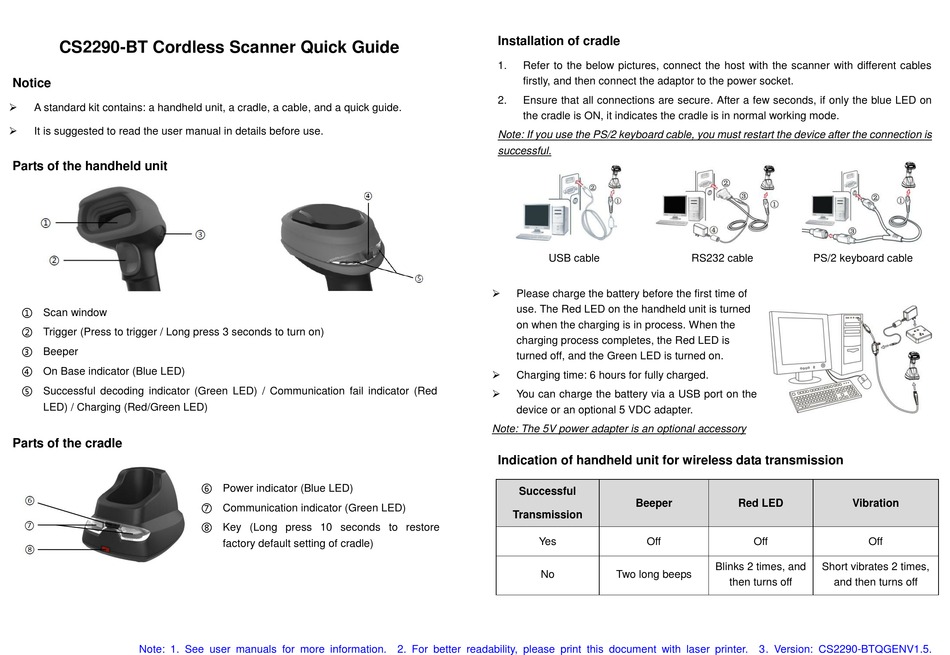

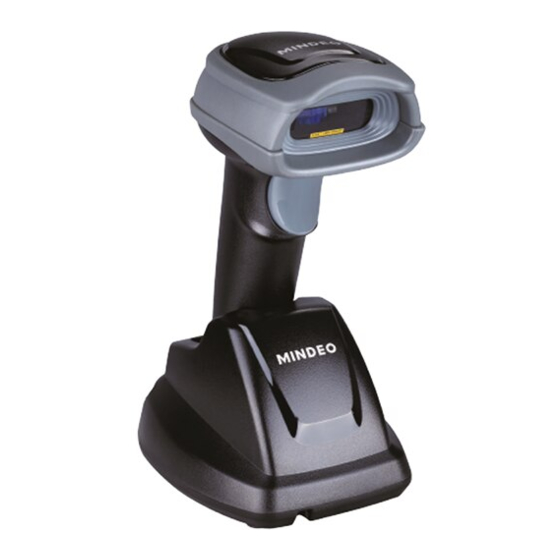

CS2290-BT Cordless Scanner Quick Guide
Notice

A standard kit contains: a handheld unit, a cradle, a cable, and a quick guide.

It is suggested to read the user manual in details before use.
Parts of the handheld unit
① Scan window
② Trigger (Press to trigger / Long press 3 seconds to turn on)
③ Beeper
④ On Base indicator (Blue LED)
⑤ Successful decoding indicator (Green LED) / Communication fail indicator (Red
LED) / Charging (Red/Green LED)
Parts of the cradle
Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: CS2290-BTQGENV1.5.
⑥ Power indicator (Blue LED)
⑦ Communication indicator (Green LED)
⑧ Key (Long press 10 seconds to restore
factory default setting of cradle)
Installation of cradle
1. Refer to the below pictures, connect the host with the scanner with different cables
firstly, and then connect the adaptor to the power socket.
2. Ensure that all connections are secure. After a few seconds, if only the blue LED on
the cradle is ON, it indicates the cradle is in normal working mode.
Note: If you use the PS/2 keyboard cable, you must restart the device after the connection is
successful.
USB cable

Please charge the battery before the first time of
use. The Red LED on the handheld unit is turned
on when the charging is in process. When the
charging process completes, the Red LED is
turned off, and the Green LED is turned on.

Charging time: 6 hours for fully charged.

You can charge the battery via a USB port on the
device or an optional 5 VDC adapter.
Note: The 5V power adapter is an optional accessory
Indication of handheld unit for wireless data transmission
Successful
Beeper
Transmission
Yes Off
No Two long beeps
RS232 cable PS/2 keyboard cable
Red LED Vibration
Off Off
Blinks 2 times, and Short vibrates 2 times,
then turns off and then turns off
