QUICK SETUP GUIDE

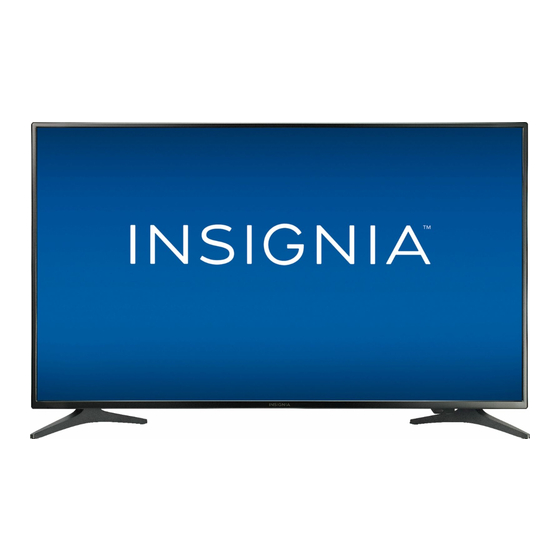

43" FHD LED TV
NS-43D420NA20 / NS-43D420CA20
ACCESSORIES
Remote control and two AAA batteries
TV stands
M4 screws
(14 mm length)
(4 pcs.)
STOP
Before using your new product, please read
these instructions to prevent any damage.
Do not plug your power cord in until all other
devices have been connected.
INSTALLING THE STANDS OR A WALL MOUNT
1
Place your TV face-down on a cushioned, clean surface.
STANDS
1 Align the TV stand screw holes with the holes
on your TV's bottom.
2 Use a Phillips screwdriver and two provided
screws to secure each stand to your TV.
R
WALL MOUNT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount for more
information about how to correctly mount your TV.
WARNING: Your TV has four VESA mounting holes on the back.
You must secure a wall-mount bracket to all four holes.
VESA Mounting Pattern
If you do not use all four holes, your TV may fall and cause
200 x 200 mm
property damage or personal injury.
Screws: type M6, 10 mm minimum length
Note: Wall-mount screws are not included.
depending on the wall-mount.
MAKING CONNECTIONS
2
HDMI
(best video quality)
Note: You can use the
HDMI 1 (ARC) jack to
connect a digital
audio system.
AV
(good video quality)
AUDIO/VIDEO OUT
L
AUDIO OUT
DIGITAL
OPTICAL
OUTPUT
HDMI OPTIONS
VIDEO
L
R
- AUDIO -
AV IN
ANT/CABLE
FEATURES
Power indicator
Remote control
sensor
Note: Images do not necessarily represent the exact design of your television.
USING ANALOG AUDIO
L
R
AUDIO IN
SOUNDBAR
USING DIGITAL AUDIO
You can use the DIGITAL OPTICAL
OUTPUT jack or the HDMI 1 (ARC) jack.
Note: If you need to change the
digital audio format, go to the Home
OPTICAL
AUDIO IN
menu, select Settings, then select
Display & Sounds. Select Audio
SOUNDBAR
Output, then select Digital Audio
Format and change the setting to
PCM or Dolby Digital.
Coaxial
(good video quality)
Connect an antenna to access
live over-the-air TV.
HD
HD
AUDIO
OPTIONS
