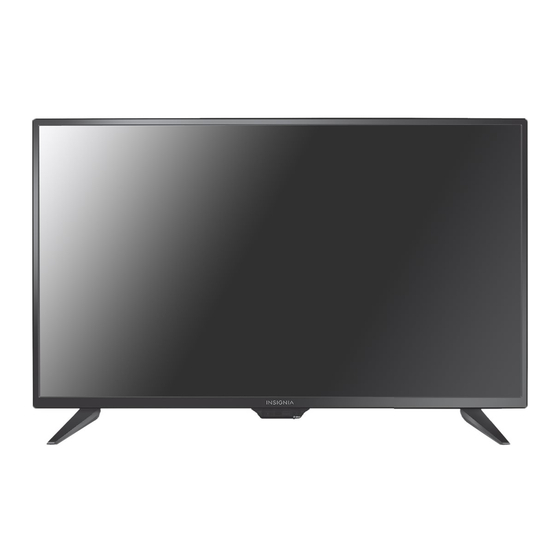

32" 720p/43" 1080p 60hz led tv
Hide thumbs Also See for NS-32D220NA18:

Advertisement

Quick Links

INCLUDED ACCESSORIES

1
Remote control and
two AAA batteries
A
Place your TV face-down on a cushioned,
clean surface.
A
TV stands
M4 screws (12 mm length) (4 pcs.)

FEATURES

32"

FIND YOUR USER GUIDE ONLINE!

1. Go to www.insigniaproducts.com.
2. Use the search bar to find NS-32D220NA18
or NS-43D420NA18.
3. Select Support & Downloads.
4. Next to User Guide, select the language
you want.

STOP

Do not plug your power cord in until all
other devices have been connected.
Before using your new product, please read these
instructions to prevent any damage.

START HERE

How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
B
Align the screw holes on the TV stands with the holes on the bottom of your TV, then secure each stand to your TV with two of
the provided screws.
B
32" TV shown
32" TV shown
AV IN
ANT/CABLE
VIDEO
L
R
IN
- AUDIO -
Note: Images do not necessarily represent the exact design of your television.
M4 screws (12 mm length)
Remote control sensor
Indicator light / Power
43"
AV IN
ANT/CABLE
IN
VIDEO
L
- AUDIO -
R
Quick Setup Guide |
32" 720p / 43" 1080p 60Hz • LED TV
OR

MAKING CONNECTIONS

2
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or
Blu-ray disc player, game console, or tablet?
WHICH CABLES
Multi-purpose jacks: You can plug any device that
uses HDMI into any HDMI jack. However, certain
DO YOU HAVE?
32"
devices must be connected to the ARC jack. See the
instructions that came with your ARC device for more
information.
HDMI
(BEST)
Best video quality
43"
AV
(GOOD)
32"
43"
AV IN
VIDEO
L
R
- AUDIO -
32" TV shown
COAXIAL
(GOOD)
32"
43"
AV IN
VIDEO
L
- AUDIO -
R
32" TV shown
NS-32D220NA18 / NS-43D420NA18

WALL MOUNT

How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll
need: Soft surface and Phillips screwdriver
A
Carefully place your TV face-down on a cushioned,
clean surface.
B
See the instructions that came with your wall mount for
more information about how to correctly mount your TV.
A
32" TV shown
Your TV has four VESA mounting holes on the back.
B
If you attach a wall-mount bracket to the back of your TV,
the bracket must be securely attached, using all four holes.
If you do not use all four mounting holes, your TV may fall and
cause property damage or personal injury. See the
documentation that came with your wall-mount for
complete mounting instructions.
AUDIO/VIDEO OUT
ANT/CABLE
IN
CABLE
ANT/CABLE
IN
