- Page 1 USB3.0 HD PTZ Camera User Manual V1.2...
- Page 3 Safety Notes Before installing the device, please read this manual carefully and follow instructions indicated to ensure proper operation. Please keep this manual for future reference. Please powering on the device, please check the input power voltage carefully, the camera accepts DC12V, otherwise, it may cause damage to the camera.
-
Page 5: Table Of Contents
Contents PRODUCT OVERVIEW --------------------------------------------------------- 1 FEATURES ------------------------------------------------------------------------------ 1 PACKING LIST --------------------------------------------------------------------------- 1 MAIN PARTS AND CONTROL INTERFACES -------------------------------------------- 2 DIP SWITCH SETTING ------------------------------------------------------------------ 3 REMOTE CONTROL --------------------------------------------------------------------- 4 CABLE CONNECTING --------------------------------------------------------- 6 INSTALLATION ---------------------------------------------------------------- 7 DESKTOP MOUNT INSTALLATION ----------------------------------------------------- 7 WALL MOUNT INSTALLATION ---------------------------------------------------------- 7 CEILING MOUNT INSTALLATION ------------------------------------------------------- 8 POLE MOUNT INSTALLATION ---------------------------------------------------------- 9... - Page 6 ANNEX 3 SW1 DEFINITION -------------------------------------------------- 23 TROUBLESHOOTING -------------------------------------------------------- 25...
-

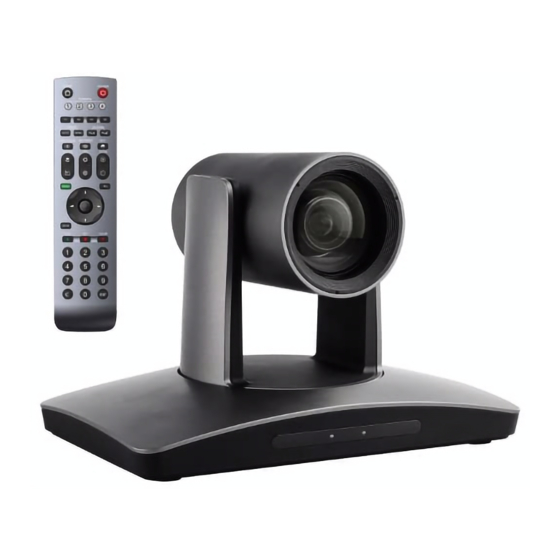

Page 7: Product Overview
Packing List PRODUCT OVERVIEW When you open the package, please make sure below items are included. If any items is missing, please contact your supplier. Features PTZ Camera x 1 2.14MP, 1/2.8” CMOS sensor; USB3.0 high speed raw data output, supports USB2.0 output;... -
Page 8: Main Parts And Control Interfaces
Main Parts and Control 9 Power Input（DC12V） Interfaces Bottom Part PTZ Camera Front Part 10 Locating Hole Used to define installation direction of the camera. 11 Installation Hole 1 Camera Module 1/4” inch screw, used to fix the camera. 2 Remote Control Sensor 12 DIP Switch 3 Power Indicator Used to set address, protocol, baud rate... -
Page 9: Dip Switch Setting
SW2 Settings DIP Switch Setting Use SW2 to set camera’s protocol, baud rate. Use DIP1 and DIP2 to set camera’s protocol, Before operating the camera, please set use DIP 3 and DIP4 to set camera’s baud rate. camera’s address, baud rate protocol and etc. DIP5~DIP8 switches are reserved. -
Page 10: Remote Control
button 1 to control the camera with address Remote Control 3 Focus Press “AUTO” button to switch to Auto Focus mode, press “MANU” button to switch to Manual Focus mode. “ ”button to Focus Near “ ”button to Focus Far “... - Page 11 After the camera has been connected to In Menu status: get into relative menu option power source, in none-menu status, press after it has been selected. this button to turn on / off the camera. 16 Direction / Menu Operation 10 Reserved buttons（F1, F2, F3, F4）...
-
Page 12: Cable Connecting
CABLE CONNECTING Note If preset 0 has been saved, after powered on, camera moves to preset 0 automatically; if preset 0 has not been saved, after powered on, camera moves to Home position, where both pan and tilt angle is zero and zooming time is 1x. -
Page 13: Installation
when carrying. INSTALLATION Do not rotate the camera head with hand. cause malfunction to the camera. The camera has 4 installation types: desktop, wall (optional), ceiling (optional) and pole (optional) mount installations. Wall Mount Installation (Bracket not supplied with camera) Note Before installing, make sure there is enough space to install the... -
Page 14: Ceiling Mount Installation
onto the bracket before your hands 2. Fix the plate onto the ceiling by using 4 leave the camera. screws which should be prepared by yourself. 3. Before fixing the camera, set the DIP Ceiling Mount Installation switches of the camera correctly. (Bracket not supplied with camera) 4. -
Page 15: Pole Mount Installation
3. Adjust the length of the pole mount. Pole Mount Installation (Bracket not supplied with camera) 4. Before fixing the camera, set the DIP switches of the camera correctly. Use 1. According to diameter and position of inch screws to fix the camera on the the 4 installation holes (As shown below) bracke on the bracket, drill 4 holes on the... -
Page 16: Amcap Capture Software
To change frame rate or resolution, go to AMCAP Capture “Capture” / “Set Frame Rate” / “Use Frame Rate” and change value Software accordingly. Open AMCAP V3.0.9.exe capture software, choose “UVC”, from “Options”, tick “Preview” to view camera image. If frame rate is not enough, go to “Capture” / “Set Frame Rate”... -
Page 17: Menu Settings
MENU SETTINGS Menu Configuration <VIDEO> SHARPNESS 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 CONTRAST 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 SATURATION 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 2DNR LEVEL OFF，ON... - Page 18 <EXPOSURE> MODE FULL AUTO MANUAL GAIN 0, +2, +4, +6, +8, +10, +12, +14, +16, +18, +20, +22, +24, +26, +28，+30 SPEED 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000,1/1500, 1/2000, 1/3000, 1/4000，1/6000, 1/10000 IRIS F14, F11, F9.6, F8,...
- Page 19 <WHITE BALANCE> MODE AUTO ONE PUSH INDOOR OUTDOOR MANUAL R.GAIN 0~255 B.GAIN 0~255 SODIUM LAMP FLUO LAMP <PAN TILT ZOOM> PAN/TILT SPEED 1, 2, 3, 4, 5, 6, 7, 8 PAN/TILT LIMIT ON, OFF -30° ~+90° DOWN -30° ~+90° LEFT -170°...
- Page 20 <STATUS> ADDRESS PROTOCOL VISCA BAUD RATE 9600 FORMAT 640×480P30 MOUNT STAND IMAGE VER V1606 USB FW VER V1.0.0 FIRMWARE V1.0.0 <RESTORE DEFAULTS>...
-
Page 21: Menu Explanation
Submenus Menu Explanation From main menu, navigate to select Main Menu <EXPOSURE> menu, press OK to enter. Press MENU button to enter / exit menu. ❶ ❸ <EXPOSURE> ❶ MODE MANUAL ❷ GAIN <MENU> SPEED VIDEO IRIS EXPOSURE EXP-COM WHITE BALANCE LEVEL ❷... -
Page 22: Video
Video Exposure VIDEO is used to change video value. EXPOSURE menu is used to adjust exposure value. <VIDEO> SHARPNESS <EXPOSURE> CONTRAST MODE MANUAL SATURATION GAIN SPEED 2DNR LEVEL2D IRIS 3DNR LEVEL 3D EXP-COMP WIDE DYNAMIC LEVEL ANTI FLICKER Available Options: Available Options: SHARPNESS: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15. -
Page 23: White Balance
SPEED: 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, <WHITE BALANCE> MODE MANUAL 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, R.GAIN 1/350, 1/500, 1/725, 1/1000,1/1500, B.GAIN 1/2000, 1/3000, 1/4000， 1/6000, 1/10000. IRIS PRI: Gain and shutter speed value are Available Options: adjusted automatically according to working MODE: AUTO, ATW(auto tracking), ONE PUSH, INDOOR, OUTDOOR), environment;... -
Page 24: System
640x480P/60/50/30/25/20/15/10/5. The speed is the fastest when in 1x zoom Note compared to other zooming times. The videos from USB and DVI-D PAN/TILT LIMIT: ON/OFF, once it is set as are simultaneously output only at 1080P60/50/30/25, ON, below limit value can be set 720P60/50/30/25. -
Page 25: Status
Press OK to confirm or press to cancel completion or error messages after commands have been executed. and return to previous menu. DISPLAY INFO: Turn ON / OFF display of pan / tilt angle and prompt message. List of Special Preset Commands Status Cruise, camera switches among saved... -
Page 26: Annex 1 Technical Specifications
ANNEX 1 TECHNICAL SPECIFICATIONS Image Sensor 1/2.8" CMOS, 2.14 megapixel USB3.0： 1920x1080P/60/50/30/25/20/15/10/5 1280x720P/60/50/30/25/20/15/10/5 1024x768P/60/50/30/25/20/15/10/5 800x600P/60/50/30/25/20/15/10/5 640x480P/60/50/30/25/20/15/10/5 Video Format USB2.0： 1920x1080P5; 1280x720P10/5; 800x600P30/25/20/15/10/5 640x480P30/25/20/15/10/5 DVI-D: 1920x1080P/60/50/30/25 1280x720P/60/50/30/25 Focal Lens f=3.9mm-46.8mm f=4.7mm-47.0mm Iris F1.6-F2.8 F1.6-F3.0 Optical Zoom Digital Zoom Field of View 72.5°... - Page 27 Image Flip HD Video Output USB3.0，DVI-D Control Interface USB3.0，RS-232IN，RS-232OUT， RS-485 UVC Protocol UVC 1.1 UVC PTZ Control Protocol VISCA (supports daisy chain) / PELCO-P / PELCO-D Address 0~63 Power DC12V Power ＜20W Consumption Operating 0° C~+40° C Temperature Storage -20° C~+60° C Temperature Dimensions 243mm×145mm×163mm...
-
Page 28: Annex 2 Size And Dimension
ANNEX 2 SIZE AND DIMENSION Front Rear Side Bottom... - Page 29 ANNEX 3 SW1 DEFINITION SW1 DIP Address...
- Page 30 DIP No. reserve reserve reserve DIP No. Ceiling Mounting Type Desktop...
- Page 31 TROUBLESHOOTING Problem Possible Cause Solution Power supply failure Check power supply No action or image Power adapter damaged Replace power adapter after powered on Power cable connection got loosen Check & reconnect Check & reconnect power cable Not enough power supply No self-testing after connection powered on, or with...
- Page 36 CA/YF-AMCE200U3-ZD-016 Y06020701052...
