Optimal 2500 Operating Manual page 9

3.1 The Control Components
All directions (RH, LH) are given as seen from the control panel in driver`s cabin.

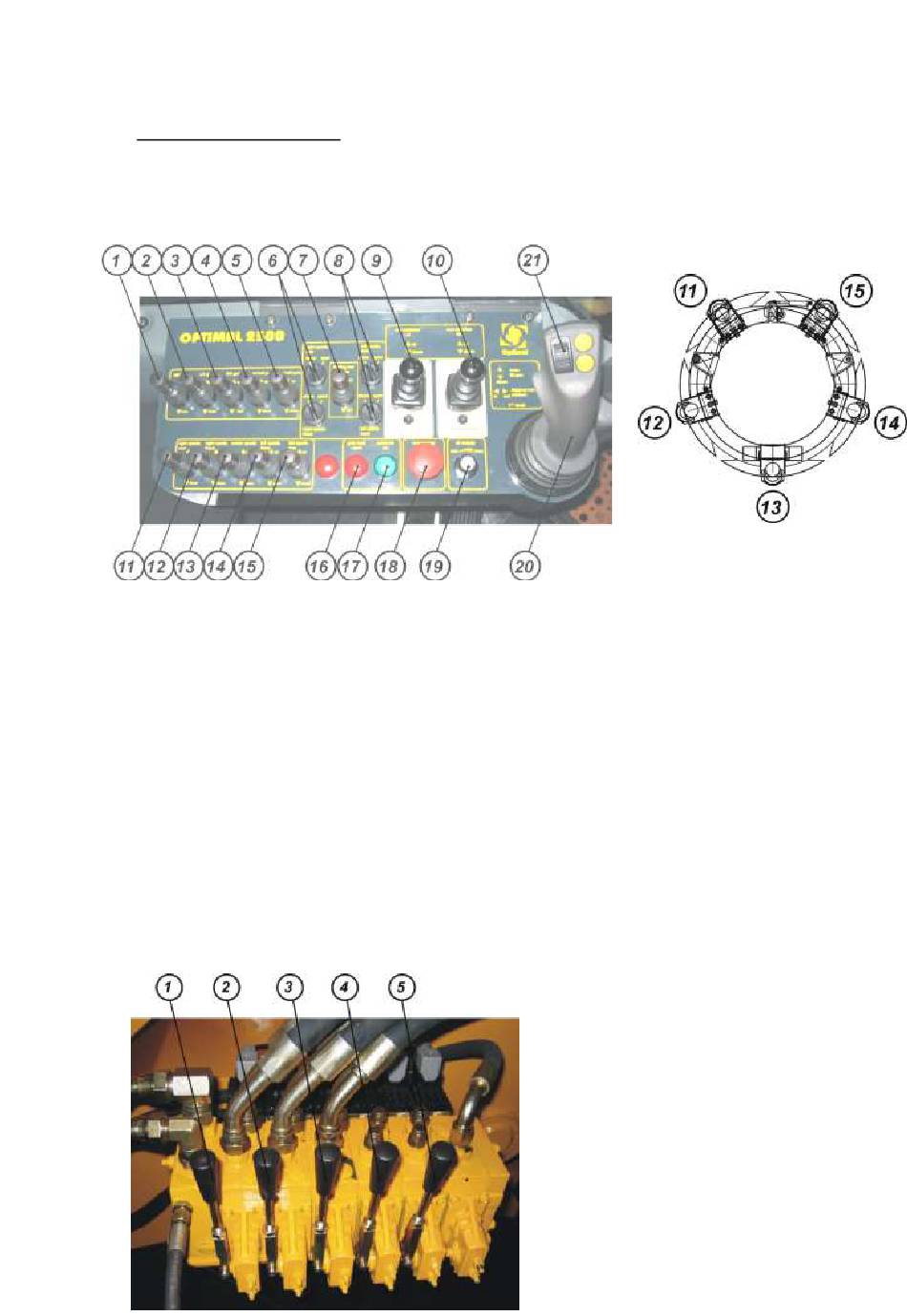

3.1.1 Control Panel Inside the Driver's Cabin
1) gate lock – unlock / lock
2) LH gate – open / close
3) RH gate – open / close
4) root ball pad LH – up / down
5) root ball pad RH – up / down
6) preselect folding out spades - LH rear / front
7) folding out spades – in / out
8) preselect folding out spades - RH rear / front
9) rear stabilizer LH – up / down
10) rear stabilizer RH – up / down
3.1.2 Valve Bank on the Base Frame
- 7 -
11) left spade, rear – up / down
12) left spade, front – up / down
13) center spade – up / down
14) right spade, front – up / down
15) right spade, rear – up / down
16) indicator light – gate lock open
17) indicator light – controls on
18) emergency off
19) oil supply min/max
20) ▲ main lift arm – up
▼ main lift arm – down
◄► digging head rotation – in / out
21) ▓ articulated lift arm – up / down
1) main lift arm – up / down
2) digging head rotation – in / out
3) articulated lift arm – up /down
4) rear stabilizer LH – up / down
5) rear stabilizer RH – up / down
Location of Spades
