Optimal 1100 Manual

Tree spade
Hide thumbs Also See for 1100:

Advertisement

Quick Links

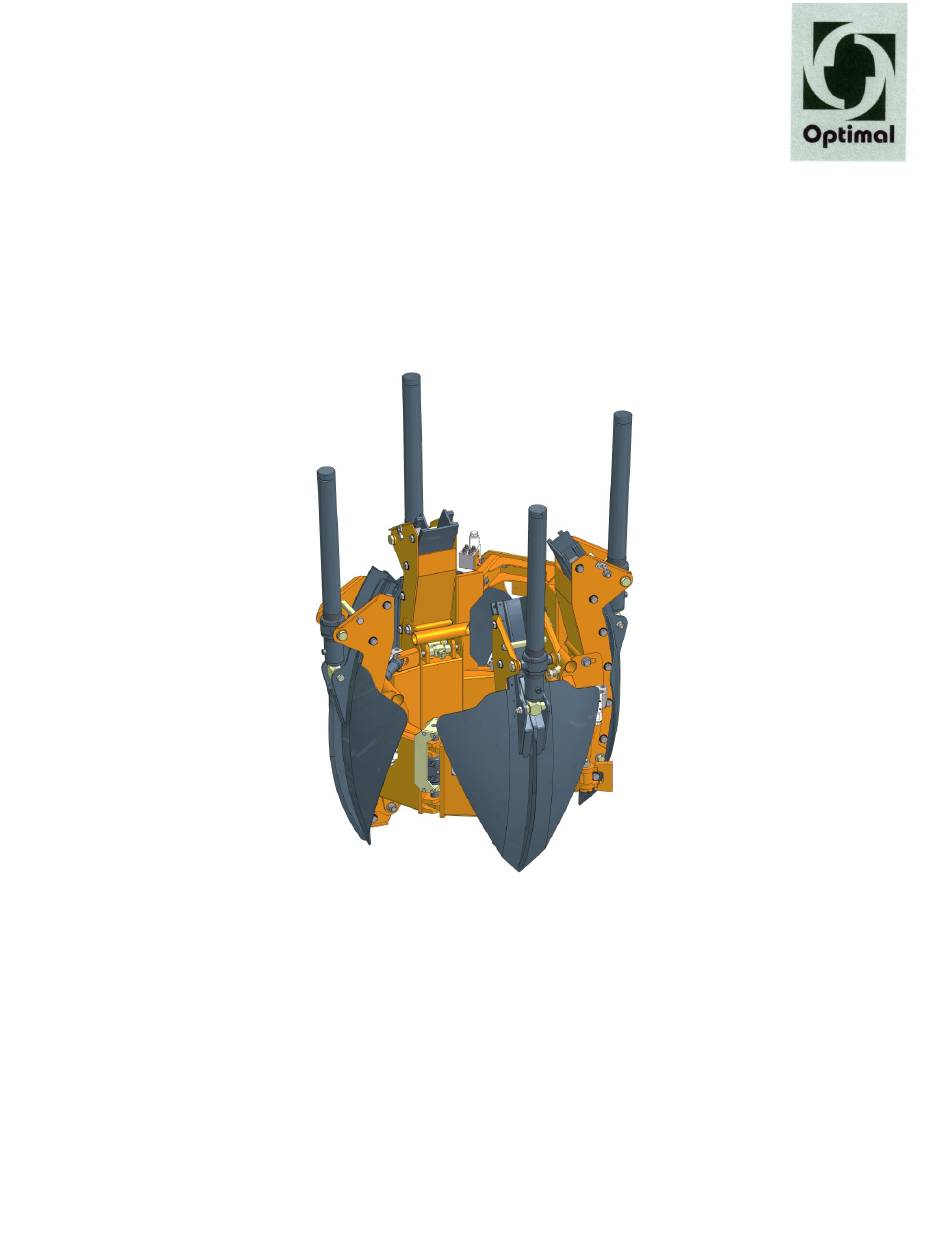

TREE SPADE OPTIMAL 1100
Manufacturer:
Optimal-Vertrieb Opitz GmbH
Eysoelden M 41
91177 Thalmaessing
Germany
Phone: ++ 49 - 9173 - 79 18 0
Fax:
++ 49 - 9173 - 79 18 49
eMail: info@opitz-optimal.com
web:
www.opitz-optimal.com
M A N U A L
O N
111223 -
Distributor:
Fieldworks Nursery Equipment
5191 Dawes Rd
Grand Bay AL 36541
U.S.A.
Phone: (251) 490-9871
Email: Fieldgrown@gmail.com
Email: Sales@optimaltreespades.com
Web:
www.OptimalTreeSpades.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1100 and is the answer not in the manual?

Questions and answers

Related Manuals for Optimal 1100

Summary of Contents for Optimal 1100

  • Page 1 M A N U A L TREE SPADE OPTIMAL 1100 111223 - Manufacturer: Distributor: Optimal-Vertrieb Opitz GmbH Fieldworks Nursery Equipment Eysoelden M 41 5191 Dawes Rd 91177 Thalmaessing Grand Bay AL 36541 Germany U.S.A. Phone: ++ 49 - 9173 - 79 18 0...

  • Page 2: Table Of Contents

    - 1 - C O N T E N T S Page Safety Warnings Operating Specifications Assembly Putting into Service Operating Instructions Care and Maintenance Trouble Shooting Appendix Attachment Points Installation of electro-hydraulic controls Spare Parts List with Drawings Warranty...
  • Page 3 - 2 - WARNING Operator must have read and understood instructions before running the tree spade. Untrained operators can cause injury or death. Safety Alert Symbol: This symbol is used for important safety messages. When you see this symbol, follow the message to avoid personal injury or death.
  • Page 4 - 2A - 1. Tower: 4. Tower: 7. Frame: P a r t N ° 7118000001 Part N° 7118000004 Part N° 7118000001 Part N° 7118000005 Part N° 7118000006 8. Oil - Manifold: Part N° 7118000008 Part N° 7118000009 Part N° 7118000010 Part N°...

  • Page 5: Operating Specifications

    - 3 - Operating Specifications Description Tree Spade OPTIMAL 1100 serial number 111 xxx capacity upper root ball diameter 114 cm (44") root ball depth 75 cm (30") dimensions of height 179 cm (70") basic machine width, gate closed 131 cm (52") width, gate open 198 cm (78")

  • Page 6: Assembly

    - 4 - Assembly IMPORTANT: When doing assembly work, heed relevant instructions of manufacturers of power unit! Back Plate The tree spade is attached to the power unit by means of a back plate. The back plate is procured from the manufacturer of the power unit, or it might be fabricated according to the drawings and instructions of the manufacturer of the power unit.

  • Page 7: Putting Into Service

    - 5 - Putting into Service The tree spade with the back plate is attached and secured to the power unit. Both the hydraulic connecting hoses of the tree spade are to be connected to the hydraulic disconnect of the auxiliary hydraulic circuit of the power unit. The plug of the electric control cable is to be plugged into the socket on the power unit (see section 2.2.2).

  • Page 8: Operating Instructions

    - 6 - Operating Instructions IMPORTANT: The Operator must be a reliable person. Before commencing production work, he or she must study these operating instructions thoroughly. The following safety instructions must be observed: It is the operator's prime duty to ensure that any persons must stay clear off the danger area.
  • Page 9 But in case stabilizers have been installed with the tree spade and they are controlled by Optimal control box, extend rear stabilizers by setting pre-selector: function 4 (optional), rear stabilizers...
  • Page 10 - 8 - 4.2.9 Once all blades have been completely pressed into the soil, the tree spade with the planting material is lifted out of the ground by means of the lift arms of the power unit. 4.2.10 The root ball is lowered by means of the lift arms of the power unit. Then the gate is unlocked: pre-selector: function 1, gate lock...

  • Page 11: Care And Maintenance

    - 9 - Care and Maintenance Blade Guides The blades are furnished with plastic linings which slide on steel guides. Once the plastic lining is worn to the point that the heads of the countersunk screws are flush with the surface of the plastic linings, they must be replaced to prevent the screws from damaging the guides.
  • Page 12 - 10 - Ajusting Blades Illustration 1 Illustration 2 General view of spade tower adjustment screw locking screw locking screw Loosen locking screws B and C. Move spade tower forward or backward by means of adjustment screw A. When blades are in desired position,tighten locking nuts B and C.
  • Page 13 - 11 - Replacing Plastic Bush of Spade Cylinder Illustration 4 Illustration 5 Unscrew bolts (D) and (E), remove worn bushes, insert new bushes (F) and (G).
  • Page 14 - 12 - Replacing Plastic Bush of Gate Cylinder Illustration 6 Illustration 7 Illustration 8 Illustration 9...
  • Page 15 - 13 - Illustration 10 Illustration 11 Illustration 12 Illustration 13...
  • Page 16 - 14 - General view of gate cylinder with piston rod and eye joint. Screw off plastic thread plug. Remove dowel pin by means of drift punch. Dowel pin has been removed. Note female thread on top of the pin, Place extractor on top of pin and fasten screw into female thread.
  • Page 17 - 15 - Trouble Shooting 1. Nothing moves. (none of the hydraulic functions works) Electricity supply to control box is interrupted. Check fuses at power unit. Hydraulic disconnect is not properly attached. Check attachment. Two hydraulic functions (e.g. gate lock and spades) work at the same time. On one of the valves the plunger does not move.
  • Page 18 - 16 - 5. Although the gate has been closed and locked properly, the blades do not move down. The safety switch at the lock needs readjustment. The electricity supply is interrupted. Check fuses at power unit. 6. The blades do not close properly although the spade cylinders are fully extended. Guides are worn and must be replaced.
  • Page 19 - 17 -...
  • Page 20 - 18 - control box OPTIMAL 1100 Installation of electro-hydraulic controls OPTIMAL-Vertrieb Opitz GmbH Eysölden M 41 D-91177 Thalmässing...
  • Page 21 - 19 - electrical system - machine OPTIMAL 1100 Installation of electro-hydraulic controls OPTIMAL-Vertrieb Opitz GmbH Eysölden M 41 D-91177 Thalmässing...
  • Page 22 S P A R E P A R T S TREE SPADE OPTIMAL 1100 111223 - Manufacturer: Distributor: Optimal-Vertrieb Opitz GmbH Fieldworks Nursery Equipment Eysoelden M 41 5191 Dawes Rd 91177 Thalmaessing Grand Bay AL 36541 Germany U.S.A. Phone: ++ 49 - 9173 - 79 18 0...
  • Page 23 C O N T E N T S Table Spare Parts List with Drawings Basic Machine Spade Adjustment Feet Spade Cylinder Gate Cylinder Gate Lock Cylinder Hydraulic System Electrical System Warranty...
  • Page 25 Tafel - Table - Feuille 1 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Grundrahmen / Spaten- main frame / spade - cadre de base / bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos.
  • Page 26 Tafel - Table - Feuille 1 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Grundrahmen / Spaten- main frame / spade - cadre de base / bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos.
  • Page 27 Tafel - Table - Feuille 1 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Grundrahmen / Spaten - main frame / spade - cadre de base / bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos.
  • Page 28 Tafel - Table - Feuille 1 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Grundrahmen / Spaten - main frame / spade - cadre de base / bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos.
  • Page 29 Tafel - Table - Feuille 1 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Grundrahmen / Spaten - main frame / spade - cadre de base / bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos.
  • Page 31 Tafel - Table - Feuille 2 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Spaten - spade - bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Spaten, kpl. 3161110060 spade, complete bêche complète...
  • Page 32
...
  • Page 33 Tafel - Table - Feuille 3 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Verstellfuß - adjustment feet - Pied de réglage Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Verstellfuß...
  • Page 34
...
  • Page 35 Tafel - Table - Feuille 4 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Spatenzylinder - spade cylinder - Vérin de bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Zylinderrohr, geschw.
  • Page 36 Tafel - Table - Feuille 4 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Spatenzylinder - spade cylinder - Vérin de bêche Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Abstreifer P7 –...
  • Page 37
...
  • Page 38 Tafel - Table - Feuille 5 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Öffnungsylinder - gate cylinder - Vérin d’ouverture Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Zylinderrohr für Öffnungszyl.
  • Page 39 Tafel - Table - Feuille 5 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Öffnungsylinder - gate cylinder - Vérin d’ouverture Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Kolbendichtsatz TPM 32 x 24...
  • Page 40
...
  • Page 41 Tafel - Table - Feuille 6 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Verriegelungszylinder - gate lock cylinder - Vérin de verrouillage Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence...
  • Page 42
...
  • Page 43 Tafel - Table - Feuille 7 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Hydrauliksystem - hydraulic system - Système hydraulique Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Spatenzylinder...
  • Page 44 Tafel - Table - Feuille 7 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Hydrauliksystem - hydraulic system - Système hydraulique Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Winkelverschraubung...
  • Page 45 Tafel - Table - Feuille 7 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Hydrauliksystem - hydraulic system - Système hydraulique Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Hydraulikschlauch NW10...
  • Page 46 Tafel - Table - Feuille 7 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Hydrauliksystem - hydraulic system - Système hydraulique Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Hydraulikschlauch NW 6...
  • Page 48 Tafel - Table - Feuille 8 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Steuerteil – control box – boîtier de contrôle Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Gehäuse...
  • Page 49 Tafel - Table - Feuille 8 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Steuerteil – control box - boîtier de contrôle Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Kabel 12x1,5 –...
  • Page 50 Tafel - Table - Feuille 8 OPTIMAL 1100 ERSATZTEILLISTE - SPARE PARTS LIST – LISTE DES PIÈCES DE RECHANGE Steuerteil – control box - boîtier de contrôle Pos. Menge Bezeichnung ET-Nummer Item Quantity Description Part Number Pos. Quantité Description Référence Kabel 2x1,5 –...
  • Page 51 LIMITED WARRANTY OptimalVertrieb Opitz GmbH ("Opitz") warrants that this product will be free from defects in material and workmanship for a period of 6 months from the date of purchase (the "Warranty Period"). If, during the Warranty Period, this product proves to be defective, Opitz will remedy the defect by either repairing or replacing the product or any of its defective parts, at Opitz’s option.
