Summary of Contents for Geberit AQUACLEAN SELA

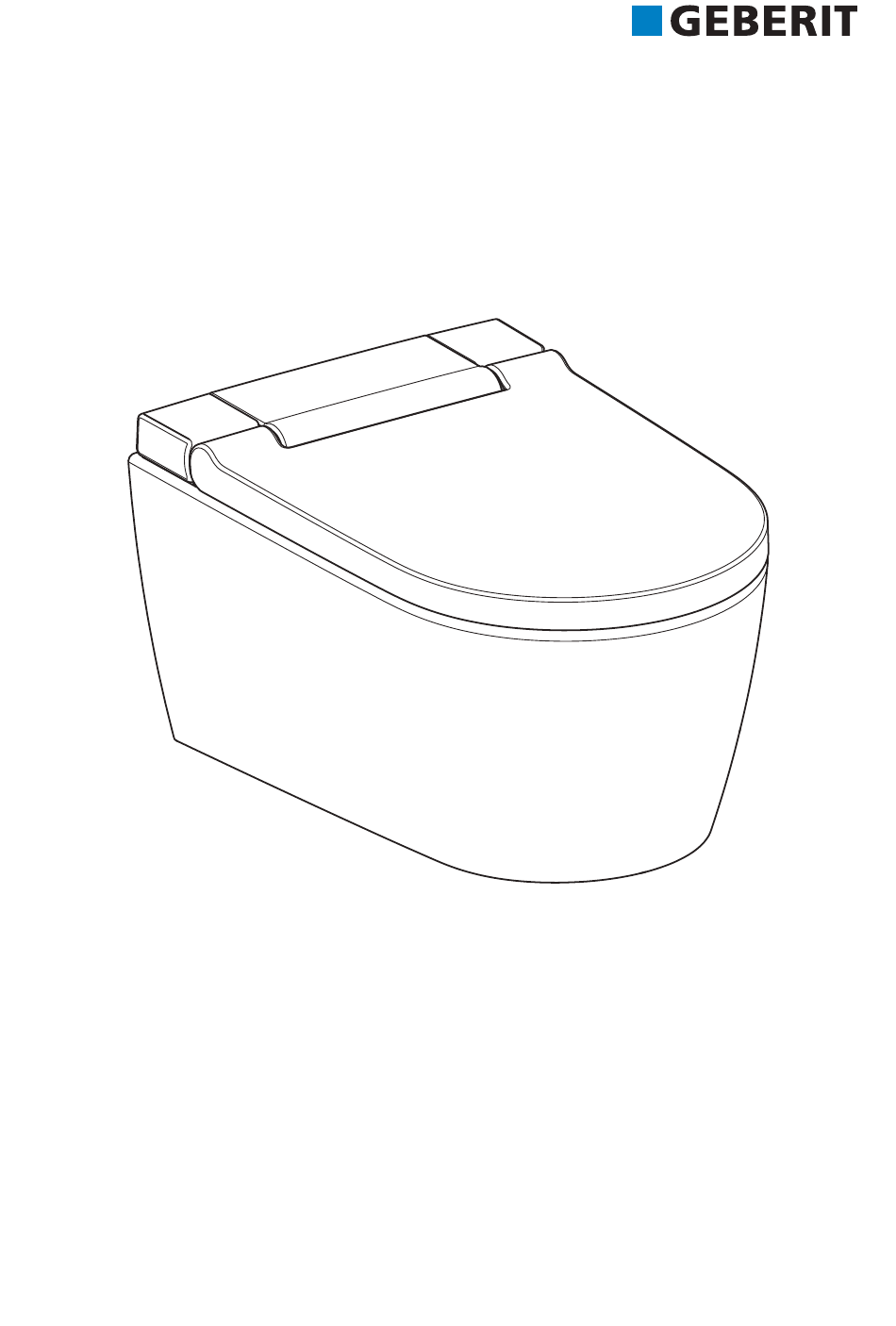

- Page 1 GEBERIT AQUACLEAN SELA USER MANUAL...
-
Page 3: Table Of Contents
Setting the spray intensity ....................Setting the spray arm position..................Saving user profiles......................Calling up user profiles....................Saving a personal user profile in the Geberit Home App ..........How to program the device ..................... Overview of the programming options................Basic settings main menu .................... - Page 4 The remote control is not functioning ................Replacing the remote control battery ................Re-assigning the remote control ..................Sustainability ........................Geberit Group and sustainability ..................Ecodesign – ecobalance ....................Tips for reducing the ecological footprint................ Disposal ..........................Disposal of old electrical and electronic equipment ............
-
Page 5: For Your Safety
For your safety Who is this product suitable for? As a functioning toilet, the Geberit AquaClean shower toilet is suitable for all age groups. However, children must not carry out cleaning or maintenance work without supervision. How is this product used? -
Page 6: General Safety Notes
Geberit AquaClean has been removed (e.g. if you move house). • The Geberit AquaClean must only be connected to a mains voltage conforming to the specification plate. • Observe the manufacturer information at all times regarding the use of cleaning and descaling agents. -
Page 7: Explanation Of Warning Notes
They provide warnings on specific hazards. These instructions correspond to the state of the device technology at the time of printing. Geberit reserves the right to make changes in terms of further development. A current version of this and other documents is available online: www.geberit.com. -
Page 8: Overview Of Symbols On The Product
The following signal words are used to indicate residual hazards in warning notes and important information. Symbol Signal word and meaning DANGER The signal word denotes a hazard with a high degree of risk which, if not avoided, will result in death or serious injury. -
Page 9: Register Your Device
90 working days from the installation date. In the third year of the warranty period, Geberit shall supply spare parts free of charge in the event of any material or manufacturing faults, provided the product has been installed and put into operation by an installation company. -
Page 10: Getting To Know Your Device
Getting to know your device About Geberit AquaClean devices The Geberit AquaClean device is a WC with integrated shower function. The device fulfils all the functions of a conventional toilet. Additional functions are subject to the design of your product. -
Page 11: The Device At A Glance
230 V / 50 Hz 2000 W DVGW 0.1–1 MPa SVGW EN 13077 / Typ AB DN3/8″ Geberit Int. AG, Schachenstr. 77, CH-8645 Jona Filling opening with plug for Geberit AquaClean descaling agent Specification plate with serial number Design cover Power switch 162129590266710283 © 03-2021 968.681.00.0(04) -
Page 12: Operating Concept
Operating concept About the operating concept The shower toilet can be operated via remote control or the Geberit Home App. The remote control function of the Geberit AquaClean shower toilet is deactivated while the shower toilet is connected to the Geberit Home App. Front side of the remote control All functions for daily use can be operated from the front side of the remote control. -
Page 13: Rear Side Of The Remote Control
Rear side of the remote control You can access system settings and additional functions from the rear side of the remote control. Battery compartment LCD display <up>/<down>, <left>/<right> arrow keys Status LED on the orientation light The LED on the orientation light informs you of the current device status. The current condition of the device is therefore visible. -
Page 14: Switching The Device On And Off
Switching the device on Close the design cover. and off Wait at least 30 seconds between the switch-off and switch-on procedures. Open the design cover. Result ✓ The device initialises again after switching Press the power switch. 162129590266710283 © 03-2021 968.681.00.0(04) -
Page 15: Geberit App
Geberit App Checking compatibility To ensure you can use the Geberit App to its full extent, you will require a smartphone with: • Android version 6.0 (or higher), or • iOS version 11.0 (or higher). If the Geberit App still does not work despite meeting the prerequisites specified above, please check the permissions (Bluetooth®, location) and confirm these again if... -
Page 16: Using The Geberit Home App
– playing function videos – playing maintenance and cleaning videos • troubleshooting – displaying error messages • user manual – displaying the user manual All settings can be saved in the Geberit Home App as presettings and transferred to other devices. 162129590266710283 © 03-2021 968.681.00.0(04) -
Page 17: How To Use The Device
How to use the device Getting started When using the device, the following functions should take place. When you sit down on the WC seat ring, • the water heating starts. • the device enables the spray functionality. • the basic settings are activated automatically. When you start the shower procedure, •... -
Page 18: Using The Anal Shower
Using the anal shower Switching the oscillating motion of the anal shower Prerequisite on and off – You are sitting down on the WC seat ring. The oscillating motion of the spray ▶ arm increases the cleaning effect. Briefly press the <Shower> button on the remote control. -
Page 19: Using The Lady Shower
Using the Lady shower Switching the orientation light off and on The woman's intimate area is a very Prerequisite sensitive zone and requires special and prudent care. The Lady shower – The device is switched on. must be set to your ergonomic ▶... -
Page 20: Adjusting The Shower Procedure To Your Personal Needs
Adjusting the shower Setting the spray arm position procedure to your Female users should set the spray arm position of the spray personal needs functionality to their ergonomic conditions so that it does not Setting the spray intensity compromise the natural protection of the vaginal area. -
Page 21: Saving User Profiles
✓ Your personal user profile is called up and activated. ✓ The shower procedure can be started with your personal settings. Saving a personal user profile in the Geberit Home App Result Prerequisite ✓ The current settings are saved to this –... -
Page 22: How To Program The Device
How to program the device Overview of the programming options The following main menus are available: • [Basic settings] • [Profile settings] • [Care and maintenance] The system settings can be configured from the rear side of the remote control: •... -
Page 23: Basic Settings Main Menu
Basic settings main menu Use the <up>/<down> arrow keys to access the next menu item. Launch the [Basic settings] main menu using the <left>/<right> arrow keys on the rear side of the remote control. To save the modified settings, the menu must be run through in its entirety until the main menu appears once again on the display. - Page 24 Shown on display Note Shower water heating Temperature regulation of the shower water [on] = The oscillating motion of the spray arm is Oscillating spray activated. [off] = The oscillating motion of the spray arm is deactivated. [on] = The orientation light stays on permanently. [off] = The orientation light is deactivated.
-
Page 25: Profile Settings Main Menu
Profile settings main menu Use the <up>/<down> arrow keys to select the settings which you would like to change. Launch the [Profile settings] main menu using the <left>/<right> arrow keys on the rear side of the remote control. To save the modified settings, the menu must be run through in its entirety until the main menu appears Profile settings... - Page 26 Shown on display Note Shower water heating Temperature regulation of the shower water [on] = The oscillating motion of the spray arm is Oscillating spray activated. [off] = The oscillating motion of the spray arm is deactivated. 162129590266710283 © 03-2021 968.681.00.0(04)
-
Page 27: Care And Maintenance Main Menu
Care and maintenance Use the up/down arrow keys to main menu access the next menu item. Launch the [Care and maintenance] main menu using the <left>/<right> arrow keys on the rear side of the remote control. To save the modified settings, the menu must be run through in its entirety until the main menu appears once again on the display. - Page 28 [yes] = Display of the device information Show device info? [no] = Continue with the [Error message] menu Model Displays the type/equipment version Article number Displays the Geberit article number 146.xxx.xxx. Serial number Displays the device serial number (required in case of service) MBxxxxxxxxxx Commissioning date...
-
Page 29: Cleaning And Descaling The Device
▶ Remove water drops with a soft, lint-free cloth to avoid Daily limescale stains. ▶ Clean the WC ceramic appliance with Geberit AquaClean cleaning agent. → See "Care instructions for sanitary ceramic appliances", page 32. ▶ Clean all surfaces and corners thoroughly. → See "Cleaning Weekly the WC seat and housing", page 34. -
Page 30: Targeted Disinfection
Suitable cleaning agents and cleaning equipment ATTENTION Aggressive descaling agents Unsuitable descaling agents may cause damage to the device. ▶ Only use Geberit AquaClean descaling agents to descale the device. ▶ Refer to the “Descaling the device” section. ATTENTION Aggressive and scouring cleaning agents Cleaning using aggressive and scouring cleaning agents can cause surface damage. - Page 31 Using the Geberit AquaClean cleaning set is recommended, as this set includes a ready-made cleaning agent that is ideal for cleaning all Geberit AquaClean surfaces. Recommended properties of suitable cleaning agents and cleaning equipment for best cleaning results: Symbol Properties of suitable cleaning agents Skin-friendly Cleaning agents are permitted to have a low acid content, e.g.
-
Page 32: Care Instructions For Smooth Surfaces
Aggressive and scouring cleaning agents can damage the surface. Only use mild, liquid cleaning agents that are kind to the skin. The Geberit AquaClean cleaning set (art. no. 242.547.00.1) includes a ready-made cleaning agent that is optimal for cleaning all Geberit AquaClean surfaces. -
Page 33: Care Instructions For Wc Seat
Dirt Care measures ▶ Use mild liquid cleaning agents and water. For daily cleaning ▶ Dry the surface with a soft, lint-free cloth. ▶ Generally speaking, use cleaning agents suitable for ceramic appliances or a mild scouring liquid. ▶ Remove existing limescale deposits using a mild cleaner Stubborn stains containing vinegar. -
Page 34: Cleaning The Wc Seat And Housing
Lift the WC seat and remove it from the hinges at an angle of 85°. ✓ The WC seat is very easy to remove at the correct angle. Spray the surfaces with Geberit AquaClean cleaning agent. Wipe the surfaces with a soft, lint- free, damp cloth. -
Page 35: Cleaning The Spray Nozzle
✓ The cleaning procedure is now complete. ✓ The spray arm extends fully. Pull out the spray nozzle for cleaning and descaling. Spray the spray nozzle with Geberit AquaClean cleaning agent. Then rinse the spray nozzle with water. 162129590266710283 © 03-2021... -
Page 36: Descaling The Device
ATTENTION Aggressive descaling agents Remove the plug. Unsuitable descaling agents may cause damage to the device. ▶ Only use Geberit AquaClean descaling agents to descale the device. ▶ Refer to the “Descaling the device” section. The descaling procedure should not... - Page 37 … ✓ Wait until the device is ready. The display shows Fill in the descaling agent ... Pour a bottle (125 ml) of Geberit Use the arrow key to start the AquaClean descaling agent into the descaling procedure. filling opening.
-
Page 38: Device Descaling Message
Device descaling message During installation, the device was configured for the local water hardness in accordance with the following table. This adaptation prevents unnecessary descaling procedures and helps protect the environment. Nevertheless, regular descaling of the device is required. Area °fH °dH °eH... -
Page 39: Troubleshooting
Troubleshooting Troubleshooting The table below explains what you need to do in the event of a fault: • Carry out the steps one after the other until the device is no longer demonstrating any faults or is working as normal again. •... - Page 40 The shower toilet can be used as a normal toilet even in the event of a malfunction. The spray arm must be fully retracted. You start the toilet flush as usual by pressing the buttons on the cistern. If the device is defective, switch it off using the power switch. Step Description of problem Fault clearance...
-
Page 41: Other Functional Errors
Other functional errors The following table will help you with troubleshooting if individual functions of the shower toilet have failed. The shower toilet can be used as a normal toilet even in the event of a malfunction. The spray arm must be fully retracted. You start the toilet flush as usual by pressing the buttons on the cistern. -
Page 42: The Remote Control Is Not Functioning
• the remote control is without function. • the remote control is unable to control the shower toilet. The remote control is inactive while the Geberit Home App is in use. If the device is defective, switch it off using the power switch. -
Page 43: Replacing The Remote Control Battery
Replacing the remote control Re-assigning the battery remote control Prerequisite The device can only be operated – During the entire procedure, the remote with a single, assigned remote control must be located in the reception control. range of the shower toilet. Prerequisite Remove the used battery. -
Page 44: Sustainability
A company management geared to sustainability helps to save costs while minimizing risks at the same time. Geberit aims to act as a role model and set standards for its customers, suppliers and other partners. This means creating water-saving and sustainable products,... -
Page 45: Disposal
The symbol indicates that the product cannot be disposed of with non- recyclable waste. Old equipment should be returned directly to Geberit where it will be disposed of appropriately. Addresses to which equipment can be returned can be requested from the relevant Geberit sales company. -
Page 46: End User Warranty
Geberit and contracted by the end user to repair the product. 2. The end user shall not be entitled to assert more extensive claims against Geberit on the basis of this warranty. -
Page 47: Technical Data And Conformity
Geberit. Simplified EU Declaration of Conformity Geberit International AG hereby declares that the radio equipment type Geberit AquaClean Sela is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://doc.geberit.com/968859000.pdf. - Page 48 F +33(0)825 801 604 (RS) Geberit - Predstavništvo za www.geberit-aquaclean.fr Republiku Srbiju i Republiku Crnu Goru (AT) Geberit Vertriebs GmbH & Co. KG Vojvode Skopljanca 24 Gebertstrasse 1 (GB) Geberit Sales Ltd. SR-11000 Beograd A-3140 Pottenbrunn / St. Pölten...
Need help?
Do you have a question about the AQUACLEAN SELA and is the answer not in the manual?
Questions and answers

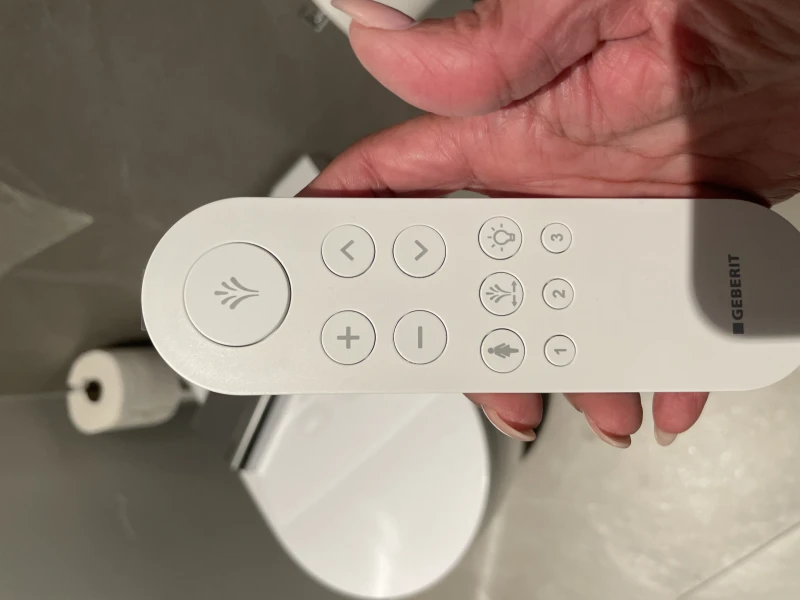

How do I pair the remote control with toilet when there is no screen on the back to say pairing ok? Only the one in The Master toilet has a screen on the back
To pair the remote control with the Geberit AQUACLEAN SELA toilet without a screen on the back:
1. Make sure the device is turned off.
2. Press and hold the <+> button on the remote control.
3. While holding the button, turn on the toilet.
4. Keep holding the <+> button for about 30 seconds until "Pairing ok" appears on the display.
5. Load the toilet seat (sit or press down) for more than 10 seconds.
6. Then stop loading the seat.
The toilet can now be controlled by the paired remote control.
