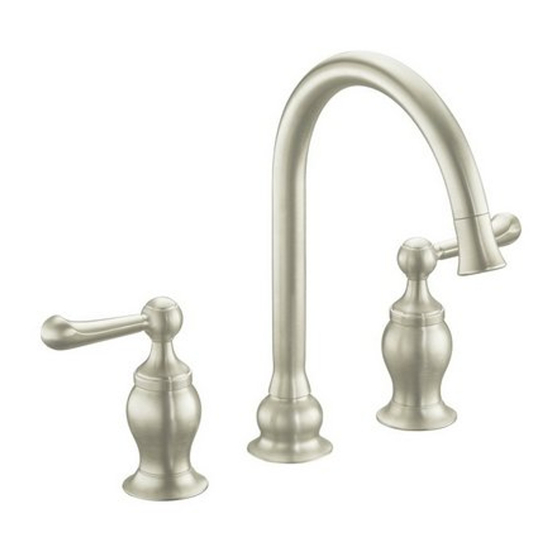

Bath faucet trim
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Installation Guide
Bath Faucet Trim
K-T10339-4
M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
M corresponden a México (Ej.
K-12345M)
Français, page "Français-1"
Español, página "Español-1"
1057840-2-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lyntier K-T10339-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kohler Lyntier K-T10339-4

  • Page 1 Installation Guide Bath Faucet Trim K-T10339-4 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página “Español-1” 1057840-2-A...
  • Page 2: Tools And Materials

    Before installation, unpack the new bath faucet trim and inspect it for damage. Return it to the carton until installation. Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.
  • Page 3 = fully clockwise). Turn off the main water supply. Wrap a rag around the pipe plug to prevent water spray. IMPORTANT! Water may purge from the supply tube when you remove the plug. Carefully remove the pipe plug. Kohler Co. 1057840-2-A...
  • Page 4 O-ring seal on the spout sleeve assembly. NOTE: The washer is not needed for rim/finished deck installation. If the installation includes a tile covered rough deck, slide the washer, flat side facing forward, onto the spout supply tube. 1057840-2-A Kohler Co.
  • Page 5 Place the gasket over the sleeve and against the finished deck. Position the spout on the sleeve, and carefully press down until the spout contacts the finished deck. Align the spout as desired, and tighten the setscrew. Kohler Co. 1057840-2-A...
  • Page 6: Install The Handles

    = counterclockwise). Turn on the main water supply and check for leaks. Turn on the hot and cold valves and run water through the spout to remove debris. Check for leaks. Turn off the hot and cold valves. 1057840-2-A Kohler Co.
  • Page 7 Merci d’avoir choisi la compagnie Kohler Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de problème d’installation ou de performance.
  • Page 8 Avant de commencer (cont.) Kohler Co. se réserve le droit d’apporter toutes modifications au design des robinets et ceci sans préavis, comme spécifié dans le catalogue des prix. 1057840-2-A Français-2 Kohler Co.
  • Page 9 Fermer l’alimentation d’eau principale. Enrouler une serviette autour du bouchon du tube pour empêcher l’eau de gicler. IMPORTANT ! L’eau pourrait s’écouler du tube d’alimentation d’eau lorsque le bouchon est retiré. Retirer le bouchon de tuyau avec précaution. Kohler Co. Français-3 1057840-2-A...
  • Page 10 REMARQUE : La rondelle est inutile dans le cas d’une installation sur rebord/comptoir fini. Si l’installation comprend un comptoir brut carrelé, glisser la rondelle, côté plat dirigé vers l’avant, sur le tube d’alimentation du bec. 1057840-2-A Français-4 Kohler Co.
  • Page 11 Placer le joint sur le manchon et contre le comptoir fini. Positionner le bec sur le manchon, et presser délicatement vers le bas jusqu’à ce que le bec touche le comptoir fini. Aligner le bec selon le désir et serrer la vis de retenue. Kohler Co. Français-5 1057840-2-A...
  • Page 12: Compléter L'installation

    Ouvrir l’alimentation d’eau principale et vérifier s’il y a des fuites. Ouvrir les valves d’eau chaude et froide et faire couler l’eau à travers le bec pour chasser tous les débris. Vérifier s’il y a des fuites. Fermer les valves d’eau chaude et froide. 1057840-2-A Français-6 Kohler Co.
  • Page 13: Herramientas Y Materiales

    Gracias por elegir los productos de Kohler Le agradecemos que haya elegido la calidad de Kohler. Dedique unos minutos para leer este manual antes de comenzar la instalación. En caso de problemas de instalación o de funcionamiento, no dude en contactarnos.
  • Page 14 Antes de comenzar (cont.) Kohler Co. se reserva el derecho de modificar el diseño de la grifería sin previo aviso, tal como se especifica en la lista de precios. 1057840-2-A Español-2 Kohler Co.
  • Page 15 Cierre el suministro de agua. Envuelva el tapón de tubo en un trapo para evitar que el agua salpique. ¡IMPORTANTE! Puede que salga agua del tubo de suministro cuando se quite el tapón. Quite el tapón de tubo con cuidado. Kohler Co. Español-3 1057840-2-A...
  • Page 16 NOTA: La arandela no es necesaria para las instalaciones en cubierta acabada/borde. Si la instalación incluye una cubierta no acabada revestida de azulejos, deslice una arandela, lado plano hacia el frente, en el tubo de suministro del surtidor. 1057840-2-A Español-4 Kohler Co.
  • Page 17 Coloque el surtidor en la manga y presione hacia abajo con cuidado hasta que el surtidor esté en contacto con la cubierta acabada. Alinee el surtidor a la posición deseada y apriete el tornillo de fijación. Kohler Co. Español-5 1057840-2-A...
  • Page 18 Abra el suministro principal de agua y verifique que no haya fugas. Abra las válvulas del agua fría y caliente y deje correr el agua por el surtidor para eliminar los residuos. Verifique que no haya fugas. Cierre las válvulas del agua fría y caliente. 1057840-2-A Español-6 Kohler Co.
  • Page 19 1057840-2-...
  • Page 20 USA: 1-800-4-KOHLER Canada: 1-800-964-5590 México: 001-877-680-1310 kohler.com ©2006 Kohler Co. 1057840-2-A...
