POP PROG
TECHNICAL
MANUAL

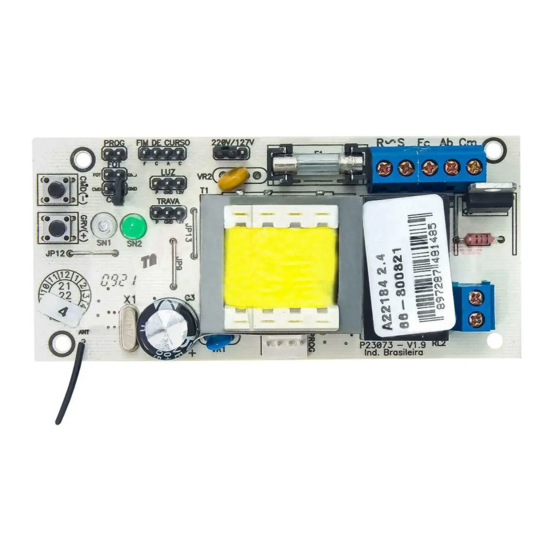

CONTROL BOARD
WARNING
Do not use the equipment
without referring to this
manual first .
P06105 - Rev. 3
P06581 - Rev.3
DEFAULT SETTINGS CHART
Factory Default Setting
Travel time 2 Minutes, max time
Automatic timing Disabled
Courtesy Light Time
Traffic light (0 second)
Brake Level 1
Strength Level 8, maximum
Opening Ramp Disabled
Closing Ramp Disabled
Opening Ramp Torque
Level 6
Closing Ramp Torque
Level 6
3. Press GRV to increase courtesy light time or
CMD to decrease;
4. 30-second-gradation;
5. Max time = 4 minutes;
6. The delay setting has levels from 3 to 16
seconds, with a 3-second gradation;
7. Remove JPROG jumper.
Levels
0 - 0 second (Traffic Light)
1 - 30 seconds
2 - 60 seconds
3 - 90 seconds
4 - 120 seconds
5 - 150 seconds
6 - 180 seconds
7 - 240 seconds
Delay times, levels:
8 - 3 seconds
9 - 7 seconds
10 - 10 seconds
11 - 13 seconds
12 - 16 seconds (max)
SN1 LED:
- Flashes once whenever a button is pressed;
- Flashes continuously to minimum time, level 0;
- Remains lit when maximum time is enabled;
- Flashes once at each level, eg level 6, LED
flashes 6x.
SN2 LED:
- Flashes 4x;
BRAKE
When there is a command to switch off the
motor, the brake will be activated with the
possibility of adjusting the sensitivity.
1. With the gate still, close the JPROG jumper,
LED SN1 will flash 2x while the CMD button is
not pressed;
2. Press CMD 6 times and then GRV to enter the
function;
3. Press GRV to increase the brake sensitivity;
4. Press CMD to decrease the brake sensitivity;
5. In the minimum level, the brake is disabled,
with the possibility of adjustment of 10 levels of
sensitivity.
SN1 LED:
- Flashes continuously for Minimum level, brake
disabled;
- Flashes once for each increment of sensitivity,
maximum level = 10;
FORCE (ELECTRONIC CLUTCH)
Adjusts the engine operating force.
In order for this safety-sensing device to be
MAIN FEATURES
- Analogic Limit Switch;
- 433.92MHz Receiver Module;
- Capacity for 50 remote controls;
- Electronic clutch adjustment (strength);
- Automatic memorization (Opening/Closing);
- Inputs:
Photocell (uses external power source);
Pushbutton;
- Outputs for modules:
Electromagnetic Lock;
Courtesy light;
- Brake adjustment;
- Limit switch adjustment;
- Ramp torque adjustment;
- Opening delay for Traffic Light activation;
- Settings via PROG PPA.
FACTORY DEFAULT SETTINGS
Restores the settings to the factory default.
1. With the gate still, close the JPROG jumper;
the SN1 LED will flash twice while the CMD
button is not pressed ;
2. Press CMD once and then GRV to enter
the function;
3. Press GRV to confirm the factory default
settings or CMD to cancel and return to the
FUNCTION CHART
1 - Default
Open Function CMD once
2 - Auto Timing Open Function CMD twice
3 - Erase TX
Open Function CMD 3x
4 - Courtesy Light
Open Function CMD 4x
Time / Delay
5 - Not used
6 - Brake
Open Function CMD 6x
7 - Strength
Open Function CMD 7x
8 - Opening Ramp Open Function CMD 8x
9 - Closing Ramp
Open Function CMD 9x
10 - Opening
Open Function CMD 10x
Ramp Torque
11 - Closing
Open Function CMD 11x
Ramp Torque
effective, proceed as follows:
SN1 LED:
- After proper installation of the automator on
- Flashes once whenever a button is pressed;
the gate, adjust the electronic clutch, so that
- Flashes continuously for minimum setting,
the force is the minimum required to move the
disabled;
gate leaf throughout its path, opening and
- Flashes once for each increment of sensitivity,
closing;
- At the end of the adjustment, test the with maximum value equal to 12;
function by blocking the movement of the gate
- It remains lit at maximum value.
by placing a rigid object in the course of the
gate.
SN2 LED:
- Flashes 8x for opening;
1. With the gate still, close the JPROG
- Flashes 9x, for closing.
jumper, the SN1 LED will flash 2x while the
CMD button is not pressed;
2. Press CMD 7x and then GRV to enter the
RAMP TORQUE
function;
The control unit will decrease the operating
3. Press GRV to increase the force or CMD
torque as soon as it reaches the programmed
to decrease;
ramp. The torque is set separatedely for
4. Maximum strength level: 8;
opening and closing.
5. Remove JPROG jumper;
1. With the gate still, close the JPROG jumper.
SN1 LED:
The SN1 LED will start flashing twice while the
- Flashes once whenever a button is
CMD button is not pressed.
pressed;
2. Press CMD 10x for opening ramp torque
- Flashes continuously for minimum
and 11x for closing ramp torque and then
GRV to enter the function;
strength, level 0;
3. Press GRV to increase the torque;
- Remains lit for maximum strength, level
4. Press CMD to decrease the torque;
7.
- Flashes once according to selected level,
SN1 LED:
eg: level 3, LED flashes 3x.
- Flashes once whenever a button is pressed;
- Flashes continuously to minimum setting;
SN2 LED:
- Flashes once for each increment of sensitivi-
- Flashes 7x;
ty, with maximum level = 8;
- It remains lit at maximum level.
ADJUSTING THE OPENING
/ CLOSING RAMP
The ramp is the remaining distance to
reach the mechanical stop.
The control unit will continuously monitor
the position of the gate and when it
reaches this limit, the speed of operation
decreases, reaching the mechanical stop
gently.
1. With the gate still, close the JPROG
jumper, LED SN1 will flash twice while the
CMD button is not pressed;
2. Press CMD 8 times for opening limit
switch, or press CMD 9 times for closing
limit switch and then GRV to enter the
function;
3. Press GRV to move the limit to the
mechanical stop away, increasing the
distance;
4. Press CMD to decrease the distance to
the limit switch;
5. In the minimum value the ramp is
disabled; it does not decrease the torque,
with the possibility of adjustment of 12
levels of sensitivity.
function menu;
4. Remove JPROG jumper;
SN1 LED:
- Flashes once whenever it recognizes the
button as pressed
SN2 LED:
- Flashes once;
AUTOMATIC / SEMI AUTOMATIC
TIME
SN1 LED:
At the end of the opening cycle, the gate
- Flashes once whenever the CMD button is
waits for the set pause time and closes
pressed ;
automatically whenever the automatic
- Flashes once for 10 seconds of the total time,
mode is enabled.
eg: 30-sec pause, LED flashes 3 times;
The SN1 and SN2 LEDs flash together every
- Flashes continuously - automatic mode
1 second, indicating decreasing time.
disabled;
When the pause time is set to Disabled,
- Remains on when maximum time is enabled;
the gate waits for the next command to
close.
1. With the gate still, close the JPROG
jumper, the SN1 LED will flash twice while
the CMD button is not pressed;
2. Press CMD twice and then GRV to enter
the function;
Enter Function GRV once GRV once
Confirm
Enter Function GRV once Increase GRV once
Enter Function GRV once
Confirm GRV once
Enter Function GRV once Increase GRV once
Enter Function GRV once Increase GRV once
Enter Function GRV once Increase GRV once
Enter Function GRV once Increase Distance GRV once
Enter Function GRV once Increase Distance GRV once
Enter Function GRV once Increase Torque GRV once
Enter Function GRV once Increase Torque GRV once
SN2 LED:
- Flashes 10x (Opening);
- Flashes 11x (Closing);
ADDING REMOTE CONTROLS
PPA standard remote controls.
1. With the gate still, close the JPROG
jumper, SN1 LED will flash twice;
2. Press a button of the remote control, SN2
LED will start flashing whenever it receives a
valid code;
3. Press and release the GRV button;
4. Release the button of the remote control;
5. If the control has been successfully added,
SN1 and SN2 LEDs flash;
6. If the button had already been added SN1
LED flashes twice;
7. Full memory, SN1 LED flashes 3 times;
8. To add a new control, go back to step 3;
9. Remove JPROG jumper to finish;
ERASING A PATH
Return travel time to 1 minute.
1. Gate must be still;
2. With Jumper JPROG open, press GRV + button
for 3 seconds.
3. SN1 and SN2 LEDs flash, confirming the
operation
LIMIT SWITCH
PROGRAMMING
JUMPER
CLS
PHOTOCELL
PUSHBUTTON
CONFIGURATION
BUTTONS
INDICATOR
(OPTIONAL) LOCK
LEDS
RELAY MODULE
3. Press GRV to increase the standby time
1. With the gate still, close the JPROG
in automatic ode or CMD to decrease jumper, LED SN1 will start flashing twice
the time. while the CMD button is not pressed;
4. Whenever the time is reset, the gate remains
2. Press CMD 3 times, then GRV to enter
in the semi-automatic mode; function;
3. PPress GRV to erase controls or CMD to
5. 10-second gradation / max 120 seconds
cancel and return to the function menu;
6. Remove JPROG jumper;
4. Remove JPROG jumper;
Settings:
0 = Automatic mode disabled;
SN1 LED:
1 = 10-second pause;
- Flashes once whenever a button is
2 = 20-second pause;
pressed;
...
- Flashes 10 times fast, confirming the
12= 120-second pause;
exclusion of the remote controls;
SN2 LED:
- Flashes 3 times;
COURTESY LIGHT TIME / DELAY
Sets the time to turn off the relay
SN2 LED:
module of the courtesy light when the
- Flashes twice;
gate reaches the closing limit switch or
the pause time for the gate to start
ERASING REMOTE CONTROLS
opening after the activation of the relay
module connected to the "LIGHT" output
Erases the memory to add new remote
(Traffic Light).
controls.
For the Courtesy Light Time:
The setting has levels from 0 to 7, max
time = 4 minutes.
Operation: The garage light will turn on
Cancel CMD once whenever the gate is in motion or is
open waiting for a new command, and
Decrease CMD once
will be turned off when the gate fully
closes and after the scheduled time has
Cancel CMD once
elapsed.
Decrease CMD once
For Opening Delay with Traffic Light
activated:
The setting has levels from 8 to 120, max
time = 16 seconds.
Operation: When the gate is fully closed
Decrease CMD once
and when it receives a command for the
opening cycle, the traffic light will be
Decrease CMD once
activated and on for the set time and
then the motor will be activated. The
Decrease Distance CMD once
traffic light will be deactivated at the end
of the door closing cycle or when a new
Decrease Distance CMD once
command by remote control is received
during the delay time.
Decrease Torque CMD once
1. With the gate still, close the JPROG
jumper, SN1 LED will flash twice while the
Decrease Torque CMD once
CMD button is not pressed;
2. Press CMD 4 times and then GRV to
enter the function;
EXTRA INDICATION ON
LEDs
- Starting and leaving the program: SN1 LED (red)
flashes once, slowly;
- Last Command - Opening: SN2 LED (green)
flashes 3x, fast;
- Last Command - Closing: LED SN1 flashes 4x, fast;
- Photocell triggered: LED SN1 remains lit.

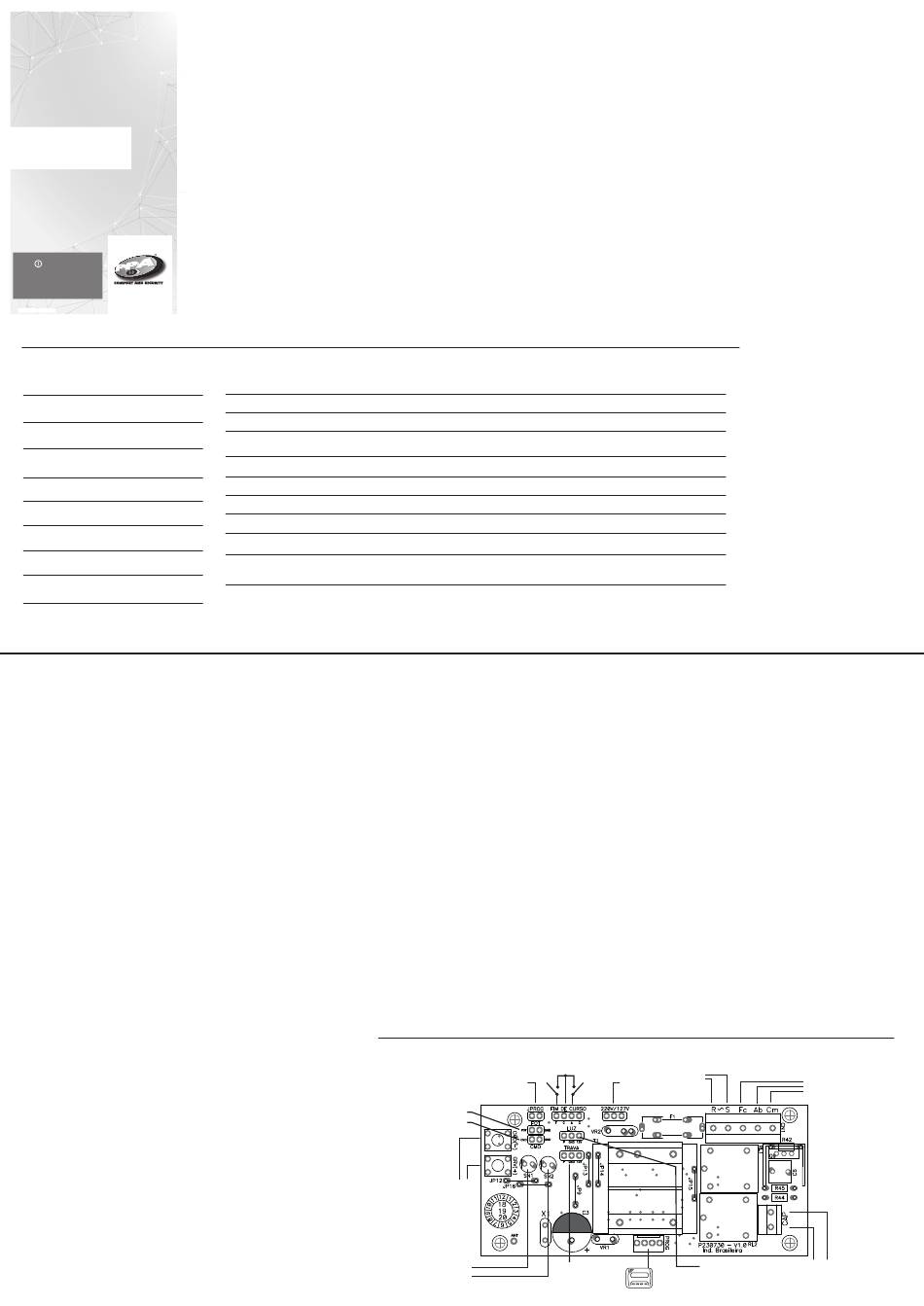

ELECTRICAL WIRING
VOLTAGE ELECTRICAL
SELECTION NETWORK
JUMPER 127/220V
OLS
(OPTIONAL) COURTESY
LIGHT RELAY MODULE
PROG BY PPA
SINGLE-PHASE
INDUCTION
MOTOR
ENGINE START
CAPACITOR
