Page 2 Here the manual tells you how to keep your Cadillac running properly and looking good. Customer Assistance Information This section tells you how to contact Cadillac for assistance and how to get service and owner publications. It also gives you information on “Reporting Safety Defects” on page 7-10.
Page 3: For Canadian Owners Who Prefer A French Language Manual
“General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual. Please keep this manual in your Cadillac, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it.
Page 4 PENALTY OF LEADERSHIP adillac Motor Car Co. Detroit, Mich. THIS TEXT APPEARED AS AN ADVERTISEMENT IN THE SATURDAY EVENING POST JANUARY 2ND, IN THE YEAR COPYRIGHT, CADILLAC MOTOR CAR DIVISION 1915...
Page 6 19 12 models. Cadillac is the only American manufacturer to win this honor and the only manufacturer in the world to win it twice. As Few automobiles are fortunate enough to have the rich heritage that is Cadillac.
Page 7 From this achievement evolved the Compression reference to Cadillac as “Standard of the World.” V8 Engine In 1909 Cadillac was purchased by the then new General Motors Corporation. Convenience, cleanliness and all-weather comfort were greatly enhanced in 1910 when Cadillac became the first manufacturer to offer closed bodies as standard equipment.
Page 8 Cadillacs beginning with the 19 15 a l l model. Many Cadillac “firsts” have followed over the years, including the synchro-mech clashless transmission, a nationwide comprehensive service policy, security plate glass, chrome plating and the first car to be designed by a stylist (1927 LaSalle/Harley Earl).
Page 9 There are, to be sure, many ways to describe the superlative motor car pictured. “Beauty,” “majesty,” “brilliance” - all apply, fullest meaning, to this new Cadillac. And yet, from selected “elegance” as the word that most fully characterizes the Cadillac of 1960. The car’s beautiful, clean-lined styling is certainly elegant beyond compare.
Page 10 For the 1948 model, Cadillac introduced the legendary tail fin which once more set the trend in automotive styling for nearly two decades. This was closely followed with the two door hardtop Coupe DeVille and the industry's first modern overhead valve, high compression V8 engine on the 1949 model.
Page 11 The electronics and computerization which were pioneered by Cadillac in the ’70s came of age in the ’80s with Digital Fuel Injection and On-Board Diagnostics in 1980, four wheel Anti-lock Brakes on 1986 models and Traction Control in the fall of 1989.
Page 12: How To Use This Manual
How to Use This Manual Many people read their owner’s manual from beginning to end when they first receive their new vehcle. If you do this, it will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
Page 14 Vehicle Symbols These are some of the symbols you will find on your vehicle. For example, These symbols these symbols are important are used on an for you and original battery: your passengers whenever your vehicle is CAUTION driven: POSSIBLE INJURY DOOR LOCK PROTECT...
Page 15 NOTES...
Page 16: Section 1 Seats And Restraint Systems
Section 1 Seats and Restraint Systems Here you’ll find information about the seats in your Cadillac and how to use your safety belts properly. You can also learn about some things you should not do with air bags and safety belts.
Page 17 The rear TILT control makes the rear portion of the seat cushion move up or down. Moving the center control to the right or left makes the whole seat cushion move up or down. Moving the center control backward or forward makes the whole seat move rearward or forward.
Page 19 But don’t have a seatback reclined if your vehicle is moving. Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle your safety belts do their job when can’t you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
Page 20: Head Restraints
Head Restraints Slide the head restraint up or down so that the top of the restraint is closest to the top of your ears. This position reduces the chance of neck injury in On some models, the head restraints tilt forward and rearward also.
Page 21: Why Safety Belts Work
In most states and Canadian provinces, the law says to wear safety belts. Here’s why: They work. never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive.
Page 22 Get it up to speed. Then stop the vehicle. The rider Put someone on it. doesn’t stop.
Page 23 The person keeps going until stopped by something. or the instrument panel In a real vehicle, it could be the windshield...
Page 25: How To Wear Safety Belts Properly
Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If Cadillac, see the part of this manual called “Children.” k m ) Follow those rules for everyone’s protection.
Page 27 Shoulder Belt Tightness Adjustment Your car has a shoulder belt tightness adjustment feature. If the shoulder belt seems too tight, adjust it before you begin to drive. 1. Sit well back in the seat. 2. Start pulling the shoulder belt out. 3.
Page 28 What’s wrong with this? The shoulder belt is too loose. It won’t give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
Page 29 What's wrong with this? The belt is buckled in the wrong place. You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 30 &: What’s wrong with this? The shoulder belt is worn under the a r m . It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the In a shoulder belt under your arm. body would move too far forward, which would increase the chance of head and neck injury.
Page 31 &: What’s wrong with this? The belt is twisted across the body. 1-16 CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
Page 32: Supplemental Inflatable Restraint (Sir) System
(SIR) System This part explains the Supplemental Inflatable Restraint (SIR) system or air bag system. Your Cadillac has two air bags one air bag for the driver and another air bag for the right front passenger. Here are the most important things to know about the air...
Page 33 You can be severely injured or killed in a crash if you aren’t wearing your safety belt you have an air bag. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 34: How The Air Bag System Works
An inflating air bag can seriously injure small children. Always secure chiIdren properly in your vehicle. To read how, see the part of this manual called “Children” and the caution label right front passenger’s safety belt. There is an air bag readiness light on the instrument panel, which shows AIR BAG.
Page 35 The right front passenger’s air bag is in the instrument panel on the passenger’s side. 1-20 Don’t put anything on, or attach anything to, the steering wheel or instrument panel. Also, don’t put anything (such as pets or objects) between any occupant and the steering wheel or instrument panel.
Page 36 In any particular crash, no one can say whether an air bag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. Inflation is determined by the angle of the impact and the vehicle’s deceleration.
Page 37 ‘ U ’? ‘ r , ’, :AU$ZON: .’. <, , - , A ~~~~~ When an air bag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble.
Page 38: Safety Belt Use During Pregnancy
Servicing Your Air Bag-Equipped Cadillac Air bags affect how your Cadillac should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle. Your...
Page 39: Right Front Passenger Position
The best way to protect the fetus is to protect the mother, When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 40 When you sit in the center front seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt. To make the belt shorter, pull its free end as shown until the belt is snug.
Page 41: Rear Seat Outside Passenger Positions
Rear Seat Passengers It's very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren't safety belted can be thrown out of the vehicle in a crash.
Page 42 If the belt stops before it reaches the buckle, tilt the latch 3. To make the lap part tight, pull down on the buckle plate and keep pulling until you can buckle end of the belt as you pull up on the shoulder part. Pull up on the latch plate to make sure it is secure.
Page 43 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 44: Center Rear Passenger Position
Center Rear Passenger Position Lap Belt When you sit in the center rear seating position, you have a lap safety belt which has a retractor. 1. Pick up the latch plate and, in a single motion, pull the belt across you. Don’t let it get twisted. 2.
Page 45: Smaller Children And Babies
4. Position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 46 Never hold a baby in your arms while riding in a vehicle. A baby doesn't weigh much crash. During a crash a baby will become so CAUTION: (Continued) (Continued) CAUTION: heavy you can't hold it. For example, in a crash at only 25 mph (40 will suddenly become a 240-lb.
Page 47: Child Restraints
Child Restraints sure the child restraint is designed to be used vehicle. If it is, it will have a label saying that it meets Federal Motor Vehicle Safety Standards. Then follow the instructions far the restraint. You may find these instructions on the restraint itself or in a bQoklet, or both.
Page 49: Securing A Child Restraint In A Rear Outside Seat Position
Your dealer can obtain the hardware ‘kt and install it for you, or you may install it yourself using the instructions provided in the kit. Use the tether hardware kit available from the dealer. The hardware and installation instructions were specifically designed for this vehicle.
Page 51 Securing a Chilq Restraint in the Center Rear Seat Position You'll be using the lap belt. CAUTION: A child in a child restraint in the center front seat can be badly injured by the right front passenger air bag if it inflates. Never secure a child restraint in the center front seat.
Page 53: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger air bag. Never put a rear-facing child restraint in this seat. Here’s why: CAUTION: A child in a rear-facing child restraint can be seriously injured if the right front passenger’s air bag inflates.
Page 54 6. Pull the rest of the lap belt all the way out of the 5. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-39...
Page 55 7. To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. 1-40 8. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, just unbuckle the vehicle’s safety belt and let it go back all the way.
Page 56: Larger Children
Larger Children Children who have outgrown child restraints should wear the vehicle’s safety belts. If you have the choice, a child should sit next to a window so the child can wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. Accident statistics show that children are safer if they are restrained in the rear seat.
Page 57 1-42 Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or n-eck?
Page 59: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the\ extender will be long enough for you.
Page 60: Section 2 Features And Controls
Section 2 Features and Controls Here you can learn about the many standard and optional features on your Cadillac, and information on starting, shifbng and braking. Also explained are the instrument panel and the warning systems that tell you if everything is working properly and what to do if you have a problem.
Page 61 NOTICE: Your Cadillac has a number of new features that can help prevent theft. But you can have a lot of trouble getting into your vehicle if you ever lock your keys inside. You may even have to damage your vehicle to get in.
Page 63 Power Door Locks rress the lower part of the switch marked LOCK to lock all doors at once. Press the upper part of the switch marked UNLOCK to unlock all the doors. The switch on each rear door only locks or unlocks that door.
Page 64: Rear Door Security Lock
Rear Door Security Lock Your Cadillac is equipped with rear door security locks that help prevent passengers from opening the rear doors of your car from the inside. 1. Move the lever on the door all the way up to the ENGAGED position.
Page 65: Keyless Entry System
This product has a maximum range. Check the location. Other vehicles or objects may be blocking the signal. See your Cadillac dealer or a qualified technician for service. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.
Page 66: Operation
Operation Press the unlock symbol to unlock the driver’s door. Press it again within five seconds to unlock the other doors. Pressing this symbol will also disarm the optional Theft-Deterrent System and turn on the interior lamps. Press the lock symbol to lock your doors. This also arms the optional Theft-Deterrent System.
Page 67 See “Engine Exhaust” in the Index.
Page 68 Remote Trunk Release This remote trunk release button is in the glove box. This button works when the ignition is on. If you stop your vehicle and turn the ignition key to OFF you can still use the remote trunk release because your vehicle has Retained Accessory Power (RAP).
Page 69: Key In The Ignition
When you park your Cadillac and open the driver’s door, you’ll hear a chime reminding you to remove your key from the ignition and take it with you. Always do this.
Page 70: Security System
Tbeft-Deterrent System (Option) If your Cadillac has this option, it has a theft-deterrent alarm system and a fuel filler door lock SECURITY release. If the ignition is off, the SECURITY SYSTEM SYSTEM light will flash as you open the door, reminding you to activate the system.
Page 71: Testing The Alarm
Testing the Alarm From inside the vehicle, roll down your window, then get out of your vehicle, keeping the door open. From outside the vehicle with the door open, lock the vehicle using the power door lock or the Keyless Entry System and close the door.
Page 72 PASS KEY FAULT light will flash. But you don’t have to wait three minutes before trying another ignition key. See your Cadillac dealer or a locksmith who can service the PASS-Key 1 1 to have a new key made. If you’re ever driving and the PASS KEY FAULT light comes on and stays on, you will be able to restart your engine if you turn it off.
Page 73: Ignition Key Positions
NOTICE: Your modern Cadillac doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: Keep your speed at 55 mph (88 km/h) or less for the first 500 miles (804 km).
Page 74 LOCK (B): Before you put the key in, your ignition will be in the LOCK position. This is the only position in which you can remove the key. This position locks your ignition, steering wheel and transmission. It’s a theft-deterrent feature. OFF (C): This position unlocks the steering wheel, ignition and transmission but doesn’t send electrical...
Page 75: Retained Accessory Power (Rap)
Retained Accessory Power When you stop your Cadillac and turn the ignition to the OFF position, you can use these accessories 10 more minutes. Radio Power Windows Astroroof (Option) Windshield Wipers Trunk Release When you open a door or after 10 minutes, everything will go off.
Page 76 Starting Your 5.7 Liter LTl Engine 1. Without pushing the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. NOTICE: Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner.
Page 77: Engine Coolant Heater (Canada Only)
Instead of trying to list everything here, we ask that you contact your Cadillac dealer in the area where you’ll be parking your vehicle. The dealer can give you the best advice for...
Page 80 AUTOMATIC OVERDRIVE (@): is for normal driving. I f you need more power for passing, and you’re: Going less than about 35 mph (55 accelerator pedal about halfway down. Going about 35 mph (55 km/h) accelerator all the way down. The transmission will shift down to the next gear.
Page 81: Parking Brake
Parking Brake set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on. When you shift out of PARK (P) or NEUTRAL (N), if your engine is running, your parking brake should release.
Page 82 1. Hold brake pedal down with- your right foot.
Page 83 2. Move the shift lever into PARK like this: Pull the lever toward you. 2-24 position Move the lever up as far as it will go. With your right foot still holding the brake pedal down, set the parking brake. Turn the ignition key to LOCK.
Page 84: Leaving Your Vehicle With The Engine Running
Leaving Your Vehicle With the Engine Running It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire.
Page 85: Shifting Out Of Park (P)
(P). 2-26 Shifting out of PARK (P) Your Cadillac has a brake-transmission shift interlock. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is in the RUN position. See “Automatic Transmission” in the Index.
Page 86: Parking Over Things That Burn
Parking Over Things That Burn Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don’t park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTEOIPJ: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can’t see or smell.
Page 88: Power Windows
Power Windows The power window controls on the driver’s armrest control each of the four windows. In addition, there are individual controls near each window. Move the control forward to raise the window and rearward to lower. The driver’s window has an express-down feature. Just press the control once -- for half a second or more and then let go.
Page 90 lhrr Signal and Lane Change Indicator To signal a turn, move the lever all the way up or down. When the turn is finished, the lever will return automatically. An arrow on the instrument panel will flash in the direction of the turn or lane change.
Page 91: Flash-To-Pass
Headlamp High/L~w Beam Changer Pull the turn signal lever all the way toward you and release it to change the headlamps from low beam to high or from high beam to low. When the high beams are on, this light the instrument panel will also be on.
Page 92: Windshield Wipers
Windshield Wipers WIPER: To the wipers, turn the band on the turn signal lever. MIST Turn the band to MIST and then release it for a single wipe cycle. For more cycles, hold the band on MIST longer. LO or HI: Turn the band toward you to either LO (low speed) or to HI (high speed), depending on the wiper speed you want.
Page 93: Windshield Washer
Windshield Washer At the top of the turn signal lever is a paddle with the word PUSH on it. To spray washer fluid on the windshield, press the paddle. The washer will continue to spray until you release the paddle. The wipers will clear the window and wipe a few more times before stopping or returning to the previous setting.
Page 94 Cruise control can be dangerous where you can’t drive safely a steady speed. So, don’t use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control.
Page 95 Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, shuts off the cruise control. But you don’t need to reset Once you’re going about 25 mph (40 W h ) or more, you can move the cruise control switch from ON to You’ll go right back up to your chosen speed and...
Page 96 Reducing Speed While Using Cruise Control There are two ways to reduce your speed while using cruise control: Press in the button at the end of the lever until you reach the lower speed you want, then release it. To slow down in very small amounts, press the button for less than half a second.
Page 97: Lamps On Reminder
Lamps This knob controls these lamps: Headlamps Taillamps Parking Lamps License Lamps Sidemarker Lamps Instrument Panel Lights Interior Courtesy Lamps 2-38 Pull the knob out to the first stop to turn on your parking lamps. Pull the knob out all the way to turn on the headlamps.
Page 98 When the DRL are on, only your low-beam headlamps will be on. The taillamps, sidemarker and other lamps won’t be on. Your instrument panel won’t be lit up either. When it’s dark enough outside, your low-beam headlamps will change to full brightness. The other lamps that come also on with your headlamps will come on.
Page 99: Interior Lamps
Illuminated Entry System When you lift the door handle, the lamps inside your Cadillac will go on. They’ll go off when you start your engine, or when 30 seconds have passed. When you press any button on the Keyless Entry transmitter, you...
Page 101: Electrochromic Mirror
Mirrors Electrochromic Mirror Your Cadillac has an automatic inside rearview mirror. During the day it works like a regular mirror, but at night it adjusts for the glare of headlamps behind you. The mirror delays before switching from day to night mode.
Page 105: Ashtrays And Cigarette Lighter
Ashtrays and Cigarette Lighter To remove the rront center ashtray for cleaning, lift it out by pulling on the snuffer. If it won’t come out, reach under the drawer and push up on the ashtray bowl and remove it The rear ashtrays are located on the door armrests. To remove the ashtrays for cleaning, lift the cover and pull up on the snuffer.
Page 106: Sun Visors
Pull a mirror down. Move the switch up or down to brighten or dim the lamps. Floor Mats Your Cadillac is equipped with rubber-backed front and rear floor mats. Keep floor mats vacuumed and use a spot cleaner, if necessary. Do not maclune wash.
Page 107: Universal Transmitter (Option)
I€ you have this option, you have a safety glass panel and a sunshade. You can slide your sunshade open or closed with the handle. When your ignition is in RUN, move the switch toward the rear of the car to open the roof.
Page 108: Programming The Transmitter
Federal Consumer Safety Standards. If you cannot program the transmitter after repeated attempts, consult your Cadillac dealer. Be sure to keep your original hand-held transmitter in case you need to erase and reprogram the transmitter.
Page 109: Operating The Transmitter
Note to Canadian Owners: During programming, your hand-held transmitter may stop transmitting after one or two seconds. If you are programming from one of these transmitters, the indicator light may prompt you to re-activate your hand-held transmitter with a series of double blinks.
Page 110: Instrument Panel
Instrument Panel 1. Side Vents 2. Main Lamp Control 3. Instrument Cluster 4. Center Vents 5. Comfort Controls 6. Glove Box 7. Ashtray and Cigarette Lighter 8. Audio System 9. Transmission Shift Lever 10. Horn 11. Multifanction Lever 2-51...
Page 111 CONTROL The instrument panel is designed to let you know at a glance how your Cadillac is running. You’ll know how fast you’re going, how much fuel you’re using, and many of other things you’ll need to know to drive safely and economically.
Page 112: Speedometer And Odometer
(used in the United States) or kilometers (used in Canada). Your Cadillac Brougham has a tamper-resistant odometer. If your odometer displays ERROR, someone has probably tampered with it.
Page 113: Warning Lights, Gages, And Indicators
Warning Lights. Gages and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 114: Airbag Readiness Light
CHARGE If a light stays on, you need service, and you should take your Cadillac to the dealer at once. To save your battery until you get there, turn off all accessories and set your Electronic Climate Control system to OFF.
Page 115: Brake System Warning Light
Brake System Warning Light Your Cadillac’s hydraulic brake system is divided into two parts. If one part isn’t worlung, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there could be a brake problem.
Page 116: Anti-Lock Brake System Warning Light
Then start the engine again to reset the system. If the light still stays on, or comes on again while you’re driving, your Cadillac needs service. If the regular brake system warning light isn’t on, you still have brakes, but you don’t have anti-lock brakes.
Page 117: Traction Engaged
Traction Control System Warning Light This warning light should come on briefly as you start the engine. If it doesn’t come on then, have it fixed so it will be ready to warn TRACTION you if there’s a problem. CONTROL If it stays on, or comes on when you’re driving, there may be a problem with your traction control system and your vehicle may need service.
Page 118: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light This light should come on briefly as a bulb check when you start the engine. This light tells you that your engine coolant has overheated. TEMP If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn the engine off as soon as possible.
Page 119 Malfunction Indicator Lamp (Service Engine Soon Light) SERVICE ENGINE SOON Domestic Your Cadillac is equipped with a computer which monitors operation of the fuel, ignition and emission control systems. 2-60 This system is called OBD Diagnostics-Second Generation) and is intended...
Page 120 NOTICE: If you keep driving your vehicre with on, after a while, your emission controls may not work as well, your fuel economy may not be as good and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 121 If the Light Is On Steady You may be able to correct the emission system malfunction by considering the following: Did you just put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. The diagnostic system can determine if the fuel cap has been left off or improperly installed.
Page 122: Oil Pressure Light
Oil Pressure Light This light comes on as a bulb check when you start the engine. If it doesn’t, be sure to have it fixed so it will be there to warn you if something goes wrong. PRESSURE When this light comes on and stays on, it means oil isn’t going through your engine properly.
Page 123: Low Oil Level Light
Low Oil Level Light This light should come on while you are starting your engine provided that your engine has been off long enough to let most of the oil drain back into the oil pan. OIL LEVEL During frequent stopping and starting, the light will not always come on as you start the engine.
Page 124 After changing the engine oil, the system must be reset. With the ignition key in the RUN position but the engine off, fully push and release the accelerator pedal three times within five seconds. If the CHANGE OIL light flashes two times, the system is reset. However, if the light comes on and stays on for five seconds, it did not reset.
Page 125 Cruise Engaged Light This light will come on when your cruise control is set to a selected speed. CRUISE ENGAGED Washer Fluid Low Light This light comes on bulb check when you start your engine. If this light comes on when your WASHER washers are turned on, you're low on washer fluid.
Page 126: Door Ajar Light
Door Ajar Light (Op tion) This light will come on if a door is not completely closed. DOOR AJAR Trunk Ajar Light This light will come on if your trunk is not closed. TRUNK AJAR 2-67...
Page 127 Fuel Gage The fuel gage shows about how much fuel is in the UNLEADED FUEL ONLY tank. It works only when the ignition is in the RUN position. The 17 bar segments show the fuel remaining in your tank. ~wmmmnrn When only one bar segment is still lit, the LOW message will appear.
Page 128: Section 3 Comfort Controls And Audio Systems
- % \ Section 3 Comfort Controls and Audio Systems In this section you’ll find out how to operate the comfort control and audio systems offered with your Cadillac. Be sure to read about the particular systems supplied with your vehicle.
Page 129 OFF: This turns off anything set in the ECC, but air will flow through your Cadillac. ECON: Use this in cold or cool weather to save fuel. It won't cool or remove humidity from the air. However, the system will try to keep the air at the chosen temperature.
Page 131: Audio Systems
Defogging and Defrosting DEFROST: To get fog or ice off the windshield, press this button. The fan comes on at a set speed or you can choose another fan speed. It will work better if you first clear any ice and snow from the hood and the air inlet between the hood and the windshield.
Page 132: Am-Fm Stereo With Cassette Player
AM-FM Stereo with Cassette Player Playing the Radio ON: Press this button to turn the system on or off. VOL: Turn this knob clockwise to increase volume. Turn it counterclockwise to decrease volume. RCL: Press this button briefly to recall the station being played or the clock display.
Page 133 TONE: This feature allows you to choose preset treble and bass equalization settings designed for jazz, vocal, pop, rock and classical stations. JAZZ will appear on the display when you first press TONE. Each time you press it, another setting will appear on the display. Press again after classic appears, and MANUAL will appear.
Page 134 If ERR or E and a number appear on the display, the tape won’t play because of an error. E10: The tape is tight and the player can’t turn the tape hubs. Remove the tape. Hold the tape with the open end down and try to turn the right hub counterclockwise with a pencil.
Page 135 RDM (5): This button is active when the sound system is equipped with a remote 12-disc changer. It will change discs and tracks in a random, rather than sequential, order. AM-FM: Press this button to play the radio when a tape is playing.
Page 136 RCL: Press this button briefly to recall the station being played or the clock display. To change what is normally shown on the display (station or time), press the button until you see the &splay you want. Then, hold the button until the display flashes.
Page 137 BASS: Press this knob iightiy so it extends. Turn the knob clockwise to increase bass and counterclockwise to decrease bass. The rniddle position is a detent. Push the knob back in when you’re not using it. TREB: Press this knob lightly so it extends. Then pull the knob all the way out.
Page 138 SEEK: Press the up or down arrow to search for the next or previous selection on the tape. Your tape must have at least three seconds of silence between each selection for SEEK to work. The sound will be muted while seelung.
Page 139 Playing a Compact Disc The integral CD player can play 8 cm “single” mini-discs. Full-size compact discs and mini-discs are loaded in the same manner. Insert a disc partway into the slot, label side up. The player will pull it in. If the ignition is on, but the radio is off, the disc will begin playing.
Page 140: Theft-Deterrent Feature
TAPE-CD: Press this button to change to the tape or disc function when the radio is on. If both a tape and a disc are installed, the system will first go to tape play; a box will appear around TP on the display. If TAPE-CD is pressed again, the system will go to disc play;...
Page 141 Press the 1 and 4 buttons together. Hold them down until shows on the display. Next you will use the secret code number which you have written down. 5. Press MN and 000 will appear on the display. 6. Press MN again to make the last two digits agree with your code.
Page 142: Understanding Radio Reception
Disabling the Theft-Deterrent Feature Enter your secret code as follows; pause no more than 15 seconds between steps: Turn the ignition to the ACCESSORY or RUN position. Turn the radio off. Press the 1 and 4 buttons together. Hold them down until SEC shows on the display.
Page 143 NOTICE: Before you add any sound equipment to your vehicle like a tape player, CB radio, mobile telephone or two-way radio be sure you can add what you want. I f you can, it’s very important to do it properly. Added sound equipment may interfere with the operation of your vehicle’s engine, Delco radio or other systems, and even damage them.
Page 144: Care Of Your Cassette Tape Player
A scrubbing action cleaning cassette is available through your Cadillac dealer. You may also choose a non-scrubbing action, wet-type cleaner which uses a cassette with a fabric belt to clean the tape head.
Page 145: Power Antenna Mast Care
Power Antenna Mast Care Your power antenna will look its best and work well if it’s cleaned from time to time. antenna mast: Turn on the ignition and radio to raise the antenna. Dampen a clean cloth with mineral spirits or equivalent solvent.
Page 146: Section 4 Your Driving And The Road
Section 4 Your Driving and the Road Defensive Driving...
Page 147: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination Vision...
Page 148 It’s the amount of alcohol thattcounts. For example, if the same person dm& three double martinis (3 ounces or 90 of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a .somewhat lower BAC level.
Page 149 Drinking and then driving is very dangerous. Your reflexes, perceptions, attentiveness and judgment can be affected by even a small amount of alcohol. You can have a serious fatal collision if you drive after drinking. Please don’t drink and drive or ride with a driver who has been drinking.
Page 151: Anti-Lock Brakes
Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 152 Here’s how anti-lock works. Let’s say the road is wet. You’re driving safely. Suddenly an animal jumps out in front of you. You slam on the brakes. Here’s what happens with ABS. The anti-lock system can change the brake pressure faster than anv driver could.
Page 153: Traction Control System
Remember: Anti-lock doesn’t change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
Page 154 When the system is on, this warning light will come on to let you h o w if problem with ycittr traction control svstem. T' l R ACTl m O 1\1~ CO'NTROL there's TRACTION N TRO L- ENA'BLEjDlSABLE SWITCH Owner's Manual Printed Ur6.A.
Page 155: Braking In Emergencies
Braking in Emergencies Use your anti-lock braking system when you need to. With anti-lock, you can steer and brake at the same time. In many emergencies, steering can help you more than even the very best braking. Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort.
Page 157 Off-had Recovery You may find sometime that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 158: Loss Of Control
Do not get too close to the vehicle you want to pass while you’re awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you’re following a larger vehicle. Also, you won’t have adequate space if the vehicle ahead suddenly slows or stops.
Page 159 “overdriving” those conditions. But skids are always possible. The three types of skids correspond to your Cadillac’s three control systems. In the braking skid, your wheels aren’t rolling. In the steering or cornering skid, too much speed or steering in a curve causes tires to slip and lose cornering force.
Page 160: Driving At Night
Driving at Night Night driving is more dangerous than reason is that some drivers are likely to be impaired alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. Drive defensively. Don’t drink and drive. Since you can’t see as well, you may need to slow down and keep more space between you and other vehicles.
Page 161 What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses. Your eyes will have less trouble adjusting to night. But if you’re driving, don’t wear sunglasses at night.
Page 162: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can’t stop, accelerate or turn as well because your tire-to-road traction isn’t as good as on dry roads. And, if your tires don’t have much tread left, you’ll get even less traction.
Page 163 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can’t, try to slow down before you hit them. 4-18 ents.
Page 164: Driving Through Deep Standing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 165: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: Know the best way to get to where you are going.
Page 166: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 167: Before Leaving On A Long Trip
If it needs service, have it done before starting out. Of course, you’ll find experienced and able service experts in Cadillac dealerships all across North America. They’ll be ready and willing to help if you need it. 4-22...
Page 168: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 169 If you don’t shift down, your brakes could get so hot that they wouldn’t work well. You would then have poor braking or even none going down a You could crash. Shift down to let your engine assist your brakes on a steep downhill slope. Coasting downhill in NEUTRAL ignition off is dangerous.
Page 170: Winter Driving
Winter Driving Here are some tips for winter driving: Have your Cadillac in good shape for winter. YOU may want to put winter emergency supplies in your trunk. Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles.
Page 171: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You’ll have a lot less traction or “grip”...
Page 174: Loading Your Vehicle
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 175 MFDBYGENERALMOTORSCORP DATE GVWR GAWR THIS VEHICLE CONFORMS TO ALL APPLI- CABLE U.S. FEDERAL MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PREVENTION STANDARDS IN EFFECT ON THE DATE OF SHOWN MANUFACTURE ABOVE. The other label is the Certification label, found on the rear edge of the driver’s door.
Page 176: Towing A Trailer
You and your passengers could be seriously injured. Pull a trailer only if you have followed all the steps in this section. Ask your Cadillac dealer for advice and information about towing a trailer with your vehicle.
Page 177 So please read this section carefully before you pull a trailer. Your Cadillac is a passenger vehicle. Trailer towing can change the way your vehicle performs on the road. The loads and forces created when trailering subject the vehicle to significant levels of stress.
Page 178: Weight Of The Trailer
You can ask your dealer for our trailering information or advice, or you can write us at: Consumer Relations Center Cadillac Motor Car Division 30009 Van Dyke P.O. Box 9025 Warren, MI 48090-9025...
Page 179: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total capacity weight of your vehicle. The capacity weight includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 180 Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you’ll need the right hitch. Here are some rules to follow: If you’ll be pulling trailer that, when loaded, will weigh more than 2,000 lbs.
Page 181 Your vehicle is equipped with an Electronic Level Control (ELC) feature. When hooking up a trailer using a weight distributing hitch, always use the following procedure: Place the vehicle on a level surface without the trailer hitched. With the ignition closed, allow the vehicle to level automatically.
Page 182 Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer so that the tongue will not drop to the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 183: Making Turns
4-3s Backing Up Hold the bottom of the steering wheel with one hand. Then, to move the trailer to the left, just move that hand to the left. To move the trailer to the right, move your hand to the right. Always back up slowly and, if possible, have someone guide you.
Page 184: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal flasher and/or extra wiring. Check with your Cadillac dealer. The arrows on your instrument panel will flash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also flash, telling other drivers you’re about to turn, change lanes or stop.
Page 185: Maintenance When Trailer Towing
’ m e n You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: Start your engine; Shift into a gear; and Be sure the parking brake has released. 2.
Page 186: Section 5 Problems On The Road
- = x \ Section 5 Problems on the Road Here you’ll find what to do about some problems that can occur on the road. Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off.
Page 188 If they are, it could cause a ground connection you don’t want. You wouldn’t be able to start your Cadillac, and the bad.grounding could damage the electrical systems. You could be injured if the vehicles roll. Set the parking brake firmly on each vehicle.
Page 190 Don’t let the other end touch anything until the next 7 . Don’t let the other step. The other end of the negative cable doesn’t go to end touch metal. the dead battery. It goes to a heavy unpainted metal part Connect it to the on the engine of the vehicle with the dead battery.
Page 191 9. Attach the cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, but the chance of sparks getting back to the battery is much less. 10.
Page 192: Towing Your Vehicle
Towing Your Vehicle Try to have a Cadillac dealer or a professional towing service tow your Fleetwood. They can provide the right equipment and know how to tow your vehicle without damage. See “Roadside Assistance” in the Index. If your vehicle has been changed or modified since it...
Page 193 CAUTION: A vehicle can fall from a car carrier if it isn’t adequately secured. This can cause a collision, serious personal injury and vehicle damage. The vehicle should be tightly secured with chains or steel cables before it is transported. Don’t use substitutes (ropes, leather straps, canvas webbing, etc.) that can be cut by sharp edges underneath the towed vehicle.
Page 194: Front Towing
Front Towing Limits -- 35 mph (56 k m h ) , 50 miles (80 krn) Position the cross bar just behind the rear edge of the Attach T-hook chains on both sides in the slotted holes front bumper. in the side of the frame rails behind the front wheels. These slots are to be used when using sling type equipment or when loading and securing to car carrier equipment.
Page 195: Rear Towing
Rear Towing Attach a separate safety chain around the outboard end of each lower control arm. Attach T-hook chains to the slots in the frame rails just ahead of the rear wheels on both sides. These slots are to be used when using sling type equipment or when loading and securing to car carrier equipment.
Page 196 Position the lower sling crossbar directly under the rear fascia. Attach a separate safety chain around each side of the axle inboard of the springs. 5-11...
Page 197 NOTICE: If yonr engine catches fire because you keep driving with no cwlant, yuur vehicle can be badly damaged. The costly repairs would not be covered by your warranty.
Page 198: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get the overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: Climb a long hill on a hot day. Stop after high-speed driving.
Page 199 When you decide it’s safe to lift the hood, here’s what you’ll see: 1. Coolant Surge Tank 2. Electric Engine Fans or Mechanical Fan and Electric Fan An electric fan under the hood can start when the engine is not running and can injure you.
Page 200 The coolant level should be at or above the FULL COLD mark. If it isn’t, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. I/“. CArnQ!y: _,J’ Heater and radiator hoses, and other engine parts, can be very hot.
Page 201: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank If you haven’t found a problem yet, but the coolant level isn’t at the FULL COLD mark, add a 50/50 mixture of clean water (preferably distilled) and DEX-COOL antifreeze at the coolant surge tank, but be sure the cooling system, including the coolant surge tank pressure cap, is cool before you do it.
Page 202 CAUTION: k!!!L Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mix will. Your vehicle’s coolant warning system is set for the proper coolant mix. With plain water or the wrong mix, your engine could get too hot but you wouldn’t get the overheat warning.
Page 203 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly about one-quarter ti the left and then stop. If you hear a hiss, wait for that to stop.
Page 204 4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine fans. By this time, the coolant level inside the coolant surge tank may be lower.
Page 205: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for tire to “blow out” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are tips about what to expect and what to do: If a front tire fails, the flat tire will create a drag that pulls the vehicle toward that side.
Page 206: Removing The Spare Tire And Tools
The following steps you how to use will tell change a tire. Removing the Spare Tire and Tools The equipment you’ll need is in the trunk. the jack and Your vehicle may be equipped with spare tire. Remove the spare and jack.
Page 207 The tools you'll be using include the jack (A) and jack handle (B). 5-22 To unlock the fender skirt, locate the handles inside the fender skirt. Push the handles up and inward, and then pull them down. Gently remove the skirt by pulling it toward you.
Page 208 the Flat Use the flat end of the wheel wrench. Insert it into the small slot on the wheel and gently remove the center cover. Be careful not to drop the cover on the ground or you could scratch 1. Using the wheel wrench, loosen all the wheel nuts. Don't remove them yet.
Page 209 2. Attach the wheel wrench to the jack bolt and rotate it clockwise. The lift head will be slightly raised. 5-24 3. Position the jack under the vehicle, near the flat tire. There are two holes in the frame near each of the wheels.
Page 210 Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. NOTICE: Raising your vehicle with the jack improperly positioned will damage the vehicle or may allow the vehicle to fall off the jack.
Page 211 6. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 212 Lower the vehicle by rotating the wheel wrench counterclockwise. Lower the vehicle completely. 9. Tighten the wheel nuts firmly in a criss-cross sequence as shown. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off.
Page 214 Reinstalling the Fender Skirt Here’s how to put your rear fender skirt back on: 2. Align the lower locator pins on each side to the skrrt. 1. Pull the handles down. 5-29...
Page 215 3. Align the upper locator pins and insert the pins into the holes. 4. Push the handles up to lock the skirt in place. 5-30 Compact Spare Tire (If So Equipped) Although the compact spare tire was fully inflated when your vehcle was new, it can lose air after a time.
Page 216 NOTICE: When the compact spare is installed, don’t take your vehicle through an automatic car wash with guide rails. The compact spare can get caught on the rails. That can damage the tire and wheel, and maybe other parts of your vehicle. Don’t use your compact spare on other vehicles.
Page 217: If You're Stuck: In Sand, Mud, Ice Or Snow
If You’re Stuck: In Sand, Mud, Ice or Snow What you don’t want to do when your vehicle is stuck is to spin your wheels too fast. The method known as “rockmg” can help you get out when you’re stuck, but you must use caution.
Page 218: Service And Appearance Care
Doing Your Own Service Work If you want to do some of your own service work, you’ll want to get the proper Cadillac Service Manual. It tells you much more about how to service your Cadillac than this manual can. To order the proper service manual, see “Service and Owner Publications”...
Page 219 Your vehicle has an air bag system. Before attempting to do your own service work, see “Servicing Your Air Bag-Equipped Cadillac” in the Index. You should keep a record with all parts receipts and list the mileage and the date of any service work you perform.
Page 221: Fuels In Foreign Countries
Fuels in Foreign Countries If you plan on dnviqg in another country outside the United States or Canada, the proper fuel may be hard to find. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel wouldn’t be covered by your warranty.
Page 222 Open the fuel filler cap slowly and wait for any “hiss” noise to stop. Then unscrew the cap all the way. Be careful not to spill gasoline. Clean gasoline from painted surfaces as soon as possible. See “Cleaning the Outside of Your Cadillac” in the Index.
Page 223: Checking Things Under The Hood
When you put the cap back on, turn it to the right until you hear at least three clicks. Make sure you fully install the cap. The diagnostic system can determine if the fuel cap has been left off or improperly installed. This would allow fuel to evaporate into the atmosphere.
Page 224 Hood Relea! To open the hood, first pull the handle inside the vehicle. It is on the lower left side of the instrument panel. Then go to the front of the vehicle and locate the secondary hood release. It is under the front edge of the grill.
Page 225 When you lift the hood, you will see these items: A. Battery B. Coolant Surge Tank Engine Oil Dipstick D. Automatic Transmission Dipstick Before closing the hood, be sure all the filler caps are on properly. Then pull the hood down and close it firmly. E.
Page 228: What Kind Of Oil To Use
What Kind of Oil to Use Oils recommended for your vehicle can be identified by loolung for the “Starburst” symbol. indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this Starburst symbol. If you change your own oil, be sure you use oil that has the...
Page 229: Engine Oil Additives
GM Goodwrench@ oil meets all the requirements for your vehicle. Engine Oil Additives Don’t add anything to your oil. Your Cadillac dealer is ready to advise if you think something should be added. is best for your engine damagr ot...
Page 230: When To Change Engine Oil
When to Change Engine Oil Your Cadillac has an Oil Life Indicator. This feature will let you know when to change your oil and usually between 3,000 miles (5 000 filter 7,500 miles (12 500 since your last oil change.
Page 231: Air Cleaner
Air Cleaner To check or replace nuts. and filter, loosen the wing up the lift cove^, 6-14...
Page 232 Remove the air filter. Be sure to inspect both sides of the filter and replace it as necessary. Refer to the Maintenance Schedule to determine when to replace the air filter. See “Scheduled Maintenance Services” in the Index. / ! A CAUTION: Operating the engine with the air cleaner off can cause you or others to be burned.
Page 233: Automatic Transmission Fluid
See "Scheduled Maintenance Services" in the Index. How to Check Because this operation can be a little difficult, you may choose to have this done at your Cadillac dealership Service Department. 6-16 I f you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick.
Page 235 Then, without shutting off the engine, follow these steps: 1. Flip the handle up and then pull out the dipstick and wipe it with a clean rag or paper towel. 2. Push it back in all the way, wait three seconds and then pull it back out again.
Page 236 How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transmission fluid to use. See “Recommended Fluids and Lubricants” in the Index. Add fluid after checking the transmission fluid only HOT. (A COLD check is used only as a reference.) If the fluid level is low, add only enough of the proper fluid to bring the level up to the HOT area for a hot check.
Page 237: Engine Coolant
If you have a problem with engine overheating, see “Engine Overheating” in the Index. A 50/50 mixture of water and the proper coolant for your Cadillac will: Give freezing protection down to -34°F (-37°C). Give boiling protection up to 265 Protect against rust and corrosion.
Page 238 What to Use Use a mixture of one-half clean water (preferably distilled) and one-half DEX-COOL silicate-free) antifreeze that meets GM Specification 6277M, which won’t damage aluminum parts. Use GM Engine Coolant Supplement (sealer) (GM Part No. 3634621) with any complete coolant change.
Page 239: Checking Coolant
Checking Coolant Turning the surge t engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly. Never turn the surge tank pressure cap little when the engine and radiator are hot. 6-22 COOLANT even a If this light comes on,...
Page 240: Surge Tank Pressure Cap
Adding Coolant If you need more coolant, add the proper mix at the surge tank, but only when the engine is cool. You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 241: How To Check Power Steering Fluid
Power Steering Fluid When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise. A fluid loss in this system could indicate a problem.
Page 242: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer fluid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a fluid that has sufficient protection against freezing.
Page 243: Brake Fluid
Brakes Brake Fluid Your brake master cylinder reservoir is here. It is filled with DOT-3 brake fluid. 6-26 There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to acceptable level during normal brake lining wear.
Page 244 CAUTION: If you have too much brake fluid, it can spill on the engine. The fluid wiIl burn the engine is hot enough. You or others could be burned, and your vehicle could be damaged. Add brake fluid only when work is done on the brake hydraulic system. Refer to the Maintenance Schedule to determine when to check your brake fluid.
Page 245 NOTICE...
Page 246: Brake Wear
Brake Wear Your Cadillac has fiont disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or...
Page 247: Brake Pedal Travel
Vehicles we design and test have top-quality GM brake parts in them, as your Cadillac does when it is new. When you replace parts of your bralung system example, when your brake linings wear down and you have to have new ones put in -- be sure you get new genuine GM replacement parts.
Page 248: Vehicle Storage
Battery Every new Cadillac has a Delco Freedom@ battery. You never have to add water to one of these. When it’s time for a new battery, we recommend a Delco Freedom battery. Get one that has the replacement number shown on the original battery’s label.
Page 249 Headlamp Gently remove the headlamp housing socket and bulb. 1. Rotate the headlamp housing socket counterclockwise to unlock the socket from the lamp housing. 6-32...
Page 252 Taillam 1. Remove the upper screw from the bezel. 2. Pull the upper portion from the extension housing, then lift up to remove the bezel. 3. Remove the lower taillamp housing screw. 4. Tilt the top portion of the taillamp housing out first, then remove it.
Page 253 6-36...
Page 256 3. Align the wiper arm pin with the hole on the wiper blade assembly and snap it into place to install. Tires We don’t make tires. Your new Cadillac comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Cadillac Warranty booklet for details.
Page 257 Inflation Tire Pressure The Tire-Loading Information label, which is located on the driver’s door, shows the correct inflation pressures for your tires when they’re cold. “Cold” means your vehicle has been sitting for at least three hours or driven no more than 1 mile (1.6 km).
Page 258: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be inspected every 6,000 to 8,000 miles (10 000 to 13 000 k m ) for any signs of unusual wear. If unusual wear is present, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels.
Page 259 After the tires have been rotated, adjust the front and rear inflation pressures shown Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” in the Index. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time.
Page 260: Buying New Tires
Buying New Tires To find out what kind and size of tires you need, look at the Tire-Loading Information label. The tires installed on your vehicle when it was new had a Tire Performance Criteria Specification (TPC Spec) number on each tire’s sidewall. When you get new tires, get ones with that same TPC Spec number.
Page 261: Uniform Tire Quality Grading
Uniform Tire Quality Grading The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance. (This applies only to vehicles sold in the United States.) The grades are molded on the sidewalls car tires.
Page 262: Wheel Alignment And Tire Balance
Temperature A, B, C The temperature grades are A (the highest), B, and C , representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled condtions on a specified indoor laboratory test wheel.
Page 263: Wheel Replacement
(except some aluminum wheels, which can sometimes be repaired). See your Cadillac dealer if any of these conditions exist. Your dealer will know the kind of wheel you need. Each new.whee1 should have the same load-carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces.
Page 264: Tire Chains
Used Replacement Wheels Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used or how many miles it’s been driven. It could fail suddenly and cause an accident. If you have to replace a wheel, use a new GM original equipment wheel.
Page 265: Appearance Care
When you use anything from a container to clean your Cadillac, be sure to follow the manufacturer’s warnings and instructions. And always open your doors or windows when you’re cleaning the inside.
Page 266 Using Foam-Type Cleaner on Fabric 1. Vacuum and brush the area to remove any loose d i r t . 2. Always clean a whole trim panel or section. Mask surrounding trim along stitch or welt lines. 3. Mix Multi-Purpose Powdered Cleaner following the directions on the container label.
Page 267: Cleaning Vinyl
Special Cleaning Problems Greasy or Oily Stains Stains caused by grease, oil, butter, margarine, shoe polish, coffee with cream, chewing gum, cosmetic creams, vegetable oils, wax crayon, tar and asphalt can be removed as follows: 1. Carefully scrape off excess stain. 2.
Page 268: Care Of Safety Belts
Cleaning Leather Use a soft cloth with lukewarm water and a mild soap or saddle soap. For stubborn stains, use a GM Vinyl/Leather Cleaner or equivalent product. Never use oils, varnishes, solvent-based or abrasive cleaners, furniture polish or shoe polish on leather. Soiled leather should be cleaned immediately.
Page 269: Cleaning The Outside Of The Windshield And Wiper Blades
During very cold, damp weather more frequent application may be required. (See “Recommended Fluids and Lubricants” in the Index.) Cleaning the Outside of Your Cadillac The paint finish on your vehicle provides beauty, depth of color, gloss retention and durability.
Page 270: Finish Care
Finish Care uccasional waxing or mild polishing of your Cadillac by hand may be necessary to remove residue from the paint finish. You can get GM-approved cleaning products from your dealer. (See “Appearance Care and Materials” in the Index.) Your Cadillac has a “basecoatlclearcoat” paint finish.
Page 271 Although no defect in the paint job causes this, Cadillac will repair, at no charge to the owner, the surfaces of new vehicles damaged by this fallout condition within 12 months or 12,000 miles (20 000 whichever occurs first.
Page 272 A,, --wa:--; Care M-ierials ,-,art SIZE PARTNUMBER 1050004 2.75 sq. ft. 1050172 (0.473 L) 1050173 16 oz. (0.473 L) 1052930 8 oz. (0.237 L) 12345002** 16 oz. (0.473 L) 12345725 12 oz. (0.354 L) See your General Motors Parts Department for these products. See “Fluids and Lubricants”...
Page 273: Vehicle Identification Number (Vin)
MODEL CODE YEAR This is the legal identifier for your Cadillac. It appears plate in the front corner of the instrument panel, on the driver's side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
Page 274: Electrical System
Your vehicle has an air bag system. Before attempting to add anything electrical to your Cadillac, see “Servicing Your Air Bag-Equipped Cadillac” in the Index. Headlamps The headlamp wiring is protected by an internal circuit breaker.
Page 275: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible thermal links. This greatly reduces the chance of fires caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 276 1 1 7...
Page 277 Fuse Usage A/C Compressor Relay, Primary Engine Cooling Fan Relay Component Center (RAP Wiper) Relay Blower Motor Control Module Rear Compartment Lid Release Switch Theft-Deterrent Relay, Air Bag System Instrument Cluster, Heater-A/C Control, VacuundElectric Solenoid, Electric Actuator Automatic Level Control Sensor, Rear Compartment Courtesy Lamp Component Center Relay Front Cigarette Lighter...
Page 278 Circuit Usage Breaker Lumbar, Power Antenna Accessory Time Delay Cut-Off (RAP Power) Relay Driver’s and Passenger’s Seat Adjuster Switches, Driver’s Seat Adjuster Memory Module, Driver’s and Passenger’s Seats Recline Switches Rear Defogger Relay Headlamp Relay, Daytime Running Lamps (DRL) Relay Engine Compartment Fuse Block Remove the cover to gain access to this fuse block.
Page 279 FUSE USAGE CHART LEVEL CONTROL Fuse Usage Circuit Breakers: 3,4; I/P Fuses: 36,37, 38, 39,40 Circuit Breaker: 2; UP Fuses: 21,22,26,27, 28,29,33,34,35 Concealed Fuse; I/P Fuses: 8,9, 10, 11, 12, 13, 14, 15,24; Underhood Electrical Center: 15, 16, 17, 18 ABS/TCS Brake Pressure Modulator Valve ABS/TCS Brake Pressure Modulator Valve Secondary Engine Cooling EmRelay...
Page 280: Replacement Bulbs
Replacement Bulbs You can get these from your Caddlac dealer Application ..... Ashtray Illumination ......Back-up Lamps Center High-Mounted Stoplamp .
Page 281: Replacement Parts
Replacement Parts ....Air Cleaner Fuel Filter ....Engine Oil Filter .
Page 282: Capacities (Approximate)
Refrigerant (R-134a) Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be sure the proper refrigerant is used. If you're not sure, ask your Cadillac dealer. Automatic Transmission (4L60-E) Pan Removal .
Page 283 Vehicle Dimensions (Approximate) ............Wheel Base .
Page 284: Section 7 Customer Assistance Information
‘ J c \ Section 7 Customer Assistance Information Here you will 5nd out how to contact Cadillac if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. This section includes information on:...
Page 285 Your dealer has the facility, trained technicians, special tools and up-to-date information to promptly address any issue which may arise. Cadillac has empowered its dealers to make decisions and repair vehicles, and they are eager to resolve your concern to your complete satisfaction.
Page 287: Roadside Service
Cadillac Roadside Service can be reached by dialing 1-800-882-1 112,24 hours a day, 365 days a year. This service is provided at no charge for any warranty-covered situation and for a nominal charge if the Cadillac is no longer under warranty. Cadillac Owner Privileges...
Page 288: Roadside Service Availability
Service Advisor will assist you and request the following information: A description of the problem Name, home address, home telephone number Location of your Cadillac and number you are calling from The model year, vehicle identification number and date of delivery...
Page 289: Roadside Service For The Hearing Or Speech Impaired
Telephone (TTY) in the Roadside Service Center. Any customer who has access to a (TTY) or a conventional teletypewriter can communicate with Cadillac by dialing from the United States or Canada 1-800-833-CMCC -- daily, 24 hours. Our Cadillac Dealer Technician network is ready and...
Page 290: Gold Key Courtesy Transportation
Cadillac’s commitment to provide the services you expect and deserve a Cadillac owner. Gold Key Courtesy Transportation helps you get where you need to be when your Cadillac is in the dealership for warranty service.* Courtesy Vehicle Gold Key Courtesy Transportation provides you with transportation if your car requires warranty repairs.
Page 291 General Motors reserves the right to change eligibility limitations and/or to discontinue its participation in this program. Both Cadillac and your Cadillac dealer are committed to making sure you are completely satisfied with your new vehicle. Our experience has shown that, if a situation...
Page 292 BBB at any time. The BBB will attempt to resolve the complaint serving as an intermediary between you and Cadillac. If this mediation is unsuccessful, an informal hearing will be scheduled where eligible customers may present their case to an impartial third-party arbitrator.
Page 293: Reporting Safety Defects To The United States Government
REPORTING SAFETY DEFECTS TO THE UNITED STATES GOVERNMENT If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
Page 294: Reporting Safety Defects To General Motors
Please call us at our Customer Assistance Center, 1-800-458-8006 or write: Cadillac Customer Assistance Center Cadillac Motor Car Division 30009 Van Dyke P.O. Box 9025 Warren, MI 48090-9025 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 295: Service Bulletins
Service Manuals Service manuals contain diagnostic and repair information for all chassis and body systems. They may be useful for owners who wish to get a greater understanding of their vehicle. They are also useful for owners with the appropriate skill level or training who wish to perform “do-it-yourself”...
Page 296 ......How Does it Restrain ....... . How it Works .
Page 297 ........6-3 1 Glass Inside of Your Cadillac Instrument Panel 6-63 .
Page 299 Engineoil Adding- ........Additives Checking Pres. sure Light .
Page 300 ....... Instrument Panel ......Brightness Control .
Page 301 ........Mats. Floor Methanol Mirrors Convex Outside .
Page 304 ....... . Towing a Trailer ......Towing Your Vehicle Traction Control System Traction Control System Active Light...
Page 305 Wheel Alignment Nut Torque Replacement Window ........Lock .

This manual is also suitable for:

1996 fleetwood

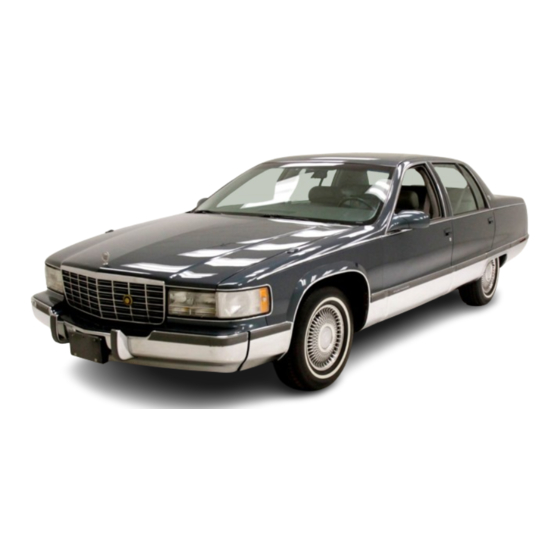

Cadillac 1995 Fleetwood Owner's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Cadillac 1995 Fleetwood

Summary of Contents for Cadillac 1995 Fleetwood

This manual is also suitable for:

Table of Contents
