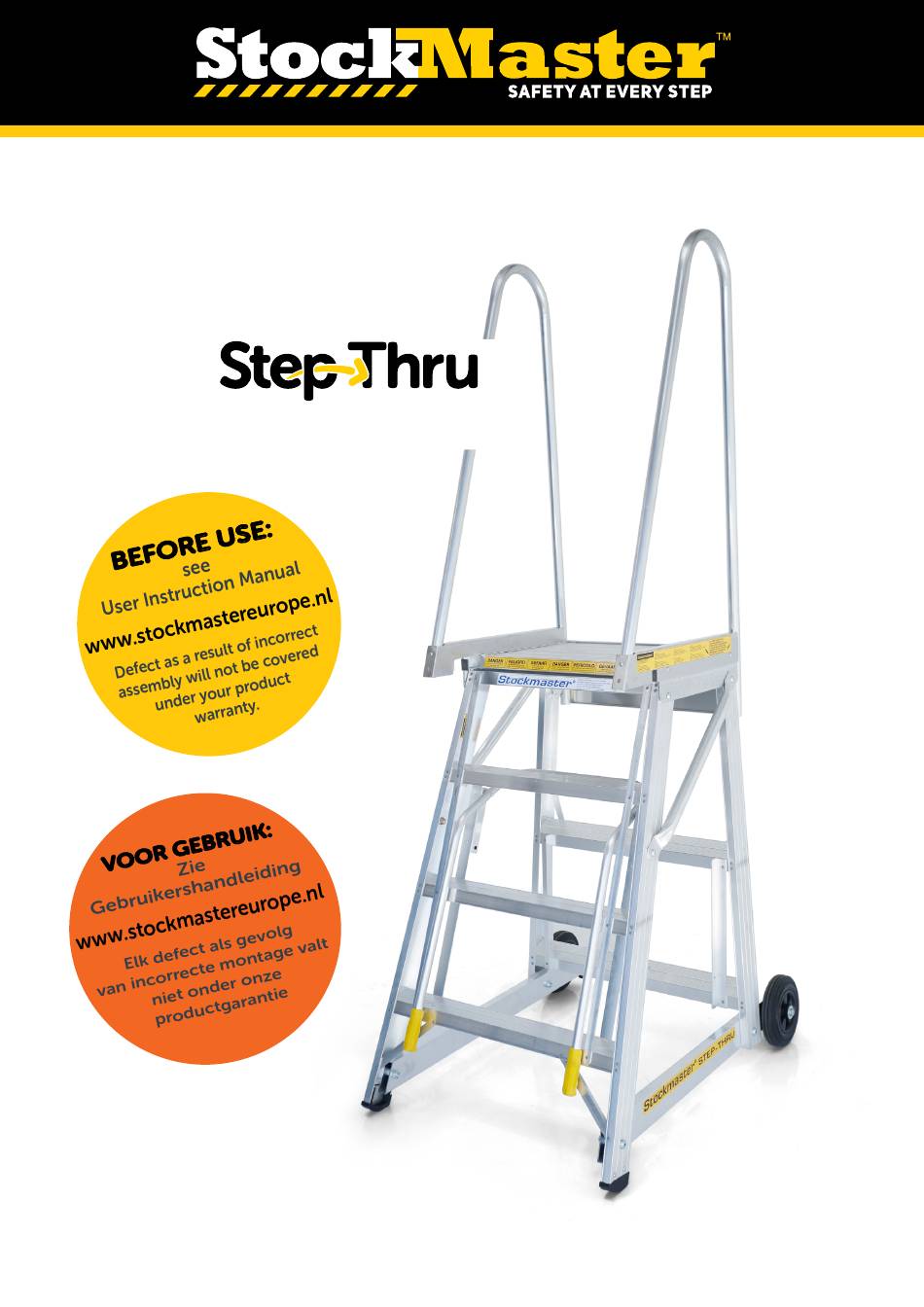

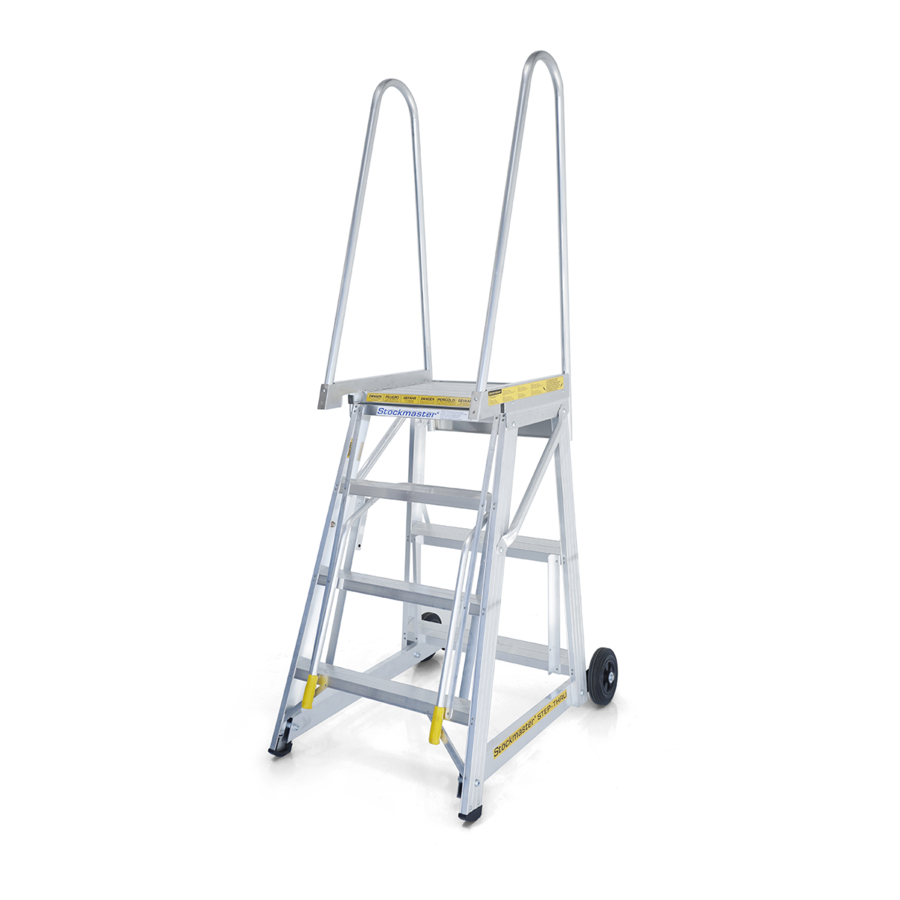

- Page 1 CL/INST03 Assembly Instructions...
- Page 2 Platform - Safety Rail Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Step 1 Fasten the two piece Side Safety Rail Set together at A using an M6 x 40mm Bolt and Nyloc Nut. Repeat for the second rail. (See illustration No. 1) Step 2 Attach one Side Safety Rail to the Rear Brace Plate with two M6 x 40mm Bolts and Nyloc Nuts at B and C.
- Page 3 Platform - Safety Rail Assembly M6 x 40 M6 x 40 Illustration 1 Illustration 2 M6 x 40 M6 x 45 Patch-Lok Illustration 3 Illustration 4 www.stockmastereurope.nl...
- Page 4 Ladder Frame Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Work Safely - Do not stand the frames upright when assembling. Place the frames in the positions as shown in the illustrations. Step 1 Lay the Rear Frame (without steps) on the floor and place the Platform over the frame as shown. Check that the side with the Flat Brace “E”...
- Page 5 Ladder Frame Assembly M10x 20 Illustration 3 Illustration 4 M10x 20 Illustration 5 www.stockmastereurope.nl...
- Page 6 Tube Brace Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Work Safely - Do not stand the frames upright when assembling. Place the frames in the positions as shown in the illustrations. Instructions for sizes with 3 to 7 steps including the platform There are no additional Tube Braces to be fitted to these sizes.
- Page 7 Tube Brace Assembly M10 x 20 Discard Illustration 1 Illustration 2 M10 x 20 Illustration 3 www.stockmastereurope.nl...
-
Page 8: Control Handle Assembly
IMPORTANT To avoid assembly problems follow these instructions exactly. Work Safely - This assembly is done with the Stockmaster standing upright. Step 1 - Stand the Ladder upright. Position the Control Handle in the Step Frame between the 2nd and 3rd steps. - Page 9 Control Handle Assembly “E” Clip “E” Clip Illustration 3 www.stockmastereurope.nl...
-
Page 10: Handrail Assembly
To avoid assembly problems follow these instructions exactly. Work Safely - This assembly is done with the Stockmaster standing upright. Step 1 Fix the Handrail to the Platform Kickrail. Slide the Handrail into the Kickrail and rotate the handrail so that the lower end is over the Step. - Page 11 Handrail Assembly Illustration 3 www.stockmastereurope.nl...
- Page 12 Mobilisation Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Work Safely - Do not stand the frames upright when assembling. Place frames in the positions shown in the illustrations Step 1 Fix the Mobilisation Rails (Rectangular Hollow Section - RHS) to the Frames at A & B. The fixing detail is shown in steps 2 to 3 (See illustration No.
- Page 13 Mobilisation Assembly Sleeve Spacer M12 x 65 Illustration 1 Illustration 2 M12 Washer M6 Screw M12 Nut Illustration 3 Illustration 4 www.stockmastereurope.nl...
- Page 14 Mobilisation Assembly M12 Nut Sleeve Sleeve Illustration 5 Illustration 6 www.stockmastereurope.nl...
-
Page 15: Warranty
Before use see the User Instruction Manual at www.stockmastereurope.nl Use this manual to form part of your Risk Assesment WARRANTY Thank you for choosing Stockmaster. Your safety is in good hands Register your 2 year warranty online at www.stockmastereurope.nl www.stockmastereurope.nl...
