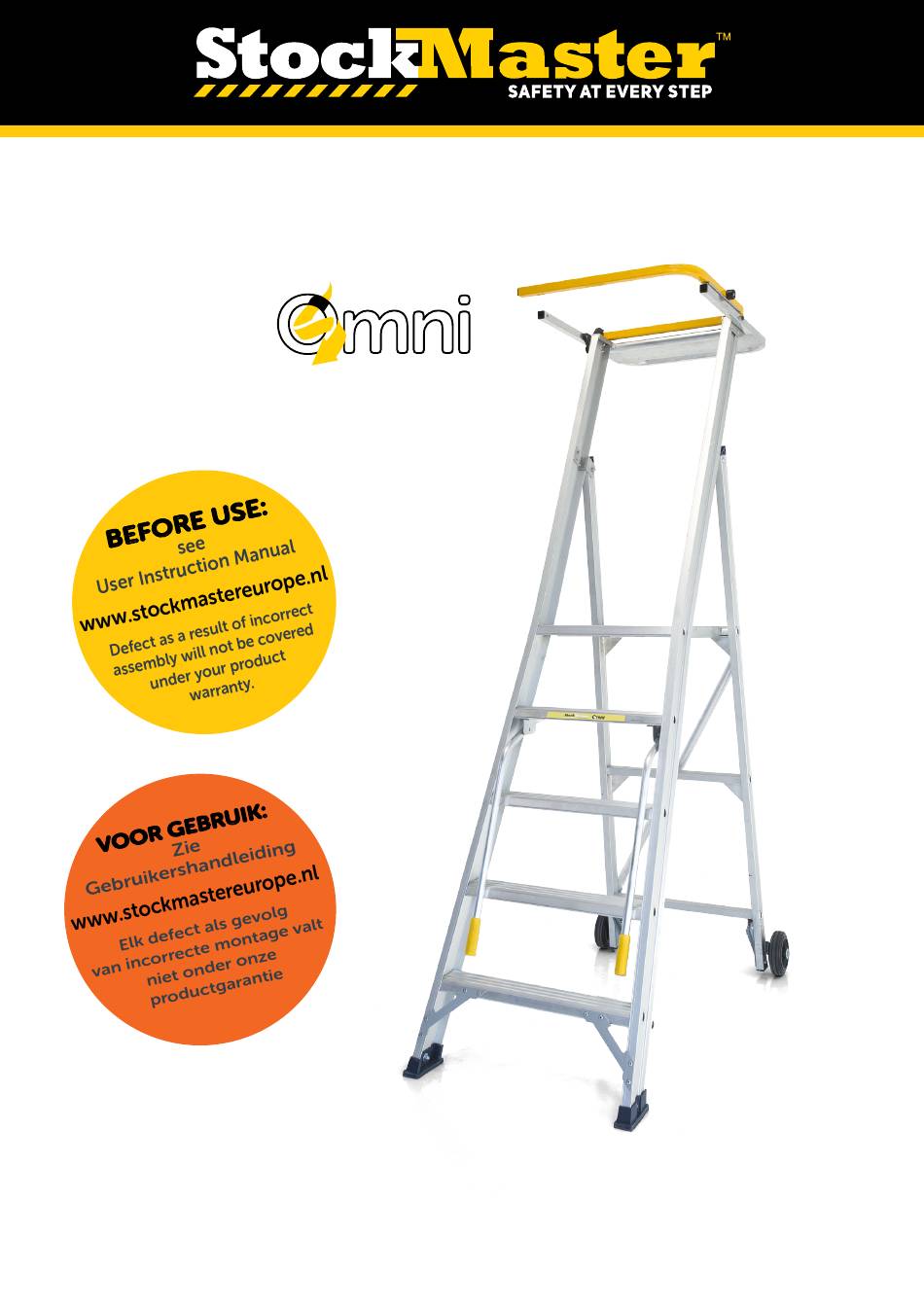

- Page 1 CL/INST07 Omni Assembly Instructions * Pro Version shown...
- Page 2 Mobilisation - Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Step 1 Support the Ladder lying flat on its front face and prop open the frames as shown. (See illustration No. 1) Step 2 Using the M6 x 30mm Screws and Nyloc Nuts supplied, fit the Rubber Bump Stops on the inside face of the Front Frame at A and B just below the bottom tread.
- Page 3 Mobilisation - Assembly M6 x 30 Illustration 1 Illustration 2 M12 x 85 M8 x 40 Illustration 3 Illustration 4 www.stockmastereurope.nl...
- Page 4 Control Handle - Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Step 5 Fix the Control Handle Brackets to the Control Handle. Pass the E Pin thru the hole in the Control Handle and Bracket and secure with an E Clip. (Tip- The clip may be pushed into place with a coin or screwdriver blade) (See illustration No.
- Page 5 Safety Gate - Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Step 7 Turn the Ladder over and support the Ladder lying flat on its back, front facing upward. Lay the gate assembly over the top of the ladder. (See illustration No. 7) Step 8 On the longer 8 x 40mm Shoulder bolt, place 1 Nylon washer sandwiched between 2 x M8 Steel Washers.
- Page 6 Safety Gate - Assembly IMPORTANT To avoid assembly problems follow these instructions exactly. Step 9 Position the locating plunger G protruding from the inside face of the Nylon wear plate. In hole H on the LHS rear safety bar side plate. (See illustration No. 9) Step 10 Insert the 8 x 30 Shoulder bolt (shorter bolt) thru hole I and screw into hole J on the RHS rear safety bar Finger tight only...
- Page 7 Safety Gate - Assembly 8 x 30 Shoulder Bolt Illustration 9 Illustration 10 Rotate 8 x 40 Shoulder Bolt M6 x 50 and Washer Pack Illustration 11 Illustration 12 www.stockmastereurope.nl...
- Page 8 Before use see the User Instruction Manual at www.stockmastereurope.nl Use this manual to form part of your Risk Assesment WARRANTY Thank you for choosing Stockmaster. Your safety is in good hands Register your 2 year warranty online at www.stockmastereurope.nl www.stockmastereurope.nl...
