Rocky's Eazy Roller 3A Instructions

1

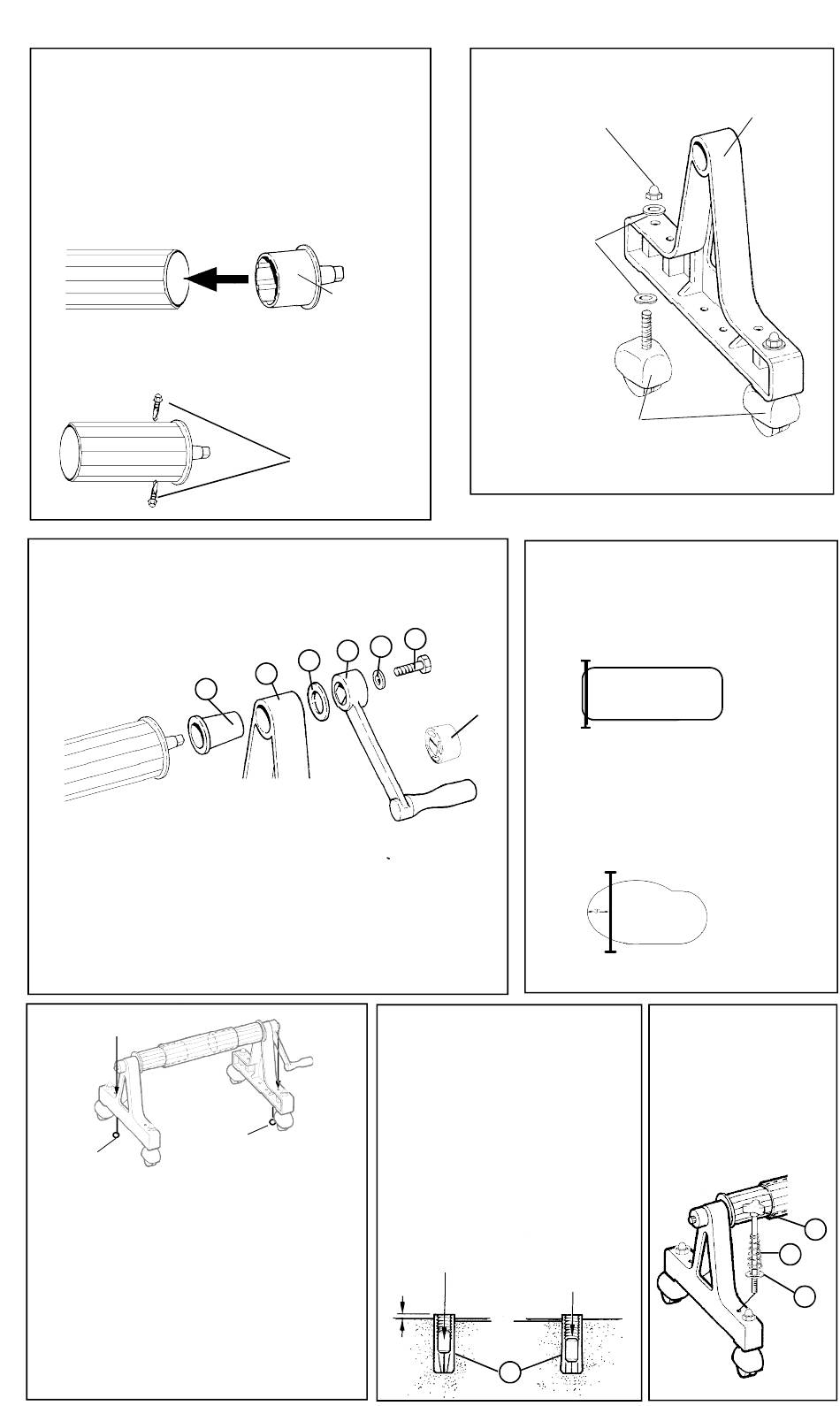

Assembling the tubes
Please see instruction supplied in the Tube box before
going any further.
Very important:
You must use the bolts supplied or the tube may sag.
When you have assembled the tube according to the
instructions put the 3" hubs in each end of the tube.
Using the Self-Drilling Self-Tapping screws attatch the 3"
Hubs to the tubes.
NOTE: No pre drilling required
3
Assemble the system
Put the Black Bushing #105 onto the end of the hub remembering to
put some Vasaline or waterproof grease inside the Bushing.
Grease once a year after that.
Push the tube into the Black Bushing then into the #3A Frame Part
#55.
Put the Black washer #107 over the end of the protruding end of the
Hub and slide the Handle #71 onto the end of the Hub.
Put the washer #19 on the Bolt #5 and secure the Handle.
VERY IMPORTANT: Do not overtighten this bolt as it will make it
hard to rotate the handle.
Repeat this on the other end of the unit and use the White Knob #61
in place of the Handle. Your system is now complete.
5
MARK
#1
Using one of the two holes in the A-frame as a guide,
make mark #1 on deck. With a 1/2" concrete drill bit,
drill a 1 1/2" deep hole at mark #1. Complete steps 6
and 7 before continuing to the other side of the unit.
On the other side of the roller unit, make mark #2 by
using one of the two holes in the A-frame as of guide.
With a 1/2" concrete drill bit, drill a 1 1/2" deep hole
at mark #2.
NOTE:
Set one bolt at front of frame on one end and
one at the rear of the frame on the other end.
#3A Portable Instructions
#69 - 3" Hub
SELF-DRILLING
SELF-TAPPING
SCREWS
71
107
55
105
61
MARK
#2
2
#21 3/8"Washers
#209 2" Casters
4
For regular shaped pools, align the outside edge
of the tube parallel with the end of the pool.
5
19
White Knob #61
For irregular shaped pools, the outside edge
of the tube should be a minimum of 3' inside
from the end of the pool. Place the reel at the
widest point if that is possible for a better result
6
Drive the concrete anchor #15 into the
hole with a hammer. Leave the anchor
raised 1/16" above deck.
To set the concrete anchor:
Hit the slug in the center of the anchor
(usually Red) with a hammer and
center punch, or heavy nail, driving the
slug down into the anchor forcing the
legs out into concrete.
Hit center slug
with hammer &
center punch,or
Slug
1/16"
large nail.
15
Assemble the end units
#29 Acorn Nut
Positioning your Reel System
7
Insert the anchor bolt
(item #11) through the
spring (item #25), through
the black spring guard
(item #109) and through
the hole of the A-frame.
#55 End Frame
11
25
109
