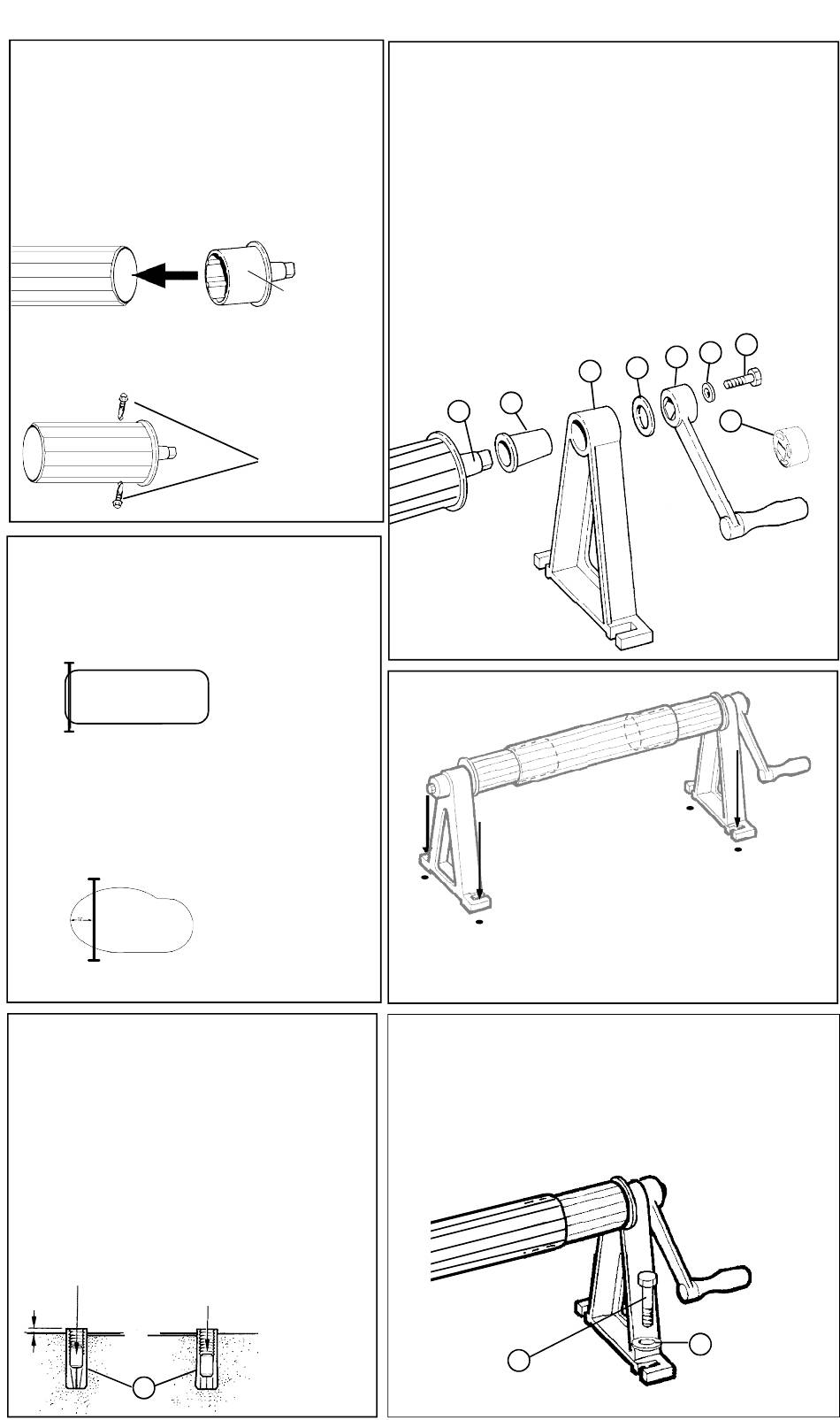

Rocky's Eazy Roller 4A Permanent Instructions

1
Assembling the tubes
Please see instruction supplied in the Tube box before
going any further.
Very important:
You must use the bolts supplied or the tube may sag.
When you have assembled the tube according to the
instructions put the 3" hubs in each end of the tube.
Using the Self-Drilling Self-Tapping screws attatch the 3"
Hubs to the tubes.
NOTE: No pre drilling required
3
Positioning your Reel System
For regular shaped pools, align the outside edge of the
tube parallel with the end of the pool.
For irregular shaped pools, the outside edge of the tube
should be a minimum of 3' inside from the end of the
pool. Place the reel at the widest point if that is possible
for a better result
6
Drive the concrete anchor #15 into the hole with a ham-
mer. Leave the anchor raised 1/16" above deck.
To set the concrete anchor:
Hit the slug in the center of the anchor (usually Red)
with a hammer and center punch, or heavy nail,
driving the slug down into the anchor forcing the legs
out into concrete. This will stop the anchor from
rotating.
Hit center slug
with hammer &
center punch,or
Slug
1/16"
large nail.
15
#4A Portable Instructions
2
Put the Black Bushing #105 onto the end of the hub remembering to
put some Vasaline or waterproof grease inside the Bushing.
Grease once a year after that.
Push the tube into the Black Bushing then into the #4A Frame Part
#57.
Put the Black washer #107 over the end of the protruding end of the
Hub and slide the Handle #71 onto the end of the Hub.
Put the washer #19 on the Bolt #5 and secure the Handle.
VERY IMPORTANT: Do not overtighten this bolt as it will make it
hard to rotate the handle.
#69 - 3" Hub
Repeat this on the other end of the unit and use the White Knob #61
in place of the Handle.
Your system is now complete.
SELF-DRILLING
SELF-TAPPING
SCREWS
4
Using the two holes of the #4 A-frame (item #57) as guides, make
two marks on deck for each #4 A-frame. With a 1/2" concrete drill
bit, drill a 1 1/2" deep verticle hole at each mark.
7
Insert the 3/8" bolts (item #7) through the
3/8" washers (item #21), through the #4 A-frames (item #57)
and into the concrete anchors (item #15).
Tighten the 3/8" bolts.
Assemble the system
57
105
69
7
5
19
71
107
61
21
TM
