Summary of Contents for BIEMMEDUE FIRE 45

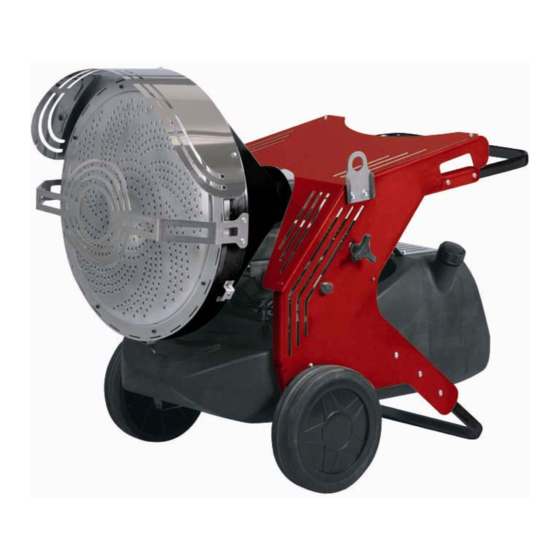

- Page 1 NEW INFRARED OIL HEATER NEW INFRARED OIL HEATER FIRE 45 FIRE 45...
- Page 2 Arcotherm & Oklima...
- Page 3 Tilting radiation cone Radiant cone can be tilted unscrewing two plastic knobs Fixing holes...
- Page 4 Main features 2 speed version Thermal power capacity 42.7 kW (Hi) 2° speed 45.5 kW (Hs) Thermal power capacity 34.4 kW (Hi) 1° speed 36.7 kW (Hs) Tank capacity 65 litres Run time 2° speed 15 hours 1° speed 18 hours Power 370 W - 3A Weight...
- Page 5 Main features 1 speed version Thermal power capacity 42.7 kW (Hi) 45.5 kW (Hs) Tank capacity 65 litres Run time 15 hours Power 370 W - 3A Weight 75kg Power requirement 230V 50Hz Dimensions 1380 x 705 x 990 [mm] Shipping dimensions 1035 x 650 x 1125 [mm] - 93kg Q.ty for container:...
- Page 6 Functining scheme...
- Page 7 Heater cutted view...
- Page 8 Functioning scheme – combustion head...
- Page 9 Combustion chamber no ceramic cone patent patent Infrared shield Air cooling holes...
-
Page 10: Combustion Head
Combustion head Very efficient combustion head allowing a perfect air/oil mix and consequent complete combustion, with very low (0 ppm) carbon monoxide level Air intake set by a sliding air lock Air lock adjustable Combustion air turbolator... -
Page 11: Overheat Thermostat
Overheat thermostat Stops the heater in case of problem... - Page 12 Front infrared shields All stainless stell...
- Page 13 Lower infrared shield - optional Lower protection shield to avoid the floor overheating...
- Page 14 Large radiation disk High temperature resistant steel : stainless steel AISI 309 L...
- Page 15 One speed version 45kW...
- Page 16 Two speed version 45-35 kW The heater always starts at high power (45kW) which can be converted to low power ( 35kW) after 20 seconds Two stage switch Two stage oil pump...
- Page 17 Two stage oil pump...
- Page 18 Fuel tank The strong and compact look is given by the innovative design. The oil tank is made of anti-shock polietylene, hydrocarbon resistant, reinforced with special additives, allowing the use in very cold or aggressive environments. Tank capacity : 65 litres for a long run time autonomy...
- Page 19 Fuel tank Oil sucking connections Body support Draining threaded cap to clean the oil tank...
- Page 20 Fuel tank Water draining hole Electrical housing...
- Page 21 Fuel tank gauge...
-
Page 22: Fuel Tank Cap
Fuel tank cap... - Page 23 Oil filter and pipes Rubber oil pipes, hydrocarbons resistant, reinforced with stainless steel sheath, guaranteeing : Higher resistence to very cold conditions Higher mechanical resistance to cuts and cracks...
- Page 24 Pre heated oil filter - optional...
- Page 25 Burner...
-
Page 26: Electrical Board
Electrical board The electrical board is made of antishock and fire resistent polypropylen plastic class V0. The componets are: Electronic control flame Fuse connections relays Ground connections High voltage transformer Switch 1-0-2 Switch 0-1 EMC Filter... - Page 27 Electrical board Remote thermostat socket Power light Reset Switch 1 Switch 2 – green light 1 Manual 1 2° speed – high power 45kW 2 Automatic 0 1° speed – low power 35 kW 0 stop...
- Page 28 Running on automatic or manual Three position switch: – Position 0 : stop – Position 1 : running on manual – Position 2 : running on automatic trough a remote thermostat – No electric bridge required in the socket cap, avoiding problems due to lost caps.
- Page 29 Electronic control flame box CE and CSA approved CE approved in conformity to the EN230:2004 standard UL-CSA approved, in conformity to the UL 733 by Three colour warning light: – Green colour : working position – Orange colour: stand-by position –...
- Page 30 Pre and post ventilation All the models are equipped with: 15 seconds pre-ventilation cycle to “clean” the combustion chamber After switching off the machine, a post ventilation time is electronically set by a control flame box to lower the combustion chamber temperature. This free heat is blown into the room.
- Page 31 Power cable support...
- Page 32 Suspending plates...
- Page 35 Electrical wiring 2° speed...
