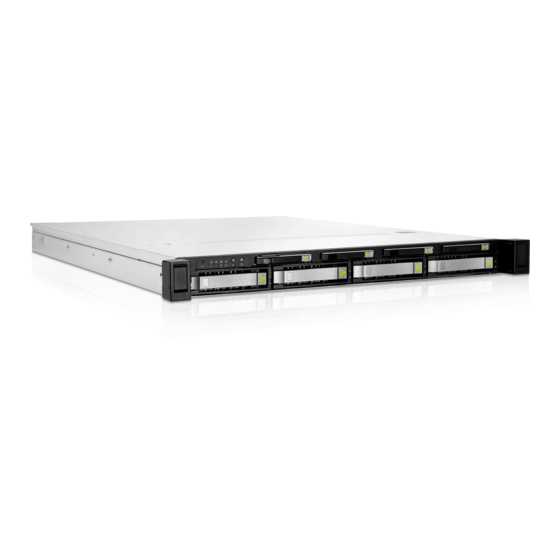

- Page 1 IW-RS108-07 SLIM HYBRID BACKPLANE USER MANUAL P/N : 2RAKVI009000 Model I W-RS108-07 SLIM 4BAY HYBRID Backplane-H ： ： ： ： MODULE Version : V1.0 Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 1 OF 12...
- Page 2 Revision History Version Changes Date V1.0 Official Release 2021/05/25 Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 2 OF 12...
-
Page 3: Table Of Contents
Connector Pin Definitions ....................7 Hardware Specification ................8 LED Behavior ....................9 Disk Bay LED ........................9 System Alarm LED ......................10 Firmware Upgrade ..................11 Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 3 OF 12... -
Page 4: Overview
Overview InWin backplanes (without Expander) are high performance and cost effective solution for supporting Intel Purley platform by adding NVMe support. The passive backplanes support state-of-the-art SAS3 12Gbps HDD/SSD and also backward compatible with SAS 6Gbps, SATA 6Gps and SATA 3Gps HDD/SSD. The backplane supports NVMe SSD through OcuLink x4 connectors. -
Page 5: Mechanical
Mechanical Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 5 OF 12... -
Page 6: Connector Locations And Led Indicators
SAS/U.2 Drive Number DISK1/ DISK2 SATA/SAS Disk or NVMe SSD #1/#2 DISK3/ DISK4 SATA/SAS Disk or NVMe SSD #3/#4 Location Hard Drive Power/Activity/Failure/Locate LEDs D1/D2/D3/D4 DISK1~DISK4 Power/Activity/Failure/Locate LED Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 6 OF 12... -
Page 7: Connector Pin Definitions
2 & 3 Ground 4 & 5 +12V Firmware Programming Connector PIN # Definition PIN No# Definition ICE_CLK ICE_DATA #Key ICE_RST Ground Power 4-Pin Connector PIN # Definition LINK_SIG Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 7 OF 12... -
Page 8: Hardware Specification
SFF-8621 OCULINK 42PIN Connector *4 (NVME1~NVME4) SFF-8639 U.2 68PIN Connector *4 (DISK1~DISK4) for SATA/SAS3 Disk or NVMe SSD. P4.2mm Disk Drive Power Connector*1 (PW1) JD1 MCU Programming Header for Programming MCU Firmware Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 8 OF 12... -
Page 9: Led Behavior
For SAS application, The LEDs behave by following SGPIO signal coming through sideband bus inside the SFF-8643 to SFF-8621 cables. The SGPIO setting is enabled the LEDs behave according to the SGPIO signals. Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 9 OF 12... -
Page 10: System Alarm Led
NVMe3 connector’s sideband I2C bus and …etc. System Alarm LED There is a FAIL LED (DB2) design on the Backplane to indicate Over-Temperature for indicating system fault. Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 10 OF 12... -
Page 11: Firmware Upgrade
In most cases, the MCUs are not required to reprogram unless there is issue needed to fix. How to upgrade firmware? 1. Require Nuvoton ARM Cortex-M0 programming tool. Nu-Me or Nu-Link and install Nuvoton ICP Programming tool software. Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 11 OF 12... - Page 12 3. Make sure device is connected and select the binary file being programmed and then click on Start button to program firmware. 4. Please refer to http://www.nuvoton.com/resource- files/NuLink_Adapter_User_Manual_EN_V1.01.pdf for more details. Model : IW-RS108-07 Slim 4Bay Hybrid Backplane User Manual PAGE 12 OF 12...
