Broan L2000L Installation Manual

BROAN LIGHT DUTY SERIES- EXHAUST FAN
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to pre-
vent backdrafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage elec-
trical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7 . To reduce the risk of fire, use only metal ductwork.
8. Models L100, L150, L200, L250, and L300 only:
If this unit is to be installed over a tub or shower, it must be marked
as appropriate for the application and be connected to a GFCI
(Ground Fault Interrupter) - protected branch circuit.
9. Never place a switch where it can be reached from a tub or shower.
10. This unit must be grounded.
!
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Please read specification label on product for further information
and requirements.
COOKING AREA
Do not install above or
inside this area.
o
45
NOT FOR USE IN
Cooking
A COOKING AREA.
Equipment
#2 Chootoo Road, South Aranguez, San Juan, Trinidad

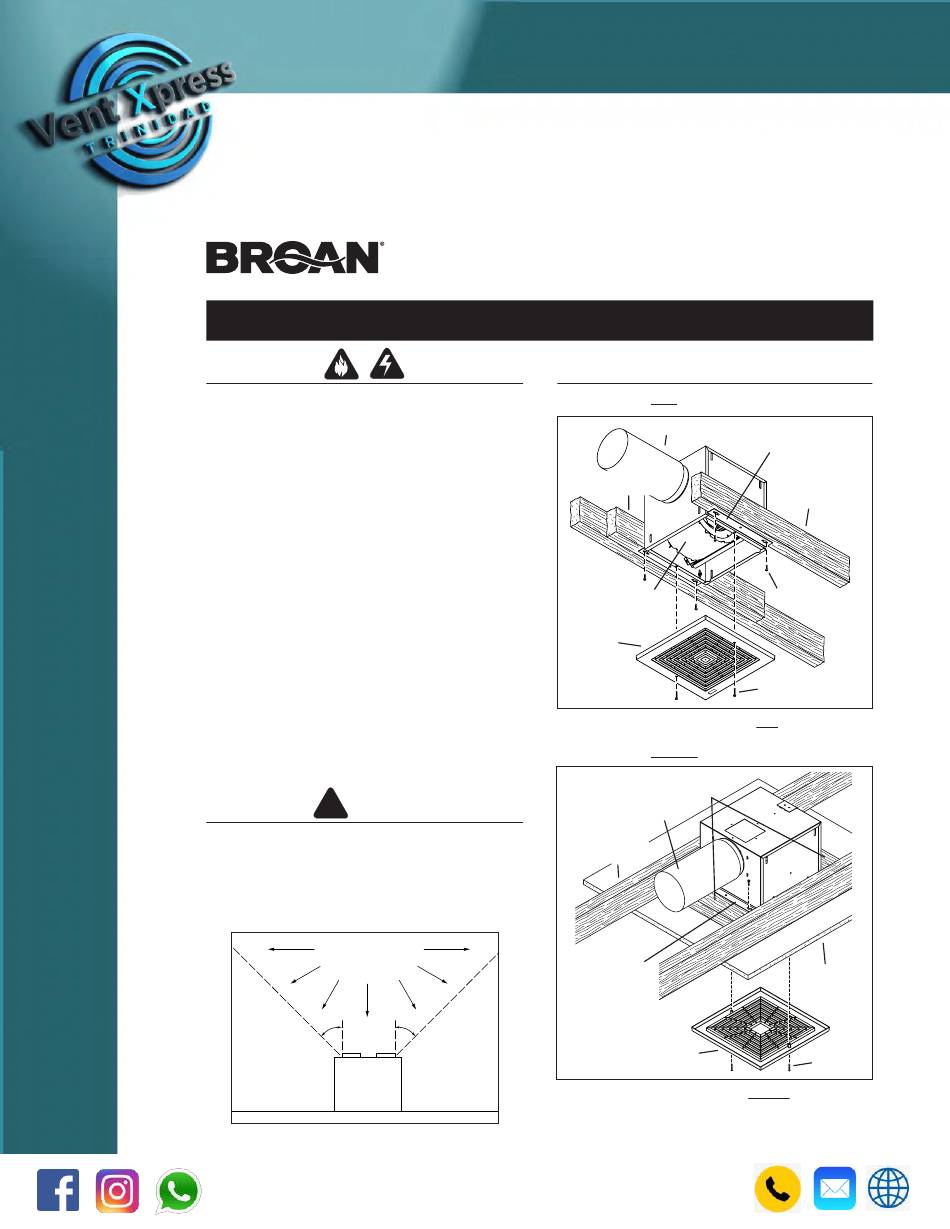

INSTALLATION GUIDE
LOSONE SELECT
Ceiling/Wall Mount
TYPICAL INSTALLATION
MOUNTING (New Frame Construction)
Blower factory-shipped
discharge position.
GRILLE
(Polymeric
shown)
Install after
ceiling is
finished.
Factory-shipped unit installed in new construction.
MOUNTING (Existing Frame Construction)
CEILING JOIST
MOUNTING
BRACKETS
(Attached to
opposite sides
of housing & up-
side-down,
so housing is
o
45
finished ceiling)
Factory-shipped unit installed in existing construction.
Floor
* L100 & L150 Series uses 6" Round Duct.
1
L200, L250, & L300 Series uses 8" Round Duct.
VENTILATORS
®
ROUND DUCT*
position for ½" ceil-
ADDITIONAL
1½" FRAMING
in horizontal
GRILLE
SCREW
2 X 4 FRAMING
(wide side down)
ROUND DUCT*
(16" centers
shown)
flush with
GRILLE
(Polymeric shown)
Mounting brackets
factory-shipped in
ing material.
CEILING JOIST
(16" centers shown)
MOUNTING
SCREW
FINISHED
CEILING
MATERIAL
GRILLE
SCREW
