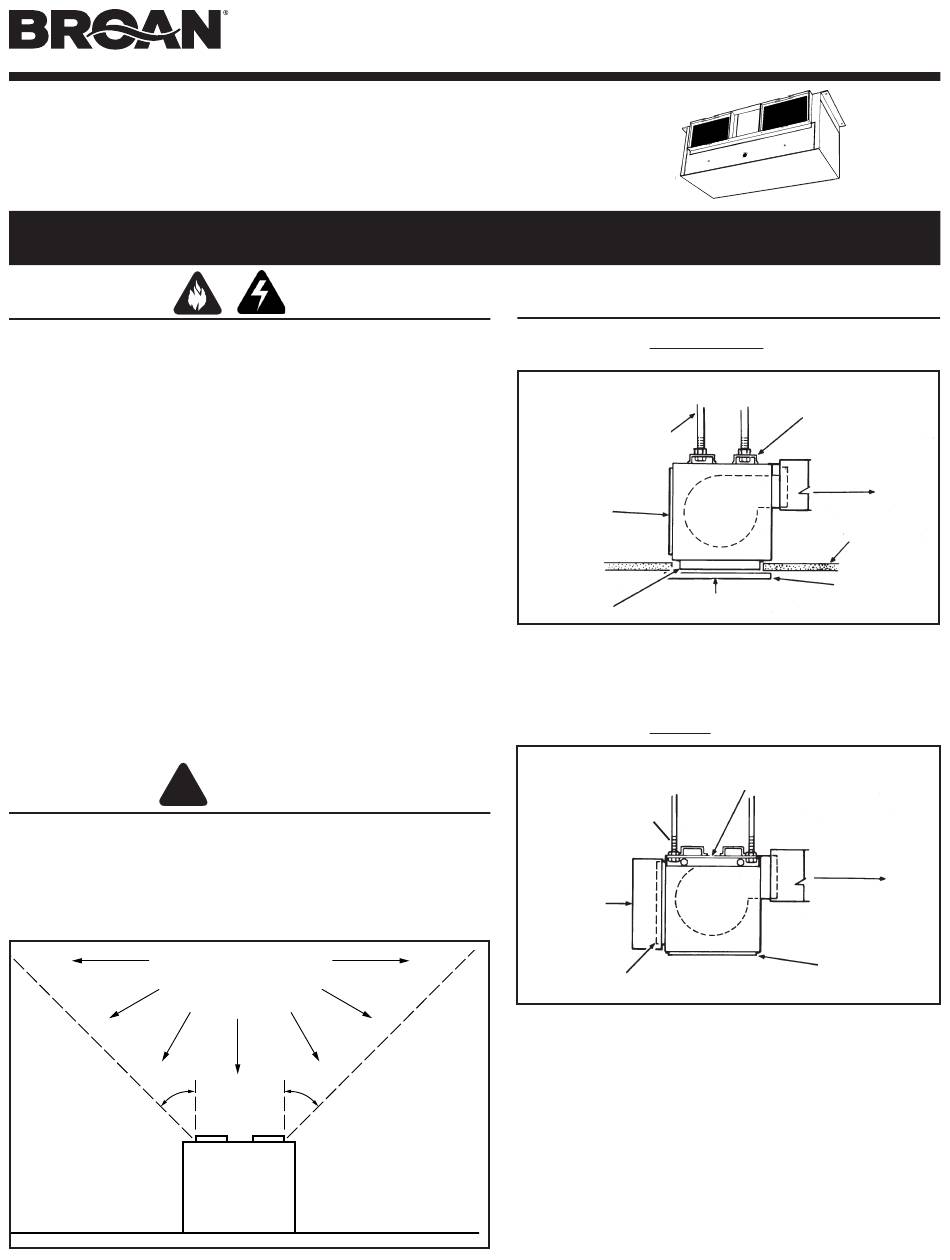

Broan LOSONE SELECT L2000L Instructions Manual

LOSONE SELECT
CABINET VENTILATORS
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer at the address or telephone
number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from be-
ing switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment manufacturer's guideline
and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. This unit must be grounded.
!
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impel-
lers, keep drywall spray, construction dust, etc. off power unit.
3. Please read specification label on product for further information and
requirements.
COOKING AREA
Do not install above or
inside this area.
o
45
NOT FOR USE IN
A COOKING AREA.
®
o
45
Cooking
Equipment
Floor
IN-LINE
PLAN INSTALLATION
MOUNTING (Right-angle Discharge)
THREADED ROD
ACCESS
PANEL
DUCT
FLANGES
Factory shipped ready to be installed as a ceiling
MOUNTING (In-line Configuration)
3/8" MIN.
THREADED ROD
(By Others)
INTAKE
FLANGES
Installer: Leave this manual with
Homeowner: Use and Care
MODELS L2000L • L3500EXL
3/8" MIN.
(By Others)
INTAKE
ventilator with right-angle discharge.
ADJUSTABLE
DUCT
Converted for in-line applications.
the homeowner.
information on page 3.
Page 1
MOUNTING
CHANNELS
EXHAUST
CEILING
GRILLE KIT
BRACKET
INTAKE
EXHAUST
ACCESS
PANEL
