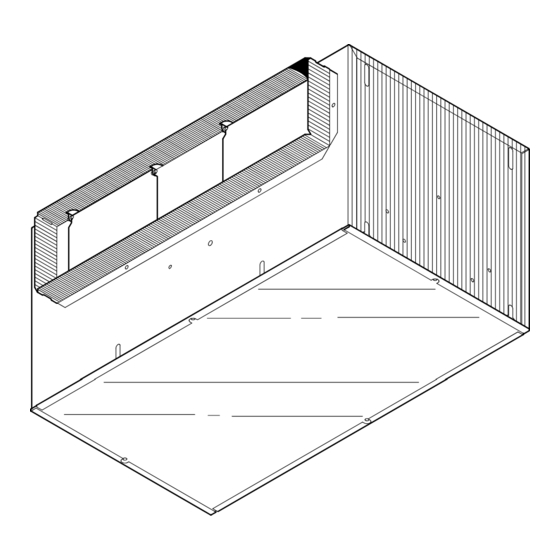

LOSONE SELECT
VENTILATORS
In-Line 120V
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to pre-
vent backdrafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electri-
cal wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only metal ductwork.
8. If this unit is to be installed over a tub or shower, it must be marked
as appropriate for the application and be connected to a GFCI
(Ground Fault Interrupter) - protected branch circuit.
9. Never place a switch where it can be reached from a tub or
shower.
10. This unit must be grounded.
!
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. If ventilator is installed in an unconditioned space (such
as an attic): Surround the ventilator with thermal insulation - to
minimize possible condensation.
4. Please read specification label on product for further information
and requirements.
Installer: Leave this manual with the homeowner.
Homeowner: Use and Care information on page 3.
®
TABLE OF CONTENTS
This manual is divided into sections as follows:
"TYPICAL INSTALLATION"
This section shows a common installation in new and existing,
frame construction.
- Mounting (new construction)
- Mounting (existing construction)
- Wiring
- Ducting (straight-through blower discharge)
"MOUNTING OPTIONS"
"WIRING OPTIONS"
-Wiring Plate Position
"DUCTING OPTIONS"
- Blower Discharge Positions
- Ducting (right angle blower discharge)
"USE AND CARE"
"SERVICE PARTS"
"WARRANTY"
MODELS
L400L • L500L • L700L
Page 1
Page 1

Advertisement

loading

Summary of Contents for Broan LOSONE SELECT L400L

  • Page 1 MODELS L400L • L500L • L700L Page 1 Page 1 LOSONE SELECT ® VENTILATORS In-Line 120V READ AND SAVE THESE INSTRUCTIONS WARNING TABLE OF CONTENTS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY This manual is divided into sections as follows: TO PERSONS, OBSERVE THE FOLLOWING: “TYPICAL INSTALLATION”...
  • Page 2 MODELS L400L • L500L • L700L Page 2 TYPICAL INSTALLATION TYPICAL INSTALLATION MOUNTING (New Frame Construction) WIRING BLACK 10” ROUND DUCT 4½” X 18½” Mounting brackets TO 10” ROUND TOP / BACK BLACK factory-shipped in TRANSITION OF HOUSING position for ½” ceil- ing material.
  • Page 3: Mounting Options

    MODELS L400L • L500L • L700L Page 3 MOUNTING OPTIONS DUCTING OPTIONS BLOWER DISCHARGE POSITIONS ¼-20 hex nuts secure mounting brackets to housing. Loosen and re-tighten or remove and replace nuts as necessary for desired mounting bracket position. DUCT CONNECTOR DUCT CONNECTOR 1½"...
  • Page 4 BROAN ONE YEAR LIMITED WARRANTY Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 5 MODELOS MODELS L400L • L500L • L700L VENTILADORES Página Page 5 LOSONE SELECT ® Para montaje en cielo raso/pared • 120 V LEA Y CONSERVE ESTAS INSTRUCCIONES ADVERTENCIA CONTENDIO PARA REDUCIR EL RIESGO DE INCENDIO, GOLPE ELÉCTRICO, Este manual consiste en las siguientes secciones: O LESIÓN A PERSONAS, OBSERVE LO SIGUIENTE: 1.
  • Page 6 MODELOS MODELS L400L • L500L • L700L Página Page 6 INSTALACIÓN TÍPICA INSTALACIÓN TÍPICA MONTAJE (Estructura nueva) CONEXIÓN ELÉCTRICA CONDUCTO REDONDO NEGRO Abrazaderas de montaje, DE 10” (25,4 cm) enviadas de fábrica en PARTE SUPERIOR/ 4½” X 18½” TO 10” NEGRO posición para montarse en POSTERIOR DEL...
  • Page 7 MODELS MODELOS L400L • L500L • L700L Página Page 7 OPCIONES DE MONTAJE OPCIONES PARA LA COLOCACIÓN DE CONDUCTOS Las tuercas hexagonales de ¼ x 20 aseguran las abrazaderas de montaje en el alojamiento. Afloje y vuelva a apretar o quite y reem- POSICIONES DE LA DESCARGA DEL VENTILADOR place las tuercas según sea necesario para colocar las abrazaderas de montaje en la posición deseada.
  • Page 8 GARANTIA LIMITADA DE BROAN DE UN AÑO Broan le garantiza al consumidor comprador original de sus productos que tales productos estarán libres de defectos en materiales o mano de obra por un período de un año a partir de la fecha de compra original.
  • Page 9 MODÈLES MODELS L400L • L500L • L700L Page 9 Page VENTILATEURS LOSONE SELECT ® Montage au plafond/mur 120 V LIRE ET CONSERVER CES INSTRUCTIONS AVERTISSEMENT TABLE DES MATIÈRES POUR RÉDUIRE LE RISQUE D´INCENDIE, DE CHOC ÉLEC- Ce manuel se divise comme suit : TRIQUE OU DE BLESSURES PERSONNELLES, OBSERVEZ CE QUI SUIT: •...
  • Page 10 MODÈLES MODELS L400L • L500L • L700L Page 10 INSTALLATION TYPIQUE INSTALLATION TYPIQUE MONTAGE (Construction en cours) CÂBLAGE CONDUIT CIRCU- TRANSITION NOIR AU DESSUS / ARRI- LAIRE 4½ X 18½ au 10 po NOIR Supports préassemblés ÈRE DU BOÎTIER DE 10 po (25,4 cm) (11,4 x 47 au 25,4 pour plafonds de ½...
  • Page 11 MODÈLES MODELS L400L • L500L • L700L Page 11 OPTIONS DE MONTAGE OPTIONS D’INSTALLATION DES CONDUITS POSITIONS DE LA DÉCHARGE DE LA SOUFFLERIE Des écrous à six pans ¼-20 fixent les supports au boîtier. Desserrer et resserrer ou retirer et replacer les écrous si nécessaire, selon la RACCORD DE CONDUIT RACCORD DE CONDUIT position désirée pour le support.
  • Page 12 Cette garantie vous donne des droits légaux spécifiques et il se peut que vous ayez d’autres droits. Cette garantie annule toutes les garanties précédentes. Pour le service sous garantie, vous devez (a) aviser Broan á l’adresse ci-dessous, (b) donner le numéro du modèle et l’identification de la pièce et (c) décrire la nature de tout défaut dans le produit ou la pièce.
