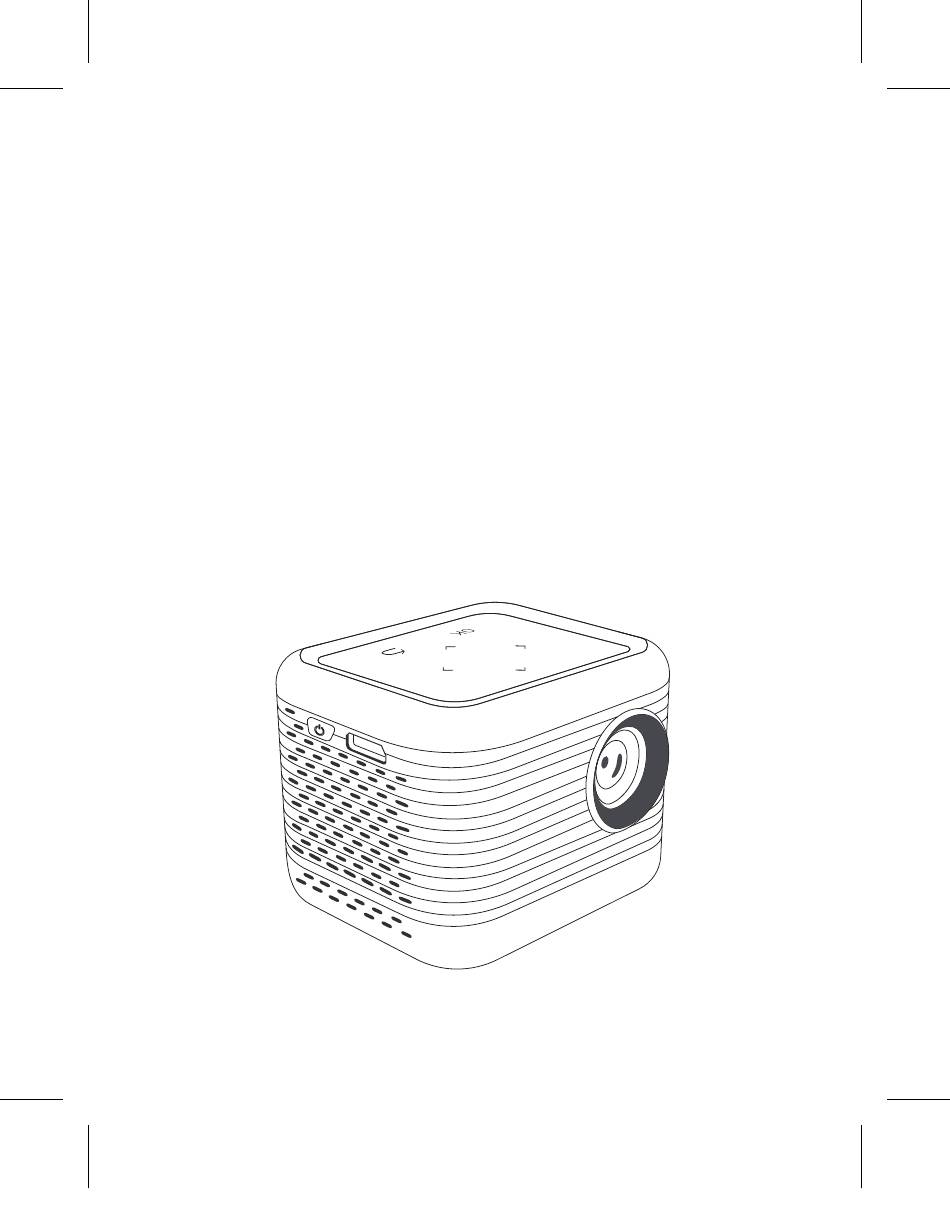

- Page 1 MINI DLP LED PROJECTOR keycode: 43078004 Instruction Manual P21065_INTRA_LED_MiniProjector_210719.indd 1 20/7/2021 3:30 PM...
-
Page 2: Safety Instructions
Safety Instructions: Please read the instruction manual before using this de- vice and follow all the safety instructions to avoid damage caused by improper use. Keep the instruction manual for future reference. Should this device be given to a third party, then this instruction manual must also be handed over. - Page 3 Check the power cord and plug regularly for any damage. If the power cord of this device is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards. Do not operate the device if it has fallen on the floor or has been damaged in any other way.
-
Page 4: Before First Use
Before first use: Unpack the device and check if all parts are there and undamaged. Should this not be the case, return the product to retailer for replacement. Danger of suffocation! Keep all packaging materials away from children. Remove all protective foils and packaging material prior to use. -
Page 5: Cleaning And Care
friendly way and according to the applicable legal regulations. Batteries are very dangerous if swallowed. Please keep the batteries and the device components away from children at all times. If a battery is swallowed, seek medical attention immediately. Batteries must not be recharged or activated with other means, dismantled, thrown into fire or short-circuited. - Page 6 Parts Front lens mini tripod connector P21065_INTRA_LED_MiniProjector_210719.indd 6 20/7/2021 3:30 PM...
- Page 7 TOP / navigation panel confirm return right down left P21065_INTRA_LED_MiniProjector_210719.indd 7 20/7/2021 3:30 PM...
- Page 8 BACK charge indicator infra red receiver USB port Audio out jack DC 5V jack Focus wheel P21065_INTRA_LED_MiniProjector_210719.indd 8 20/7/2021 3:30 PM...
-
Page 9: Left Side
LEFT SIDE Power button ON/OFF HDMI jack P21065_INTRA_LED_MiniProjector_210719.indd 9 20/7/2021 3:30 PM... -
Page 10: Remote Control
REMOTE CONTROL When using the remote control, it must be pointed at the infra red receiver at the back of the projector. POWER MUTE on / off turn sound temporarily off NAVIgATION confirm selection up, down, left, right decrease volume increase volume MENU select input... -
Page 11: Adjust Focus
ChARGE PROJECTOR Stick the jack plug of the mains adaptor into the DC 5V jack on the back of the projector. Connect the mains adaptor to an appropriate power outlet. The projector must be switched off for charging. The charge indicator next to the jack flashes red. When the battery is charged, the charge indicator continu- ously shines red. - Page 12 uSB IN Insert a USB-device into the USB port at the back of the projector. Use the navigation panel on top of the projector or the navigation ring on the remote control to select PICTURE MUSIC VIDEO or TXT (document mode) Confirm you choice with OK.
-
Page 13: Audio Out
AuDIO OuT To use external speakers or headphones, insert their 3.5mm plug into the AUDIO OUT jack at the back of the projector. The sound will be transmitted through your external speakers or your headphones. PROJECTION SETTINGS Use the navigation panel on top of the projector or the navigation ring on the remote control to choose SETTINgS Under SETTINgS, use the navigation panel on top of the... -
Page 14: Time Settings
TIME SETTINGS Settings → Time → OK Use the navigation panel on top of the projector or the navigation ring on the remote control to set or change time and date. Use the left and right cursor to select year - month - day - hour - minutes. -
Page 15: Volume Settings
vOLuME SETTINGS Settings → Volume → OK Use the navigation panel on top of the projector or the navigation ring on the remote control to adjust the volume. Use the right cursor to increase the volume. Use the left cursor to decrease the volume. - Page 16 PROJECTION MODE Settings → Projection Mode → OK Depending on the position the projector is in, select the appropriate projection mode. Rear Projection Front Projection Ceiling Projection Rear Ceiling Projection Press to return to the SETTINgS menu. P21065_INTRA_LED_MiniProjector_210719.indd 16 20/7/2021 3:30 PM...
-
Page 17: Brightness Settings
BRIGhTNESS SETTINGS Settings → Brightness → OK Use the navigation panel on top of the projector or the navigation ring on the remote control to adjust the brightness. Use the right cursor to increase brightness. Use the left cursor to decrease brightness. ... -
Page 18: Language Settings
LANGuAGE SETTINGS Settings → Language → OK Use the navigation panel on top of the projector or the navigation ring on the remote control to adjust the language. CHINESE Use the left and right cursor to select the language. Confirm you choice with OK. ... -
Page 19: Technical Data
TEChNICAL DATA 1. Input Rating: 5V,2A(Max) 2. USB output rating: 5V,0.1A(Max) 3. fully charged in about 6 hours 4. Play time: up to 1.5 hours (80% brightness) 5. Battery capacity:2500mAh P21065_INTRA_LED_MiniProjector_210719.indd 19 20/7/2021 3:30 PM...
