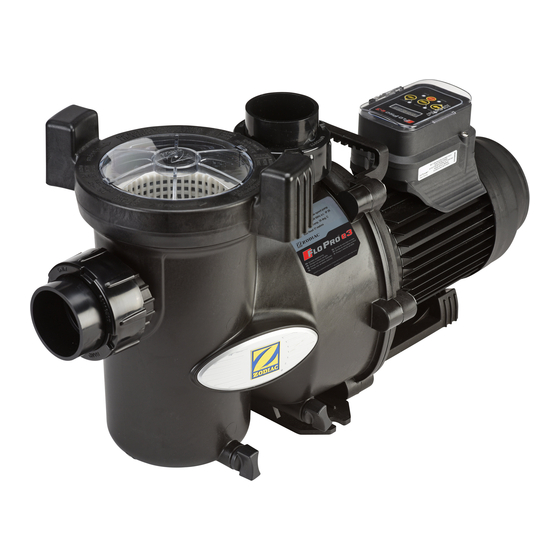

Summary of Contents for Zodiac FloPro e3
- Page 1 Instructi ons for installati on and use English More documents on: www.zodiac-poolcare.com H0538700.B - 2015/09...
- Page 2 • This pump is compatible with all types of water treatment used in a swimming pool. Refer to the Zodiac® warranty conditions for details of the permitted water balance values. • Never run the pump dry or out of the water (this will invalidate the warranty)
-
Page 3: Table Of Contents
Contents 1. Information before installing ....................3 1.1 General delivery terms and conditions ..................3 1.2 Contents ............................3 1.3 Technical specifications .........................3 2. Installation ............................3 2.1 Selecting the location ........................3 2.2 Positioning the equipment ......................3 2.3 Hydraulic connections ........................4 2.4 Electric connections ........................4 3. -
Page 4: Information Before Installing
1. Information before installing 1.1 General delivery terms and conditions All equipment, even postage and packing paid, travels at the risks and perils of the recipient. Written reserves should be made on the transporter’s delivery documents if damage during transport is discovered by the recipient (confirmed by registered letter to the transporter within 48 hours). -
Page 5: Hydraulic Connections
2.3 Hydraulic connections 1: pump 2: filter 3: heating system 4: water treatment system Respect the hydraulic connection direction (see $ "Dimensions" in the appendix). Maximum suction rate at Maximum discharge rate at Pipes 1.8 metres/second 2.4 metres/second Ø50 mm 14 m³/h 19 m³/h Ø... -
Page 6: Use
2.4.3 Connecting the motor's power supply • Open the electrical cabinet by unscrewing the 3 screws on the user interface and tilting it to the side (pay attention to the wires underneath). • Run the supply cable through the gland and connect it to the (earth) and L-N terminals: •... -
Page 7: Use And Configuration Of The User Interface
3.4 Use and configuration of the user interface Speed Keys to start the speed Default speed "ECO" speed 1400 rpm "CLEAN" speed 2150 rpm "BOOST" speed 2850 rpm • When the pump is running, it displays the operating speed and an LED lights up above the key which corresponds to the speed. -
Page 8: Troubleshooting
5. Troubleshooting 5.1 Error codes Number of Malfunction Possible causes Solutions flashes User interface is • The user interface resets itself • Check the electrical connections inside defective constantly the user interface housing. • Replace the motor - interface assembly if necessary. -
Page 9: Registering The Product
6. Registering the product Register your product on our website: you will be the first to be informed of new Zodiac® products and special offers, You can help us to constantly improve our product quality. Europe & Rest of the World www.zodiac-poolcare.com... - Page 10 Dimensions Weight pump only : 10 kg Description Water admission Water discharge Pre-filter cover User interface Pump motor Drain Performance graphs Hydraulic head Flow H0538700.B - EN - 2015-09...
- Page 12 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
