H0448700.B - 2014/05
Instructi ons for installati on and use
English
More documents on:
www.zodiac.com
TM
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLOPRO VS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

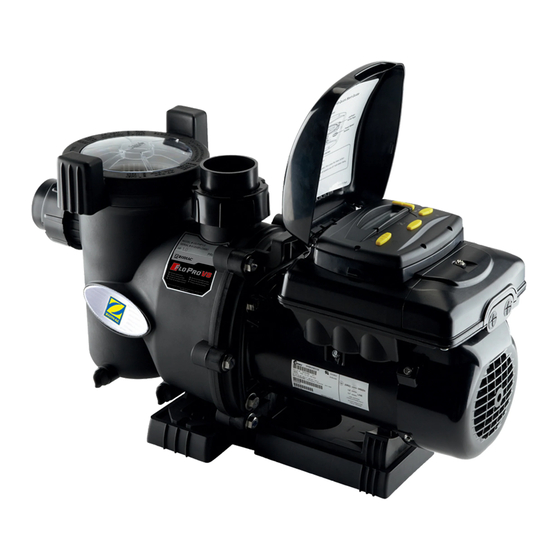

Summary of Contents for Zodiac FLOPRO VS

  • Page 1 Instructi ons for installati on and use English More documents on: www.zodiac.com H0448700.B - 2014/05...
  • Page 2 • Keep the appliance out of the reach of children. • This pump is compatible with all types of pool water treatment. Please refer to the Zodiac® warranty terms for the detail of admissible water balance values.
  • Page 3: Table Of Contents

    Contents 1. Information before installing ........................3 1.1 General delivery terms and conditions ...................... 3 1.2 Contents ................................3 1.3 Technical specifications ..........................3 2. Installation ............................... 3 2.1 Selection of the location ..........................3 2.2 Installing the appliance ..........................3 2.3 Hydraulic connections ..........................
  • Page 4: Information Before Installing

    1. Informati on before installing 1.1 General delivery terms and conditi ons All equipment, even postage and packing paid, travels at the risks and perils of the recipient. Writt en reserves should be made on the transporter’s delivery documents if damage during transport is discovered by the recipient (confi rmed by registered lett er to the transporter within 48 hours).
  • Page 5: Hydraulic Connections

    2.3 Hydraulic connections 1: pump 2: filter 3: heating system 4: water treatment system Follow the hydraulic connection direction (see § “Sizes” in the appendix). Maximum admission flow rate Maximum discharge flow rate at Pipe 1.8 metres/second 2.4 metres/second Ø 50 mm 14 m³/h 19 m³/h Ø...
  • Page 6 2.4.1 Voltage and protecti on • Electric protecti on: use a circuit breaker (D curve) or a fuse (aM) (calibre 16A minimum), with a specifi c 30 mA Residual Current Device (RCD) or Ground Fault Circuit Breaker (GFCB) at the head of the line (circuit breaker or switch). •...
  • Page 7 b) Remote user interface option • This interface can be installed in another location using the supplied remote kit. • In order to avoid risk of electrocution, which can result serious injury or loss of life, be sure to disconnect all power at the source before proceeding with the instructions below.
  • Page 8 c) AquaLink® TRi connecti on opti on • In order to avoid risk of electrocuti on, which can result serious injury or loss of life, be sure to disconnect all power at the source before proceeding with the instructi ons below. •...
  • Page 9: Use

    3. Use 3.1 User interface presentation Symbol Description Menu access button Validate a selection Preset “eStar”speed button (1750 rpm) Back button for a sub-menu Preset speed buttons Rotation speed change buttons Menu navigation key (pressing continuously scrolls the values increasingly quickly) Display: pump off Operation to carry out to activate a speed Time...
  • Page 10: User Interface Settings And Use

    3.4 User interface settings and use The user interface has a battery to keep the time and saved settings in memory when the pump is no longer connected to the electricity supply. 3.4.1 Locking/unlocking the keyboard Press for 5 seconds: displays as long as the keyboard is locked.
  • Page 11 b) Label speeds Used to associate a name with a pre-programmed speed. press to access the setting : select the speed number you want to label using , then press to validate: The “General” setting proposes a list of pre-defined labels: Filtration, Cleaning, Spa, Spa jets, Heating, Waterfall, Sheer descent (= water blade) or water feature.
  • Page 12 f) Password protection Used to protect access to the user menu using a 4 digit password. This protection will only activate after the user interface has been idle for 10 minutes press to access the setting: choose the required function and press to validate: No password protection, the user menu remains accessible to the user Password protection activated...
  • Page 13 • When the pump is running on a Timer, the led corresponding to the speed lights red and a clock appears on the screen: • When the pump is not running but a Timer is active, the led corresponding to the speed lights in green. •...
  • Page 14 c) Priming Used to set the pump priming speed. A priming speed greater than 2500 rpm is strongly recommended in order for it to be effective. press to access the setting: press to change the priming speed: use the keys to set the speed (from 600 to 3450 rpm, per 10 rpm step), then press to validate.
  • Page 15 f) Pump type This setting is used to determine the maximum authorised pump speed depending on the selected type. It is recommended not to change this setting to keep optimum pump performances. press to access the setting: use the keys to select “ePUMP 60Hz” (maximum speed by default = 3450 rpm) or “ePUMP 50Hz”...
  • Page 16: Maintenance

    4. Maintenance 4.1 Maintenance instructions It is recommended to carry out general servicing of the appliance on winterizing and restarting in order to check it is in good working order and maintain its performances, as well as to prevent certain possible defects. These actions are the user’s responsibility and must be carried out by a qualidied technician.
  • Page 17: Registering The Product

    6. Registering the product www.zodiac.com Register your product on our website: You will be the fi rst to be informed of new Zodiac® products and special off ers, You can help us to constantly improve our product quality. H0448700.B - EN - 2014-05...
  • Page 18 Dimensions Weight pump only : 17kg Description Water admission Water discharge Pre-filter cover User interface Pump motor Drain Performance graphs Hydraulic head Flow H0448700.B - EN - 2014-05...
  • Page 19 Notes...
  • Page 20 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further informati on, please contact your retailer. ZODIAC® is a registered trademark of Zodiac Internati onal, S.A.S.U., used under license.
